Yamaha DANTE AIC128D
  • Yamaha DANTE AIC128D
Yamaha

Yamaha DANTE AIC128D

MFR# AIC128-D

AIC128 Nuage digital high speed interface

Product No Longer Available

Need help finding a different option? We can help.

We respond within one business day. All inquiries are confidential.

Experts At Your Service

Have a question? Our Audio Consultants and Technicians have years of real-world experience and are ready to help.

Call now

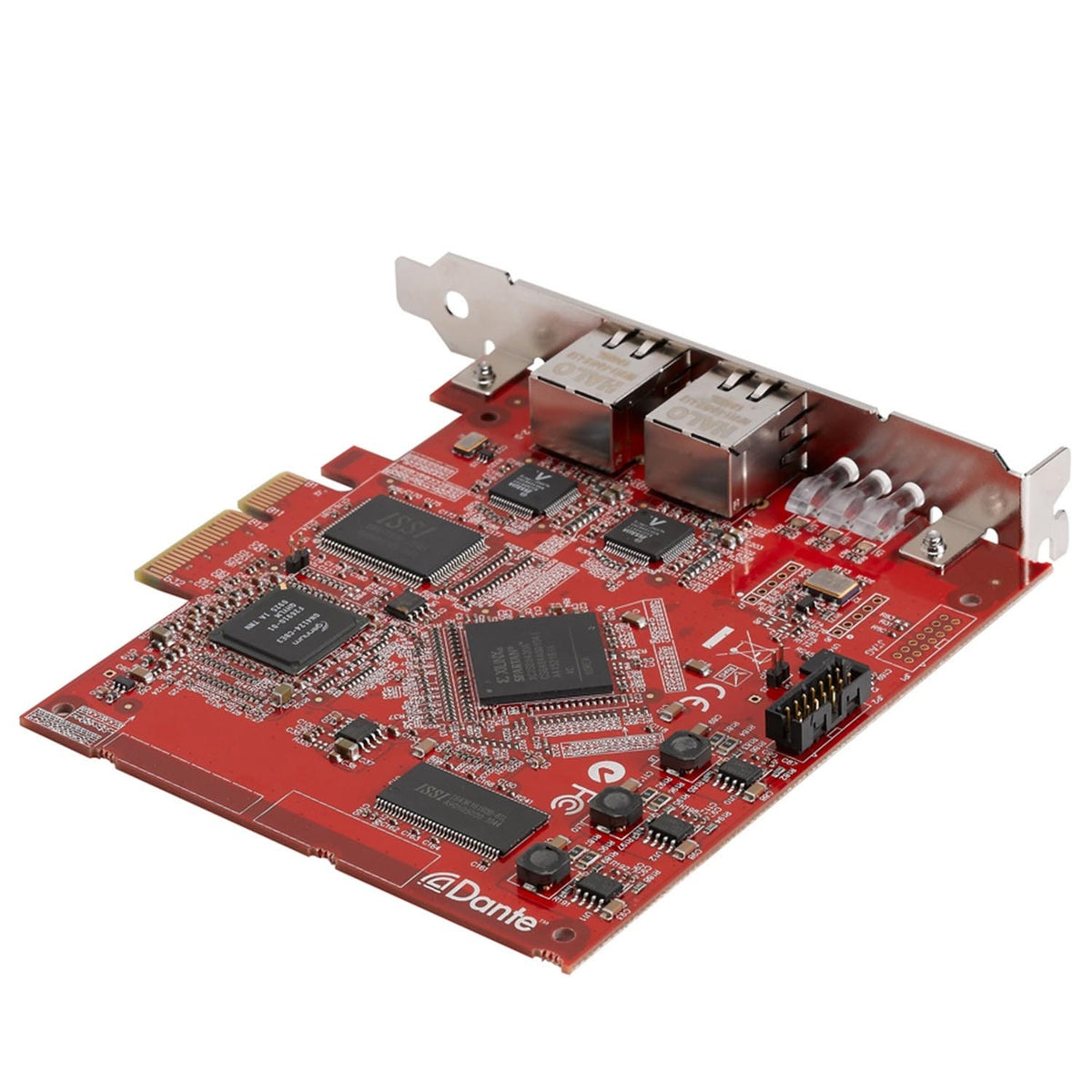

The Dante Accelerator audio interface card can be installed in the computer running the Nuendo DAW to provide extra low-latency multi-channel audio data transfer capacity as an added advantage when communicating with Nuage I/O units. Features:

Installs in the computer running the Nuendo DAW to provide extra low-latency transfer of as many as 128 simultaneous channels of audio data Maximizes performance when communicating with Nuage I/O units Secondary port enables redundant connections for failsafe reliability

General Specifications

  • PCI Express card Compatible with PCI Express x4 slots v1.0 and above
  • Audio Interface ASIO (Windows 7 /8 /8.1) or Core Audio (OS X 10.7.5 /10.8/10.9*1)
  • Audio channels 256 channels (128 in/128 out @ 96 kHz or less)
  • 128 channels (64 in/64 out @ 176.4 kHz or more)
  • Supported Sample Rates 44.1, 48, 88.2, 96, 176.4, and 192kHz
  • Pull-up/Pull-down +4.1667, +0.1, -0.1, and - 4.0 %
  • Sample bit-depth 24 bit
  • Dante Network interface Gigabit (1000Mbps; 1Gbps) Ethernet RJ45 port x2
