Waves DiGiGrid IOC (Demo Deal)
  • Waves DiGiGrid IOC (Demo Deal)
On Sale!

$500 OFF THROUGH 4/30/26

Waves Audio

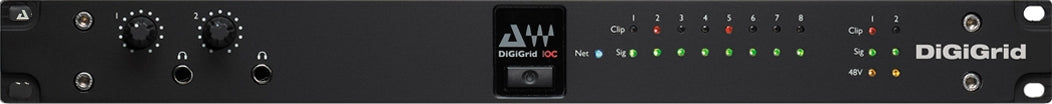

Waves DiGiGrid IOC (Demo Deal)

MFR# IOC

Control room I/O

Product No Longer Available

Need help finding a different option? We can help.

We respond within one business day. All inquiries are confidential.

Experts At Your Service

Have a question? Our Audio Consultants and Technicians have years of real-world experience and are ready to help.

Call now

Perfect for the control room, the DiGiGrid IOC audio interface offers a range of connectivity options, including 2 mic/line inputs with broadcast-grade preamps, 8 line inputs/outputs and 16 AES and ADAT inputs/outputs, plus two powerful headphone outputs. With the IOC and a dedicated SoundGrid DSP server on your network, you will be able to run hundreds of SoundGrid-compatible Waves and third-party plug-ins, all fully integrated within your DAW of choice.

Plug the IOC into your SoundGrid network using a single ethernet cable, and you will enter a new world of real-time tracking, mixing and monitoring with extremely low latency of only 0.8 milliseconds.




Specifications:

General

  • 8x line inputs (25-pin D-Con)
  • 8x line outputs (25-pin D-Con)
  • 16x AES/EBU I/O (2x 25-pin D-Con)
  • 1x ADAT I/O (8 channels @ 48kHz; 4 channels @ 96kHz; 2 channels @ 192kHz*)
  • 2x Mic inputs (XLR/TRS combo)
  • 2x SoundGrid RJ45 ethernet ports
  • 1x Word clock I/O
  • 1x AC input
  • 2x headphone outputs with analog level knobs
  • 1U rack-mounted
  • Supported sample rates: 44.1, 48, 88.2, 96, 176.4*, 192* kHz
  • Clock Synchronization via Word Clock input, AES/EBU, SoundGrid (SoE), Internal
  • Reset switch
  • Multiple broadcast level format settings (jumpers on all analog I/Os)



Inputs

  • Mic input impedance: 2K5 Ohms
  • Phantom power: 48V
  • Line input impedance: 8K0 Ohms
  • Mic gain range: -20 to +60dB in 0.5dB steps
  • Line gain range: -30 to +50dB in 0.5dB steps
  • Mic maximum input level: +26dB
  • Line maximum input level: +36dB
  • Mic equivalent input noise: >-126dB (150 Ohm source, Gain +60dB)
  • Frequency response: +/-0.5dB 20Hz to 20kHz
  • Channel separation: Better than 90dB (40Hz to 15kHz)



Outputs

  • Maximum line output level: +22dBu
  • Residual line output noise: Frequency Response: +/-0.5dB 20Hz to 20kHz
  • Line output impedance: 50 Ohms
  • Channel separation: Better than 90dB (40Hz to 15kHz)
