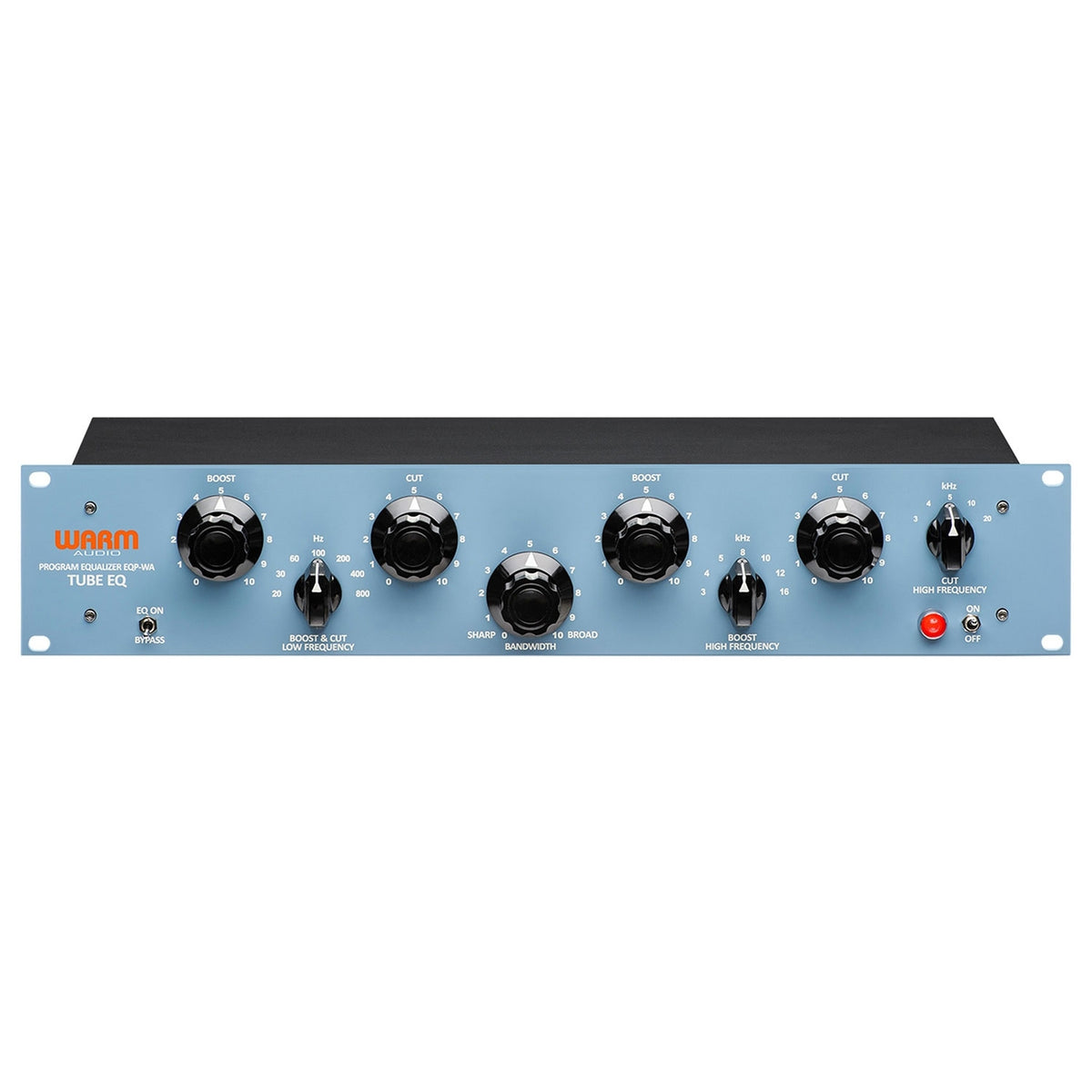

The Warm Audio EQP-WA Tube Equalizer is a recreation of the most renowned tube Equalizer in studio history, the "Pultec EQP-1A". Not only does the look and feel of the EQP-WA match the classic Pultec units, but the sonic quality has been carefully considered by using top-end components such as CineMag transformers and premium tubes. This fully discrete Tube EQ can pull euphoric sonics from any track and bring a brilliance and luster to mixes that’s nearly impossible to achieve inside-the-box. Warm Audio are proud to have once again redefined the industry standard by bringing a fully professional-grade equalizer to the market at a price that's just as remarkable as the unit.
Warm's goal was to make a equalizer affordable for the first time, without compromising the quality and design parameters that make this type of equalizer so desirable.
Premium Components
The EQP-WA is a high-voltage tube equalizer, utilizing CineMag USA Transformers and two premium vacuum tubes by Tung-Sol.
The EQP-WA operates on two tubes: one 12AX7 and one 12AU7. We proudly use Tung-Sol brand tubes in this product for their sonic richness and 'open' sound. These 2 tubes are socketed for easy swapping and replacement.
Specifications:
- Premium grade input and output CineMag USA transformers
- Tube equalizer based on the classic “Pultec” EQP-1A
- Premium high voltage 12AX7 and 12AU7 tubes
- CineMag inductor EQ section
- EQ section is bypassable - signal still passes through tubes and transformers for warming effect
- XLR and TRS transformer balanced outputs
- Flat frequency response from 20 Hz - 50 kHz
- XLR and TRS transformer balanced inputs
- No insertion loss - loss restored by tube amplifier
- 5 added frequency response points for greater flexibility
- Switchable 115/230 volt IEC power inlet
- Dimensions: 19 X 3.5 X 6 inches - 2RU rack mountable
- Low frequency boost - 20, 30, 60, 100, 200, 400, 800 Hz - 12 dB
- Low frequency cut - 20, 30, 60, 100, 200, 400, 800 Hz - 18 dB
- High frequency boost - 3, 4, 5, 8, 10, 12, 16 kHz - 18 dB
- High frequency cut - 3, 4, 5, 10, 20 KHZ - 14 dB
- Boost and cut controls can be used simultaneously for phase effect
Specifications
| Channels | |
|---|---|
| Chassis | |
| Input Connectors | 1/4-inch TRS, Analog XLR |
| Output Connectors | 1/4-inch TRS, Analog XLR |
| Tube or Solid State | |
| Tube Complement | |
| Equalizer type | Program (Pultec-style) |
| Rack format | 19-inch rackmount 2U |
