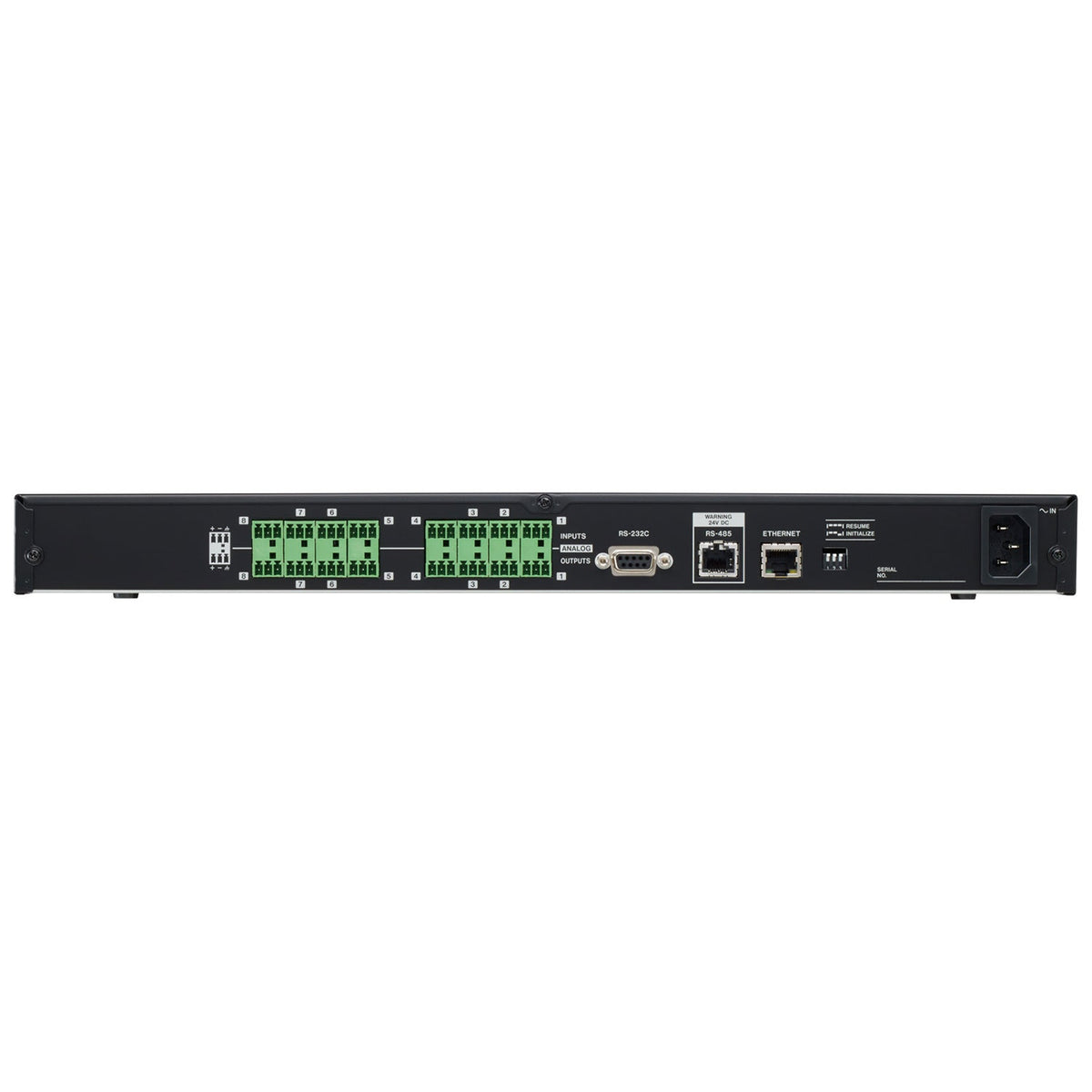

Tascam MX-8A Matrix Mixer

The Tascam MX-8A Matrix Mixer is a Matrix Mixer equipped with 8 mic / line inputs and 8 line outputs as well as integrated DSP for audio optimization in various environments and configurations Custom control apps are also available to allow easy setup and adjustment by both system integrators and end users.

Configurable Input Modules

Allows mic / line inputs levels to be configured and modified by the onboard DSP. Input module functions:

• Mic/line input switching
• Phantom power (+48V) ON/OFF (mic input)
• PAD (mic input)
• Mic gain (mic input)
• Compressor
• 4 band EQ (2 band parametric EQ, Low shelving EQ / High pass filter, and High shelving EQ)
• Auto level control
• Mute
• Fader
• Fader / Mute grouping

Phantom Power and Remote Gain Control

The integrated mic preamps support phantom power (+48V) and the input gain may also be controlled remotely via the TASCAM MX CONNECT software; RS-232C or Ethernet compatible control systems.

TASCAM Studio Quality Mic Preamps

The MX-8A features high grade TASCAM borne of years of designing professional audio equipment. Input range covers -70 dBu to +26 dBu, with equivalent input noise achieving less than -126 dB, and a signal-noise ratio of over 108 dB.

Built-in 10 in/10 out matrix mixer

The MX-8A is able to mix 10 different sources (8-channel mic/line inputs with stereo USB audio interface) and set mix configurations for each of the 8 different output zones, plus the stereo USB audio interface output zone.

Matrix mixer functions:

• Mute
• Fader
• Fader / Mute grouping
• Ducking function
• Ambient noise compensator function

Auto audio configuration functions for a clearer sound

With the ducking function and/or the ambient noise compensator function, users will be able to have a much clearer sound when making announcements or when playing some background music. These can be configured different on each output zone of the matrix mixer.

• Ducking: This function detects the level of a mic input and simultaneously turns down the level of the selected output zone. This can be used to increase intelligibility of announcements when background music is present.
• Ambient Noise Compensator: (ANC) function also detects input source level and automatically configures the level of the selected output zone. Whenever there is fluctuation on the noise level of a field environment, this function will automatically compensate the volume for clearer background music or announcements.

Output Routing

8 different mixes can be flexibly routed to the 8 line outputs.

Configurable Output Modules

The powerful DSP of the TASCAM MX-8A will also allow processing of signals routed to the output for easy optimization for different spaces and audio playback systems throughout the installation.

Output module functions:

• 10 band EQ (8 band parametric EQ, Low shelving EQ / high pass filter, High shelving EQ / low pass filter)
• Delay
• Limiter
• Phase switching
• Test tone
• Mute
• Fader
• Fader / Mute grouping

Compatible with Audio Playback / Recording software

The built-in 2 in / 2 out USB audio interface also enables the TASCAM MX-8A to function as powerful and flexible audio recording interface, compatible with a variety of operating systems including: Windows / macOS / Android / iOS.

Scene Preset and Timer Event Functions

Effect parameters, mix levels, input / output routings and more can be saved in one of 50 different preset locations. By using the scene preset function together with the SNTP client included timer event function*, it is possible to automatically switch different scenes at a specified time.
