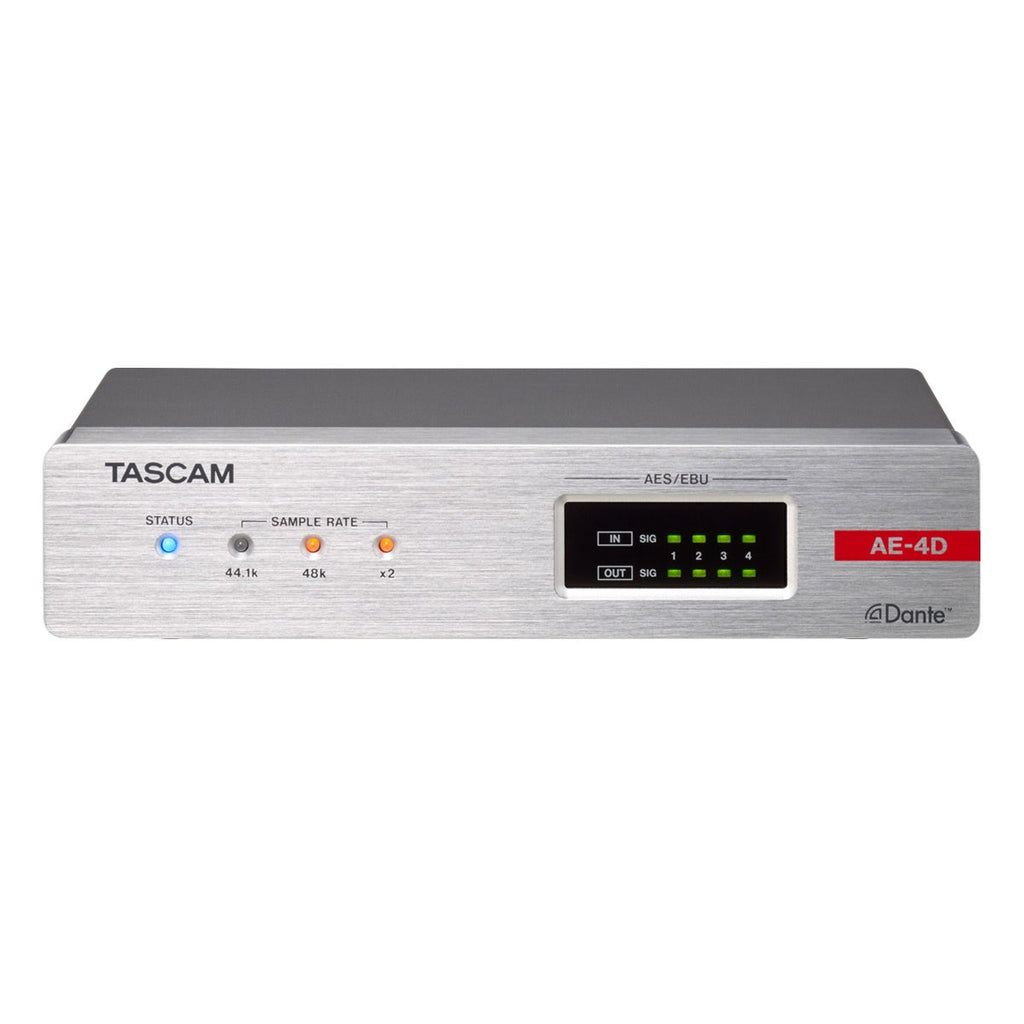

Tascam AE-4D

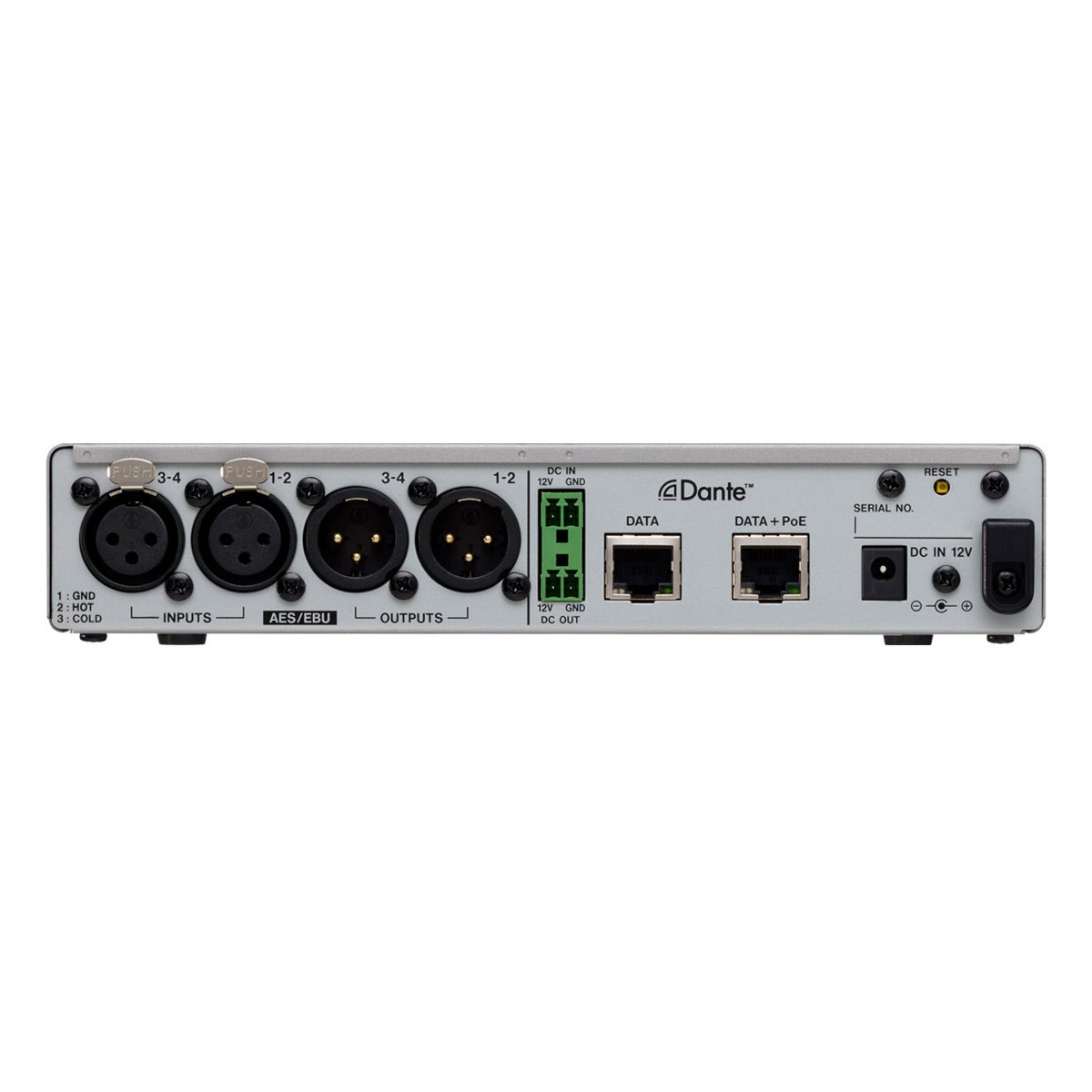

The Tascam AE-4D is a compact converter that mutually converts AES/EBU signals and 4-channel Dante signals. With half the size of a standard 1U rack, the AE-4D is suitable for different Dante systems as an exquisite AES/EBU input/output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. AE-4D supports up to 96 kHz/24-bit and uses XLR connectors for AES/EBU output.

Introducing a wide range of digital equipment into a Dante system

Often used in PA/SR and pro audio environments, digital equipment compatible with AES/EBU format can be used on Dante systems. The AE-4D also includes a sampling rate converter, which enables different AES/EBU sources to be used on a Dante system.

PoE supported

Power supply can be provided to the unit via PoE (Power over Ethernet). No need for AC adaptors; power supply construction fees and installation costs can be reduced by using a PoE compatible network switch.

Remote control via control software

Controlling effects or the matrix mixer can be easily done through the dedicated control software; depending on the amount of controls the user needs, there are two types:

• TASCAM DCP CONNECT, designed for system integrators/managers that handle the configuration and settings of an entire system.
• TASCAM EZ CONNECT, designed for end-users and allowing them to use simple controls

Installable according to usage/environment

Units can be easily installed directly under desks or on walls with the included surface mount adaptors. With the optional rack-mountable shelf AK-RS1, up to two Dante Compact Processor models can be installed in a 19 inch rack space.

Half-rack size Dante Compact Processor Series

The Dante Compact Processor Series provide easy additional mic/line or AES/EBU input/output to several situations and places such as public facilities, broadcasting stations, recording studios, etc. where Dante systems are being used. They are the optimal input/output unit for small scale environments.

Level control is available when converting AES/EBU signals and Dante signals, and managing the input/output of an AES/EBU unit makes it easier to work with Dante systems. In addition, with a matrix mixer function and effects installed in the Dante Compact Processor Series, it is possible to build up a complete small system with units from this series only.

Routing to each Dante device is easy via Dante controller. Input/output units can be added flexibly to new or already established Dante systems.

These are some of the benefits provided when adopting Dante Network Audio:

• Reduction of system costs: It is possible to have a maximum transmission of 128ch I/O with one single CAT5e cable. This leads to fewer cables needed, not to mention the reduction of costs on wiring and space for cable pits
• Improved connection flexibility: All equipment can be freely connected and routed by applying star connections
