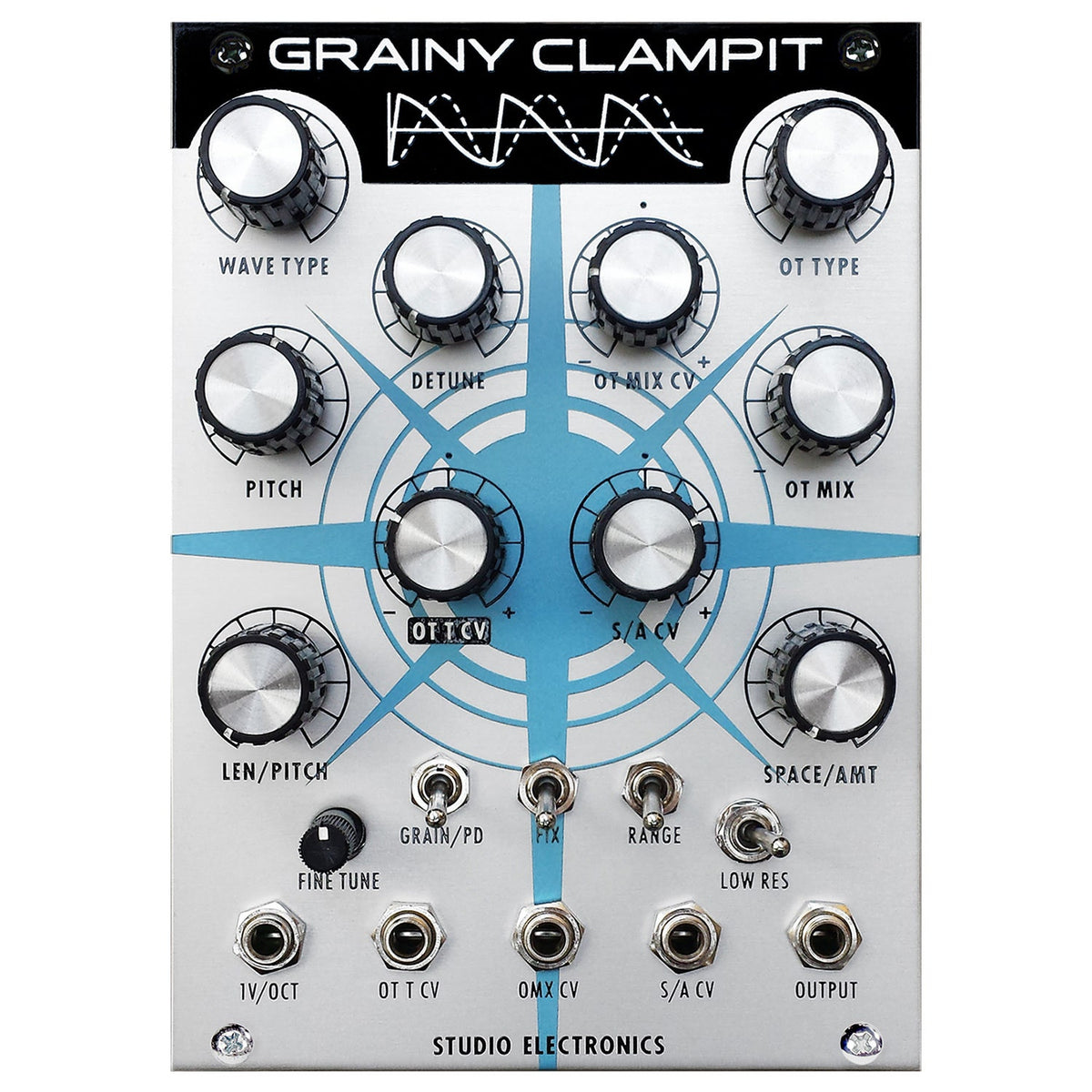

Studio Electronics Grainy Clampit (Demo Deal)

The Studio Electronics GRAINY CLAMPIT is a granular and phase distortion additive oscillator—brand new heavy territory for Studio Electronics... wait till you hear the stunning contrast it creates when paired with the discrete Class-A OSCILLATION module, and the inorganic to downright 1970's combo organy / CS-80-ish tones it can generate. Pure voltage-controlled candy. Be sure to wash off the sticky...

Best to break Granny Clampett's namesake down in stages, and time travel a bit.

First Stage - Additive mixing of 4 harmonics using one of 16 waveforms and one of 16 combinations of harmonics.

Second Stage - Granular or phase distorted mixing of the signal from the first stage, with a sync option.

Back to the First Stage - Additive section with selection of 16 different combinations of harmonics. The harmonics can be based on a sinewave or on one of 15 other waveforms.There's a separate control for mixing the selected harmonics.

Back to the Second Stage - The second processing stage allows granular processing or phase distortion. Granular processing gives you control over grain length and grain position, and can produce sync, detune, and wave sequencing effects. Phase distortion allows the signal from stage one to looked up non-linearly, and can produce thick detune sounds and wildly varying pitch/timbre effects.

Both settings have a choice of long buffer length (for wave sequencing effects) or short buffer length (for smoother detuned effects).

See it's just additive mixing of several combinations of harmonics using a choice of 16 waveforms, followed by granular or phase distortion processing for detuned and wave sequencing effects, with a sync option for further pitch variations. Capiche?
