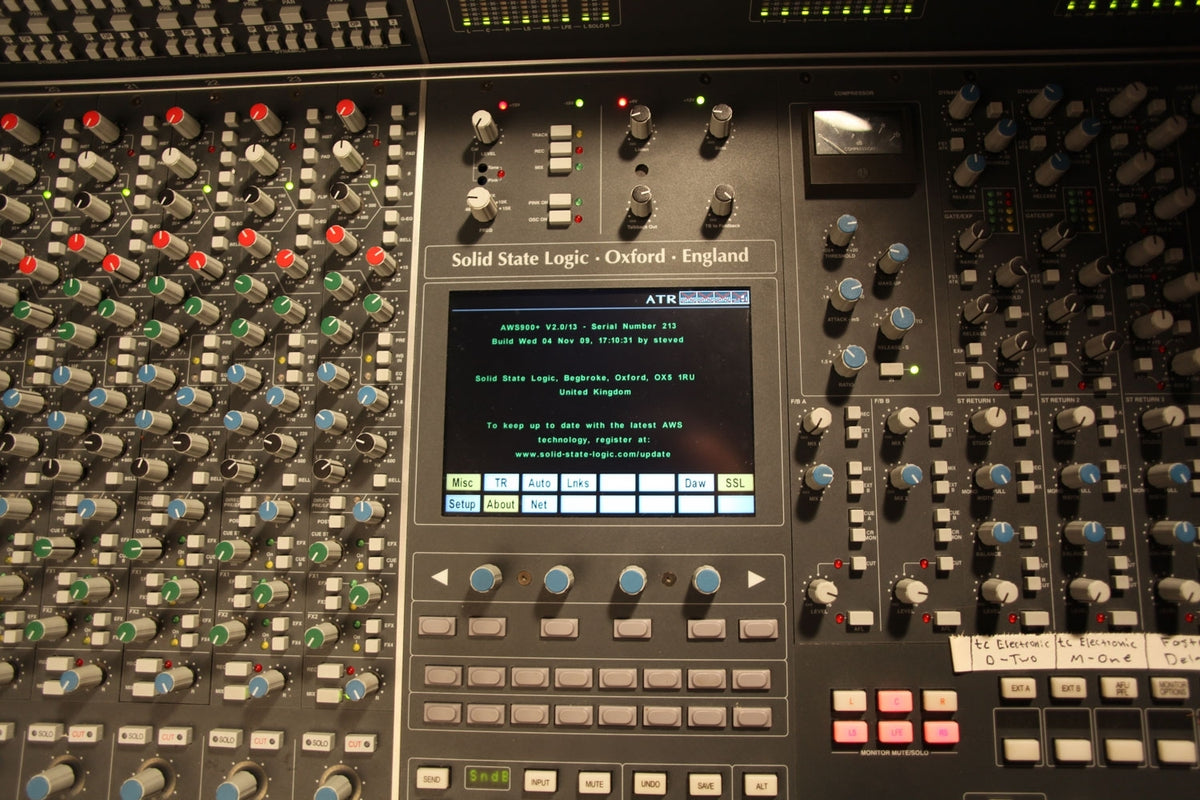

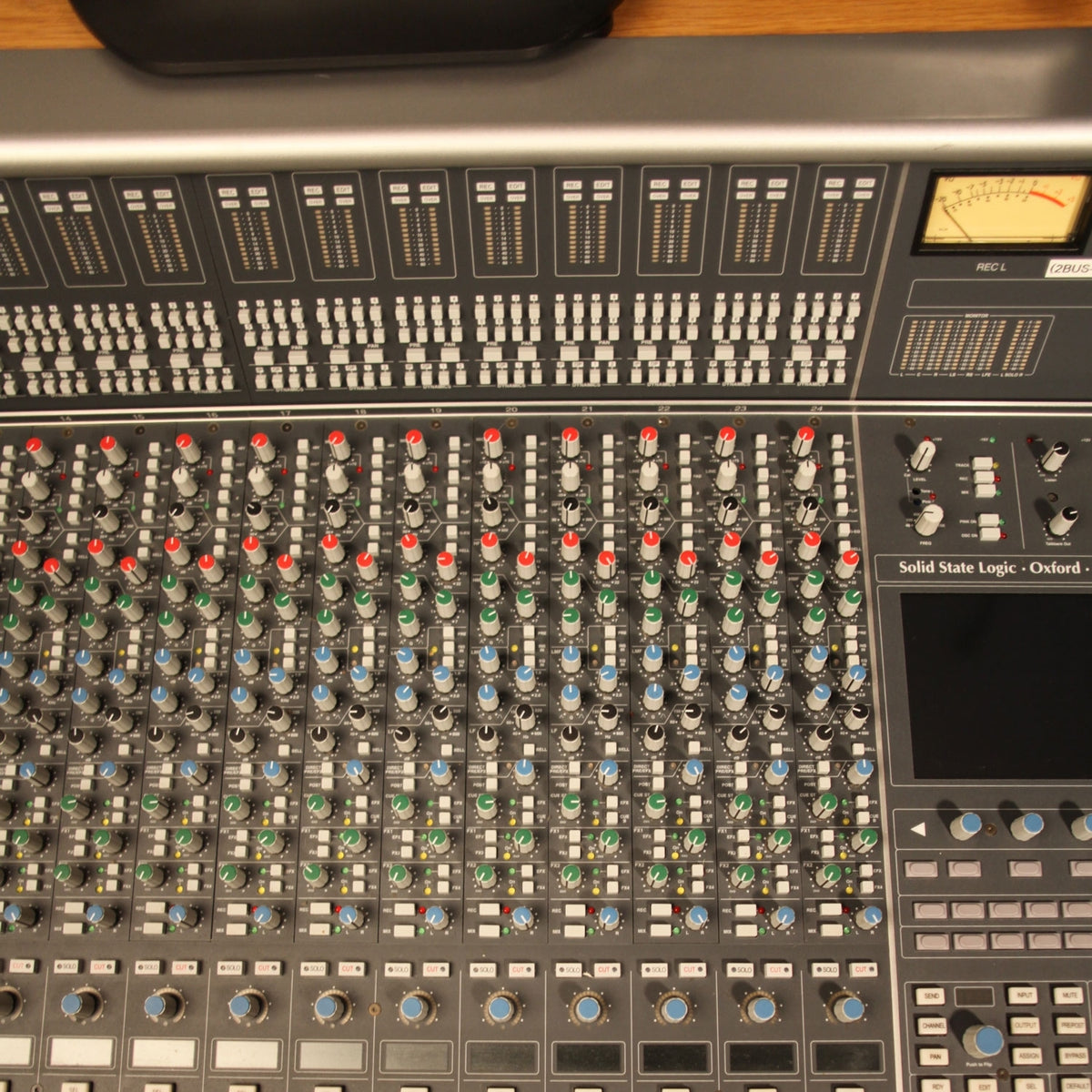

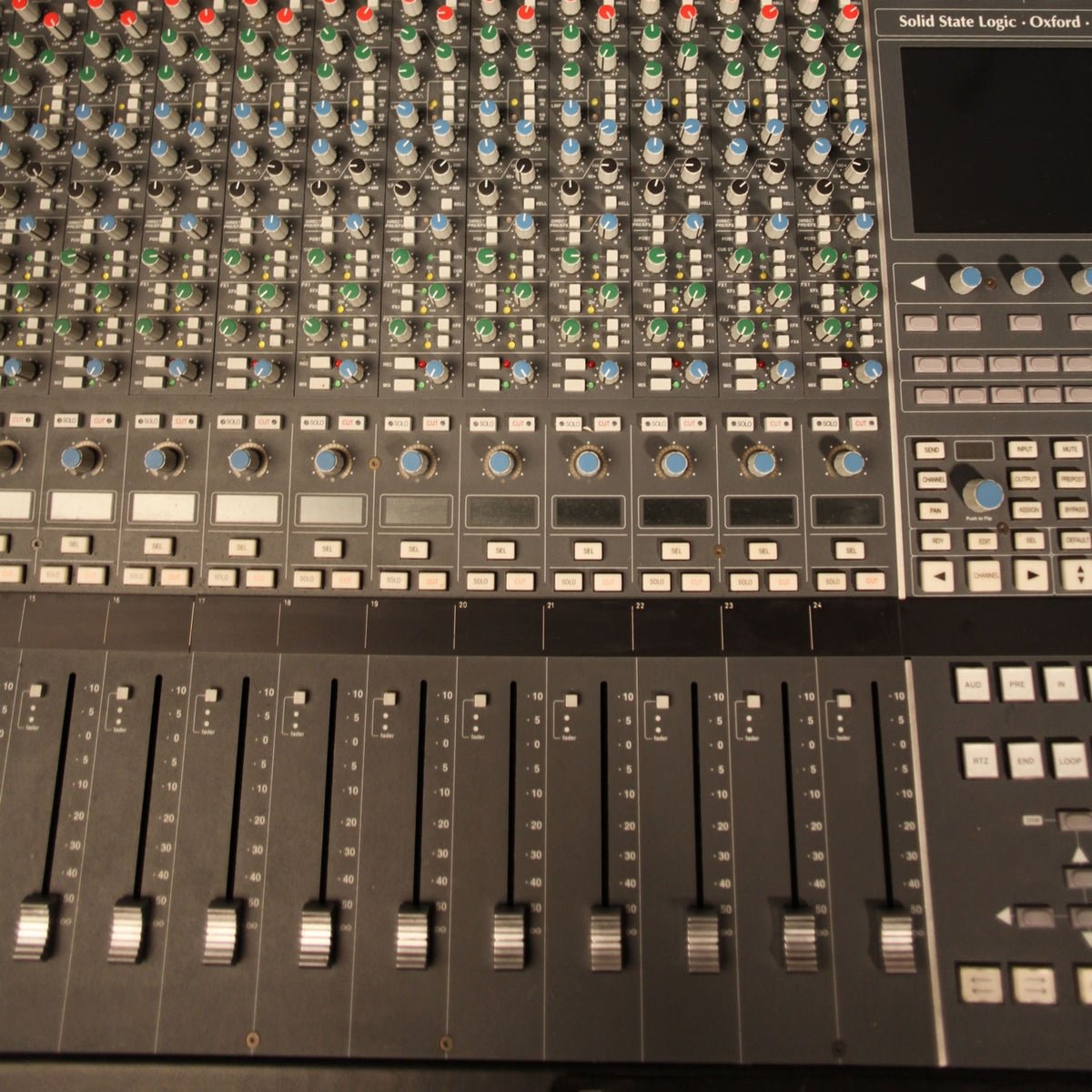

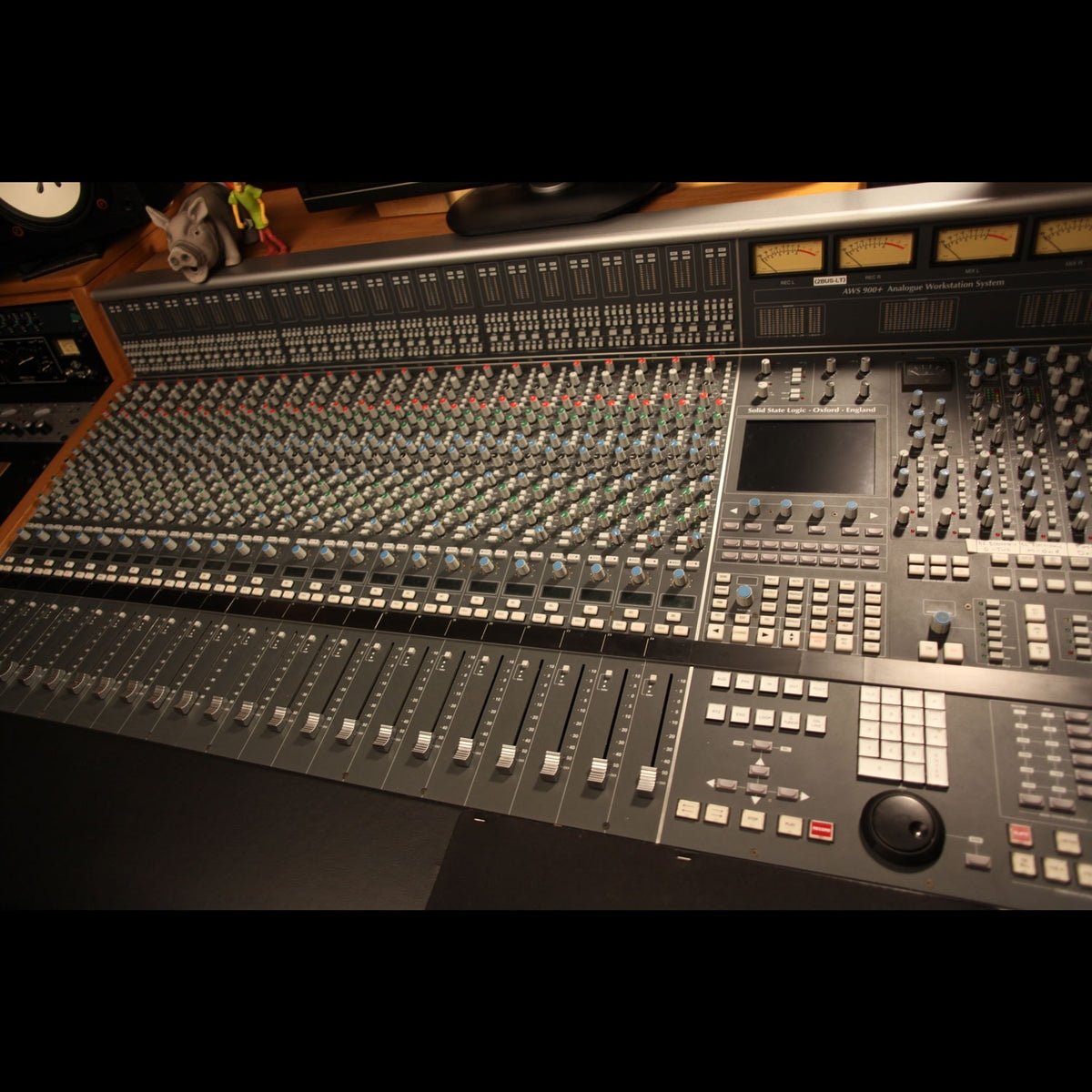

SSL AWS 900+ SE #213 (Used)

Manufacturer’s Description:

AWSomation™ is a fully featured package, developed from SSL's renowned G and K Series Ulitmation systems, but with an enhanced feature set designed specifically for the AWS 900. AWSomation™ utilizes the classic SSL look and feel, familiar to thousands of engineers worldwide, to add dynamic fader and cut automation to the console. MTC (MIDI Time Code) serves as the mix timeline reference together with support for MMC (MIDI Machine Control) locate commands to follow non-play speed positional changes from the DAW. Use of System Exclusive MIDI data transfer allowes mixes to be saved to a workstation or Sys-Ex librarian, retaining the integrity of the project data.

AWSomation™ provides the AWS 900 with the additional flexibility to act as a standalone automated console, or as an automated analogue console working alongside the workstation's automation system.

Join

Join drops the fader into record at the value last recorded in the previous Mix Pass. This is useful when a user is altering a fader to find a correct level for a section of a track; when the optimum value has been found, the user can then rewind, hit Join and write this value for the whole section, overwriting the previous trial moves.

MOFF

MOFF - Motors Off, will switch faders into the legacy VCA style automation systems, switching fader motors off. This style of automation will be familiar to the thousands of engineers worldwide that have used SSL's legendary Ultimation automation systems. Many Engineers prefer this method as they are not distracted by fades moving under the control of automation. Its main uses are for Trim and Join. In trim, Motors Off allows the user to choose a null point and know exactly how much the faders are trimmed. For Join, the intended fader value can be prepared in Motors Off, so that when reply commences, it will not return to its replay position, but will allow you to drop in at any point using Join.

Snap Mode

Snap Mode enables the user to make quick changes to automation, without having to press the fader status button to drop in and out of write mode. The fader is touched to put it into write, and when released it will drop out of record and snap back to its replay position.

AutoTakeover

To avoid a jump in level when dropping out of write, AutoTakeover Mode can be used. When the fader is 'dropped out', it continues to write its position to the mix, but there will be an indication using the LEDs next to the fader status switch of which way to move the fader to match it with its original position. As soon as the fader's physical position matches the replayed automation, the fader will automatically drop out of write.

Revert

Revert can be used to toggle quickly between the current Mix Pass, and a previous Mix Pass. This allows the user to audition between two Mix Passes quickly, while the song is playing, helping selection of the best mix.

Trim

Trim mode allows you to update fader data from a previous mix pass, by using the fader to add or subtract level to/from existing moves. It achieves this by setting up a 'null' fader position and then any subsequent moves trim the existing data by the amount of positive or negative change from the null position. If using in Motors Off mode, this increase/decrease can be made before dropping into Trim via the fader status switch, allowing for quick punch ins and outs of level change. Trim data must be merged with the absolute Mix Pass it affects before additional trims can be written.

Fader Links

Fader links allow the user to group faders, cuts, solos and fader status switches without the complications of master/slave style grouping systems. These links can be suspended individually or globally.

Match 'n' Play™

CUT data is stored regardless of the current fader status, unless the channel safe mode is enabled. Cut automation is updated using the Match 'n' Play™ method. Match followed by the CUT switch drops the channel into write without changing the current state of the channel CUT. Play followed by the CUT switch returns the channel to replaying the automation data. The CUT switches have momentary action so that instead of flipping the state of the CUT function, it toggles the Automation read/write state.

Copy and Swap

Copy and Swap are used to duplicate or interchange mix data between channels with ease. Simply select the function required then the source and destination channels via the status keys.

CONSOLE TECHNICAL DETAILS

• Dimensions (L’ x W’ x D’): 86,3 cm x 145,8 cm x 45,4 cm
• Cosmetic Condition from 1-10 (10 being ‘as new’): 9
• List of Cosmetic Flaws: Nothing major, only minor signs of normal use
• Working Order 1-10 (10 being as new): 9
• List of Major Working Faults: Digital scribble-strip is sometimes scrambled on channel 5, Equaliser on channel 23 has produced scratching sounds occasionally
• Does Console Have Direct Outs: Yes
• Direct Outs Transformer Balanced: Yes
• How Many Lines Inputs at Mix: 24+8(4 stereo returns)+2(REC/MIX bus ins. ret.)
• List of Any Modifications: None
• When Was It Last Serviced: 2014
• List of Any Spare Parts Included: None

CONSOLE FEATURES

• Model # & Qty of Mic Pre/EQs: 24x SuperAnalouge Mic Pre's, 24x XL9000 K Series EQ Modules (E/G switchable) (Channelstrip number 641)
• Model # & Qty of Compressors: 2x SSL Dynamics units (Assignable to all mono-channels, and REC/MIX bus as a linked stereo pair), 1x SSL Mix Bus compressor
• No. of Aux Sends: 2x Stereo (CUE A & CUE B)
• No. of Effect Sends: 2x Mono (FX 1 and FX 2)
• No. of Busses: 8
• Phantom Power: Yes
• Brand of Automation: AWESOMATION
• Does Automation Work: Yes
• No. of Speaker Selectors: 3 x Stereo and 2 x 5.1

ACCESSORIES

• Is There a Stand
• Included: No

CONSOLE DOCUMENTATION

• Is Original Manual Included: No
• Do you have a Recent Tech Report: No
