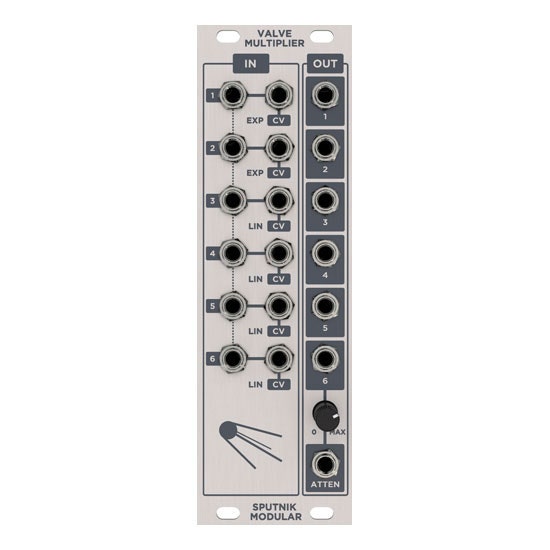

Sputnik Modular Valve Multiplier

The Sputnik Modular Valve Multiplier is a bank of six VCAs (voltage controlled amplifiers) for voltage control of audio or CV signal levels. Channels 1 and 2 feature an exponential CV response and channels 3-6 have a linear response. Channel 6 features two inverted outputs, one from the output jack and one with an attenuator. Each input is also sequentially normalized, allowing a single input to be applied to multiple VCAs.

Each VCA includes an inputs for signal and control voltage. All of the VCA channels are DC-coupled and will accept both audio and CV modulation signals. However, we do not recommend using the Valve Multiplier for purposes where an ultra high degree of precision is required, such as processing pitch CV.

Channels 1 and 2 feature VCAs with exponential CV response and channels 3-6 have VCAs with a linear response.

Each channel accepts 0 to +5V CV signals. Unlike most VCAs, the Valve Multiplier’s CV inputs are normalized to +5V which will pass 100% of signal if no CV is applied.

Signal inputs are sequentially normalized, so one input will pass signal to every VCA channel until interrupted by another connection. For example: If Input A is applied to Channel 1’s input and Input B is applied to Channel 4’s input then Input A will be able to be processed in parallel by Channels 1-3 and Input B will be able to be processed by the VCAs in Channels 4-6.

Outputs 1-6 are signal outputs for Channels 1-6. Channel 6’s two outputs are inverted and the “ATTEN” jack features an attenuated, inverted output.
