Soyuz Microphones

Soyuz SU-011 Matched Pair with All Capsules

MFR# SU011MAC

Matched pair of small diaphragm tube microphones - includes all all optional capsules and a single PSU

Please note: This item is available for purchase in the United States Only

Product No Longer Available

Need help finding a different option? We can help.

We respond within one business day. All inquiries are confidential.

Experts At Your Service

Have a question? Our Audio Consultants and Technicians have years of real-world experience and are ready to help.

Call now

The Soyuz SU011MAC Matched Pair w/ Single PSU Small Diaphragm includes a matched pair of the SU-011 small diaphragm tube microphone with a single PSU.

Boasting the same hand-crafted workmanship as its larger sibling, the SU-011 features an original "dead stock" sub-miniature tube, manufactured in the Soviet Union in 1986. The included cardioid capsule can be swapped for hyper-cardioid or omnidirectional models.

Seeking more adventurous sonic possibilities? The SU-011 can accommodate the capsules the SU-017, giving you both large and small diaphragm options in a small body format.

SPECIFICATIONS

  • Operating Temperature Range: O°C - +70°C
  • Storage Temperature Range: -20°C - +70°C
  • Humidity Range: 0%...90% at +20°C and 0% - 85% at +60°C
  • Directional Pattern: Cardioid with optional capsules in omni and hypercardioid (sold separately)
  • Frequency Range: 20 Hz - 20 kHz
  • Sensitivity: cardioid 12 mv/Pa; omni 10 mv/Pa; hypercardioid 14 mv/Pa
  • Impedance: 150 Ohm
  • SPL: -120 dB Equivalent Noise: less than 18 dB (a-weighted)
  • Tube Type: 6S6B
  • Power: Dedicated power supply- BP-011
  • Size: 26 x 123 mm
  • Weight: 30 grams

INCLUDES

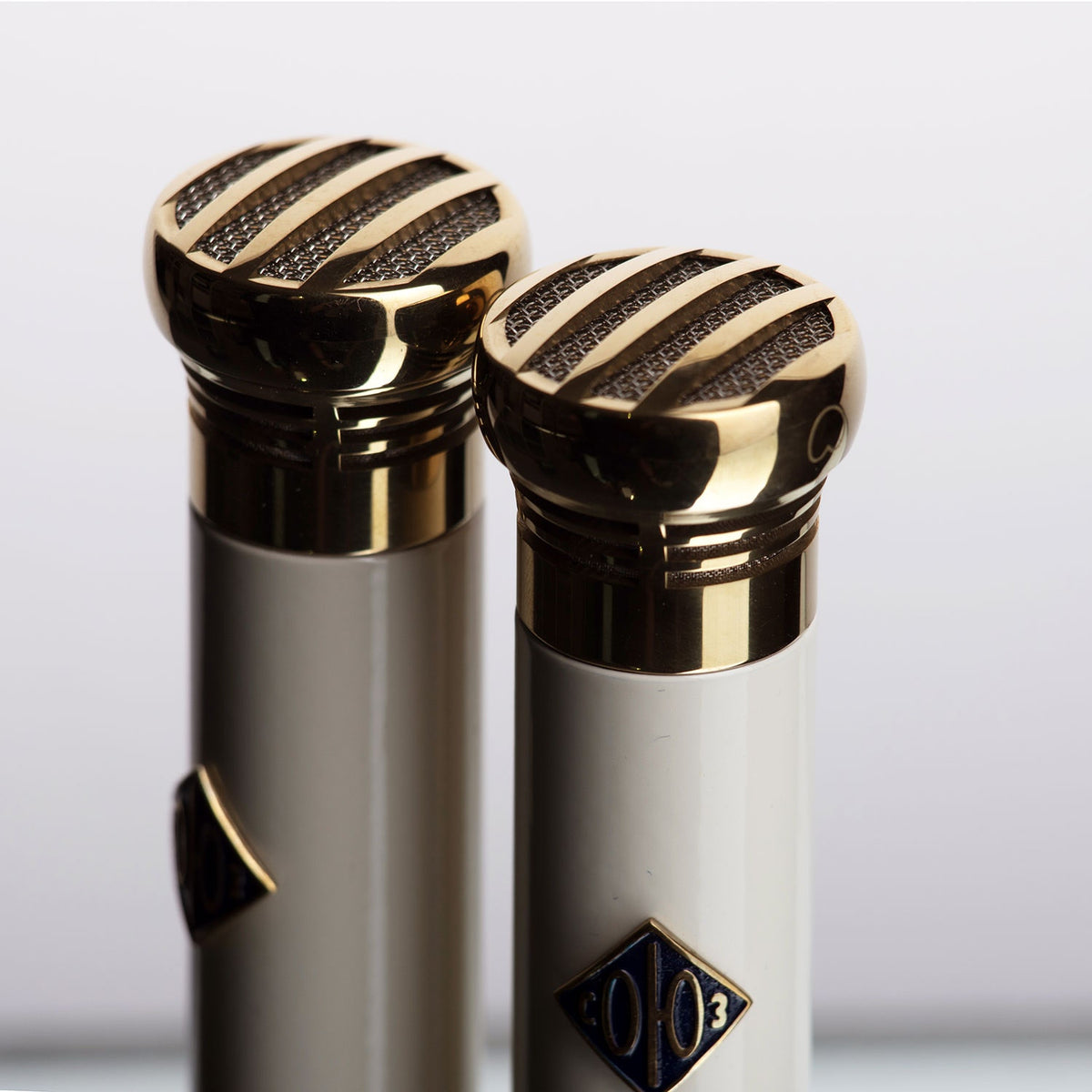

  • Two SU-011 tube condenser mics

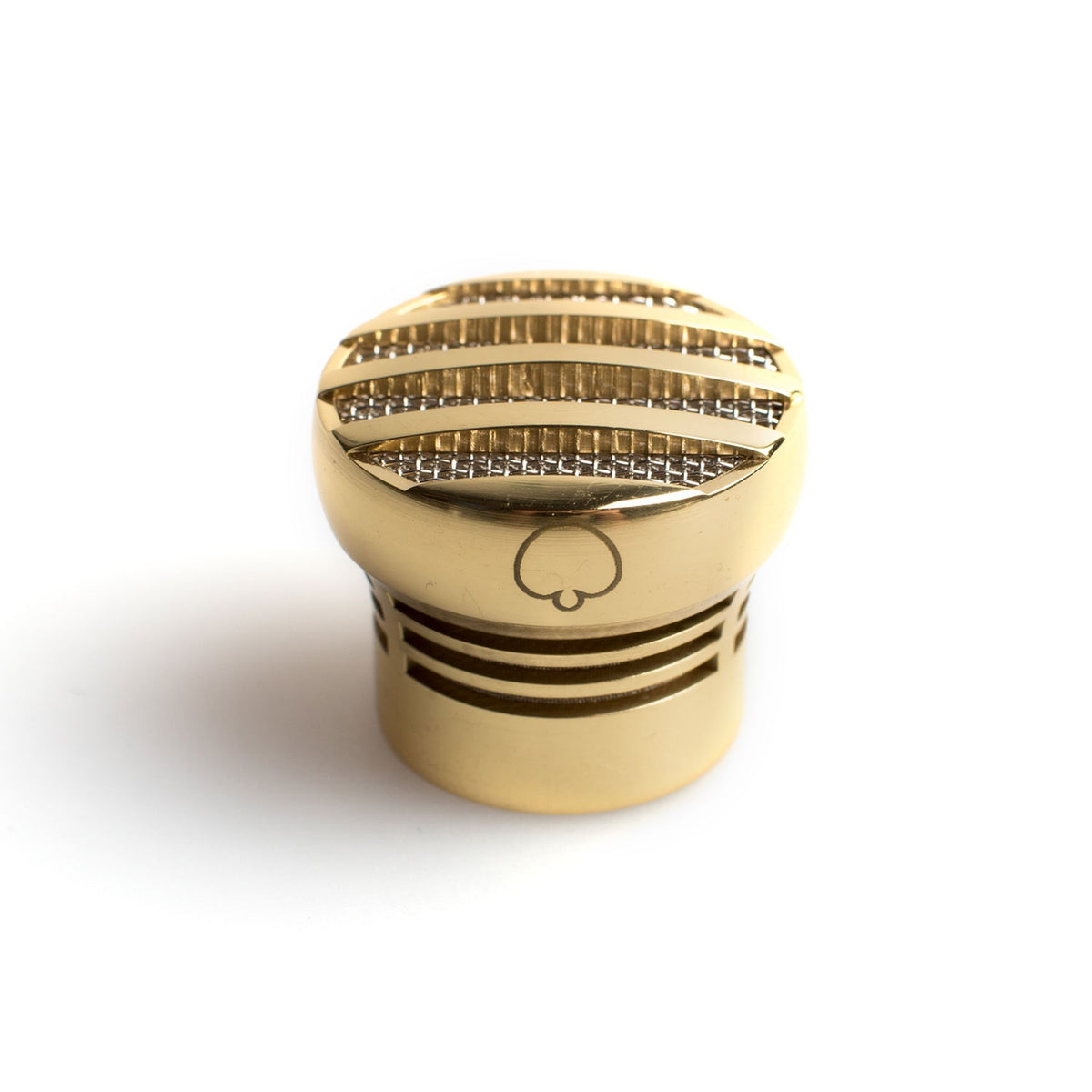

  • All optional capsules (cardioid, hypercardioid, and omni)

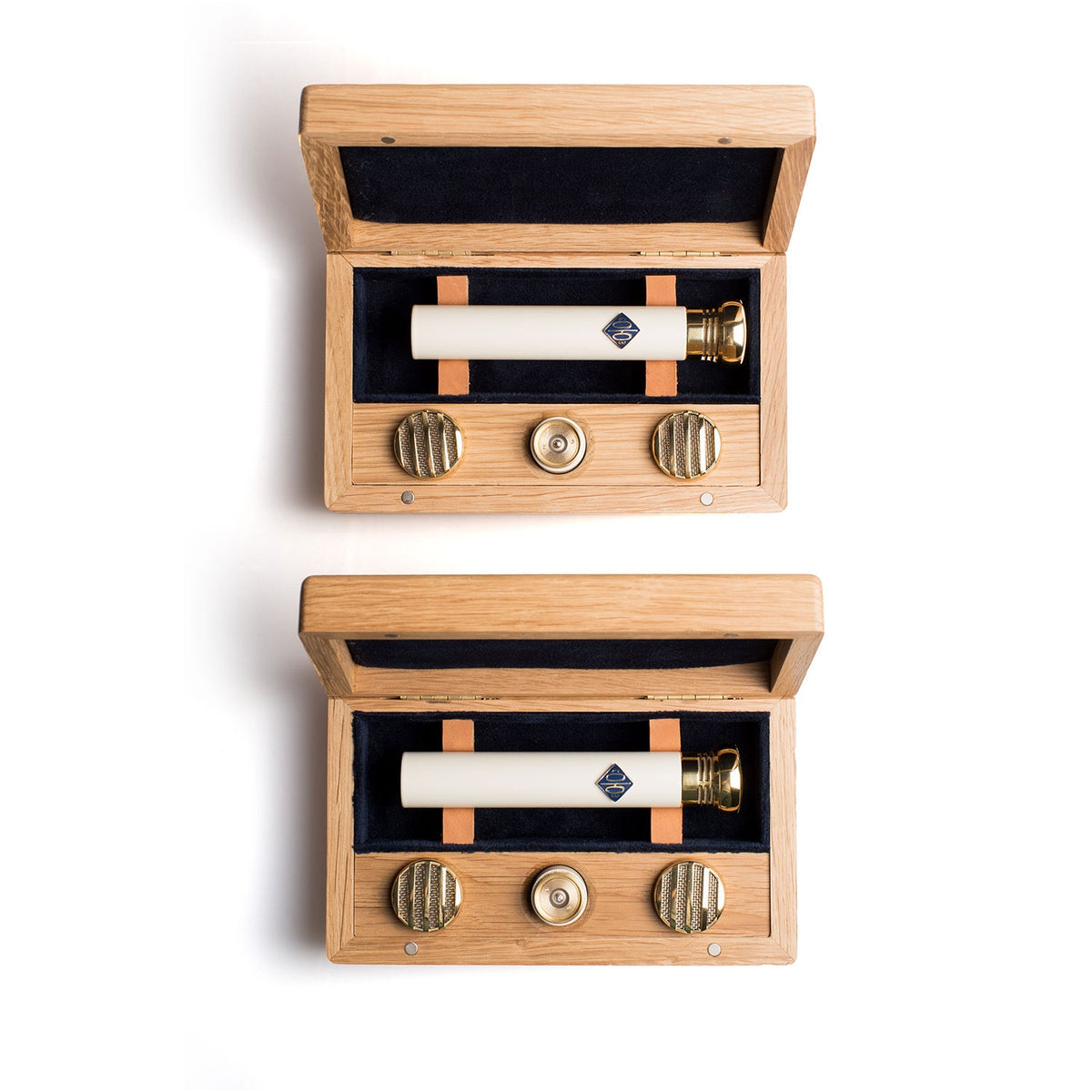

  • Wooden storage case

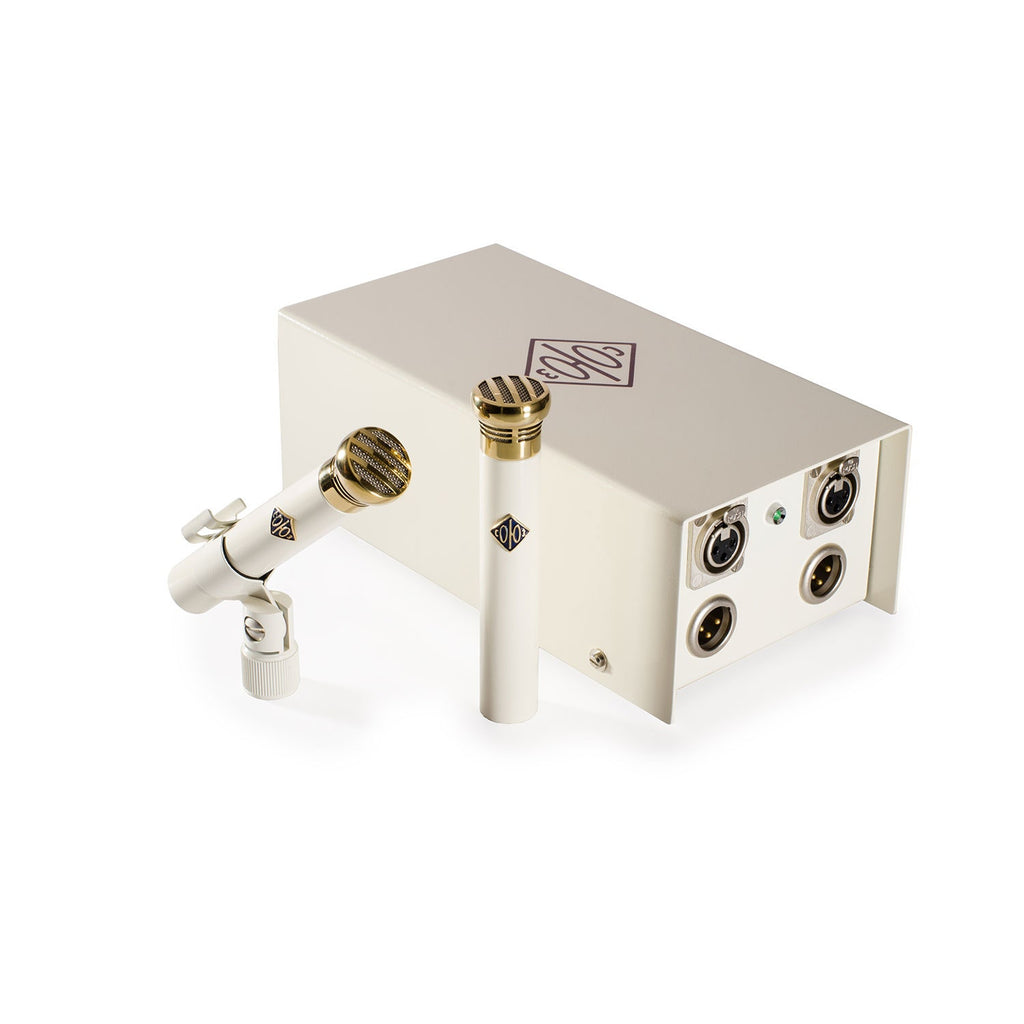

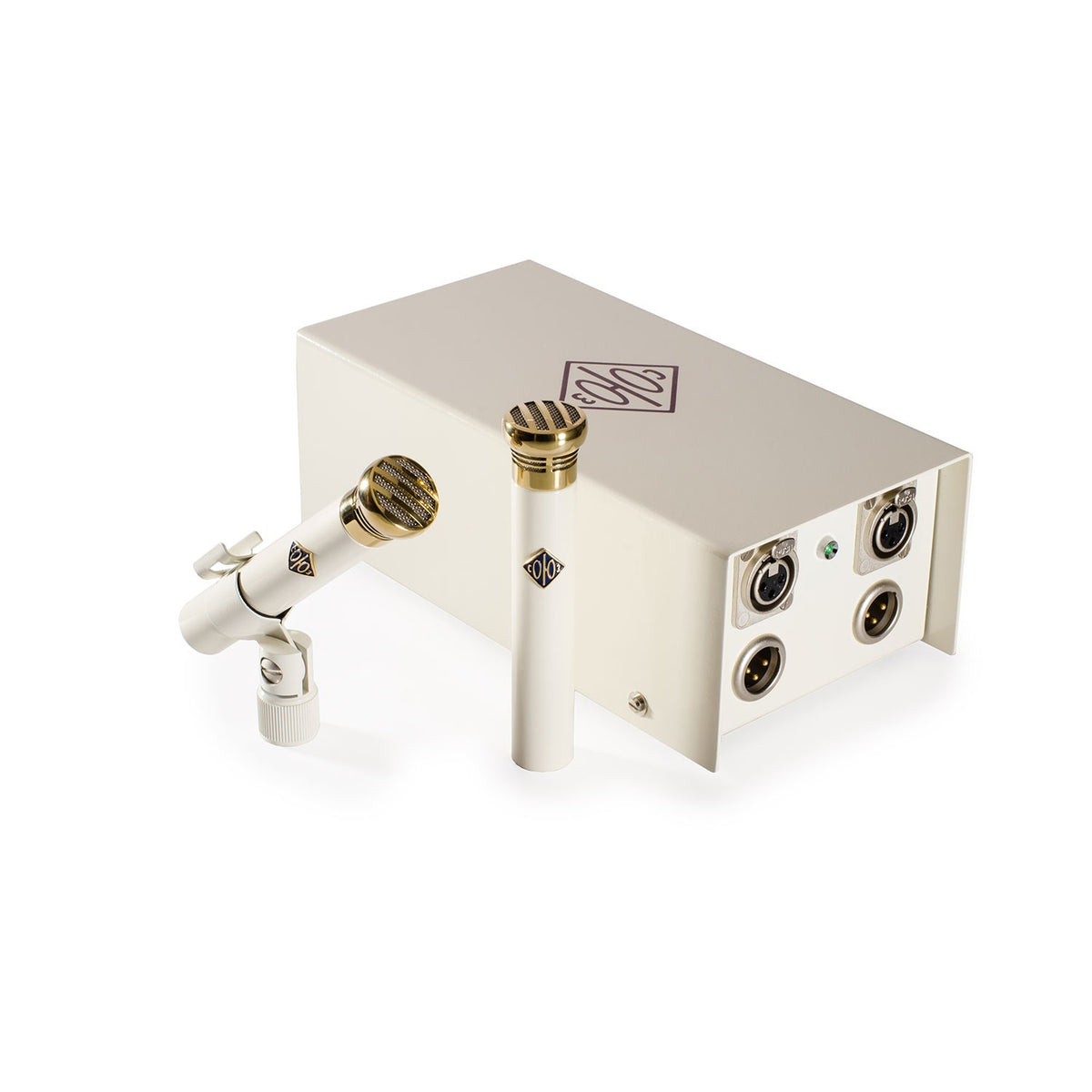

  • BP-011 power supply with power cable

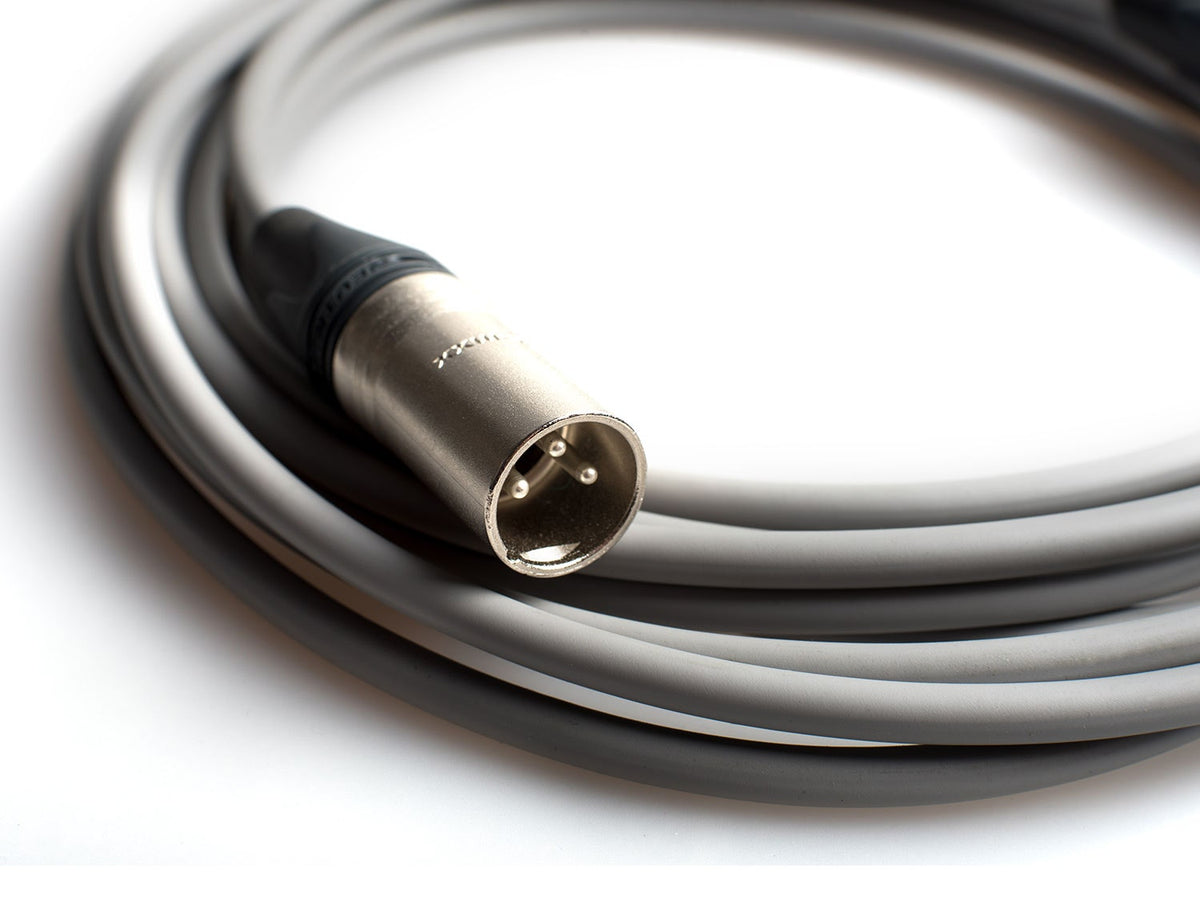

  • XLR microphone cable (5 meters)
  • SU-011 microphone clip
