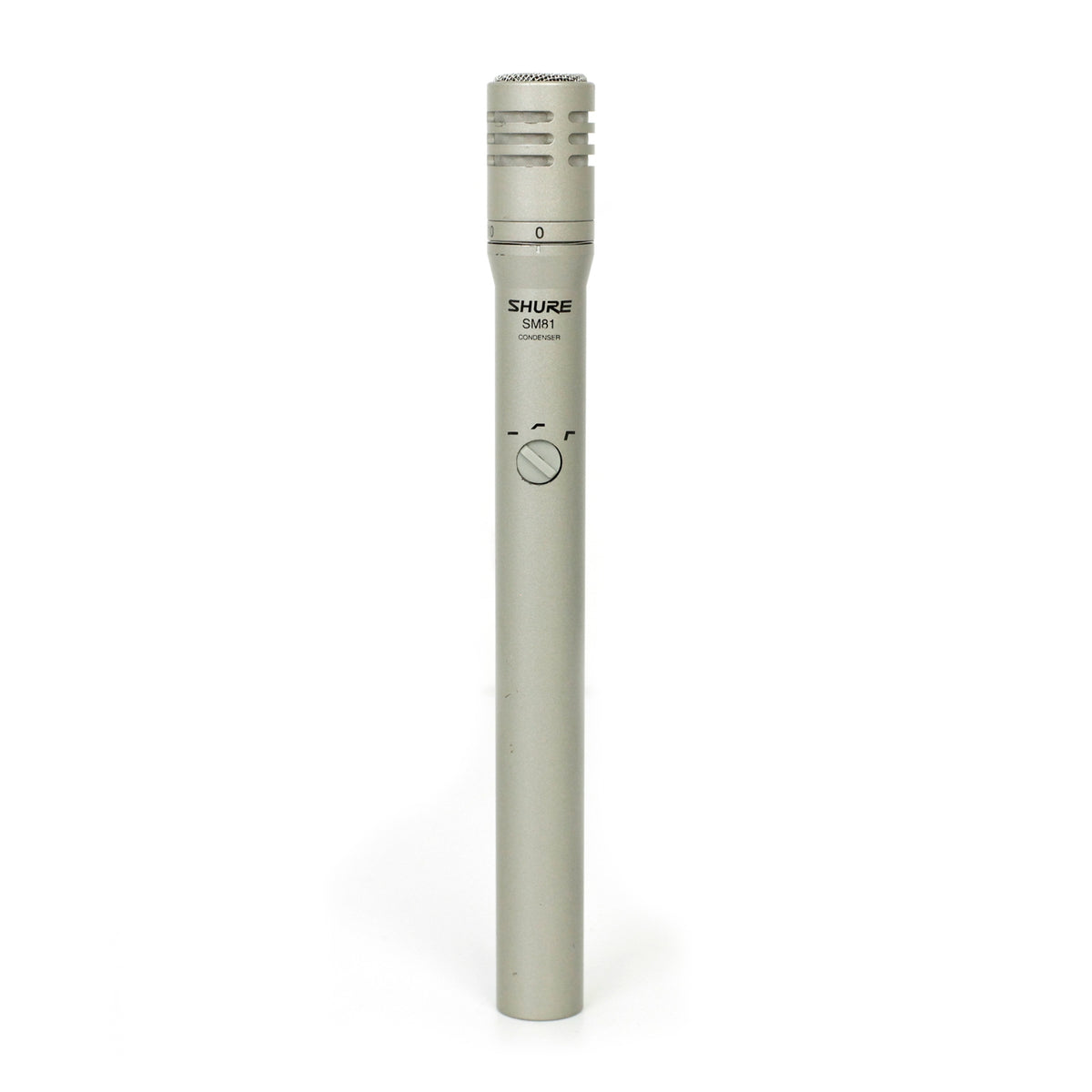

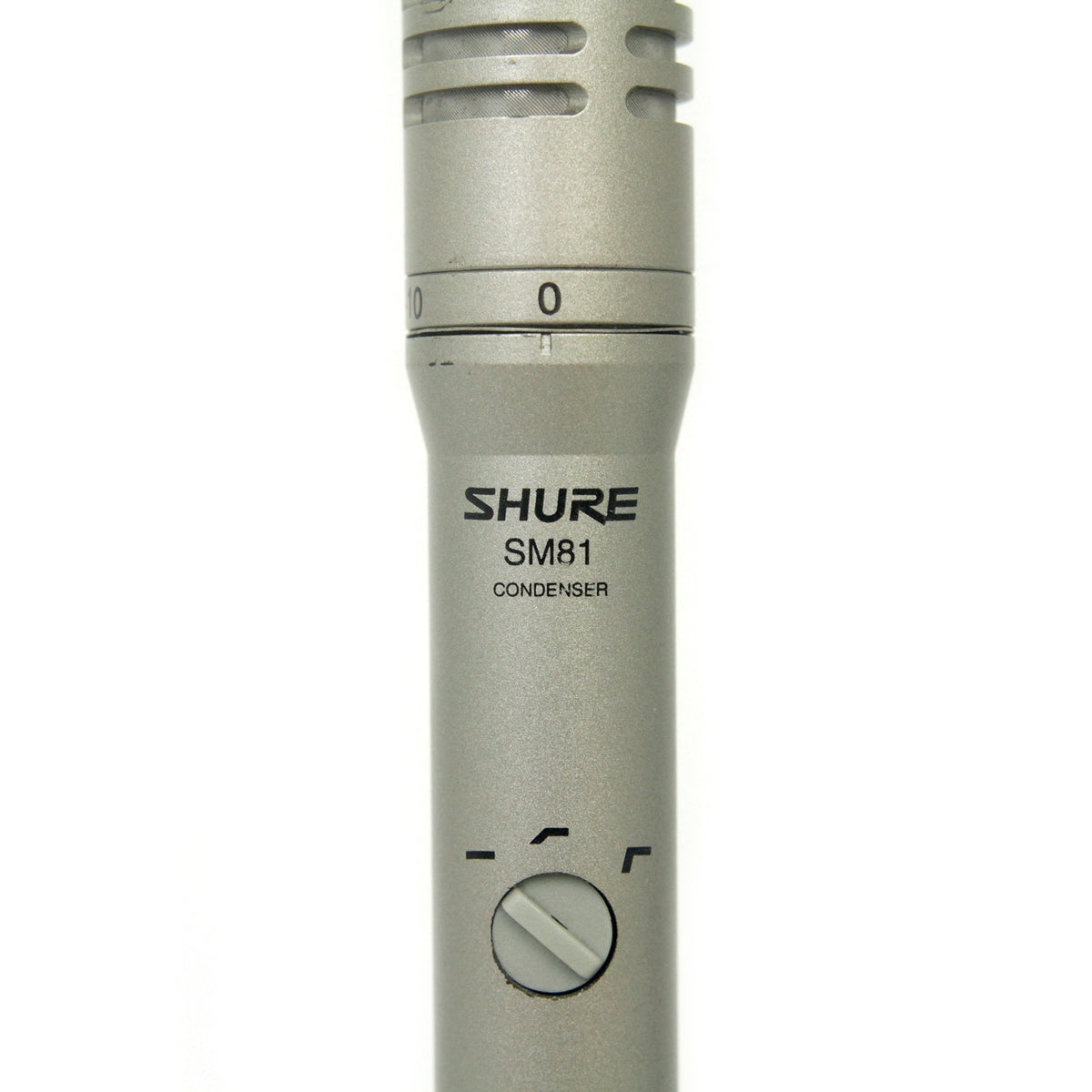

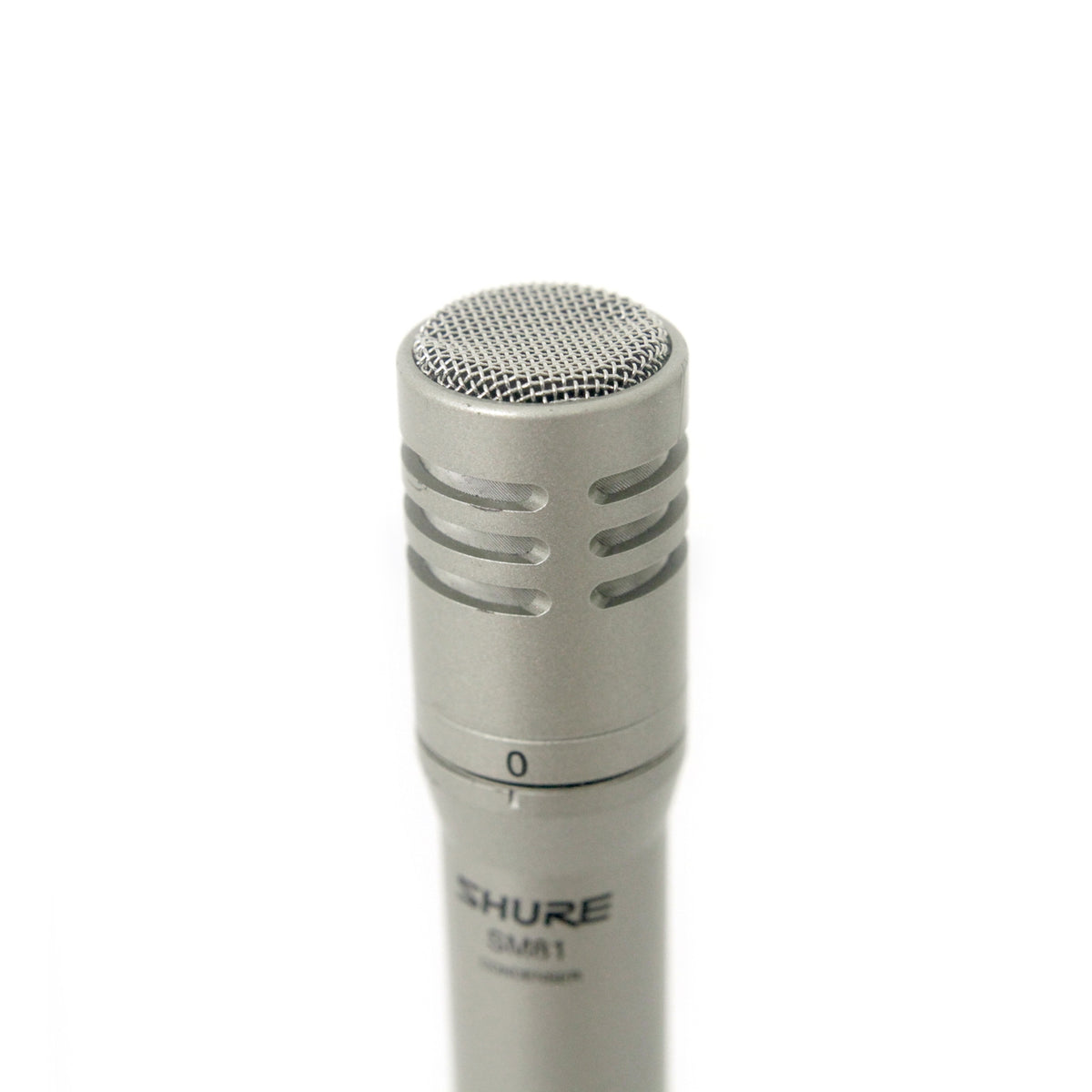

The Shure Model SM81 is a high-quality, unidirectional condenser microphone designed for studio recording, broadcasting, and sound reinforcement. Its wide frequency response, low noise characteristics, and low RF susceptibility have made it a standard for applications involving acoustic instruments, especially guitar, piano, and cymbals. The SM81 is ruggedly constructed. It operates on phantom power and performs over a wide range of temperatures and humidity conditions. It is furnished with a swivel adapter, attenuator-switch lock, metal windscreen, and case for carrying and storage. Other accessories are available.
Specifications
Suggested Applications
Specifications
- 20 Hz to 20 kHz frequency response
- Flat response curve for accurate reproduction of sound sources
- Low noise and high output clipping level
- Low distortion over a wide range of load impedances
- Cardioid polar pattern, uniform with frequency and symmetric about axis, providing maximum rejection and minimum coloration of off-axis sounds
- Low RF susceptibility
- Selectable low-frequency response: flat, 6 or 18 dB/octave rolloff
- 0 dB/10 dB lockable attenuator switch
- Phantom powering (DIN 45 596 voltages of 12 to 48 Vdc)
- Rugged steel construction for durability
- Field-usable over wide range of temperature and humidity conditions
Suggested Applications
- Acoustic Guitar
- Acoustic Bass
- Strings
- Piano
- Woodwinds
- Orchestra
- Cymbals
- Live Recording
- Ensemble Vocals
Specifications
| Number of Microphones | |
|---|---|
| Polar Pattern | Cardioid |
| Transducer Type | Condenser |
| Tube or Solid State |
