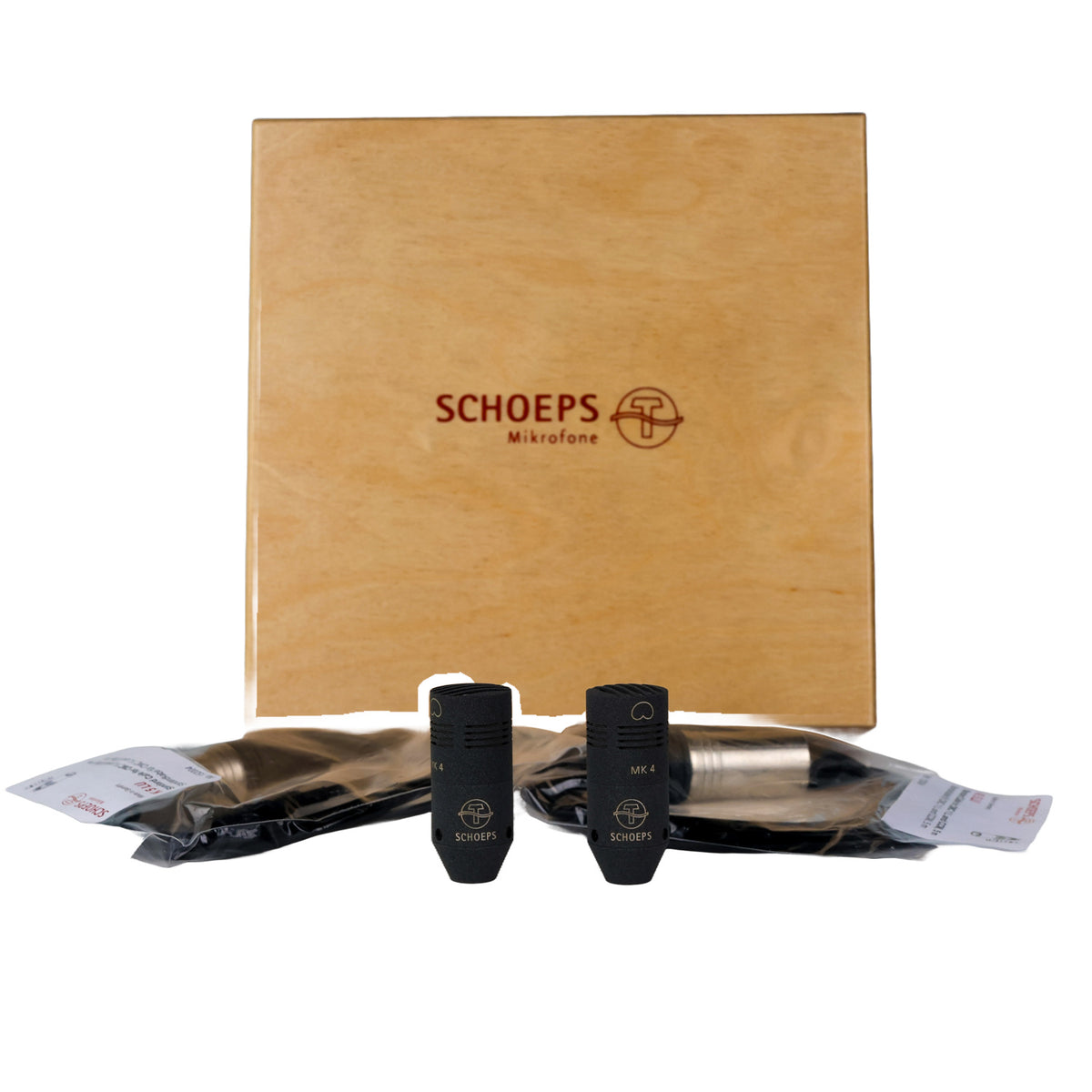

Schoeps CMC1L MK 4 Cardioid Condenser Microphone Set #76064/76065 (Used)

The Schoeps CMC 1 L MK 4 is a compact, high-performance microphone system ideal for professional audio applications requiring minimal size and weight without compromising on sound quality. The CMC 1 L amplifier is approximately one-third the size and 53% lighter than the renowned CMC 6, making it exceptionally suited for boom-mounted or portable setups. When paired with the MK 4 cardioid capsule, it delivers a flat frequency response and a maximum sound pressure level of 135 dB-SPL with less than 0.5% total harmonic distortion. The system operates on both 12V and 48V phantom power, offers high immunity to RF interference through Schoeps' RFI Shield, and features a balanced, direct-coupled, Class A output circuit. Fully compatible with all Colette-series capsules and accessories, the CMC 1 L MK 4 is a versatile choice for applications ranging from film and television production to high-fidelity recording environments.

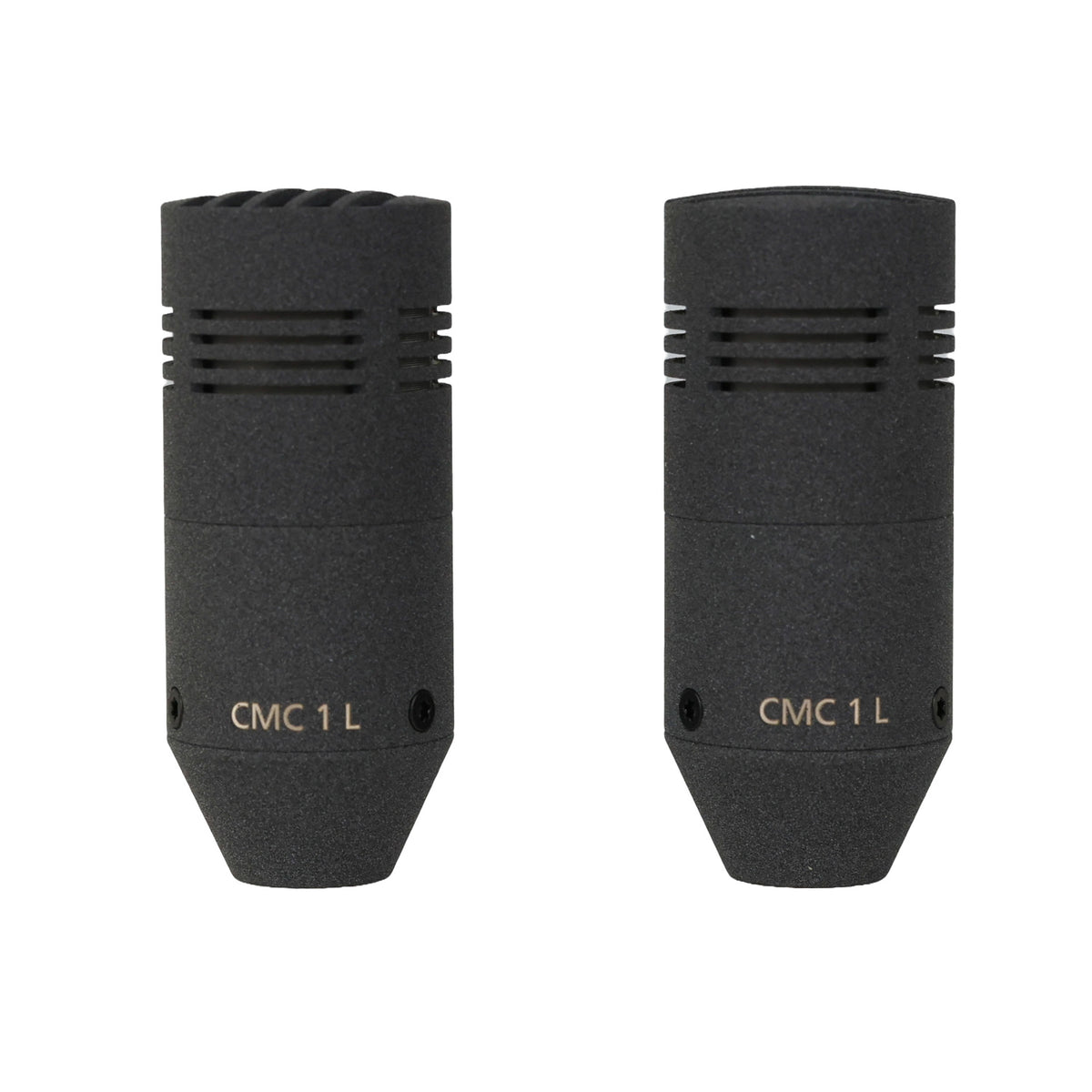

CMC 1 MINIATURE MICROPHONE AMPLIFIER

The matte gray Schoeps CMC 1 is a miniature Colette Series microphone amplifier offering uncompromising high fidelity in a lightweight and ultracompact form factor for studio recording, broadcast, and live stage applications. Presented as an alternative to the renowned Schoeps CMC 6 amplifier, the CMC 1 is compatible with all existing MK mic capsules and Colette active accessories (available separately). It features a balanced XLR 3-pin output, compliance with 12 or 48V phantom power, and low current consumption. Its Schoeps RFI Shield provides high immunity from RF interference for a clean, low-noise signal. The CMC 1 supports the high maximum SPLs tolerated by the various MK mic capsules (available separately). A stand adapter is supplied with the CMC 1.

• Complete, no-compromise alternative to the renowned CMC 6 amplifier
• Electrical characteristics of the CMC 1 are equal to, or even better than, those of the CMC 6 (flat frequency response, very-low distortion, and constant output impedance across the audio frequency range)
• Only 1.4" long (about a third the size of the CMC 6)
• Weighs just 1.3 ounces
• Fully compatible with all existing MK capsules and
• Colette active accessories such as the CUT 60 and RC tubes
• Compatible with all accessories of the CCM series
• Very-high immunity from RF interference with the Schoeps RFI Shield
• Optimized RF protection of the CMC 1 makes it ideal for use with transmitters such as the Audio Limited A 10
• Balanced, direct-coupled, Class-A output circuit
• Output is filtered in the ultrasonic range to prevent interference, e.g. from camera autofocus

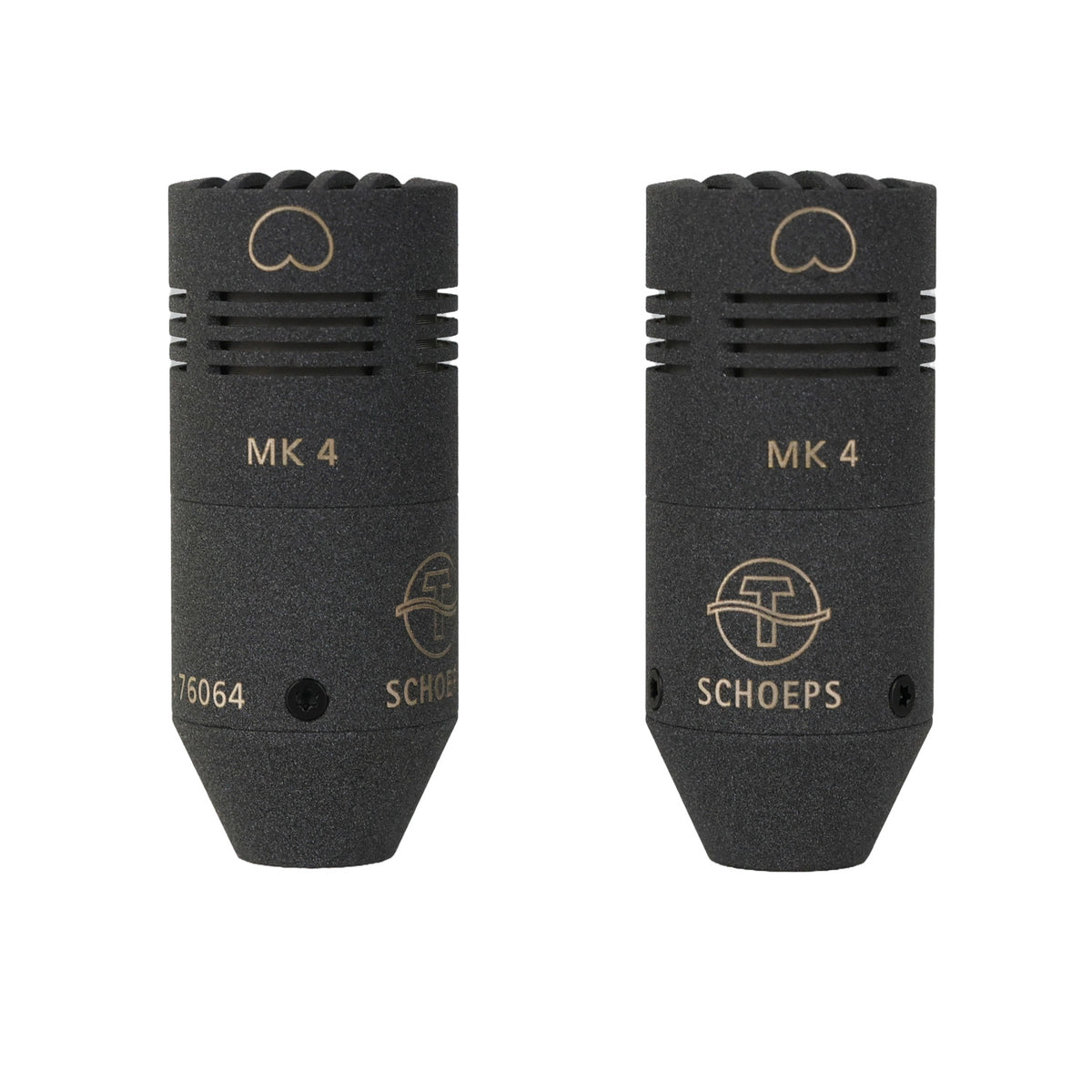

MK 4 CARDIOID CAPSULE

The Schoeps MK 4 cardioid microphone capsule has been a reference microphone for years in a wide variety of recording situations. Due to its transparent sound character and excellent attenuation of rear-incident sound, it reproduces sound sources very naturally. This has given the MK 4 a reputation as a universal "problem solver" even in difficult recording situations.

Its flat frequency response, and the constancy of its directional pattern for all frequencies, are the basis of the MK4’s sound quality. Even in the diffuse sound field its frequency response is flat, with a slight increase at 10 kHz compensating for high-frequency losses in the room. Thus the sound image is transparent for direct-arriving sound, for sound arriving from the side, and for diffuse sound in the room (reverberation).

The MK 4 is a classic small-diaphragm microphone with all the advantages of this microphone type. Its frequency response and the consistency of its polar diagram from low to high frequencies are exemplary. Like all Schoeps capsules, the MK 4 achieves its flat frequency response solely by its mechanical architecture, without any electronic filtering. As a pressure gradient transducer, the MK 4 has a single diaphragm that is exposed to the sound from both the front and rear. The side sound inlets must therefore never be covered.

The “reach” (distance factor) of a classic cardioid such as the MK 4 is about 1.7 times that of an omnidirectional microphone. Thus even at greater distances from the sound source, direct sound can be obtained. The advantages of the MK 4 are shown especially when mixing several microphone signals - pickup of sound from the side is reduced in level but not subject to coloration.

At 90° the attenuation of the MK 4 is 6 dB, and at 180°, some 20 to 30 dB. Diffuse-incident sound is picked up 4.8 dB lower in level than front-arriving sound.

• Microphone capsule with cardioid pattern
• The best-selling Schoeps capsule
• Directivity is highly independent of frequency
• Universally applicable; preferred use as spot microphone, for acoustic instruments, and in conference recording
• Often used in the main microphone pair for XY, ORTF and MS stereo recordings
