QSC Touchmix-16

MFR# TOUCHMIX-16

Touch-screen digital audio mixer with 16 mic/line inputs, 2 stereo inputs, 4 effects, 6 mono aux sends, 2 stereo aux sends

Product No Longer Available

Need help finding a different option? We can help.

We respond within one business day. All inquiries are confidential.

Experts At Your Service

Have a question? Our Audio Consultants and Technicians have years of real-world experience and are ready to help.

Call now

The QSC TouchMix 16 compact digital mixer is designed for musicians, production professionals and live performance venues that need the power and capability of a large “concert” mixing console in a compact, affordable and easy to use form. TouchMix-8 and TouchMix-16 mixers have the functionality to satisfy demanding professionals combined with a range of features and functions that help the less experienced user achieve quality results.

The QSC TouchMix Series represents a breakthrough in innovation and digital mixer design - the result of a remarkable collaboration between QSC and industry icons Greg Mackie and Peter Watts (M&W Pro Audio Ltd.) TouchMix not only resets the bar for performance and value, but also redefines the user experience for both professionals and novices alike.

Easy to Use:

  • Input channel preset library features over 100 presets developed by experienced concert engineers specifically for live sound applications
  • Wizards assist with input gain adjustment and effects selection and routing
  • On board, multi-language Info system for instant access to the user manual in Chinese Mandarin, English, French, German, Russian and Spanish
  • Color, capacitive touch screen graphical user interface combined with hardware controls for fast and intuitive operation

Superb Sound Quality:

  • Class-A microphone pre-amps
  • 32-bit floating point processing
  • 24-bit AD & DA convertors

Fully-Featured Input Channels:

  • Four-band full parametric EQ
  • Variable high-cut and low-cut filters
  • Gate
  • Compressor (with de-esser)
  • Gate and compressor assignable Pre or Post EQ
  • User selectable auxiliary pick-off points

Inputs:

  • 16 mic, (four with XLR/TRS combo connector) and two stereo line (TRS)
  • Dedicated talkback mic input

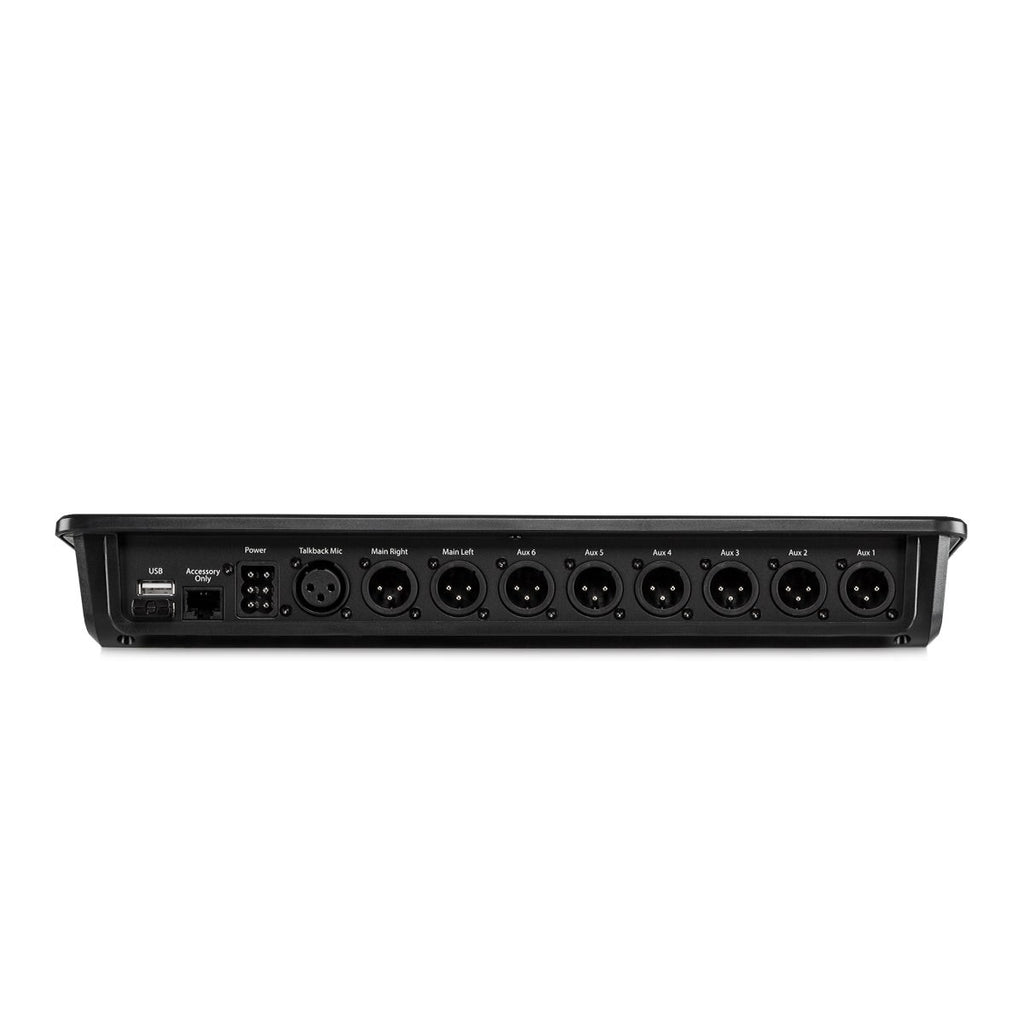

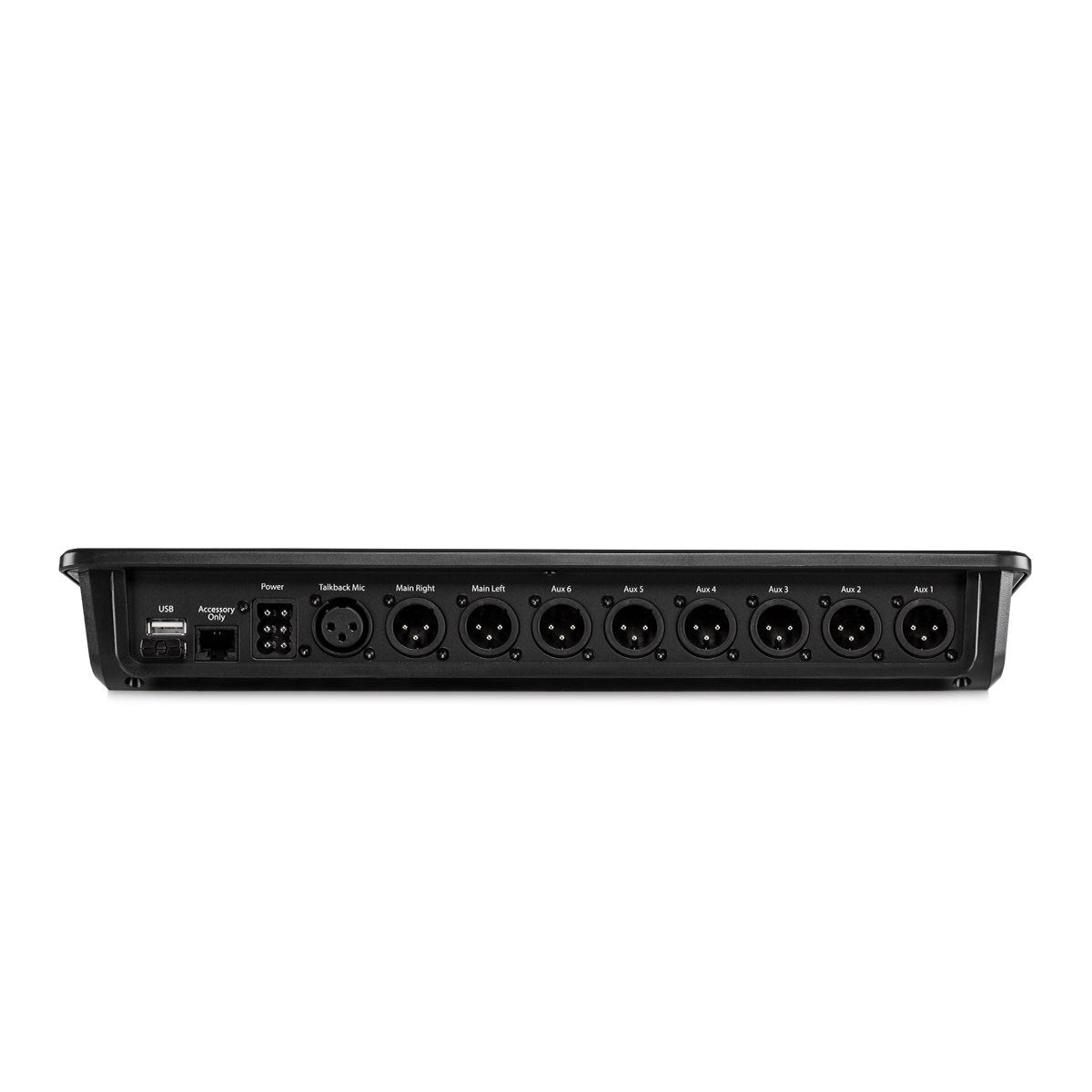

  • Stereo Main L/R outputs (XLR)

Outputs:

  • 6 mono auxiliary mixes (XLR) and 2 stereo auxiliary mixes
  • Mono auxiliaries may be linked for stereo use
  • The 2 stereo aux outputs can drive wired in-ear monitors (IEM) directly
  • Multiple ways to control aux mixes
  • Mix on faders
  • Send from channels
  • Aux overview of all aux mixes
  • Auxiliary mixes may be assigned for Main L/R output for use as sub-groups

Stereo DSP Effects:

  • Two types of reverb
  • Mono delay
  • Stereo delay
  • Chorus
  • Pitch-change
  • One Pitch Correct processor – assignable to any input channel

Remote Control:

  • Complete mixer remote control via free iOS® app for iPad, iPhone, iPod Touch
  • Monitor control via iPhone/iPod Touch App
  • Multiple Wi-Fi connectivity options
  • Individual devices may be given permissions to access one or more functions
  • Support for MIDI-over-USB foot switches
