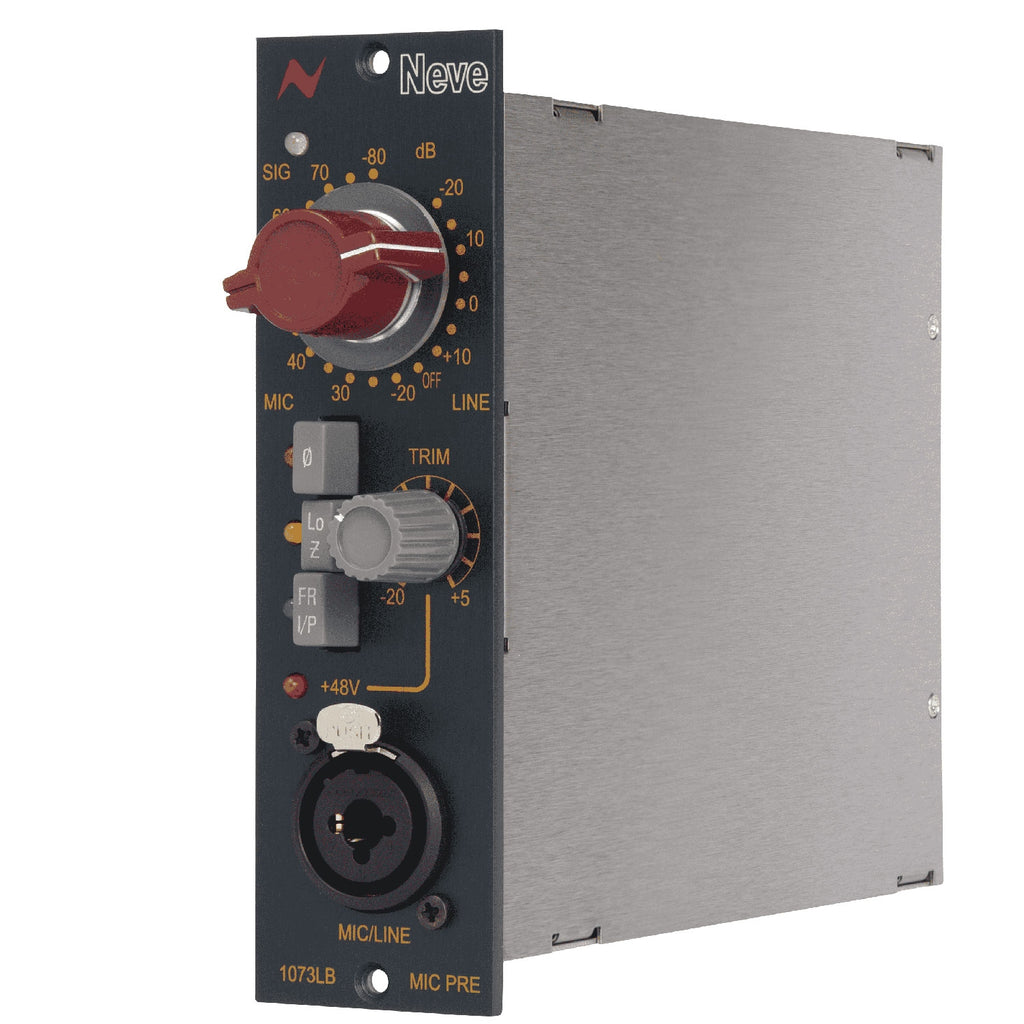

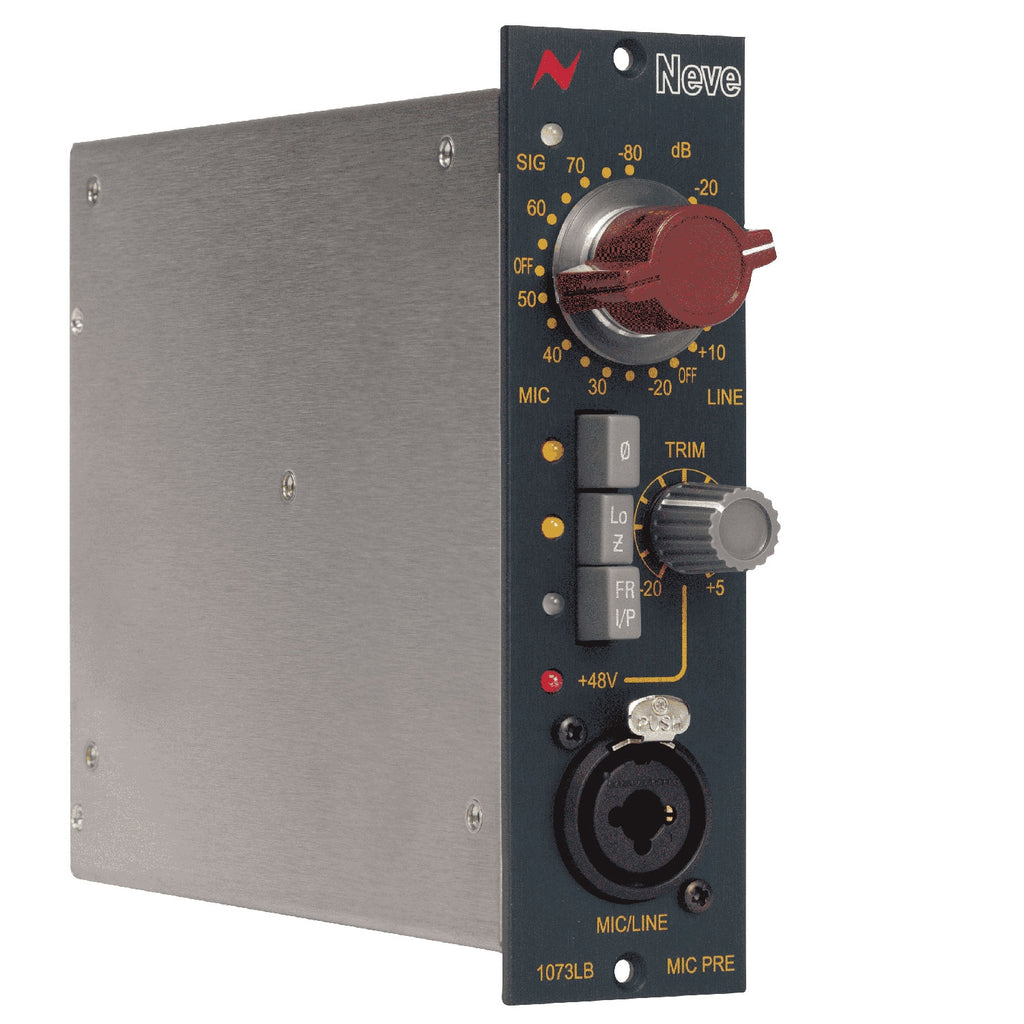

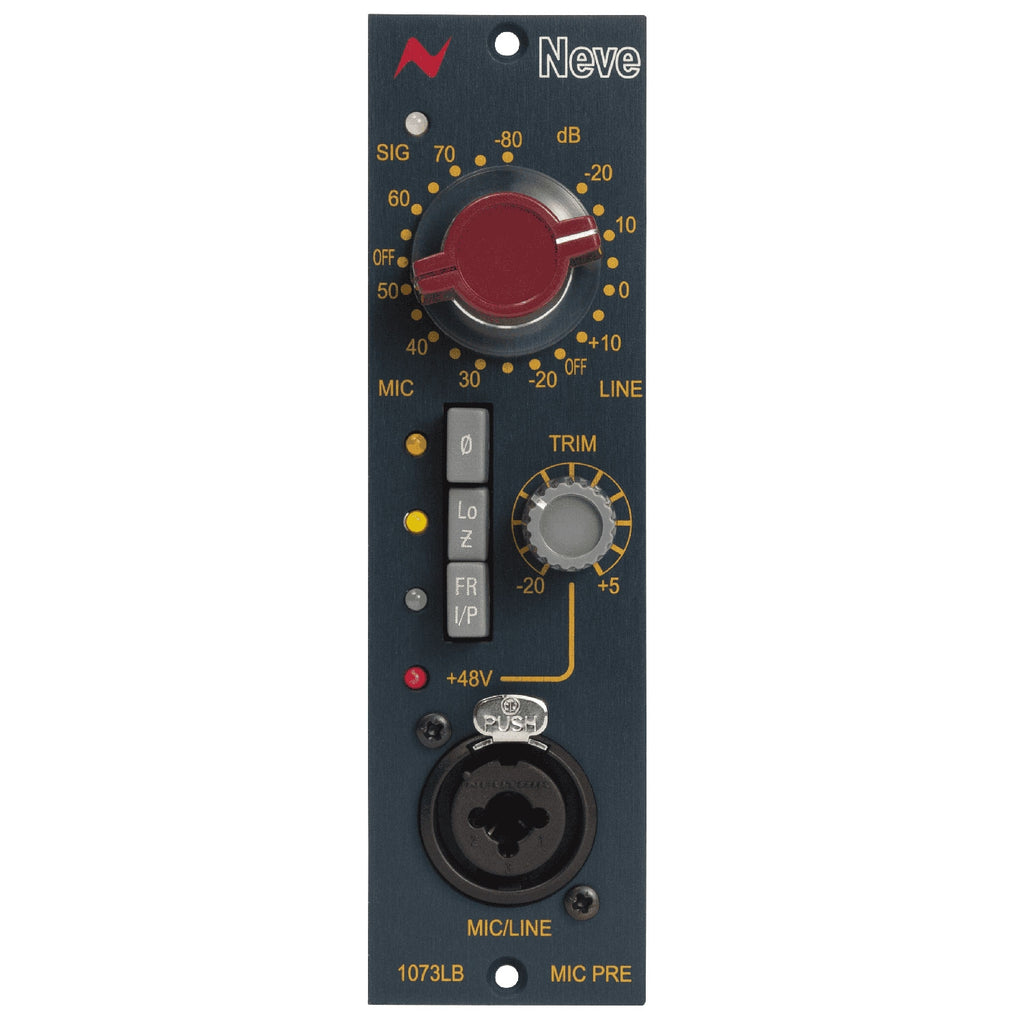

Neve 1073LB 500 Series Mic Preamp

Features:

• Classic transformer microphone preamp amp (Class A design)
• Audio path is absolutely 100% discrete and the same design as the 1073 Classic module mic/pre circuit
• Neve designed hand-wound transformers
• Both Mic and Line inputs are transformer balanced and earth free
• Gain knob with Signal Presence LED
• +5/-10 dB level Trim control with integrated phantom power on/off switch
• Phase, Impedance and Front Input selector switches
• Front combi-XLR connector with intelligent switching of phantom power
• Audio Processing Insert design allows processing from adjacent Neve modules in the same 500 series rack to be inserted into the 1073LB's pre-output stage
• Microphone Input: Gain -80 db to -20 dB in 5 dB steps
• Line Input: Input impedance 4 kOhms bridging, gain -20 dB to +10 dB in 5 dB steps
• Output is transformer balanced and earth free
• Distortion: Not more than 0.07% from 50 Hz to 10 kHz at +20 dBu output (80 kHz bandwidth)
• Freq Response: ±0.5 dB 20 Hz to 20 kHz, -3 dB at 40 kHz
• Crafted in England by Neve engineers
