Neumann AK 20 Bidirectional Capsule Head

Neumann AK 20 Bidirectional Capsule Head

$1,295.17
$1,295.17
Skip to product information
Neumann AK 20 Bidirectional Capsule Head
  • Neumann AK 20 Bidirectional Capsule Head
Neumann

Neumann AK 20 Bidirectional Capsule Head

MFR# 71659

Bi-directional active miniature capsule for KM 100 and KM 100F amps

Product No Longer Available

Need help finding a different option? We can help.

We respond within one business day. All inquiries are confidential.

Experts At Your Service

Have a question? Our Audio Consultants and Technicians have years of real-world experience and are ready to help.

Call now

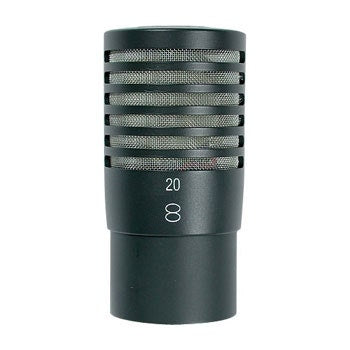

The Neumann AK 20 is a pressure gradient transducer with the figure-8 characteristic, realized with a single diaphragm. The diaphragm diameter is just 16 mm. All sound field components reach the diaphragm directly. This results in identical frequency response curves and output levels at 0° and 180° sound incidence. Corresponding accessories allow combining the AK 20 with other active capsules or microphones to obtain an MS-Stereo setup.

AK active capsules are part of the variable miniature microphone system. Together with the KM 100 output stage AK active capsules form a complete microphone. AK 30 and KM 100, for example, make up the KM 130.
