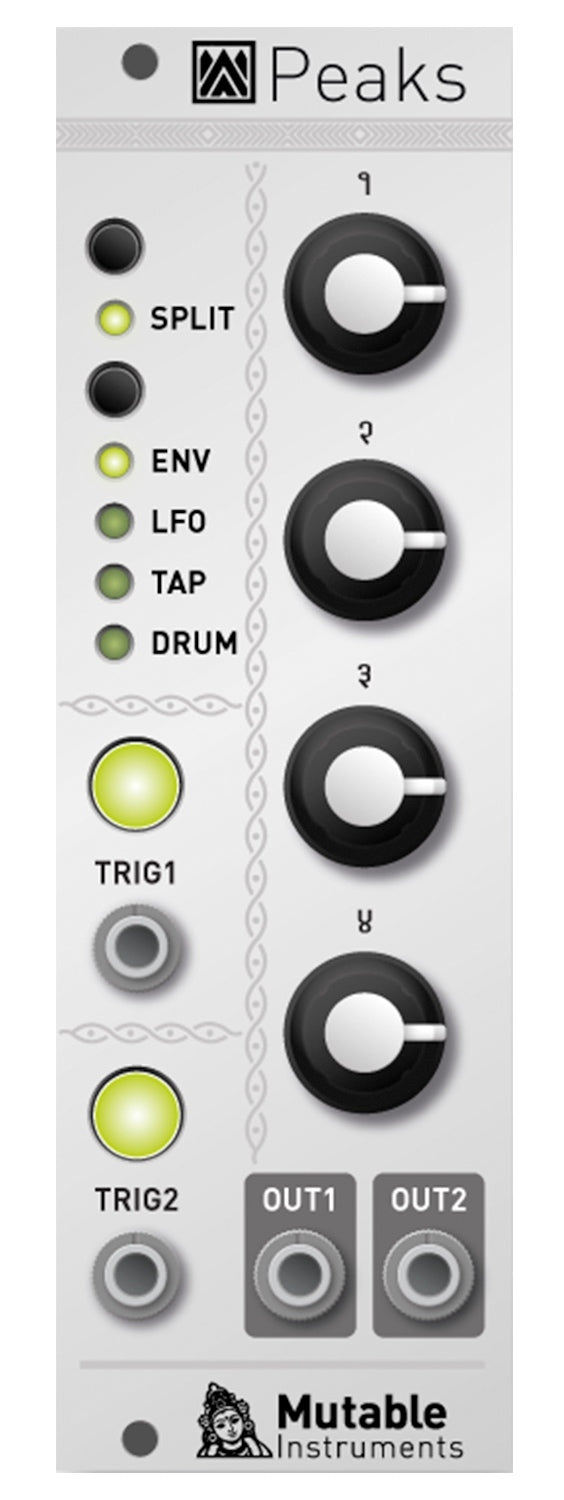

Mutable Instruments Peaks (Demo Deal)
  • Mutable Instruments Peaks (Demo Deal)
Mutable Instruments

Mutable Instruments Peaks (Demo Deal)

MFR# Peaks

Carefully tuned envelope shapes: quartic attack, exponential decay and release, provide a smooth response

Product No Longer Available

Need help finding a different option? We can help.

We respond within one business day. All inquiries are confidential.

Please note: This item requires a Eurorack/Modular Synth Case for operation. Shop Eurorack Cases.

Experts At Your Service

Have a question? Our Audio Consultants and Technicians have years of real-world experience and are ready to help.

Call now

Peaks by Mutable Instruments provides 4 different functions in a small 8-HP package. Their common point? They are all about generating an audio or CV signal in response to a trigger, and are all focused on rhythmic works.

Peaks is a dual-channel module – making it very useful for duophonic patches or for controlling/synthesizing the kick/snare rhythmic backbone of a patch.

Classic ADSR

  • Segment durations ranging from 0.2ms to 8s.
  • Quartic attack, exponential decay, exponential release.
  • Other fancy modes implemented in the code, waiting to be unlocked!

Peaks’ first function is a no-frills ADSR envelope with segment times going from 0.2ms to 8s.

LFO and tap LFO

  • 0.03 Hz to 160 Hz.
  • 5 basic waveforms: square, triangle, sine, stepped, random.
  • Waveform variations and morphing for each of these: PWM, slope, folding/harmonics, step size, interpolation.
  • Phase at reset control.
  • Tap LFO can lock onto irregular rhythms.

Peaks’ can work as a free-running, resettable LFO, or as a tempo synchronized LFO.

5 waveforms are available, each of them with a shape/morphing parameter: wavefolded sine, variable slope triangle, PWM square, stepped triangle and sampled/interpolated noise.

A unique feature of Peaks is its ability to lock onto irregular sequence of taps: the module can detect the periodicity of the incoming trigger pattern, and adjust the duration of the LFO cycles accordingly.

Drum Generator

  • Channel 1: 808 kick model with extra parameters (tune, punch).
  • Channel 2: 808 snare model with extra parameters (tune, decay).
  • Channel 2: A specific combination of settings transform the snare into a modelled 808 hi-hat.

Peaks can synthesize bass-drum, snare-drum and hi-hat sounds using a digital model of the TR-808 circuits. An alternate drum generation mode synthesizes more aggressive FM-style drum sounds.

Inputs, controls and outputs

  • 4 parameter edition pots.
  • Channel 1 & 2 trigger inputs.
  • Channel 1 & 2 trigger push-buttons.
  • Channel 1 & 2 CV/audio output.

Technical characteristics

  • 16-bit CV/audio generation with 48kHz sample rate.
  • Cortex-M3 ARM processor.
  • Open-source hardware and firmware.
  • 8-HP.
  • Easy firmware updates through an audio interface.
  • Current consumption: +12V: 60mA ; -12V: 2mA.
