Moog Music SUBsequent 37 CV - Limited Edition (Demo Deal)

MFR# LPS-SUB-004-01

Limited-edition redesign of the ultra-powerful Sub 37 Tribute Edition analog synthesizer

Please note: This item is available for purchase in the United States Only

Product No Longer Available

Need help finding a different option? We can help.

We respond within one business day. All inquiries are confidential.

Experts At Your Service

Have a question? Our Audio Consultants and Technicians have years of real-world experience and are ready to help.

Call now

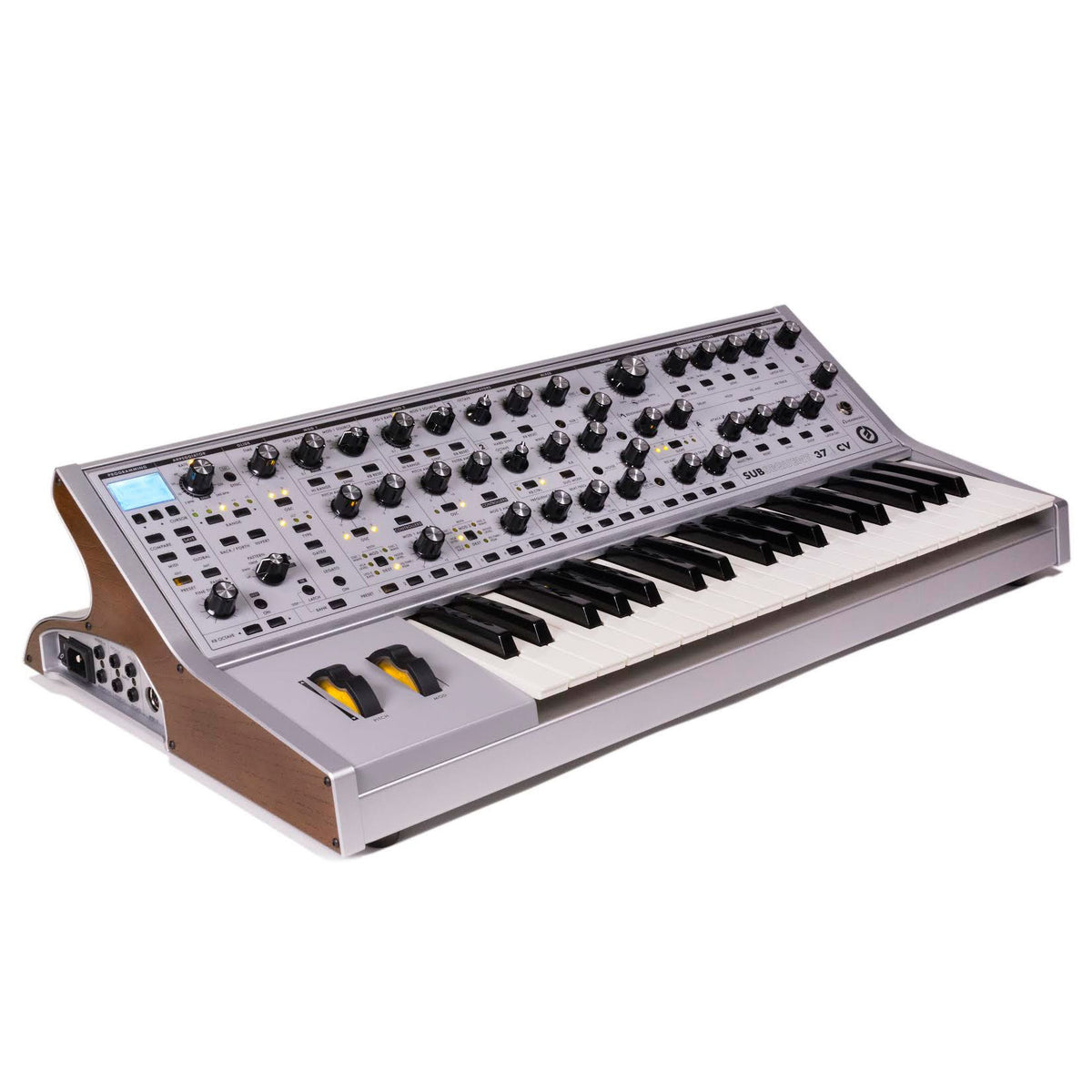

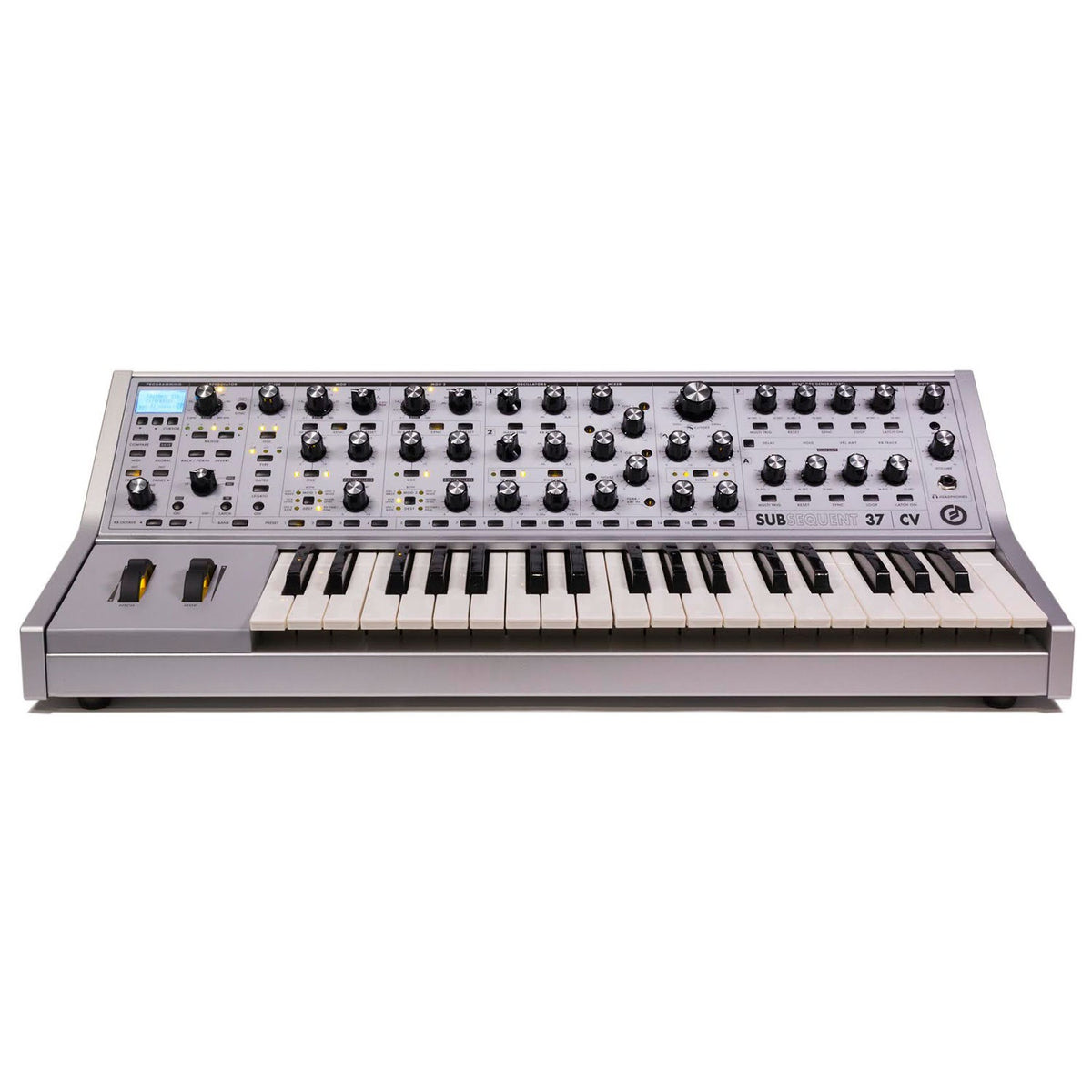

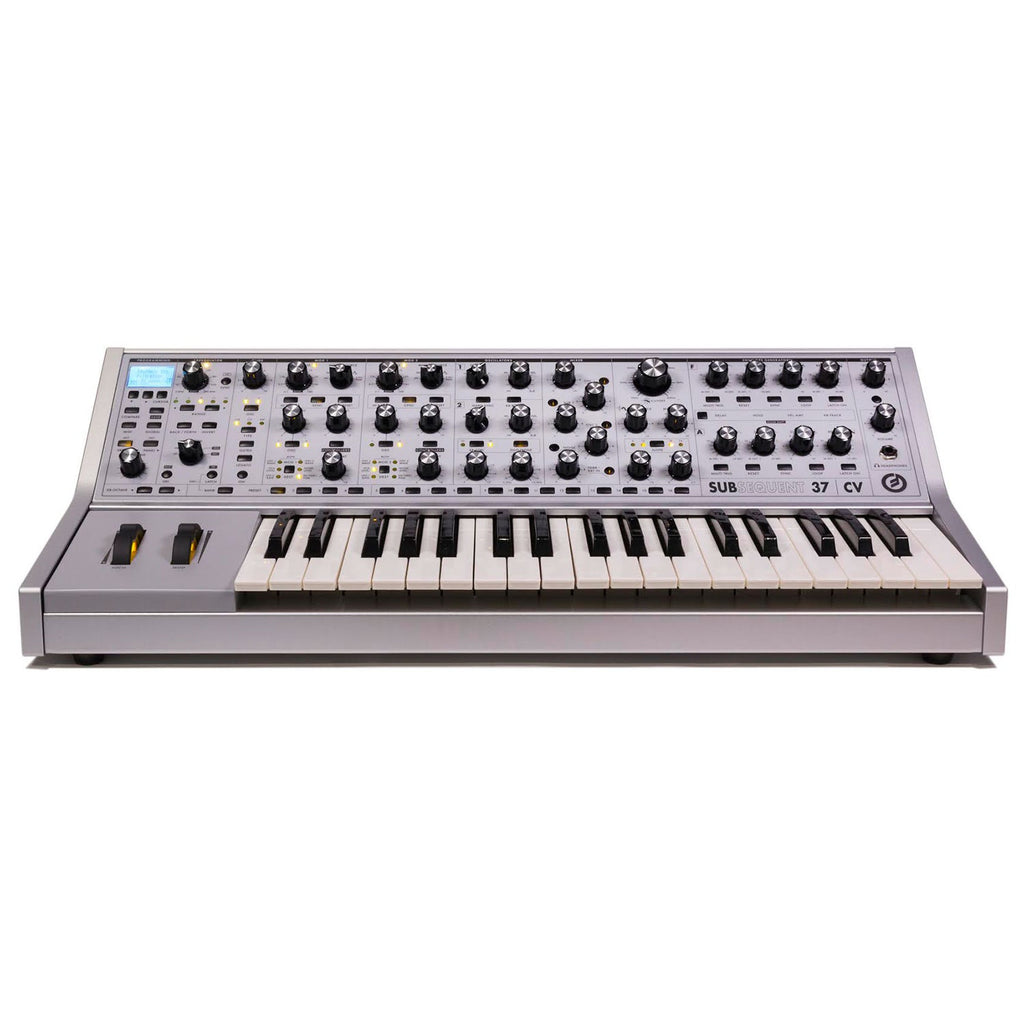

With added CV connectivity and increased mixer headroom the Moog SUBSEQUENT 37 CV is a limited-edition redesign of the ultra-powerful Sub 37 Tribute Edition analog synthesizer. Sturdy aluminum side pieces and American hardwood are held in a steel and aluminum enclosure providing a classic, rugged look. Four assignable CV outputs and two assignable Gate outputs provide extended interconnectivity with large format and Eurorack modular synth systems. The keybed has been updated for enhanced playability. Additionally, it features a high-powered headphone amplifier for live-monitoring and a modified analog signal path. The SUBsequent 37 CV provides all the grit of the original SUB 37 and then some!

"We are really excited to incorporate community feedback into the evolution of an instrument. Adding CV interconnectivity was the starting point, but we have also increased the headroom in the mixer and significantly extended the range of Multidrive, giving the SUBSEQUENT 37 CV expanded sonic capability and modular control." - Cyril Lance, Moog Chief Engineer

The SUBSEQUENT 37 CV’s mixer now has double the headroom of the Sub 37 Tribute Edition. Taking advantage of the mixer’s newfound flexibility, the gain-staging of the Ladder filter has been reshaped to boost harmonic saturation and analog compression. Completing the sonic evolution is a re-tuned Multidrive circuit that extends well beyond the grit and growl of the original Sub 37.

SUBSEQUENT 37 CV production is limited to 2000 pieces worldwide. Each instrument is lovingly handcrafted by the employee owners at the Moog factory in Asheville, NC.

SPECIFICATIONS

  • TYPE: Programmable Paraphonic Analog Synthesizer
  • SOUND ENGINE: 100% Analog
  • NUMBER OF KEYS: 37
  • TYPE OF KEYS: Semi-Weighted with After Pressure
  • CONTROLLERS: Pitch Bend, Mod Wheel, After Pressure, Velocity
  • POLYPHONY: Selectable Monophonic or Duophonic
  • SOUND SOURCES: 2 Variable Waveshape Oscillators, 1 Square Wave Sub Oscillator, 1 Analog Noise
  • Generator, 1 External Input/Filter Feedback
  • OSCILLATOR CALIBRATION RANGE: 22 Hz - 6.8 kHz guaranteed note range at 8’ of Note 18 to 116
  • MOD SOURCES: Triangle, Square, Saw, Ramp, Sample & Hold, Filter EG/PGM
  • MOD DESTINATIONS: Osc 1 Pitch, Osc 2, Osc 1 & 2 Pitch, Filter, LFO Rate, VCA Level, Osc 1 Wave, Osc 2
  • Wave, Osc 1 & 2 Wave, Noise Level, EG Time, and Programmable Destinations
  • FILTER: 20 Hz - 20 kHz Moog Ladder Filter w/ 6/12/18/24 dB/Oct Filter Slopes and MultiDrive
  • AUDIO INPUT: 1 x TS
  • AUDIO OUTPUT: 1 x TS, 1 x TRS Headphone
  • PRESETS: 256 Presets - 16 Banks, 16 Patches per Bank
  • MIDI I/O: DIN In, Out, and MIDI over USB
  • CV/GATE INPUTS: Filter CV, Pitch CV, Volume CV, KB Gate
  • CV/GATE OUTPUTS: 4x Assignable CV and 2x Assignable Gate
  • TRANSPOSITION: ± 2 Octaves
  • LFO: 0.01 Hz - 1000 Hz
  • WEIGHT: 22 lb / 10 kg
  • DIMENSIONS: 6.75” H x 26.375” W x 14.75 D / 17 cm H x 68 cm W x 37.5 cm D
  • INPUT VOLTAGE: 100 VAC - 240 VAC / 50 - 60 Hz / 13 W
