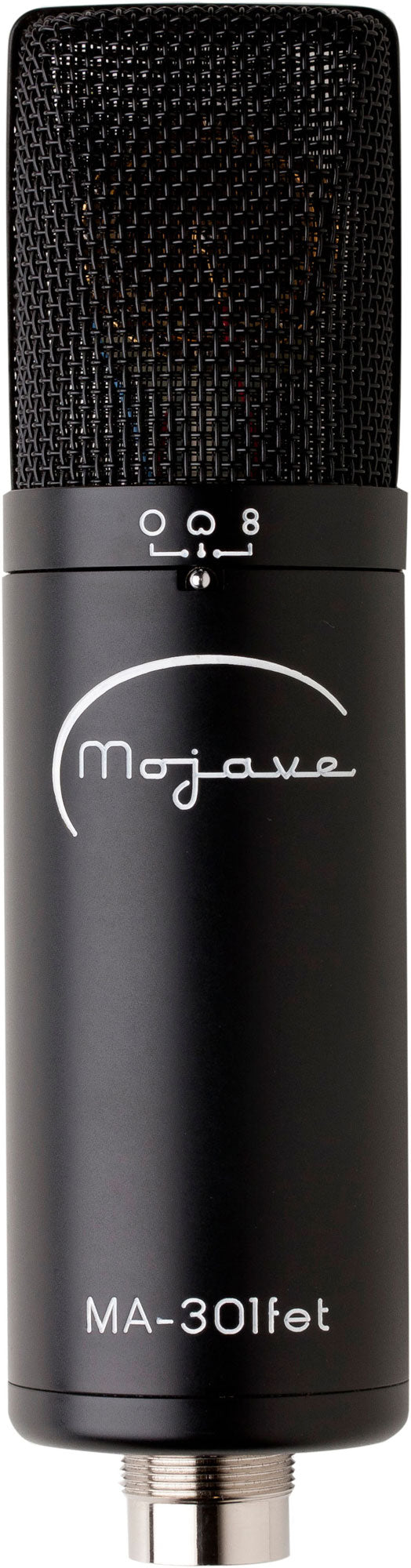

Mojave Audio MA-301fet (Demo Deal)

The Mojave Audio MA-301fet is a multi-pattern large diaphragm, solid-state condenser microphone. Based upon the popular MA-201fet designed by David Royer, the MA-301fet adds a three-posistion pickup pattern selector, a 15dB pad and a switchable bass roll-off. Utilizing a three-micron gold-sputtered capsule, high-quality Jensen audio transformer, military-grade FET and custom designed low-noise resistors, the MA-301fet performs at a level reminiscent of some of the best loved classic condenser microphones. Each MA-301fet microphone is carefully tested and evaluated, then packaged in its protective case with a professional grade shock-mount.

Recommended Applications:

• Vocals
• Voice Over and Broadcast
• High SPL sources, such as Kick Drums and Bass Guitar Amps
• Electric Guitar
• Piano
• Drum Overheads, Drum Rooms
• Acoustic Instruments

Specifications:

• Transducer type: Externally polarized, pressure gradient capacitor - double diaphragm
• Diaphragm: 1-inch diameter, gold sputtered
• Diaphragm thickness: 3 microns
• Polar pattern: 3 patterns; omni, cardioid and figure-8
• Frequency response: 20 Hz to 20 KHZ, ±3 dB at "flat" setting of bass cut
• switch. Bass cut switch provides 6 dB per octave attenuation below
• 100 Hertz in "cut" setting
• Sensitivity: -40.5 dB, re. 1V/pa
• Maximum SPL: 120 dB with pad off, 135 dB with pad on
• Distortion: < 1% @ 120 dB SPL , < 3% @ 134 dB SPL with pad off
• < 1% @ 134 dB SPL, < 3% @ 148 dB SPL with pad on
• Self noise: 14dB nominal, not to exceed 16dB (A weighted)
• Pad: 15 dB
• Bass cut: 6 dB per octave below 100 hertz
• Impedance: 550 ohms, transformer balanced (Jensen)
• Powering: 48VDC phantom power; current 1.2 mA

Dimensions and weight:

• Carrying case with microphone, shock mount: 10” x 9” x 4.5”, 4 lbs.
• Microphone: 7 5/8” X 2” (194mm x 51mm), 1 lb. (0.45Kg)
