Maag Audio EQ4 500 Series 6-Band EQ #MA21158 (Used)

500 Series 6-band equalizer that provides unparalleled transparency and top end presence while maintaining the true natural sound behind the mix

Product No Longer Available

Need help finding a different option? We can help.

We respond within one business day. All inquiries are confidential.

Experts At Your Service

Have a question? Our Audio Consultants and Technicians have years of real-world experience and are ready to help.

Call now

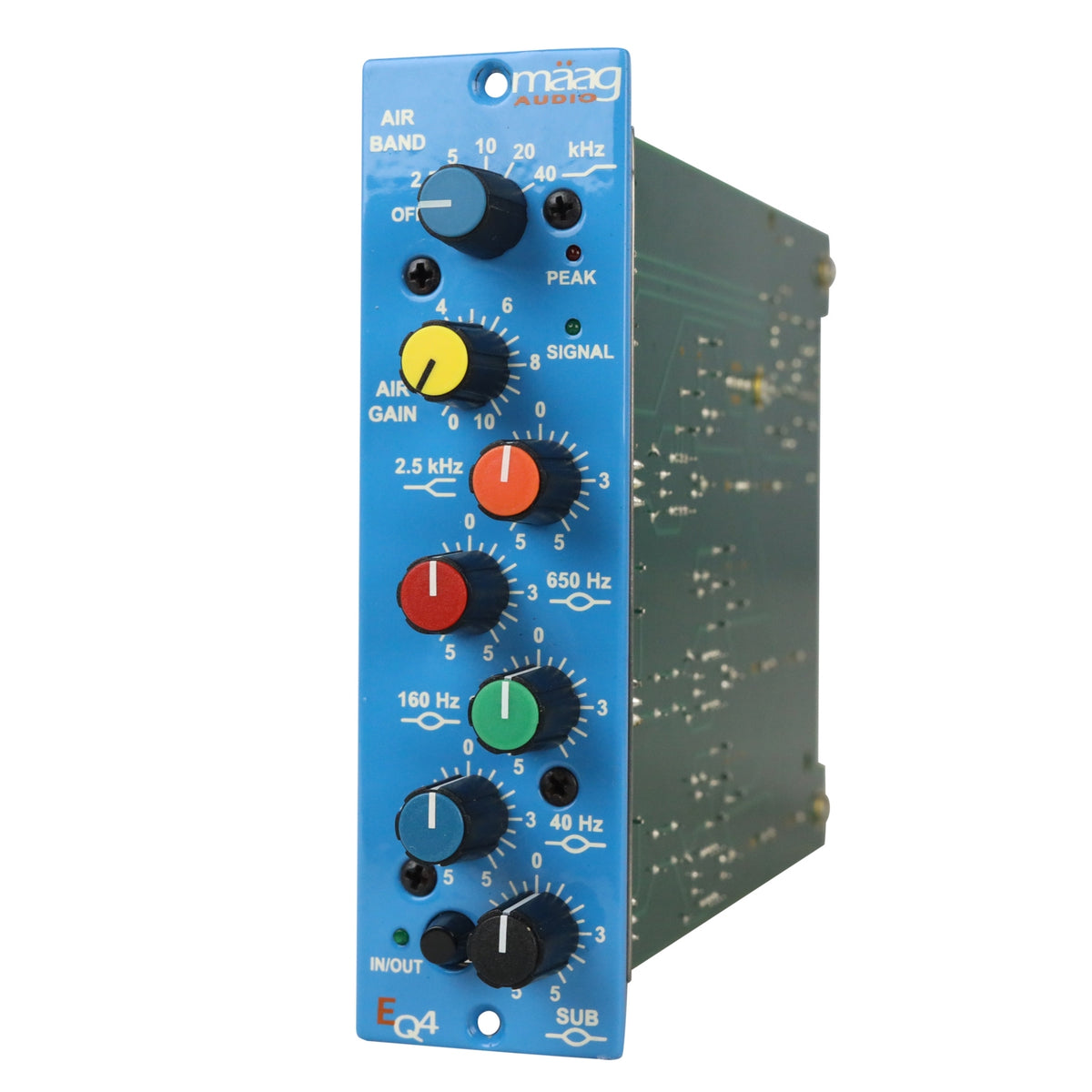

The Maag EQ4 500 Series is a one-channel six-band equalizer with AIR BAND (shelf boost from 2.5 to 40kHz), compatible with the API 500-6B lunchbox and 500VPR rack systems.

Following its EQ3 and EQ3-D predecessors, the EQ4 provides unparalleled transparency and top end presence while maintaining the true natural sound behind the mix. EQ adjustments are obtained with minimal phase shift and detent controls allow for easy recallable settings.

Presented in the flagship 500 Series format, the EQ4 offers the legendary AIR BAND and five other sonically superior band passes.

SPECIFICATIONS:

  • Frequency Response: -2 dB points, 10 Hz & 75 kHz
  • Nominal Input Impedance (XLR): 48 K Ohms, balanced
  • Nominal Output Impedance (XLR): 50 Ohms, balanced
  • Headroom: +27 dBu
  • THD + Noise: < 0.005%
