Lexicon MXP-1 Effects Processor #VO698-15207 (Vintage)

Mono half-rack multi-effects processor

Product No Longer Available

Need help finding a different option? We can help.

We respond within one business day. All inquiries are confidential.

Experts At Your Service

Have a question? Our Audio Consultants and Technicians have years of real-world experience and are ready to help.

Call now

The MPX 1 is the processor that fulfills the promise implied by the term, "multi-effects." Multiple Processor FX technology combined with an interactive front panel, creates a new set of standards for others to follow... no less than you'd expect from Lexicon.

WHAT TO EXPECT

  • No compromise stereo reverb in combination with as many as 4 additional stereo effects
  • A "goof-proof" system for quickly fine-tuning any program, without having to enter an in-depth editing mode
  • Visual feedback to tell you exactly where you are and what features are available; on-board Help guides you all the way
  • 56 Pitch, Chorus, EQ, Modulation, Delay and world-class Reverb effects
  • Complete flexibility of routing and effect order in every program
  • 200 preset programs designed for a wide variety of audio sources and applications — with database sorting to let you find exactly what you want
  • Layered features; options are there when you need them, and out of the way when you don't
  • Dynamic control of all effects parameters with pushbutton access to the patch system
  • Extensive MIDI implementation

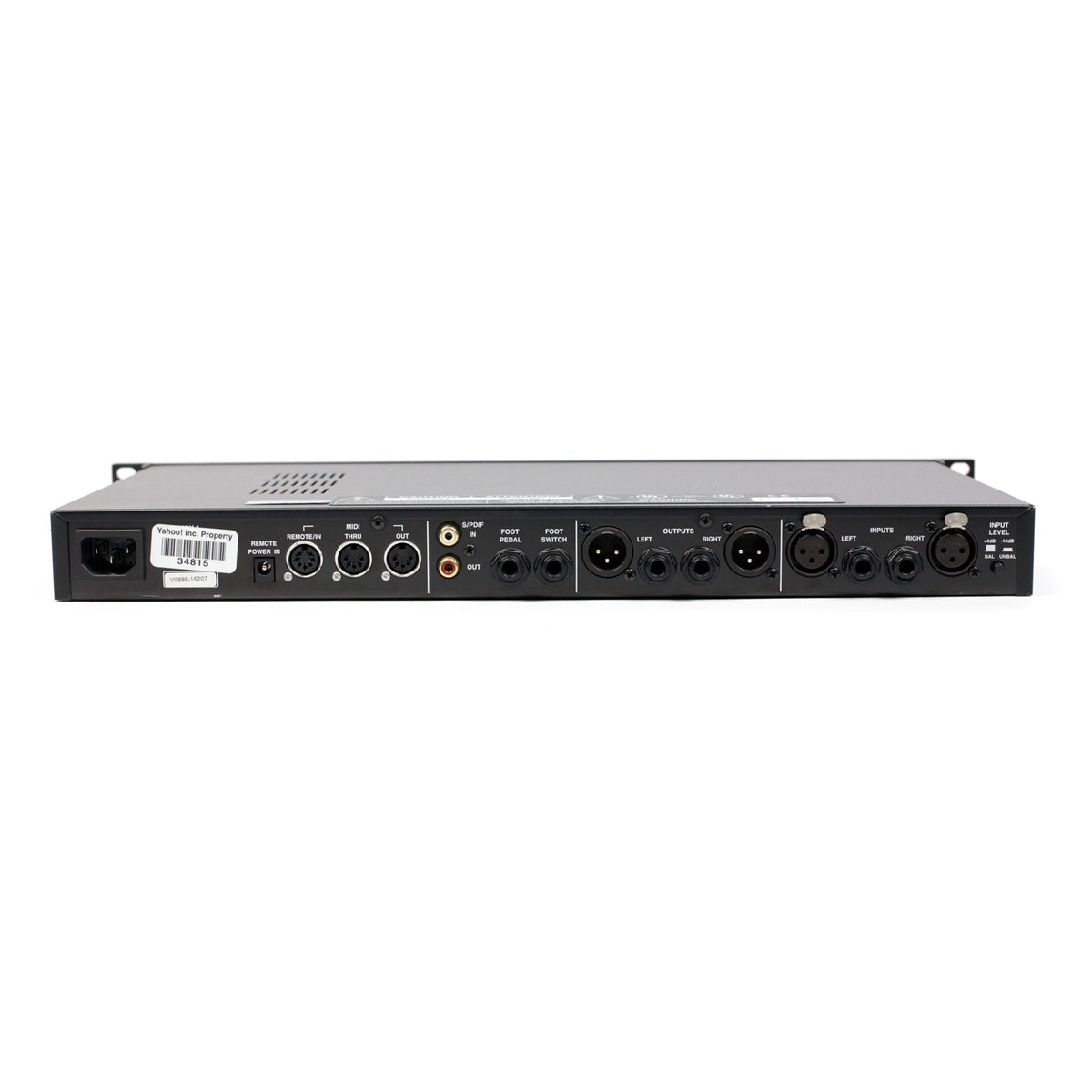

  • Comprehensive audio connectivity

    •

    Details

    • Analog Audio Input: XLR and 1/4" balanced (T/R/S)
    • Input Level -2dBu to +20dBu, balanced; -14dBu to +8dBu, unbalanced
    • Input Impedance 100k½, balanced;50k½, unbalanced
    • Analog Audio Output XLR and 1/4"balanced (T/R/S)
    • Output Level +18dBu
    • Output Impedance 600½unbalanced
    • Digital Audio Input Coaxial RCA
    • Format 24-bit S/PDIF
    • Sample Rate 44.1kHz
    • Digital Audio Output Coaxial RCA
    • Format 24-bit S/PDIF
    • Sample Rate 44.1kHz
    • Conversion 24-bit A/D;24-bit D/A
    • Internal Audio DSP 20-bit;32-bit
    • Frequency Response 20Hz - 20kHz ±1dB
    • Crosstalk -60dB
    • THD 0.01%, 20Hz - 20kHz
    • Dynamic Range D/A:>95dB typical, 20Hz - 20kHz, unweighted; A/D:>90dB typical, 20Hz - 20kHz, unweighted; A/A:>95dB typical, 20Hz - 20kHz, unweighted
    • MIDI Interface 7-pin DIN connector for MIDI IN and powered bidirectional remote; 5-pin DIN connectors for MIDI THRU and OUT
    • Footswitch 1/4"T/R/S connector for bypass and tap
    • Footpedal 1/4"T/R/S connector (10k½- 100k½impedance)
    • Power Requirements 100 - 240 volts AC, 50 - 60Hz, 25 watts; (3-pin IEC connector)
    • Remote Power In 2.5 mm 9 volts AC (not included)
    • Dimensions 19" W x 1.75" H (1U) x 9" D; (483 x 45 x 289 mm), rack mount standard
    • Weight 6.125 lbs.(2.8 kg)
    • Operating Temperature 32¡to 104¡F (0¡to 40¡C)
    • Maximum Humidity 95% without condensation
