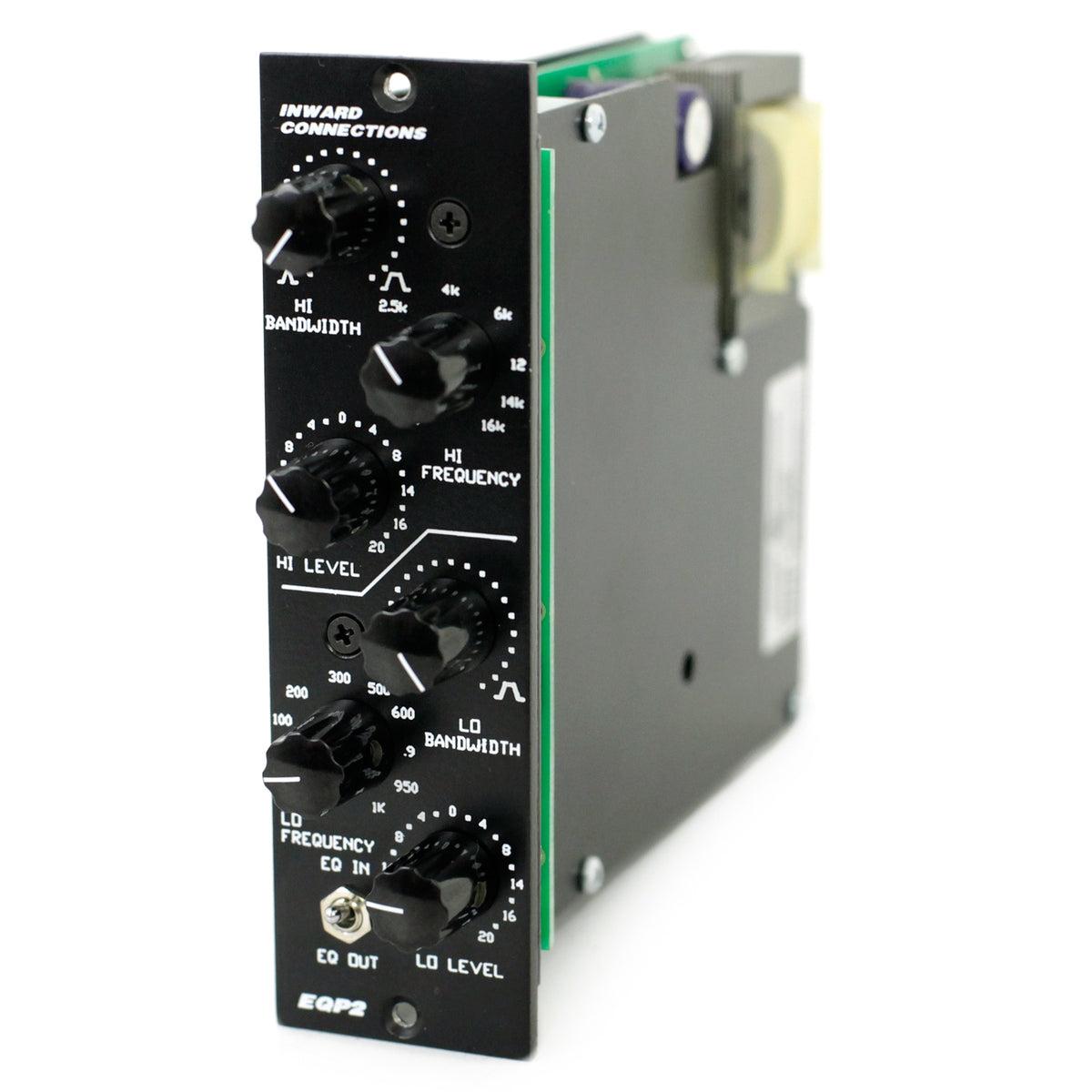

Inward Connections EQP2 Equalizer #086 (Used)

500 Series 2-band parametric EQ

Product No Longer Available

Need help finding a different option? We can help.

We respond within one business day. All inquiries are confidential.

Experts At Your Service

Have a question? Our Audio Consultants and Technicians have years of real-world experience and are ready to help.

Call now
Inward Connections EQ P2 is a versatile fully parametric 2-band equalizer utilizing the legendary SPA690 discrete amp blocks. Capable of 20db of boost/cut per band, this all discrete design will offer smooth equalization from subtle to extreme.
Features include:
  • Low band frequency range 35Hz to 1KHz
  • High band frequency range 560Hz to 16KHz
  • Maximum boost/cut +/- 20dB
  • Range of bandwidth adjustment 0.16 to 2.0 octave
  • Bypass switch
  • SPA690 all discrete legendary amp blocks
  • Differential balance input transformer less
  • Balance output transformer
  • Fits standard 500 Series slot configuration mechanically and electrically
Specifications:
  • Input Impedance >20K ohms balance
  • Output Impedance 600 ohms balance
  • Frequency Response +/- 0.5dB@20Hz to 50KHz
  • Output Signal to Noise -95dB or greater
  • THD + Noise .01%@1KHz/+4dBu
