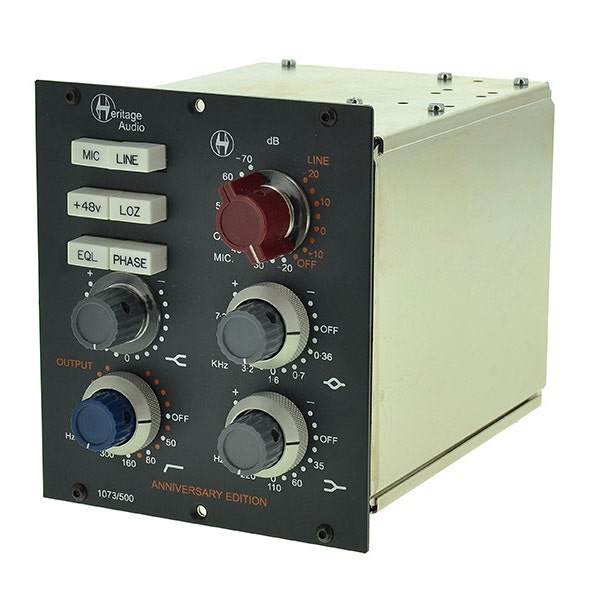

Heritage Audio 1073/500

MFR# HA1073/500ANN

3-slot 500 series 80 dB Class A mic preamplifier featuring custom polystyrene and polypropylene film tone capacitors

Product No Longer Available

Need help finding a different option? We can help.

We respond within one business day. All inquiries are confidential.

Experts At Your Service

Have a question? Our Audio Consultants and Technicians have years of real-world experience and are ready to help.

Call now

Introduced in late 2011, the Heritage Audio 1073/500 set the standard for full 1073s in 500 Series format. With its impressive 3 slot wide chassis, it is essentially a reformatted 80 Series HA1073, employing the same cards and components in the same modular construction technique.

Completely hand-wired and built like a tank, the HA1073/500 will bring the same quality and prestige to your studio as its 80 Series brother. As of 2013, it includes an output level control.

Specifications:

  • Microphone input impedance: HI, 1200 Ohm minimum, LO, 300 Ohm minimum, higher gain positions gradually have greater impedances, optimum for low gain ribbon mics, input is transformer balanced and floating
  • Line input impedance: 10 kOhms bridging, transformer balanced and floating
  • Output impedance: Less than 75 Ohms, transformer balanced and floating, to drive a load of 600 Ohms
  • Maximum output: Greater than +26 dBu into 600 Ohms
  • THD: Less than 0.025% at 1 kHz, less than 0.05% at 100 Hz
  • Frequency response: 20 Hz (+0.3 dB) to 20 khz (-0.2 dB)
  • Maximum Gain: Slightly greater than 70 dB
  • Noise: Less than -100 dBu
  • Power consumption: Less than 80 mA per rail @±16 VDC
