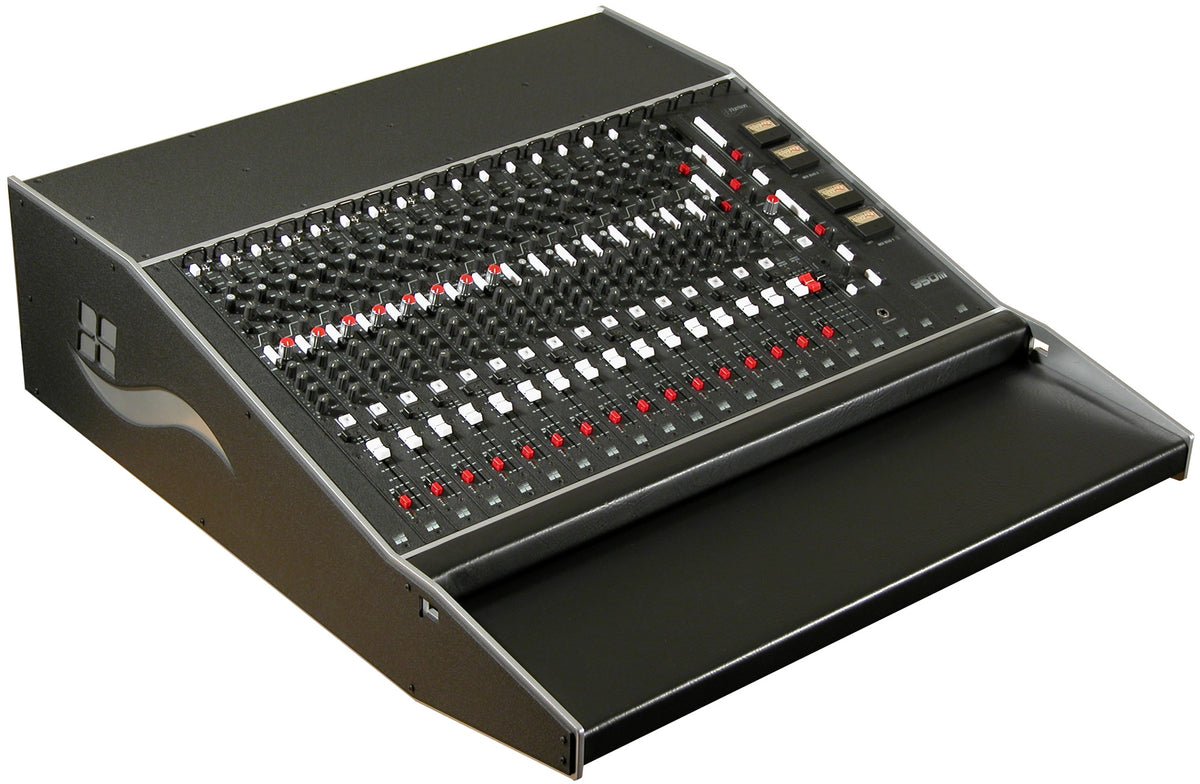

Harrison 950m 12-Channel Analog Console - 4 Mono, 8 Stereo

The Harrison 950m sports a history-rich analog design incorporating many of the same high-end modular design elements found across a wide range of Harrison console models from eras past such as the 32 Series, MR Series (2, 3, 4, 5 and 7), SeriesTen, SeriesTwelve, MPC and LPC. The 950m provides a superior analog mixing platform that will cost effectively complement today’s high performance music studio where investments in powerful DAW’s and high-end specialized outboard gear are the norm.

The 950m was designed by Harrison's most experienced analog designers, and they were challenged to make the best-sounding, highest-spec analog console available today.

Features

• Manual PCB layout
• Robust ground plane design
• Linear power distribution
• Gold Euro-card module connectors
• Gold plated switches
• Conductive plastic potentiometers
• 100% through-hole design
• All I/O is balanced
• Summing buses carried via PCB’s (no ribbon cable summing buses).

These features combine to provide the highest possible performance in analog mixing console design.

The Harrison 950m frame design is rugged and unique. Designed with input from studio engineers, it is specifically designed to minimize some common ergonomic issues found in today’s studio using DAW and outboard based setups: “Where do I put a keyboard, mouse or trackball and where do I put the computer monitor(s)?” The 950m solves those issues by providing a 2-tiered front bolster which is wide and deep enough to comfortably locate a DAW keyboard and mouse or trackball (with sufficient cable access). A generous flat top is ideal for locating DAW monitor/s and/or small speakers. The 950m module area is supported at a 15 degree pitch providing comfortable viewing access and control immediately above your keyboard, mouse, and DAW control surface(s).

Input Channels

• Switchable Insert points on every input
• 48v (Mono Only)
• Direct Out (Mono Only)
• Switchable HP + LP Filters
• 3 Band "Tone" Controls
• Pan / Balance
• Input Selections
• Input Gain Controls
• 4 Mono Aux Sends
• Channel ON
• Solo
• 104mm Fader
• Mix Bus Routing
• LED Input Meter

Master Section

• Mix Bus 1 compressor
• Mix Bus 2 Compressor
• Oscillator / Talkback Assignments
• Aux Send Masters
• Mix Bus Master Faders
• Stereo Mix Bus 1 & 2 VU Output Meters

Monitor

• Oscillator
• Monitor Sources
• Headphone Level
• Speaker Level
• Monitor Solo Listen
• Monitor Mono
• Monitor Mute
• Talkback Microphone
• Talkback Level
• Talkback Enable
• Headphone Jack

Studio

• Studio A Source Select ( Osc, Aux 1-4, Mix Bus 1/2 )
• Studio A Level/Mono/Mute
• Studio B Sources
• Studio B Level/Mono/Mute
• Studio Talkback Assignments

XLR Outputs

• Stereo Mix Bus 1 ("Black") Electronically-balanced Output
• Stereo Mix Bus 2 ("Red") Transformer-balanced Output
• Mono Aux 1-4 Output
• Stereo Studio A output
• Stereo Studio B output
• Stereo Solo bus output
• Stereo Control Rm Output
• Mono Oscillator Output

Back Panel

• External Linear DC Power Supply
• XLR Mic Inputs / Main Outputs
• "D" Sub Line Inputs / Outputs (Tascam pinout)
• Additional Connections:
• Mix Bus A & B Stereo Insert point
• Master Logic (Talkback, Mutes, and fader VCA connections)

Frame

• 15 Degree Module Pitch
• Full Size Keyboard Space
• Flat Top Monitor Shelf

---
