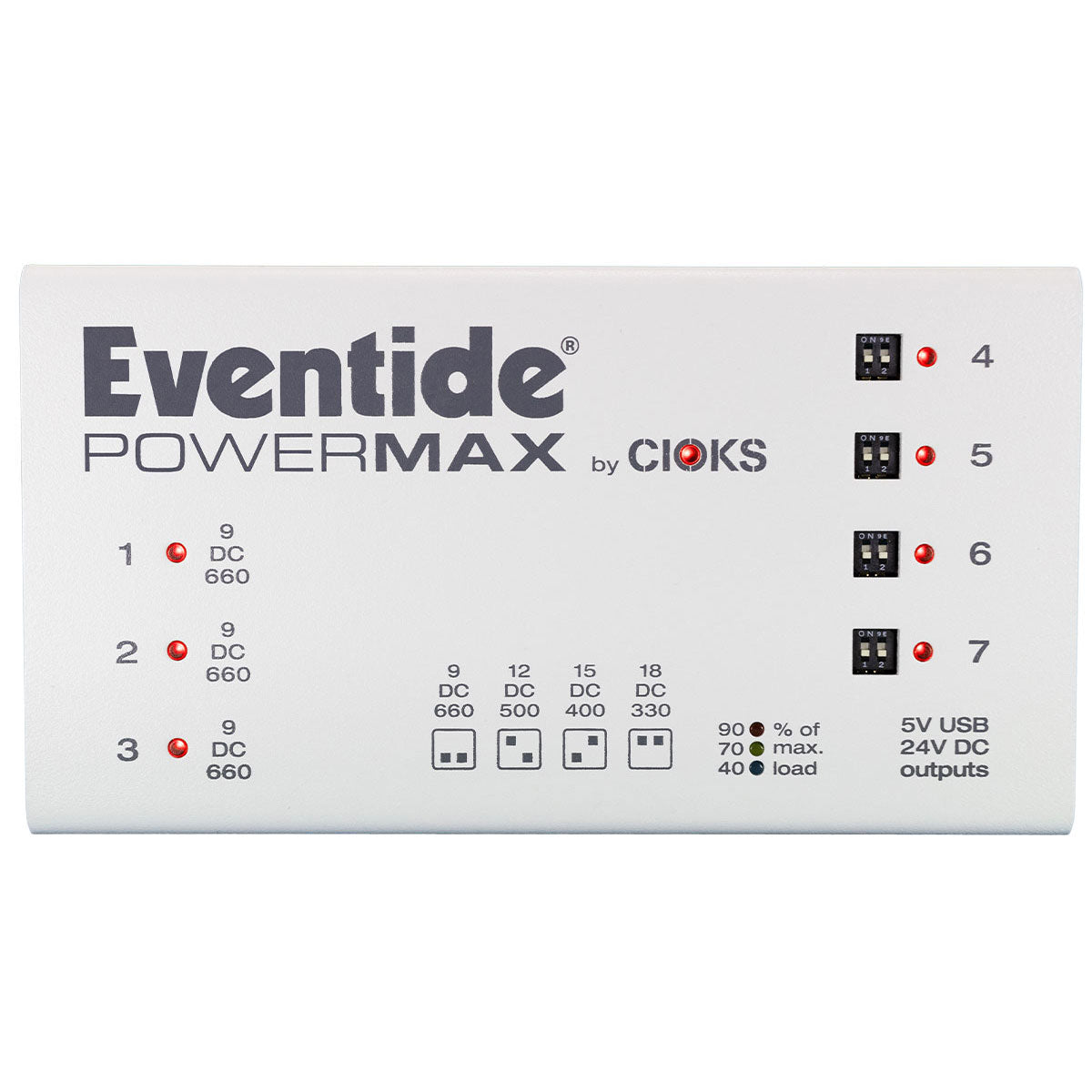

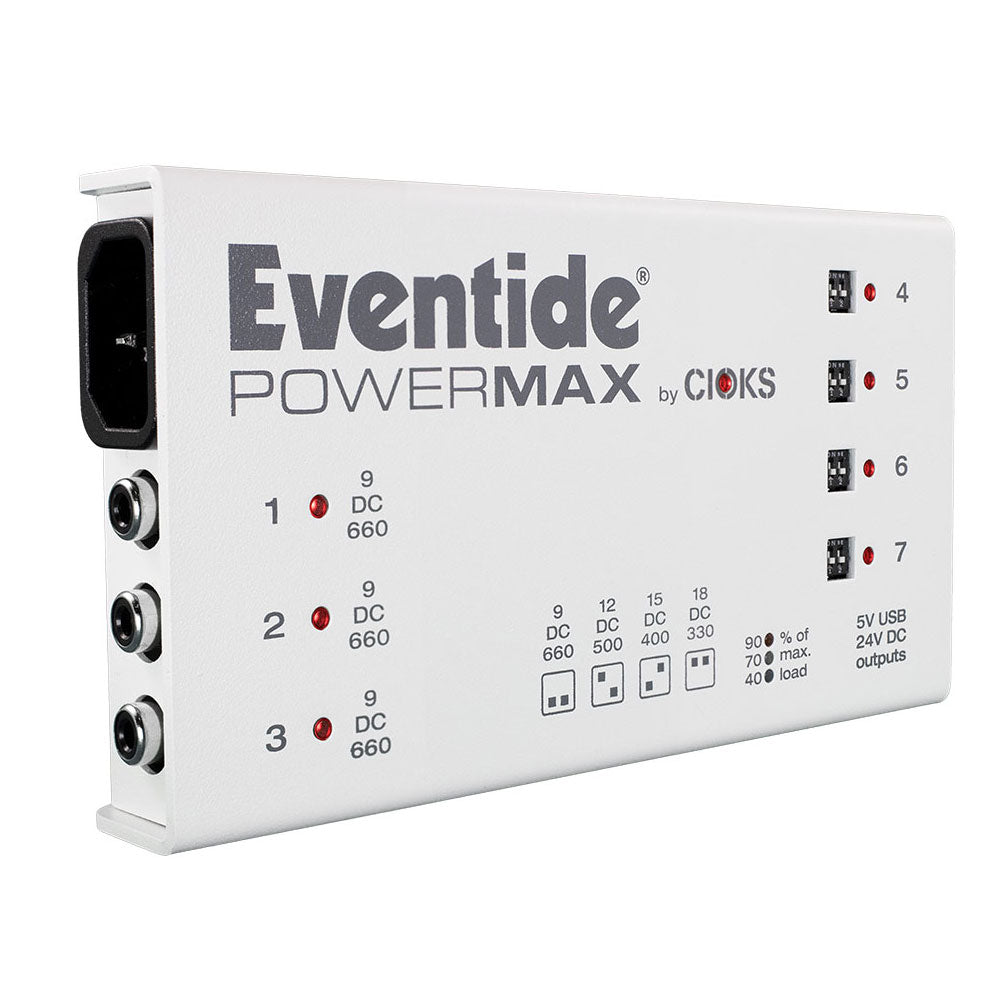

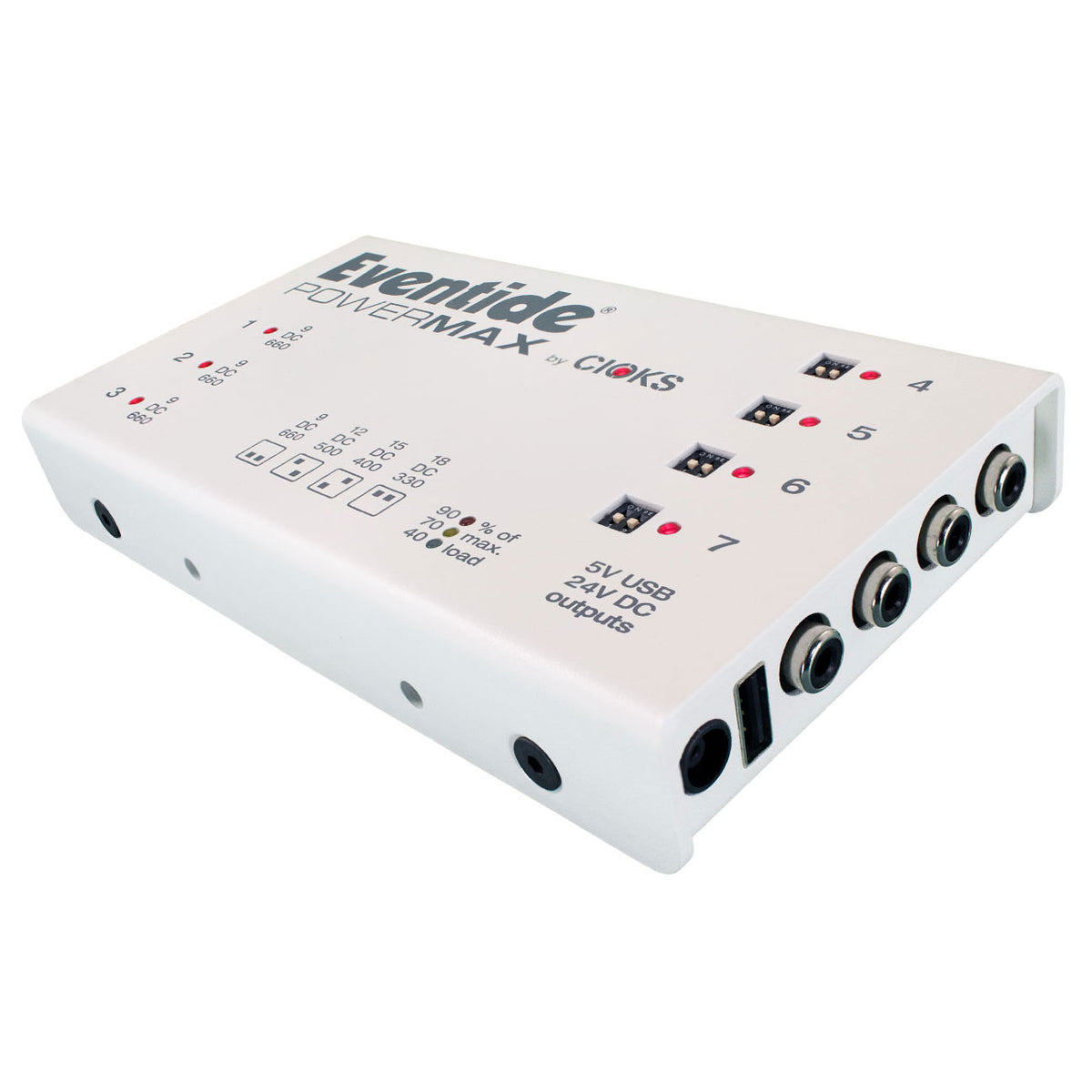

Eventide PowerMAX Rev.2 Isolated Pedalboard Power Supply

The Eventide PowerMAX Rev.2 sets the new standard for versatility and performance in a trim, light and easy to mount pedalboard power supply. PowerMax’s state-of-the-art design ensures your pedals will achieve maximum fidelity. PowerMax can power up to 7 high current effect pedals and simultaneously charge your smartphone or tablet. Weighing only 1.1 lb and 1" thick, it’s a fit companion to H9 or any other pedals that grace your pedalboard. Features a state-of-the-art universal power supply (85-265V) which can be used worldwide.

Included Flex Cables

PowerMax comes with 13 flex cables compatible with various pedal types.

• 1x 4030-L 5.5/2.5mm center positive angled DC plug, 30cm / 12”, green, type 4 (for H9s, TimeFactor, PitchFactor, ModFactor or Space)
• 2x 4050-L 5.5/2.5mm center positive angled DC plug, 50cm / 20”, green, type 4 (for H9s, TimeFactor, PitchFactor, ModFactor or Space)
• 2x 4080-L 5.5/2.5mm center positive angled DC plug, 80cm / 31”, green, type 4 (for H9s, TimeFactor, PitchFactor, ModFactor or Space)
• 3x 1030-L 5.5/2.1mm center negative angled DC plug, 30cm / 12”, black, type 1 (BOSS standard)
• 2x 1050-L 5.5/2.1mm center negative angled DC plug, 50cm / 20”, black, type 1 (BOSS standard)
• 1x 2050-L 5.5/2.1mm center positive angled DC plug, 50cm / 20”, red, type 2
• 1x 5050-L 3.5mm tip positive angled Jack plug, 50cm / 20”, black, type 5
• 1x 1035 Split Flex (Y-cable) with two 5.5/2.1mm center negative angled DC plugs, 30+50cm / 12+20”, black, type 1 (BOSS standard)
