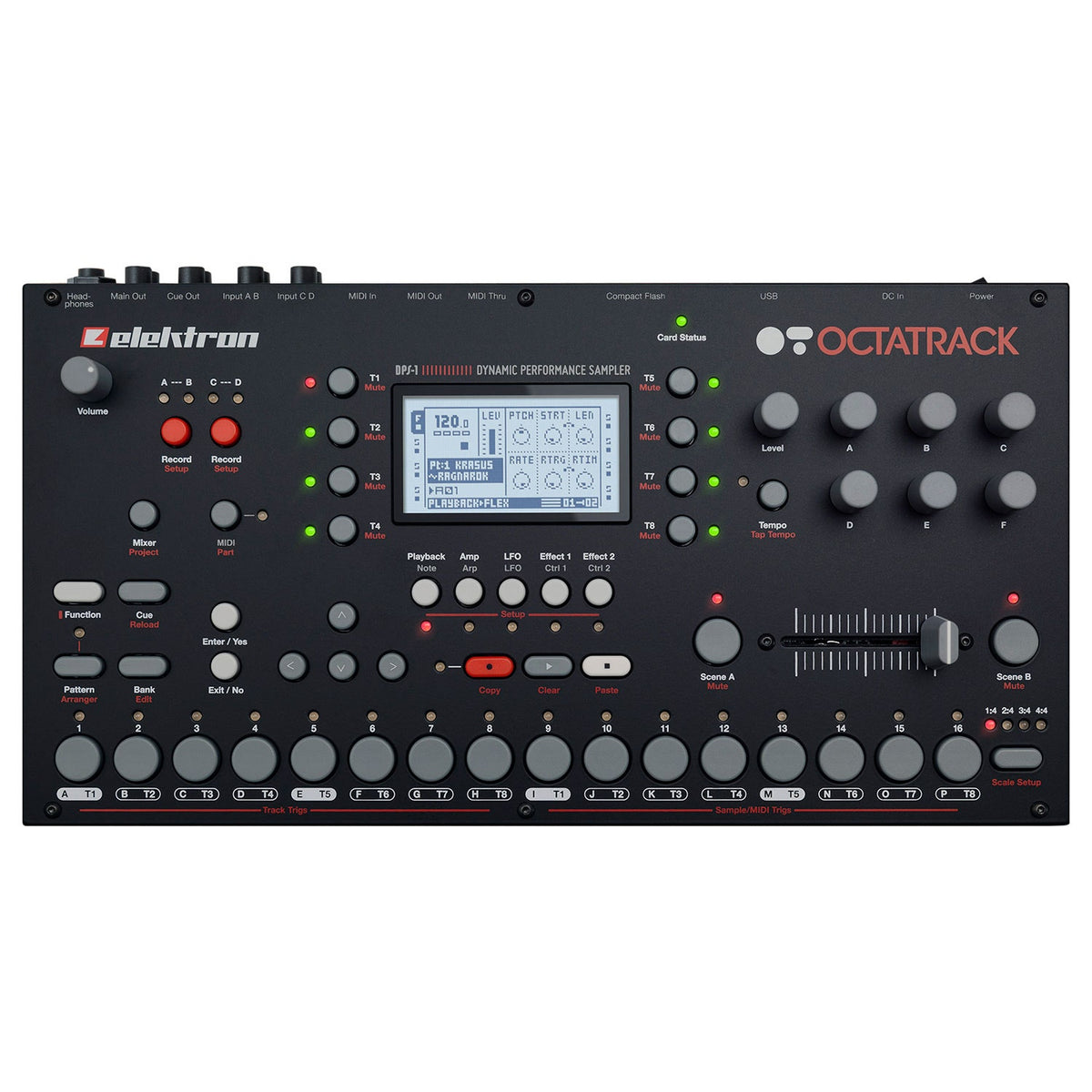

Elektron Octatrack (Demo Deal)

Discovering the perfect sample is the start of the process. Then twist it, mess around with it and rebuild it into something uniquely yours. The Elektron Octatrack sets new standards for sampling as an art form.

Game-changing hardware

The Octatrack brings enormous sample processing ability into a machine designed for live performance. It redefines how you transform your sounds, as well as how you interact and play with them. It lets you do things that were previously impossible with a single instrument.

Natural born performer

Record samples in real time. Add live time-stretching and pitch-shifting. Use the sequencer to control both internal sounds and external MIDI gear. The Octatrack can also be treated as a small mixing desk for your whole setup. The immediate control makes all the difference.

Audio mutation

The crossfader adds immense depth to your sound. First, choose how you want it to affect your samples. Then nudge the crossfader gently for the most subtle and natural-sounding changes – or knock it back and forth like you’re scratching for rapid and extreme enhancements.

Audio track features (x8)

• 1 × Specialized machine
• 1 × Track recorder
• 1 × Amplitude envelope
• 3 × LFOs
• 2 × User selectable track effects

MIDI track features (x8)

• 1 × Arpeggiator
• 3 × LFOs
• 10 × configurable CCs

Sequencer

• 8 × Audio tracks
• 8 × MIDI tracks
• Up to 64 steps per pattern
• Individual track lengths
• Individual track time signatures
• Chromatic, slice, slot, and delay freeze modes
• Parameter locks
• Sample-per-step change
• Micro timing
• Retrig functionality
• Swing and slide
• Full real-time control

Storage

• Compact Flash card storage
• Amount of Projects dependent on CF card size
• 80 MB Flex RAM per project
• Static sample streaming from CF card
• 256 patterns per Project
• 256 sample slots per Project
• 8 Arrangements per Project

Track effects

• 12/24 dB multi mode filter
• 2-band parametric EQ
• DJ-style kill EQ
• 2-10 stage phaser
• Flanger
• 2-5 tap chorus
• Spatializer
• Comb filter
• Compressor
• Lo-Fi (SRR, BRR, Dist and A.M.)
• Echo freeze delay
• Gatebox plate reverb
• Spring reverb
• Dark reverb

Hardware

• 128×64 pixel backlit LCD
• MIDI In/Out/Thru
• 4 × 1/4″ impedance balanced audio out jacks
• 4 × 1/4″ audio in jacks
• 1 × 1/4″ stereo headphone jack
• Advanced triple DSP system
• 44.1kHz, 24-bit D/A and A/D converters
• Flash-EEPROM upgradable OS
• USB 2.0 port
• Compact Flash card reader
• Infinium optical crossfader
• Sample engine reads 24 bit samples

Balanced audio outputs

• Headphones out level: +15dBu
• Main/cue outputs level: +10dBu
• Output impedance: 550 Ω unbalanced
• S/N ratio: 102dBFS (20-20,000 Hz)

Unbalanced audio inputs

• Input level: +8dBu maximum
• Audio input impedance: 9 kΩ
• S/N Ratio: 99dBFS (20-20,000 Hz)

Electrical specifications

• Unit power consumption: 8 W typical, 18 W maximum
• Recommended power supply: 6V DC, 3 A

Physical specifications

• Sturdy steel chassis
• Dimensions: W340×D181×H63 mm (13.4×7×2.4″) (including, audio outputs, knobs and rubber feet)
• Weight: approximately 2.4 kg (5.2 lbs)

Miscellaneous

• 16 GB high speed compact flash card included
• 2 GB of Loopmasters samples on the CF card
• USB cable included
• Printed user’s manual included
• 3 year Elektron warranty
