Clean, Classic Compression

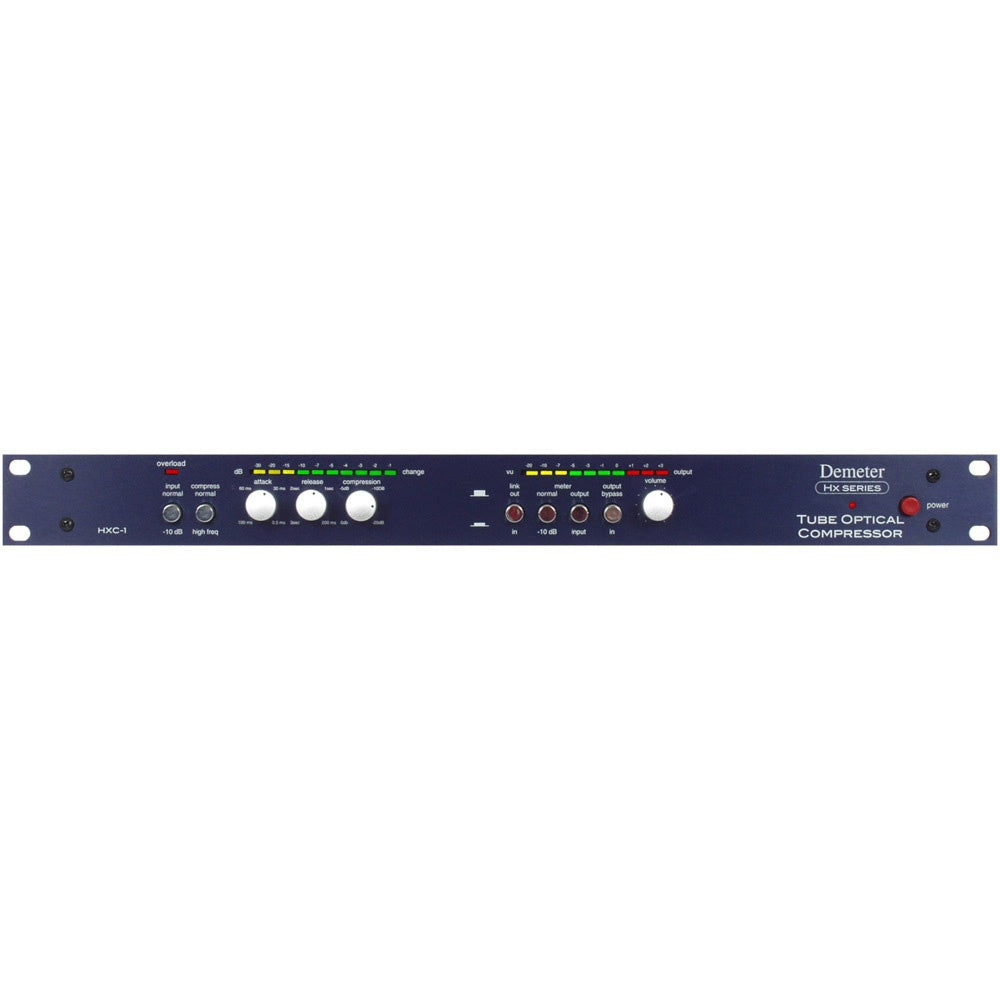

Now you can have the sound of a classic tube optical compressor without the noise and low fidelity sound often associated with them. In a compact and versatile package, the Demeter HXC-1 HX Series Compressor sets a new standard for sonic quality in tube compressors. The HXC-1 is a mono tube compressor utilizing the revolutionary H tube preamplifier with a classic photo cell compressor section. The unit has a variable attack (.5 to 100 millisecond) and release (100 millisecond to 3 seconds), input sensitivity switch, overload LED, compression control (over 24 dB), change and VU meters, side chain outputs, link inputs, low frequency compression sensitivity switch and output gain control.
Specifications:
- Input impedance: Balanced 10 kOhms
- Output impedance: Balanced +28 into 600 Ohms
- THD @ 30 dB: gain .05 @ 1k
- Response: 20 Hz - 20 kHz: ±0.1 dB
- Gain Variable: 20 dB to 30 dB
- Signal to noise ratio: -95 dB EIN
- Tubes: 12AX7a selected
- Outputs: XLR, TRS 1/4"
- Inputs: XLR, TRS 1/4"
- Operating voltage: 230/115 V AC
Specifications
| Channels | |
|---|---|
| Chassis | |
| Compression Type | Optical |
| Input Connectors | 1/4-inch TRS, Analog XLR |
| Output Connectors | 1/4-inch TRS, Analog XLR |
| Tube or Solid State | |
| Tube Complement | |
| Rack format | 19-inch rackmount 1U |
