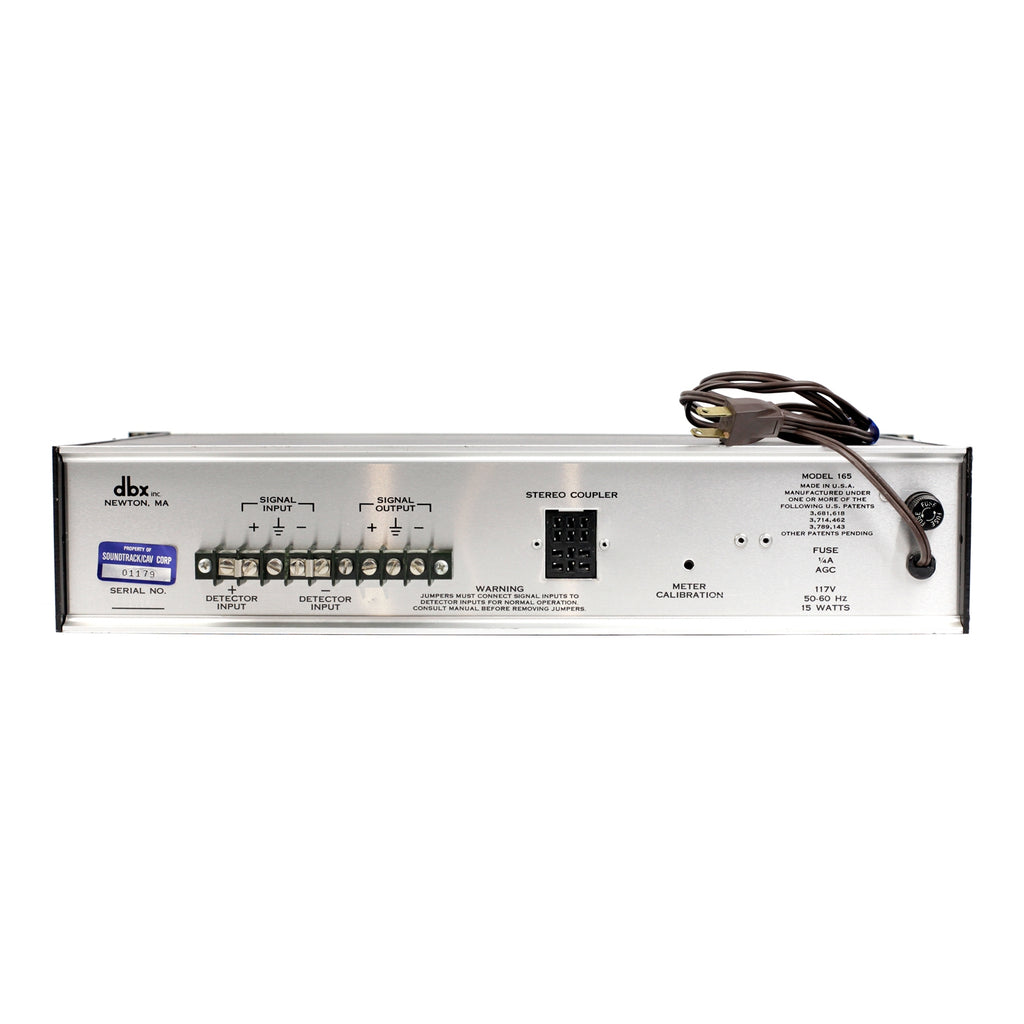

The dbx 165 is an upgraded version of the venerable 160 VU, featuring the new Over Easy compression function. Great on kick, snare, bass, vocals, etc.
Specifications
Attack Times
Specifications
- Frequency Response: 20 Hz to 20 kHz +/- 0.5 dB
- THD: 0.2%, maximum compression, 1 kHz, 0 dBV
- Noise: - 90 dBV
- Maximum Input: + 24 dBV
- Maximum Output: + 23 dBV
- Input Impedance: 22k ohm differential, 11k ohm unbalanced
- Output Impedance: Low single ended, for driving 600 ohm or greater
- Gain: - 20 to + 20 dB
- Threshold Range: - 40 to + 20 dBV (Compressor), - 2 to + 24 dBV (PeakStop)
- Maximum Compression: Greater than 60 dB
Attack Times
- Auto: 15 ms for 10 dB, 5 ms for 20 db, 3ms for 30dB;
- Manual: variable from 2.5 us to 1 ms per dB
- Auto: 8 ms for 1 dB, 80 ms for 10 dB, 400 ms for 50 dB; (125 dB/s rate);
- Manual: variable from 250 us to 100 ms per dB
