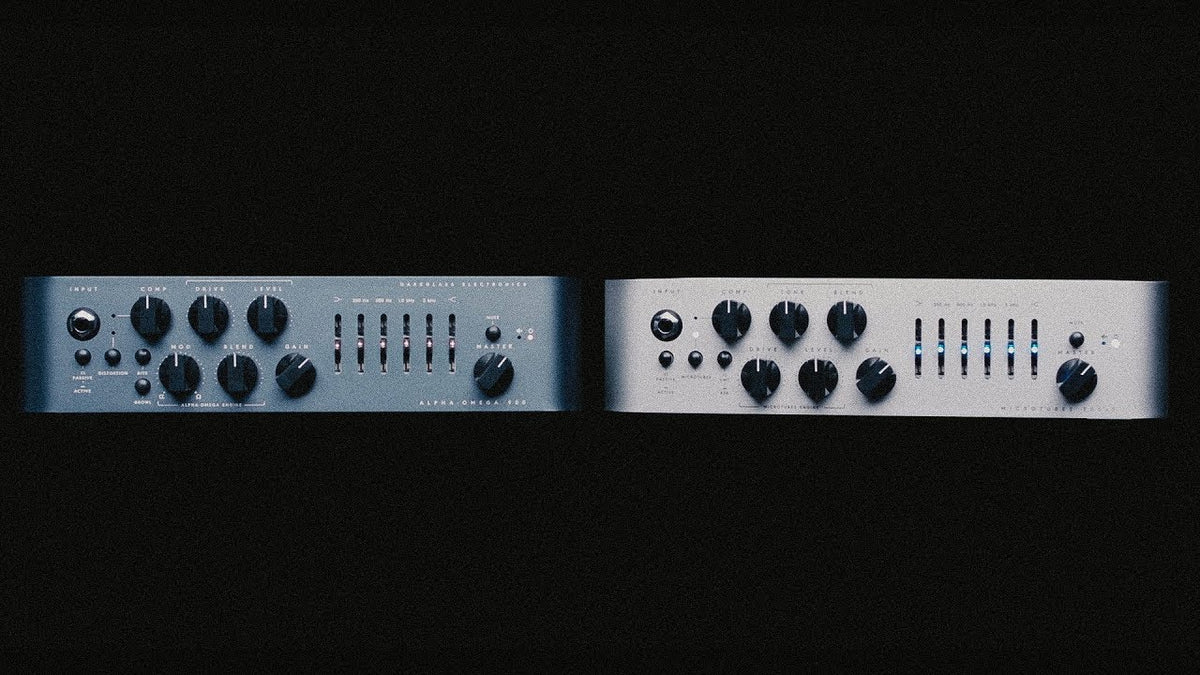

Darkglass Microtubes 900V2 Head

Three years ago Darkglass Electronics released its first amplifier, the Microtubes 900. Its unusual features, and design embodied the Darkglass ethos like none of our previous products. It was an uncompromising amplifier, incredibly versatile, and unapologetically loud. Now, Darkglass are proud to announce the next step in its evolution, the Darkglass Microtubes 900V2 Head.

With enhanced durability, improved equalizer, studio-grade compression, impulse response cabinet emulation, and MIDI control, the Microtubes 900 v2 features all the options the modern, professional bassist needs in a compact, sleek, and loud format.

Back Panel Features

• Speaker Output: Use this connector to connect the amplifier to your cabinet. This Speakon combo jack allows for either Speakon or ¼” speaker cable operation. The outputs are connected in parallel. WARNING: Do not use an instrument cable with this jack. Using an instrument cable can damage your amplifier.
• Min-Load: Press this switch when using a 2Ω load. You can use this control to lower the output if your 4Ω cabinet is not able handle more than 500 W (you can also get 350 W with an 8Ω cabinet in this configuration).
• Pre Amp Out: You can use this output to connect the preamp to a different power amp.
• Power Amp In: You can use this input to connect a different preamp in the power amp. (master volume will be disabled)
• Ground Lift: Use this control to lift the ground of the DI XLR output. If you are experiencing ground noise in your DI signal try changing the setting of this control.
• Pre DI Output: Use this connector to send a balanced copy of your clean signal to the console, mic preamp, interface, etc.
• Post DI Output: Use this connector to connect the Microtubes 900 preamplifier to balanced equipment (mic preamp, console, recorder, compressor, audio interface, etc.) via a standard XLR jack. Using this connection you have a signal processed by the preamp of the amp (gain, distortion, EQ, master, etc.)
• USB: The USB connector allows you to use the Darkglass Suite to load different cabinet impulses or change different parameters on your amp (MIDI, compressor, etc)
• Headphone Output: Connect your Headphones and enjoy the impulse based cabinet emulation.
• Headphone Volume: This knob controls the volume of the headphone output.
• Aux In: Use this connector to provide to the Headphone output music from your laptop, cellphone, mp3 player, etc.
• Cabinet Select: Use this switch to navigate between the 3 different cabinet impulses or the raw sound of your amp.
• MIDI: The MIDI input allow you to control the channels of the amp via a MIDI standard controller.
• Footswitch: The Intelligent Footswitch is proprietary digitally controlled device that allows you to remotely engage and disengage the Microtubes Engine
• AC Socket: Use this connector to feed electric power to the amplifier. 100 - 230 VAC, 50 - 60 Hz.
• AC Power ON/OFF; Use this Switch to release the audio energy from your bass.
