Cranborne Audio Carnaby HE2 2-Channel HarmonicEQ - Legacy Edition

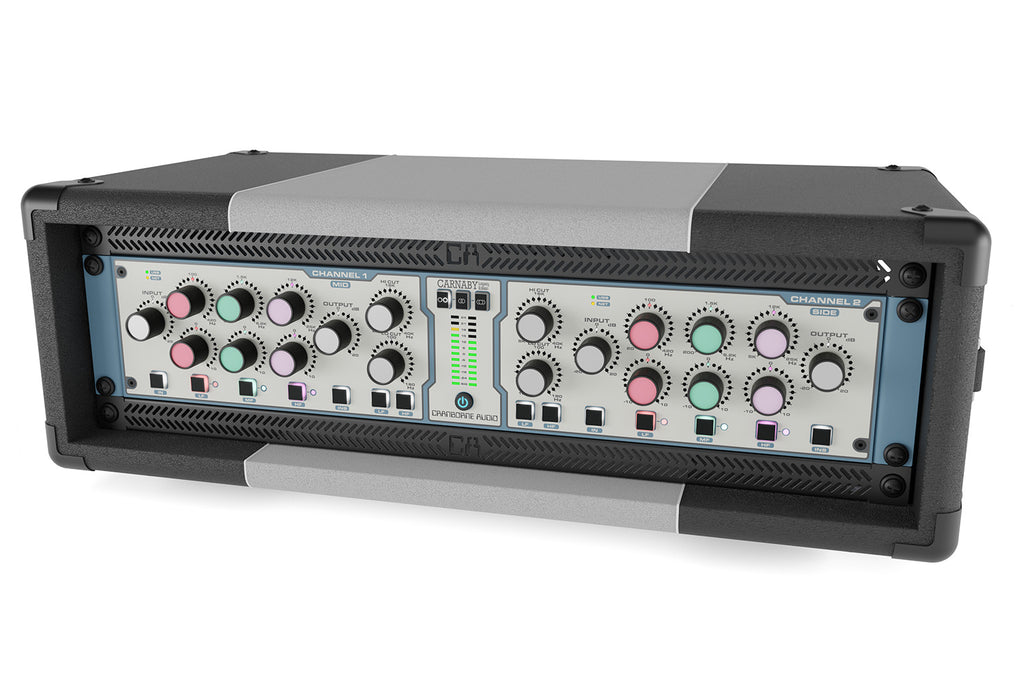

The Cranborne Audio Carnaby HE2 HarmonicEQ is a 2U 19-inch rack-mount, 2-channel 3-band parametric EQ, an evolution of the Carnaby 500. The Carnaby HE2 utilizes the same unique and revolutionary EQ concept found in Carnaby 500, using harmonic saturation to boost and cut frequency content. Enhance your sources, stems and mixes with genuine analog harmonic saturation with the feel, familiarity, and control of an equalizer. However, the concept is taken even further with Carnaby HE2. The Legacy version features a special "Legacy" industrial design. Units are hand-built by the team in the UK individually numbered and signed in a very special wood rack case. Only 100 HE2 Legacy Edition units are available globally

3-BAND PARAMETRIC EQ WITH MORE

Whether being used for Stereo, Dual Mono or Mid-Side processing, Carnaby HE2 features 3 bypassable, interactive bands of HarmonicEQ per channel. Each band has 10 dB of boost/cut and its own sweepable and overlapping frequency controls. As with Carnaby 500, each of Carnaby HE2s bands has a unique blend of harmonic content suited to its frequency band to achieve maximum musicality.

The HI band has a frequency range from 5 kHz all the way to 25 kHz and uses smooth saturation to naturally extend high frequencies beyond the audio band for ultimate air and breath on vocals and acoustic instruments.

The LO band has a frequency range of 420 Hz down to 20 Hz and uses hard-clipping saturation to extend sub-harmonic frequencies into the audible low-end - perfect for subtle low-end warming or extreme sub-harmonic saturation.

The MID band is a peaking filter with a fixed Q and a wide sweepable frequency range from 200Hz up to 6.2kHz. It uses saturation to add harmonic emphasis to the source anywhere in the frequency range.

Unlike other EQs, Carnaby HE2 has a dynamic response and increases in total boost/cut and harmonics as the circuits are driven harder. An Input and Output level control on each band allows for ±20 dB of level adjustment, enabling you to drive Carnaby HE2 harder with the input control for more saturation and distortion effects, or back it off for a cleaner EQ when needed.

FULLY DIGITALLY-CONTROLLED WITH USB AND NETWORK OPTIONS

Carnaby HE2 takes control to a whole new level allowing all buttons and controls of the unit to be controlled remotely via USB or an Ethernet network. The VST/AU/AAX control plug-in seamlessly integrates with the Carnaby HE2 hardware via the USB or NET ports, allowing for convenient real-time control and recall from within your DAW. It also facilitates the independent saving and loading of presets.

PER-BAND BYPASS

Achieve precise tonal sculpting by independently bypassing each of the 3 frequency bands, allowing you to audition and fine-tune your settings.

EXTENDED HF & LF SHAPING

Facilitating further sound-sculpting, precise HF and LF cut controls with individual bypass controls help further tame and shape your audio.

MID/SIDE PROCESSING

Especially valuable for mastering, mixing, and sound design applications, Carnaby HE2 allows for Mid/Side processing, allowing you to apply HarmonicEQ to the separate mid (center) and side (stereo width) components of your stereo signal. No additional hardware is needed, Carnaby HE2 takes care of all the necessary encoding and decoding.

INSERTS FOR OUTBOARD HARDWARE

Carnaby HE2 features a bypassable TRS Insert on each of its two channels. The inserts are post M/S encoding and pre M/S decoding allowing you to use each of these Inserts to connect outboard hardware before your signal hits the HarmonicEQ processing.
