Celestion G12M-65 Creamback 16 ohm

The G12M Greenback is perhaps the definitive vintage Celestion ceramic magnet guitar speaker. Developed in the mid-sixties, it was quickly adopted by players like Hendrix, Clapton, Beck and Page, who typified the louder and more aggressive blues rock playing styles that came to characterize that era. The Celestion G12M-65 Creamback produces the familiar woody G12M tone, but handles greater power making it ideally suited for today's amps, when a vintage tone is desired. The increased power handling brings with it low end grunt complementing the warm and vocal mid range, crunchy upper-mids and sweet, refined highs.

Specifications:

• Nominal diameter: 12 in, 305 mm
• Power rating: 65 W rms
• Nominal impedance: 16Ω
• Sensitivity: 97 dB
• Chassis type: Pressed steel
• Voice coil diameter: 1.75 in , 44.5 mm
• Voice coil material: Round copper
• Magnet type: Ceramic
• Magnet weight: 35 oz, 0.99 kg
• Frequency range: 75 Hz - 5 kHz
• Resonance frequency, Fs: 75 Hz
• DC resistance, Re: 6.7Ω & 13.1Ω

Mounting Information:

• Cut-out diameter: 11.1 in, 283 mm
• Diameter: 12.2 in, 309 mm
• Magnet structure diameter: 5.9 in, 150 mm
• Mounting slot dimensions: 0.31 in, 7.9 mm Ø
• Mounting slot PCD: 11.7 in, 297 mm
• Number of mounting slots: 8
• Overall depth: 5.1 in, 130 mm
• Unit weight: 7.9lb, 3.6 kg

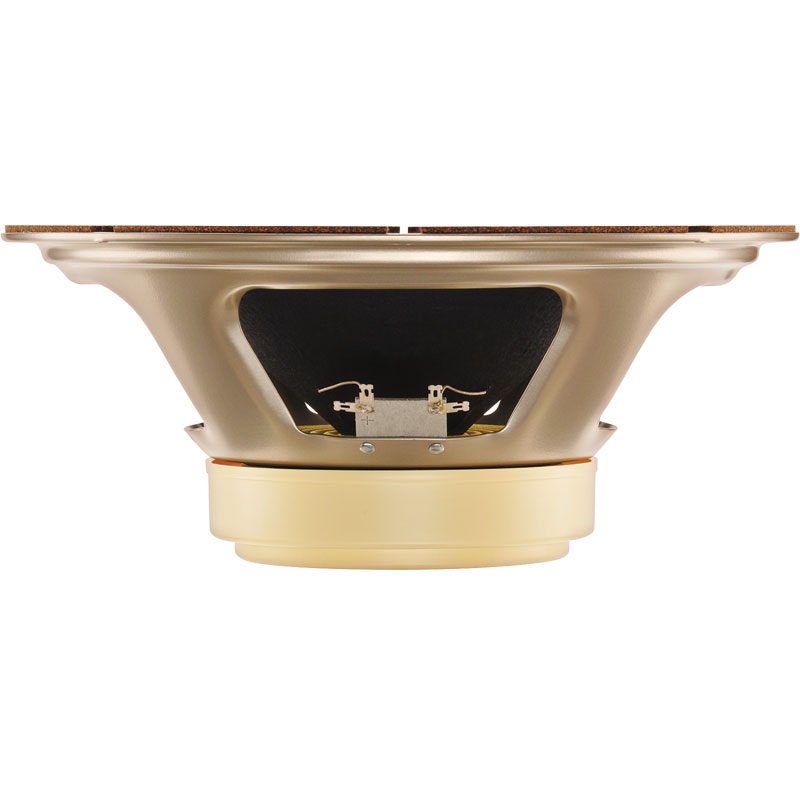

Please note: Stock photo used. This listing is for the 16 Ohm version, photo depicts 8 Ohm.
