Black Lion Audio B173 500 Series Microphone Preamp

MFR# B173500

Classic 1073 sound in 500 format

Product No Longer Available

Need help finding a different option? We can help.

We respond within one business day. All inquiries are confidential.

Experts At Your Service

Have a question? Our Audio Consultants and Technicians have years of real-world experience and are ready to help.

Call now

The B173 is one of the most “bang for your buck” preamps in existence, and is now available in the 500 series format. The Black Lion Audio B173 500 not only delivers the beefy lows, buttery mids, and polished highs of a classic 1073 preamp, but does so at a fraction of the price!

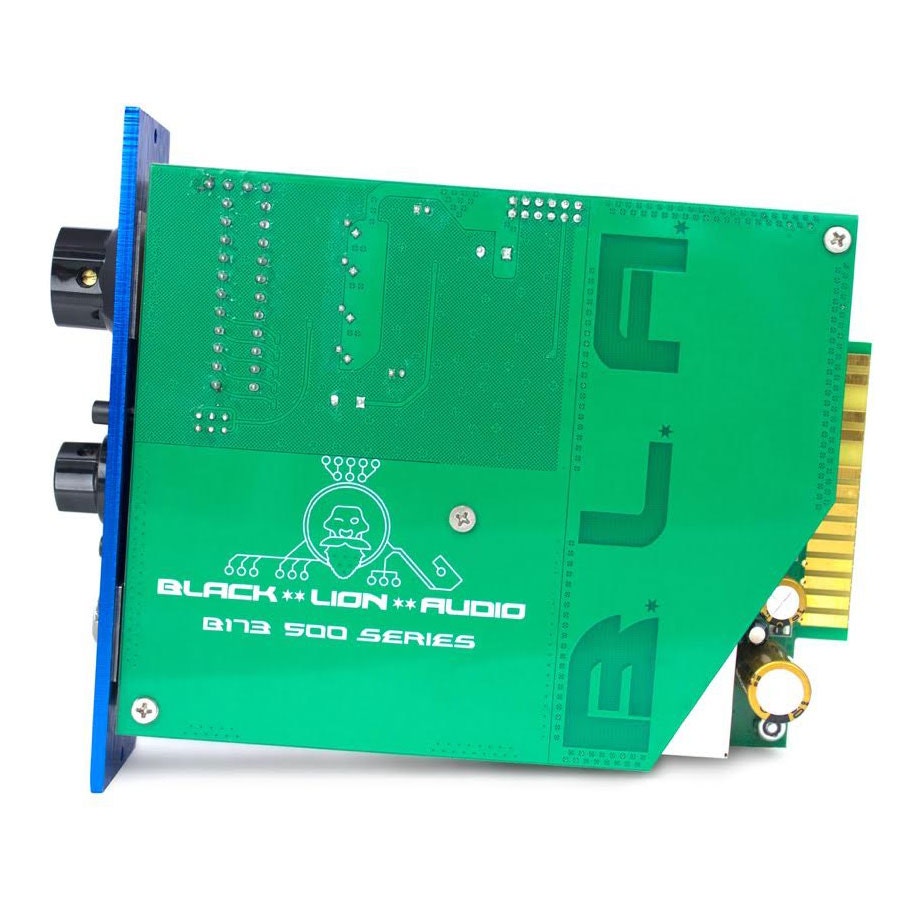

The preamp and line amp circuitry found in the B173 500 is identical to the original B173. Not a single component or design feature was compromised while converting it to a smaller package. As a result, the circuit boards are jam packed with all sorts of delicious components, including a brawny Cinemag input transformer!

The power supply is the backbone of any preamp design, and can make a huge impact on the overall sound and performance of the preamp. The +24V rail needed to power the B173 500 is painstakingly converted from the +/- 16V rails of a 500 series rack using a custom DC-DC converter circuit specially designed to keep any unwanted noise or modulations out of the signal path. Complete isolation is then achieved through the use of inductors, ferrite beads, decoupling capacitors, power regulation, and a custom enclosure surrounding the entire circuit.

The B173 500’s “Class A”, discrete circuitry combined with high-end components provide a fresh approach to a classic sound that won’t disappoint. Thanks for your purchase and continued support of Black Lion Audio!

Specifications:

  • Max Microphone Input Level: +1 dBu
  • Input Impedance: 200Ω
  • Gain: +12dB to +80dB
  • Equivalent Input Noise (noise floor): -103 dB
  • THD+N Mic Section (@ +4dBu output): .072% @ +8 dBu Gain; .074% @ +29 dBu Gain; 082% @ +44 dBu Gain; .152% @ +60 dBu Gain; .709% @ +76 dBu Gain
  • Bandwidth: (1 kHz, 150 Ω source, unweighted): 10 Hz to 30 kHz
  • THD+N (@ +4dBu output) Hi-Z Section: .0045% @ +10 dBu; .0076% @ +15 dBu
  • Max Output Level: +29 dBu
  • Output Impedance: 600Ω
  • +24 V provided by ultra low noise, custom power supply (500 series rack required)
  • Products Dimensions: 1.5 x 6.5 x 5.25 in
  • Product Weight: 1.2 lb
  • Shipping Dimensions: 13 x 13 x 5 in
  • Shipping Weight: 3 lb
