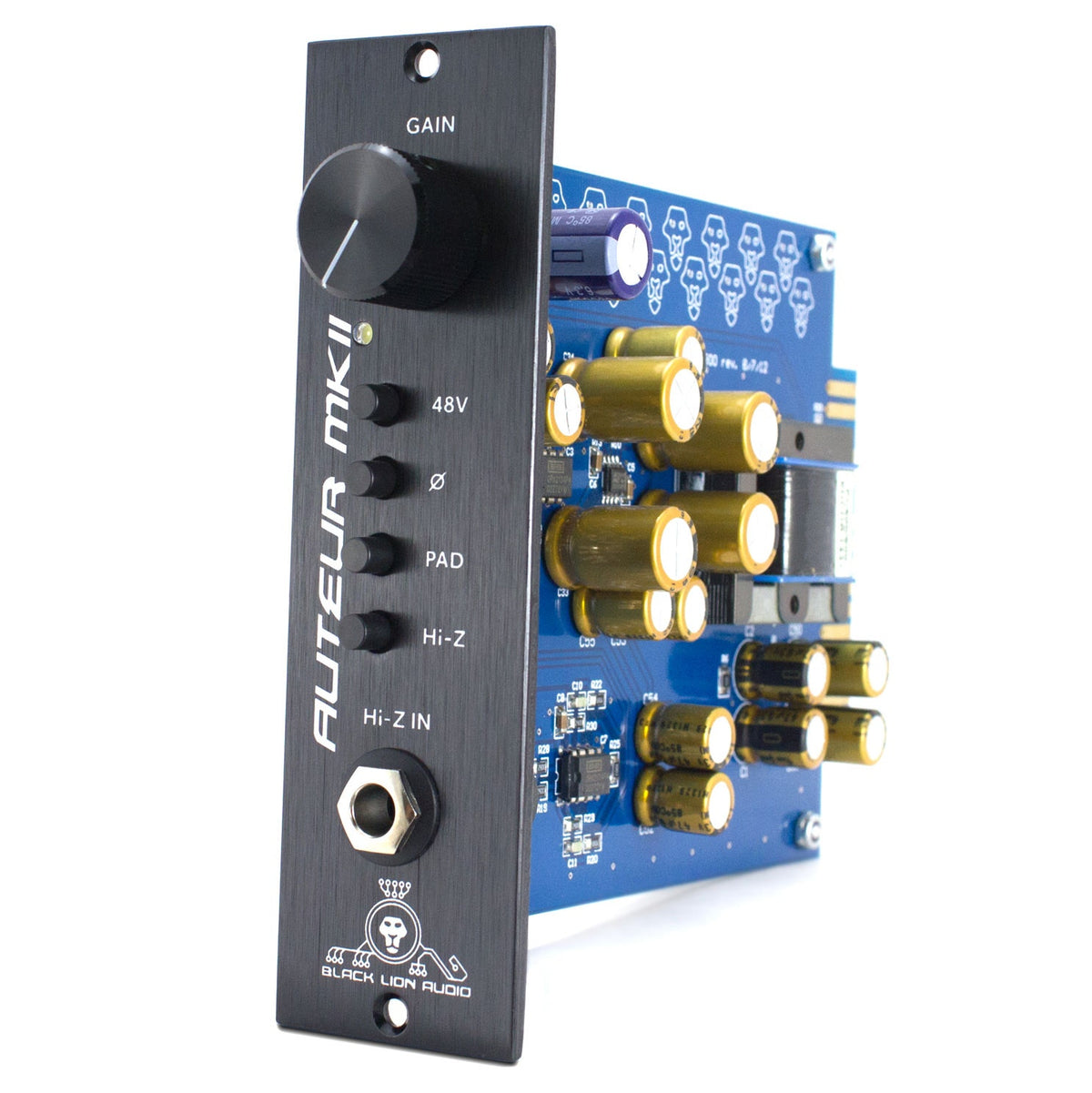

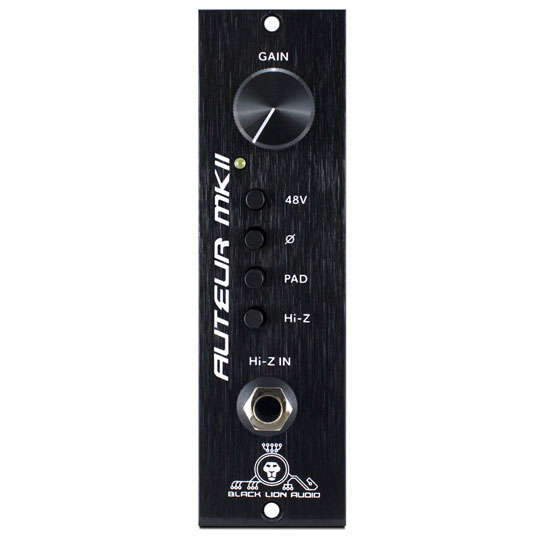

Black Lion Audio Auteur MKII 500 Series Preamp

The Black Lion Auteur MkII 500 is one of the most “bang for your buck” 500 Series preamps in existence! You get all of the sound of the 1⁄2 rack version, but with the addition of a Hi-Z input! It features an ultra-fast input stage that captures lots of detail and nuance, and a signal path transformer that adds some “beef” on the way out. Once you hear the Auteur MkII 500, you’ll want to load your 500 rack full of ‘em!

Specifications

Mic Section

• Max Microphone Input Level: +1dBu
• Input Impedance: 6000Ω
• Pad: 13dBu
• Gain (no pad): +16dB to +67dB
• Equivalent Input Noise (noise floor): -108dB
• THD+N (@ +4dBu output):
• .0046% @ +12dBu Gain
• .0064% @ +24dBu Gain
• .012% @ +32dBu Gain
• .028% @ +40dBu Gain
• .085% @ +50dBu Gain
• .3% @ +62dBu Gain
• Bandwidth (1kHz, 600Ω unbalanced source, unweighted): 10Hz to 30kHz;

D.I. Section

• Max D.I. Input Level: +18dBu
• Input Impedance Balanced: 2.2MΩ
• Input Impedance Unbalanced: 1.1MΩ
• Pad: 13dBu
• Gain: +16dB to +67dB
• Equivalent Input Noise (noise floor): -82dB
• THD+N (@ +4dBu output):
• .007% @ +12dBu
• .11% @ +40dBu
• Bandwidth (1kHz, 600Ω unbalanced source, unweighted): 10Hz to 30kHz

Output Section: Max Output Level: +28dBu Output Impedance: 600Ω

Power Supply: +/- 15v off 500 rack

Product Dimensions: 1.5” x 6.5” x 5.25”
