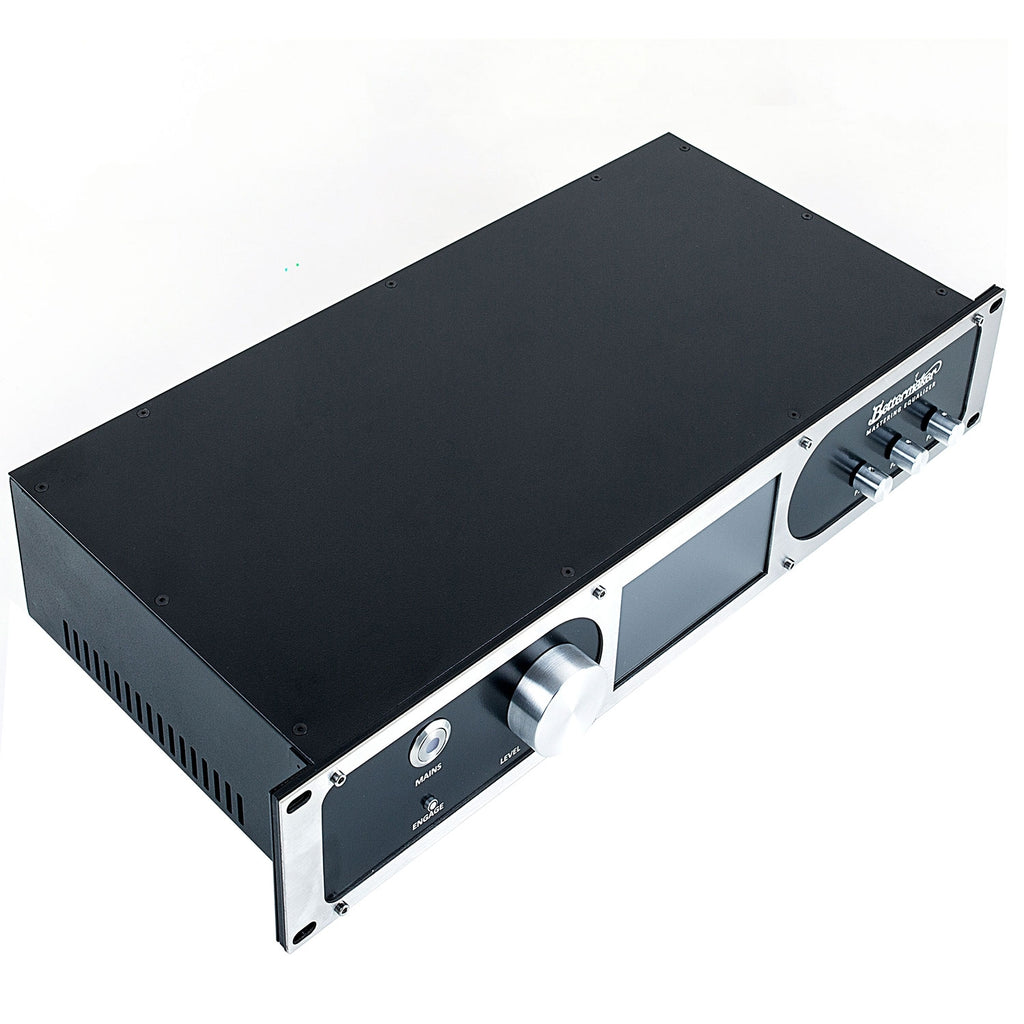

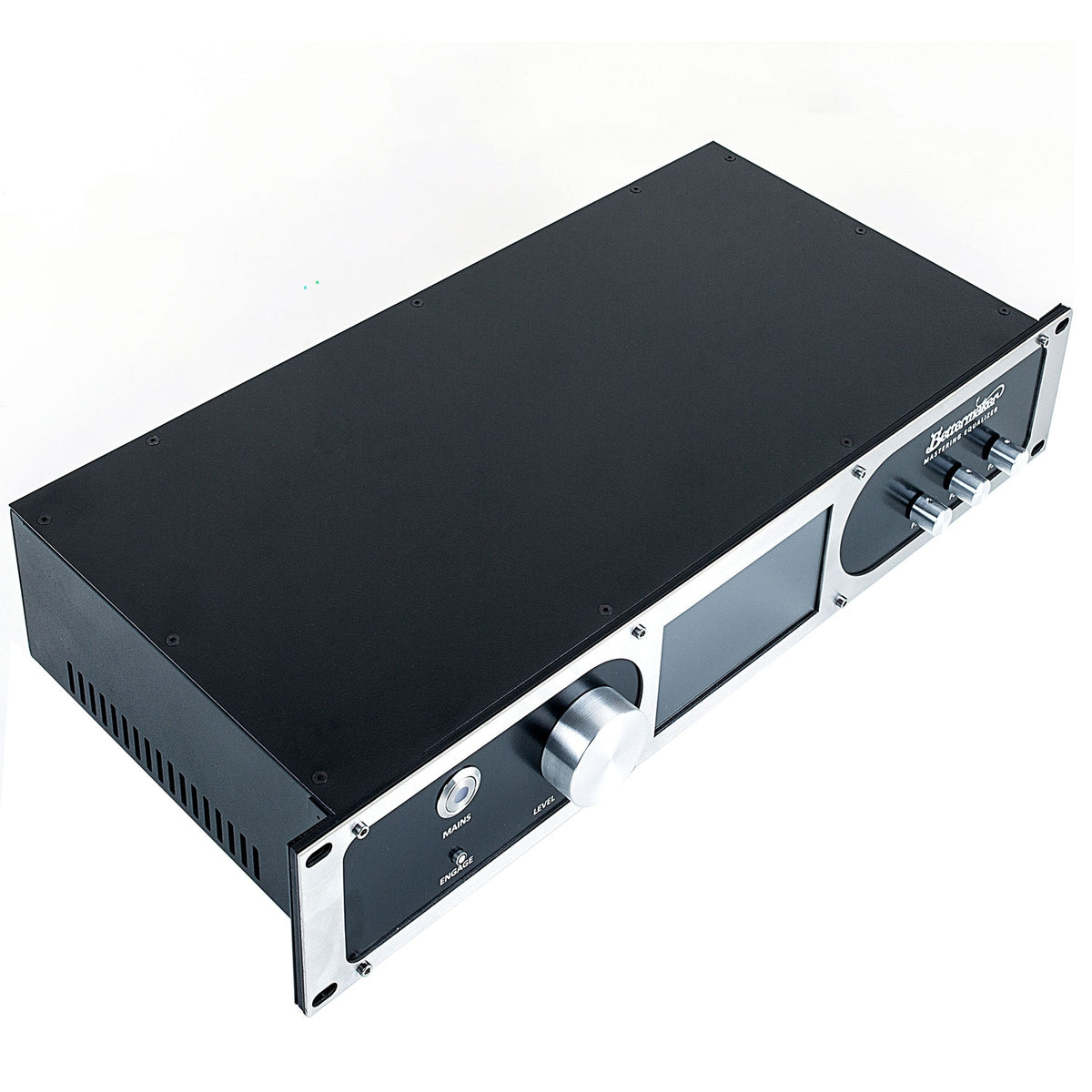

Bettermaker Mastering Equalizer (Demo Deal)

The Bettermaker Mastering Equalizer is an advanced mastering EQ with a 100% analog audio signal path. It features USB connectivity with Mac/PC allowing for all parameters to be digitally controlled via touchscreen and/or DAW (with dedicated plug-in). The Mastering Equalizer comes with 399 presets, total recall, A/B comparison. The 5-inch capacitive touchscreen with back-light and multi-touch functionality includes four encoders with push-button action for ease of control. It features stereo, dual-mono and mid/side operation modes with solo function.

Specifications

• Balanced stereo input (XLR), 23 dBu max input level (THD < 0.1%)
• Balanced stereo output (XLR), 23 dBu max output level (THD < 0.1%)
• Operating Level: +4 dBu
• Input impedance (differential): 48kΩ (for balanced signal)
• Output Impedance: 50Ω + 50Ω (electronically balanced)
• Frequency response 5 Hz to 30 kHz; ±0.1 dB
• Dynamic range: 115 dB @ +18 dBu, 20 kHz BW
• THD+N: CMRR: max 80 dB @ 3 kHz, min 55 dB @ 50 Hz, 20 kHz BW
• Crosstalk: min -90 dB @ 1 kHz, max -55 dB @ 30Hz, +18 dBu, 20 kHz BW
• 2U enclosure, 230 mm deep
• 115/230 V switch
• Advanced linear power supply with toroidal AC mains transformer
• Maximum power consumption: 30 W
• Shipping weight: 5.5 kg
