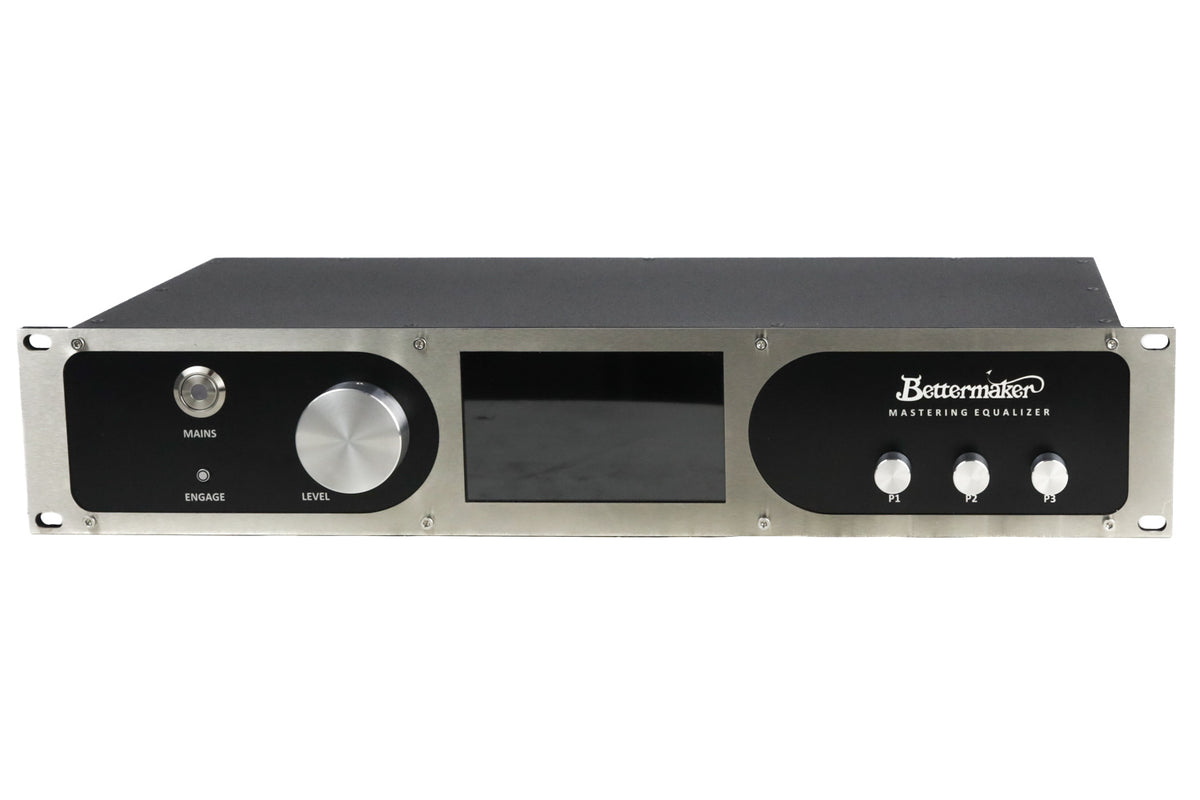

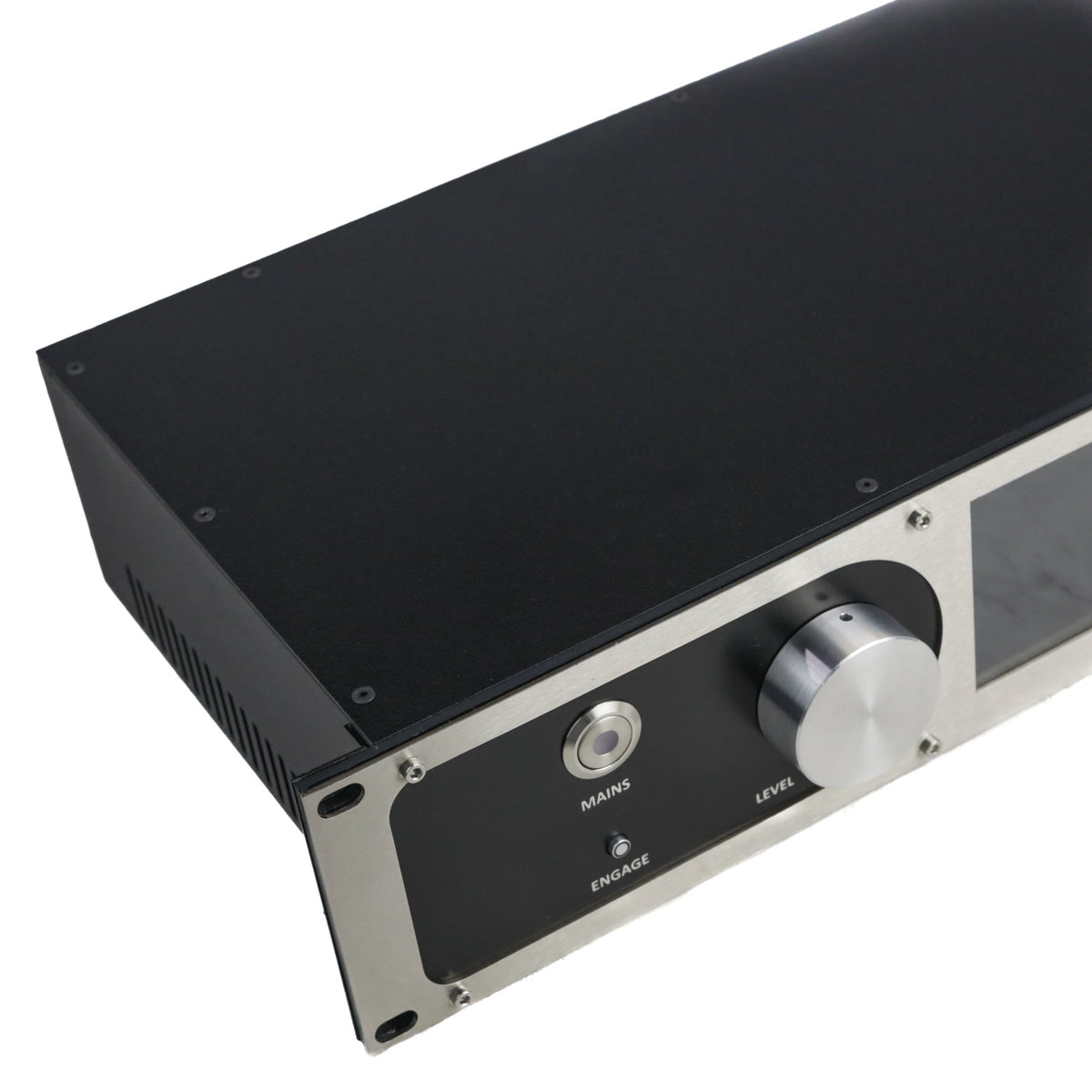

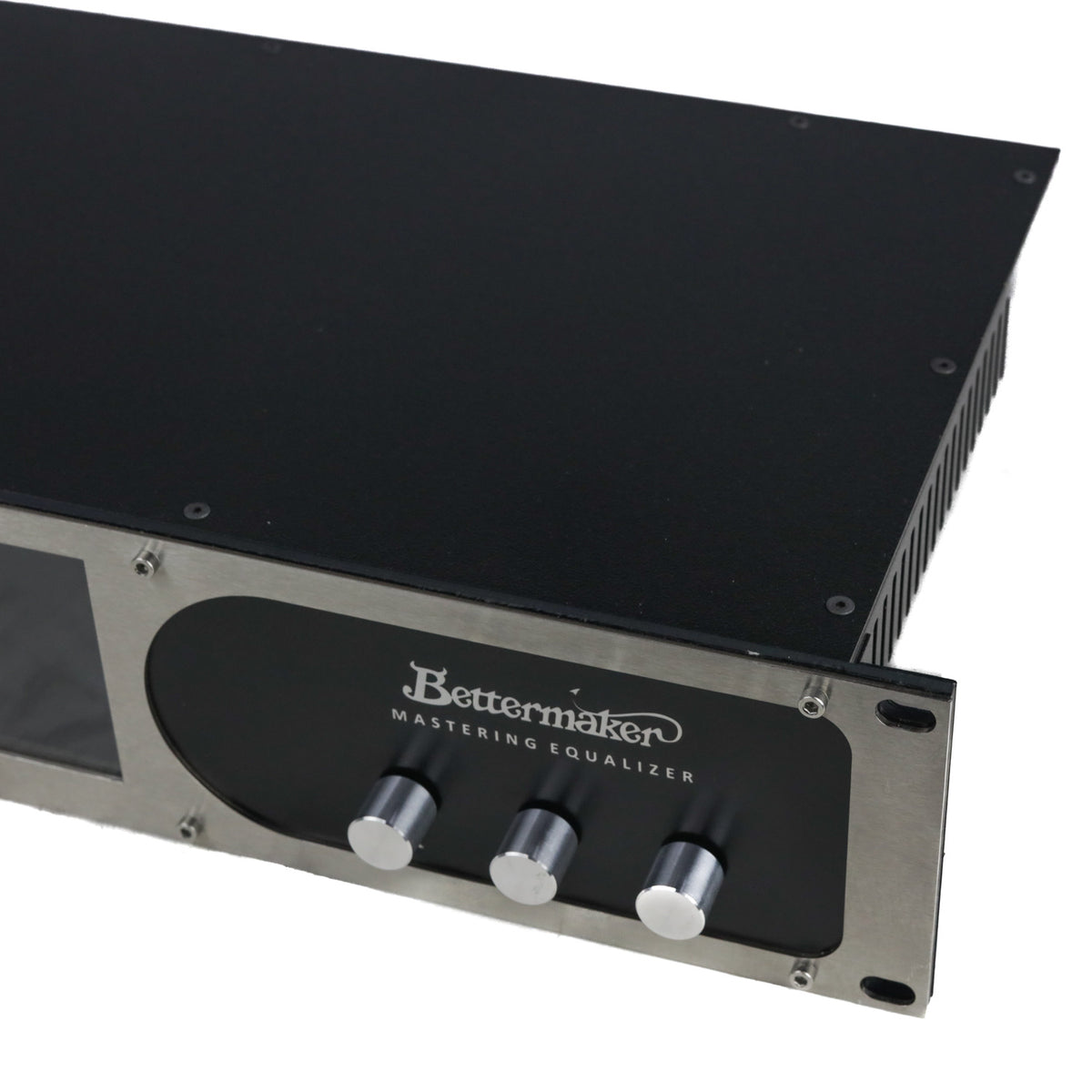

The Bettermaker Mastering Equalizer is an advanced mastering EQ with a 100% analog audio signal path. It features USB connectivity with Mac/PC allowing for all parameters to be digitally controlled via touchscreen and/or DAW (with dedicated plug-in). The Mastering Equalizer comes with 399 presets, total recall, A/B comparison. The 5-inch capacitive touchscreen with back-light and multi-touch functionality includes four encoders with push-button action for ease of control. It features stereo, dual-mono and mid/side operation modes with solo function.
SPECIFICATIONS:

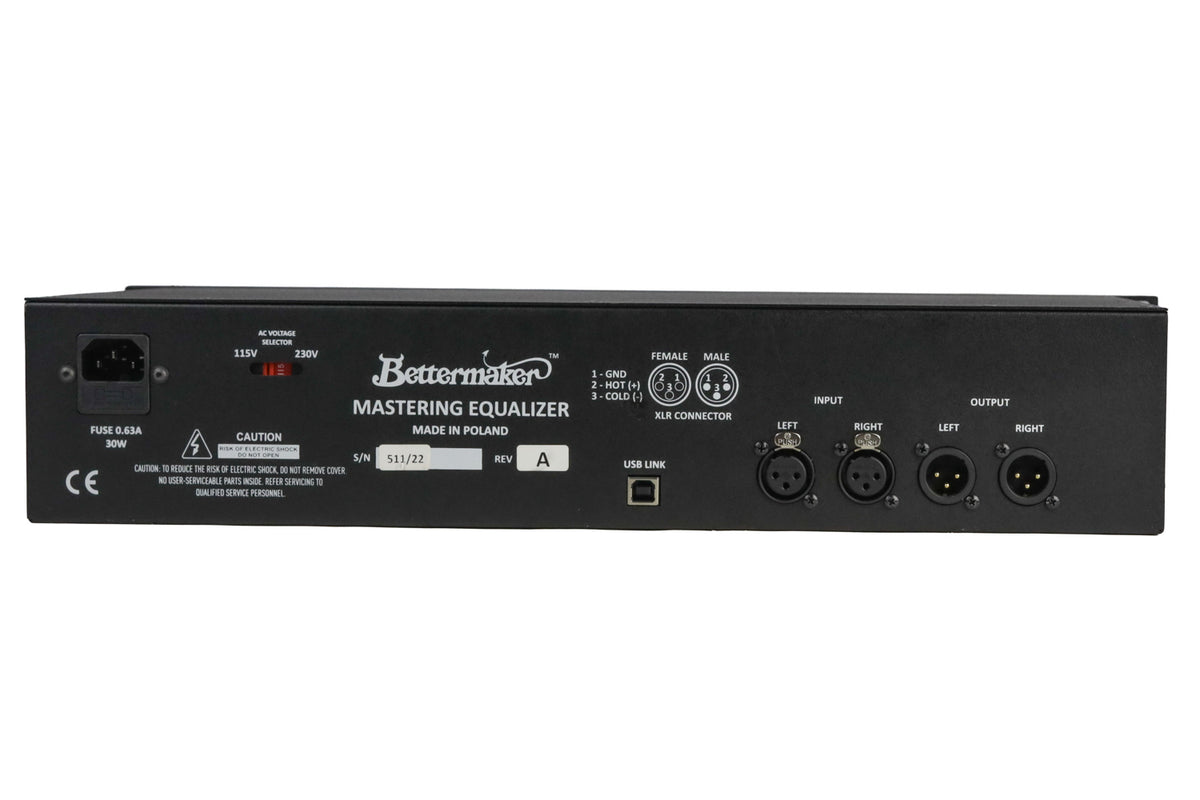

- Balanced stereo input (XLR), 23 dBu max input level (THD < 0.1%)
- Balanced stereo output (XLR), 23 dBu max output level (THD < 0.1%)
- Operating Level: +4 dBu
- Input impedance (differential): 48kΩ (for balanced signal)
- Output Impedance: 50Ω + 50Ω (electronically balanced)
- Frequency response 5 Hz to 30 kHz; ±0.1 dB
- Dynamic range: 115 dB @ +18 dBu, 20 kHz BW
- THD+N: CMRR: max 80 dB @ 3 kHz, min 55 dB @ 50 Hz, 20 kHz BW
- Crosstalk: min -90 dB @ 1 kHz, max -55 dB @ 30Hz, +18 dBu, 20 kHz BW
- 2U enclosure, 230 mm deep
- 115/230 V switch
- Advanced linear power supply with toroidal AC mains transformer
- Maximum power consumption: 30 W
- Shipping weight: 5.5 kg
