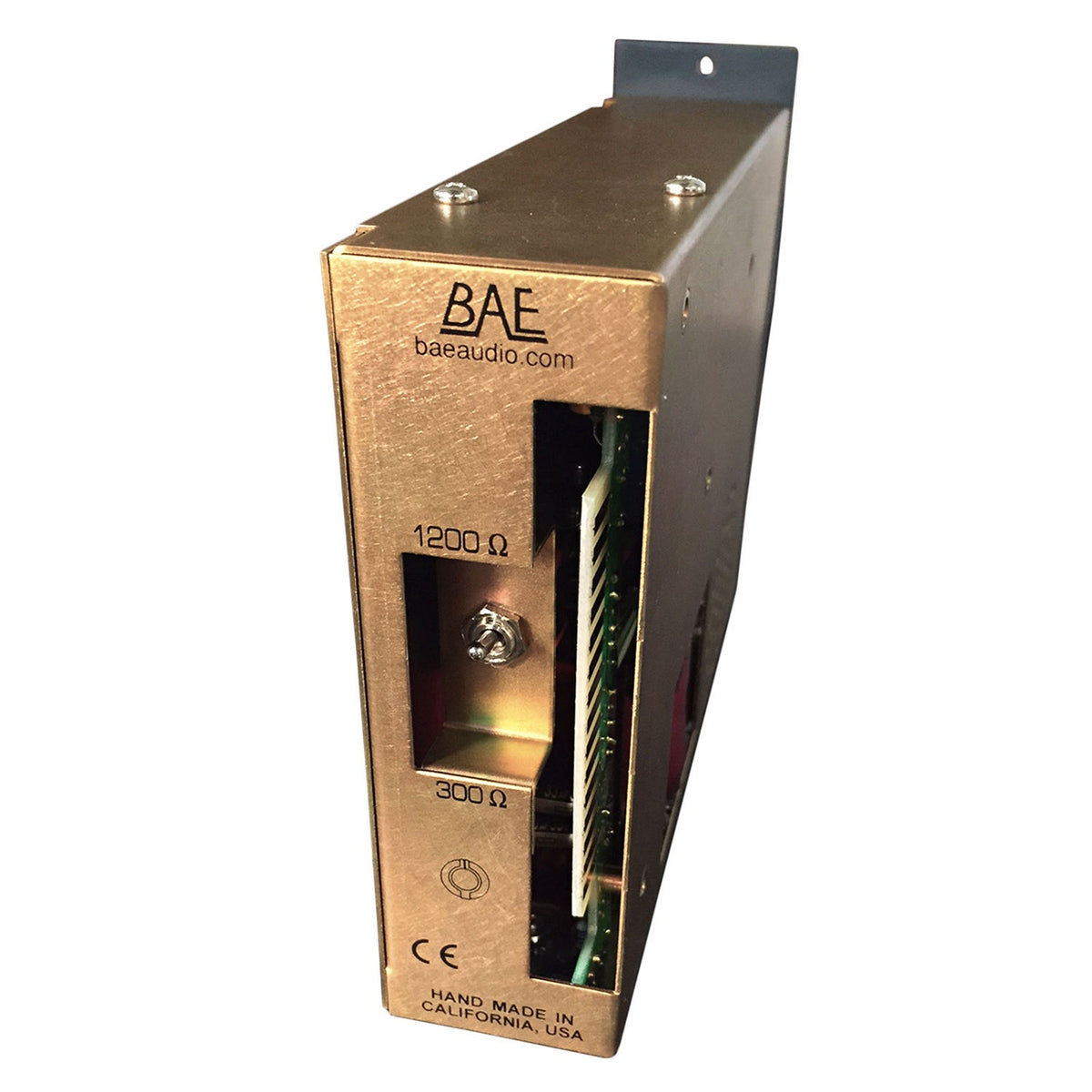

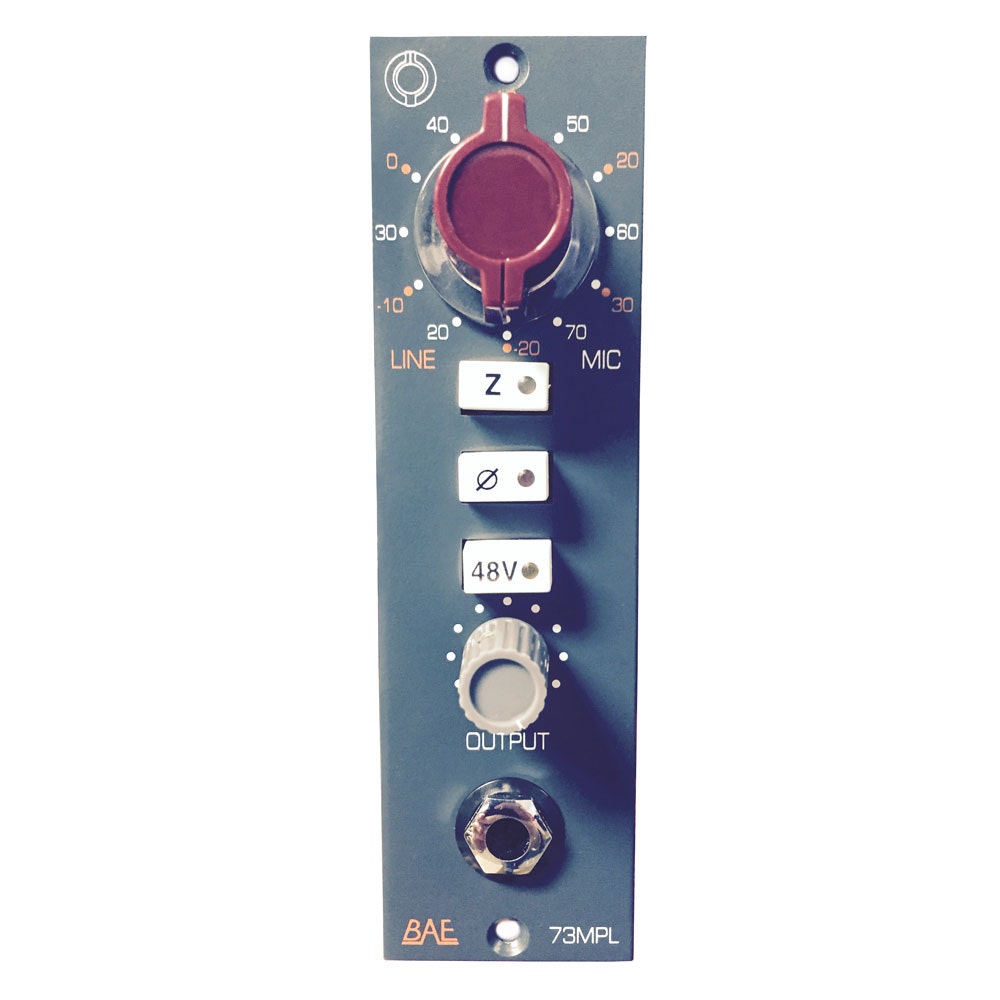

BAE 1073MPL 500 Series Mic Pre - Line Switch

BAE 1073MPL 500 Series Mic Pre - Line Switch

$950.00
$950.00
Skip to product information
BAE 1073MPL 500 Series Mic Pre - Line Switch
  • BAE 1073MPL 500 Series Mic Pre - Line Switch
  • BAE 1073MPL 500 Series Mic Pre - Line Switch
  • BAE 1073MPL 500 Series Mic Pre - Line Switch
BAE

BAE 1073MPL 500 Series Mic Pre - Line Switch

MFR# 1073MPL

500 Series mic pre with Carnhill St Ives in and out transformers - line switch

Product No Longer Available

Need help finding a different option? We can help.

We respond within one business day. All inquiries are confidential.

Experts At Your Service

Have a question? Our Audio Consultants and Technicians have years of real-world experience and are ready to help.

Call now

The 1073 MPL 500 Series Mic Pre is the 500 Series version of the 1073MP (a mic pre-amp version of the 1073 equalizer) having the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs, and maintained focused mids.

Two selectable impedances makes the 1073MPL work well with a variety of microphones.

As a colored and versatile mic-pre, the 1073MPL maintains its sonic signature across a wide bandwidth.

  • All Class A, transformer-coupled design in a 500 series module.
  • Original Marconi knobs.
  • Input impedance selector switch between 1200 and 300 ohms.
  • Line level capability for extra versatility as a line preamp.
  • High impedance DI for guitar and synth.
  • Same Carnhill St Ives transformers as the 1073 and 1084.
  • Same modular design and hand-wiring BAE is known for.

Specs

  • Frequency Response - 10Hz to -3dB at 55kHz
  • Line Input Impedance - 10k ohms
  • Output Impedance - 65 ohms
  • Common Mode Rejection Ratio - 100dB min @ 60Hz
  • Maximum Output Level - +27.4 dBu @ 600Ω
  • Gain dB - 0 to 71 dB
