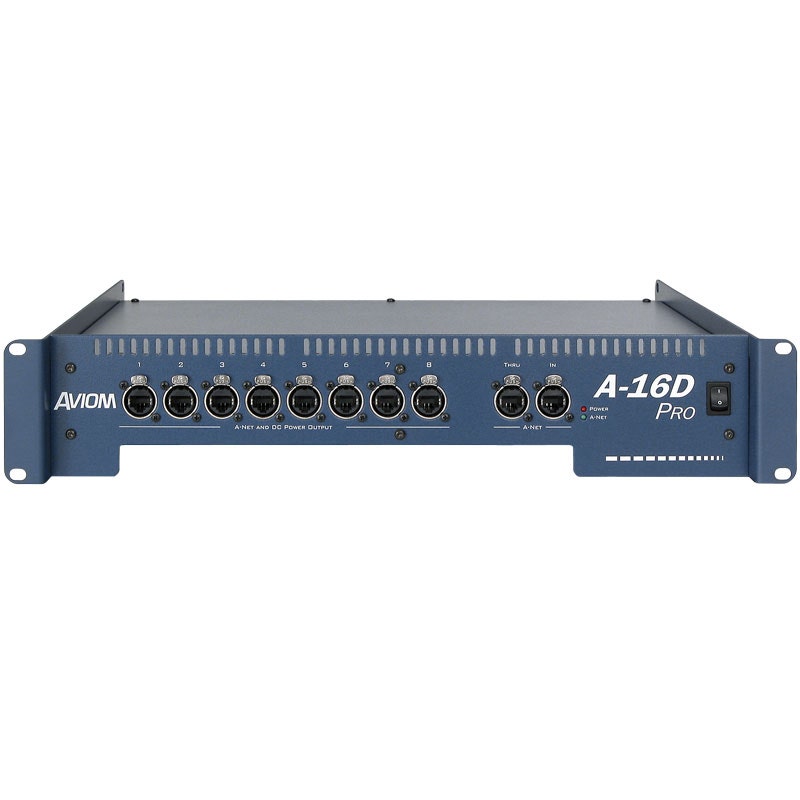

Aviom A16D Pro

The Aviom A-Net A-16D Pro can provide support for parallel connections of multiple Pro16 devices, including the A360, A-16II and A-16R Personal Mixers. Each accepts one A-Net input and provides eight identical A-Net outputs using standard Cat-5e cables. The 2U A-16D Pro is powered by an internal switching power supply, with a detachable power cord and IEC power inlet on the rear panel. Isolated (floating ground) DC power is supplied to eight A-Net outputs for providing remote power via Cat-5e to Pro16 Personal Mixers. A single unpowered A-Net Thru is provided for daisy chaining additional A-Net Distributors or other Pro16 devices, such as the AN-16/o v.4 Output Module. All network connections on the A-16D Pro use heavy duty locking Neutrik® EtherCon® connectors. Inside the A-16D Pro is Aviom’s unique power sub-system, which virtually eliminates the possibility of introducing hum or ground loops into an audio system.
