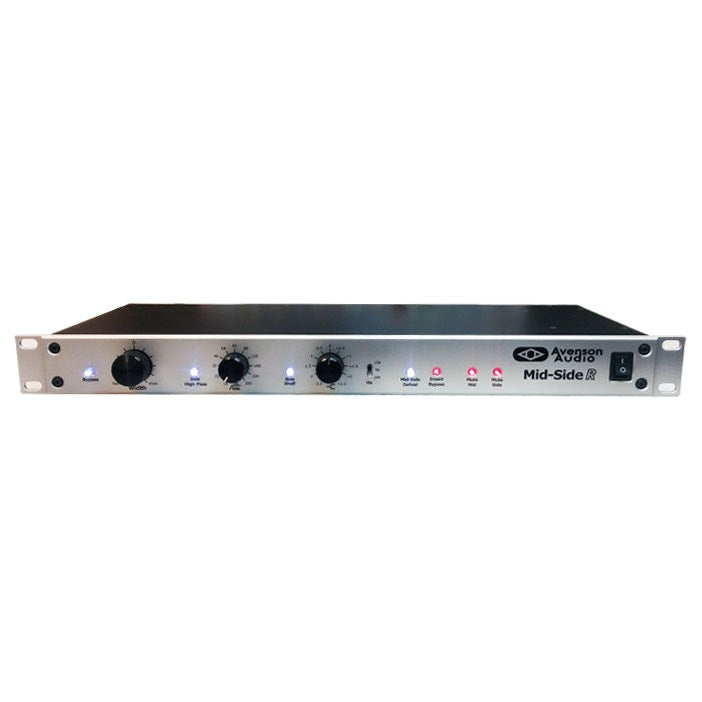

Avenson Audio MidSideR (Full Rack)

The new Aversion Audio Mid-SideR came about as a response to hearing several requests from users of the original Mid-Side encoder/decoder box, and implementing them into a full rack space. In addition to the overall Main Bypass, the Mid-SideR now offers a Mid-Side Encoder/Decoder Bypass (labeled Mid-Side Defeat) allowing the user to switch between using the available insert loop in Left-Right mode or Mid-Side mode, an Insert Bypass allowing the user to bypass the Mid-Side XLR out-in loop effectively bypassing their processing on the insert loop, to A/B they’re outboard gear processing in the Mid-Side insert loop with the original signal, as well as both a Mid Mute and a Side Mute to listen to exactly what you’re doing on only the Mid or Side. All this I/O is now conveniently accessed via an all high quality Neutrik XLR equipped rear panel.

To take it a few steps further, some additional EQ functionality was added as well as going to all high quality Rotary switches for the front panel controls. In addition to the original High Pass Filter on the Side(now with the easily recall-able rotary switch), we’ve added a High frequency Shelving EQ on the Side. Toggle between frequency selections of 5 kHz, 10 kHz, or 20 kHz to add presence or air on the Side information, effectively widening the Stereo Mix even more, or tame a bright mix by slightly lowering any harsh highs on the Side.

Specifications

• Input Overload Level: +22 dbu (0.1% THD) for LR in / +27dbu (0.1% THS) for MS in
• Gain: -0.2 dB
• Frequency Response: 5 Hz (-0.2db) – 91 kHz (-2 db)
• Signal to Noise: ≥ 115 dB 100kHz bandwidth
• Power Requirements: 85-260 VAC 50/60 Hz <10W
• Size: 19 x 1.75 x 6.3 inches (483 x 45 x 160 mm)
• Weight: 4.75 lbs (2.15 kg)
