Audio Damage ADM11 Dimensions

MFR# ADM11

Stereo chorus effect for the Eurorack modular system featuring two topologies

Product No Longer Available

Need help finding a different option? We can help.

We respond within one business day. All inquiries are confidential.

Please note: This item requires a Eurorack/Modular Synth Case for operation. Shop Eurorack Cases.

Experts At Your Service

Have a question? Our Audio Consultants and Technicians have years of real-world experience and are ready to help.

Call now

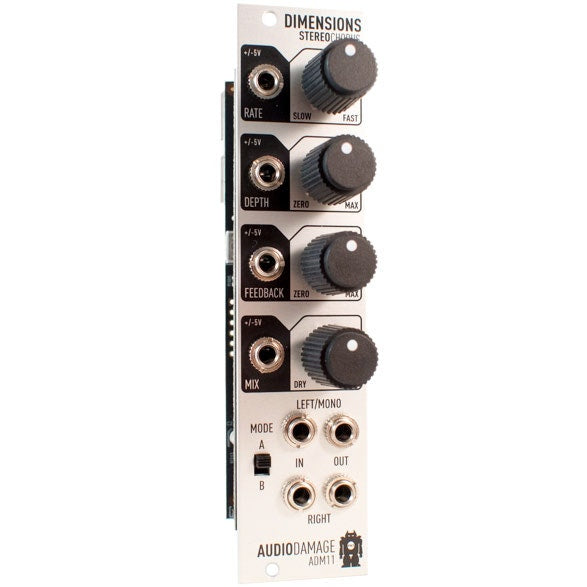

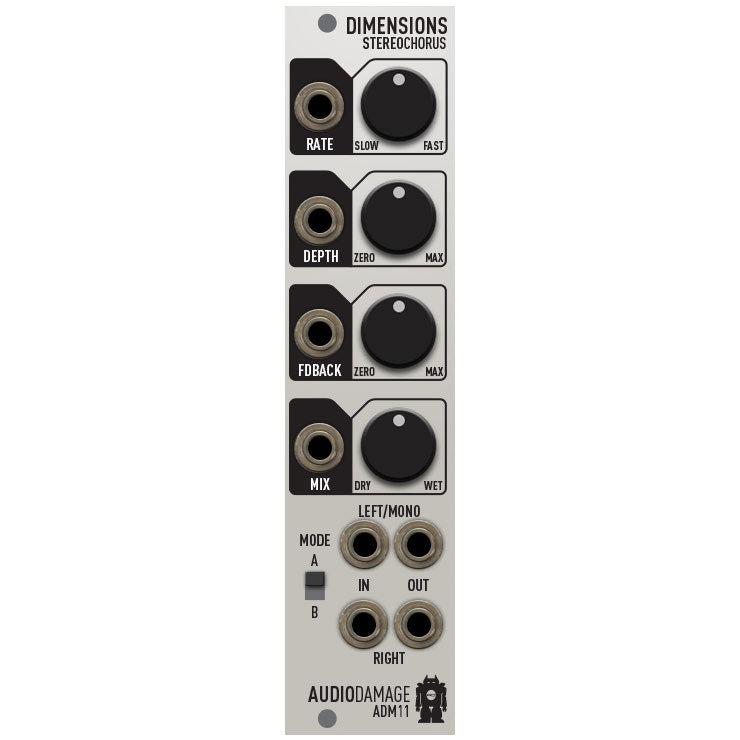

The Audio Damage ADM11 Dimensions is a true stereo chorus effect for the Eurorack modular system featuring two topologies. The first is a direct port of the Fluid chorus plug-in, and the second is taken from the unit's namesake. With automatic routing based upon what you plug in the I/O, Dimensions can do mono->mono, mono->stereo, and true stereo chorus duties.

Dimensions' Mode A operation is a ludicrously thick chorus. Most chorus effects have either a single delay line or a pair. Dimensions has six of them, each with its own modulation scheme. The Mode B operation changes the routing to match the vintage rack unit, but keeps the controls available. This results in a subtly different, but equally thick and appealing, effect.

Specifications

  • Dimensions: 6HP, 25mm depth
  • Power: 40mA@ +12V, 9mA @ -12V
  • Audio Conversion: 24-bit sampling resolution, 48kHz sampling rate
  • Signal Processing: 32-bit floating point
