Audeze Balanced 4-Pin Cable (Demo Deal)

MFR# CBL-XL-1015

Balanced cable for all LCD series headphones

Product No Longer Available

Need help finding a different option? We can help.

We respond within one business day. All inquiries are confidential.

Experts At Your Service

Have a question? Our Audio Consultants and Technicians have years of real-world experience and are ready to help.

Call now

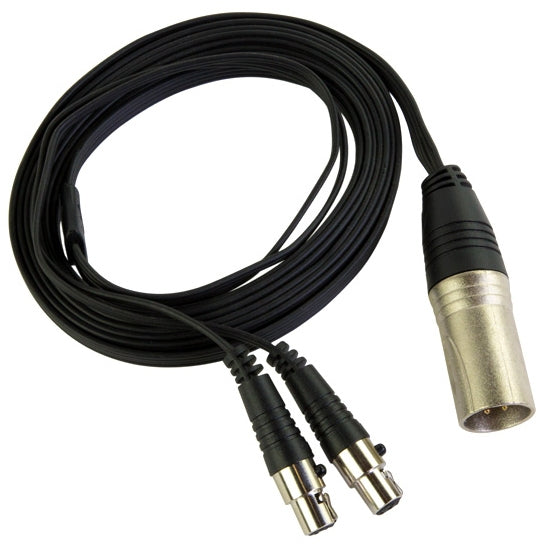

The Audeze Balanced 4-Pin Cable is designed in-house with high-quality materials and is as thoroughly tested as all their products. The 8.2 ft (2.5 m) flat-ribbon cable (ADZ6B4) is constructed of audio grade, oxygen-free high-quality copper (OFHC). It’s actually a high-conductivity copper alloy electrolytically refined in an oxygen-free environment that reduces oxygen levels to below .001%.

For accurate bass and low impedance Audeze uses 20-gauge wire constructed of 140 flexible strands for extra durability. And to ensure great sound and reliability, your 4-pin cable is terminated with gold-plated, pro-grade connectors; one 4-pin male XLR and two 4-pin female mini-XLRs.

Four contact points instead of two doubles the contact area and cuts resistance in half for a higher current capacity and more dynamic sound. The locking 4-pin construction also ensures your headphones will continue to work even if one pin were to fail.

The 4-pin cable’s sturdy but flexible and soft outer jacket eliminates microphonics:  you’ll hear nothing when you touch the cable. Gold-plated contacts keep contact resistance low and avoid oxidization.

Audeze even designed a longer molded y-splitter (where the cable branches off to each ear). Tangle-free comfort makes for enjoyable listening sessions.



Specifications:

  • Proprietary 140-strand OFHC high-purity audio-grade copper
  • 20 AWG for low impedance, high current capacity and extended high frequencies
  • Flexible tangle free construction
  • Non-microphonic and quiet when you move
  • Length: 8.2 ft (2.5 m)
  • Weight: ADZ6B4 - 119 g


Connectors

  • Pro-quality gold-plated XLR connector on the amp side
  • Pro-quality gold-plated latching 4-pin mini-XLR connectors to headphones


Electrical Specifications

  • Dielectric strength:  500 VAC
  • Resistance: 170 milliohms for return path of 8.2 ft cable including the contact resistance of the mini-XLR connector on the LCD2 housing
  • Capacitance: 250 pF including mini-XLR connector on LCD housing
  • Response: -3 dB @ 12.7 MHz
  • Inductance: 1.8 microH
