Apogee Symphony 8x8 w/ 8 Mic Preamps #A6M104134000163 (Used) 1

Apogee Symphony 8x8 w/ 8 Mic Preamps #A6M104134000163 (Used)

$1,895.00
$1,895.00
Skip to product information
Apogee Symphony 8x8 w/ 8 Mic Preamps #A6M104134000163 (Used) 1
  • Apogee Symphony 8x8 w/ 8 Mic Preamps #A6M104134000163 (Used) 1
  • Apogee Symphony 8x8 w/ 8 Mic Preamps #A6M104134000163 (Used)
  • Apogee Symphony 8x8 w/ 8 Mic Preamps #A6M104134000163 (Used)
  • Apogee Symphony 8x8 w/ 8 Mic Preamps #A6M104134000163 (Used)
Apogee Digital

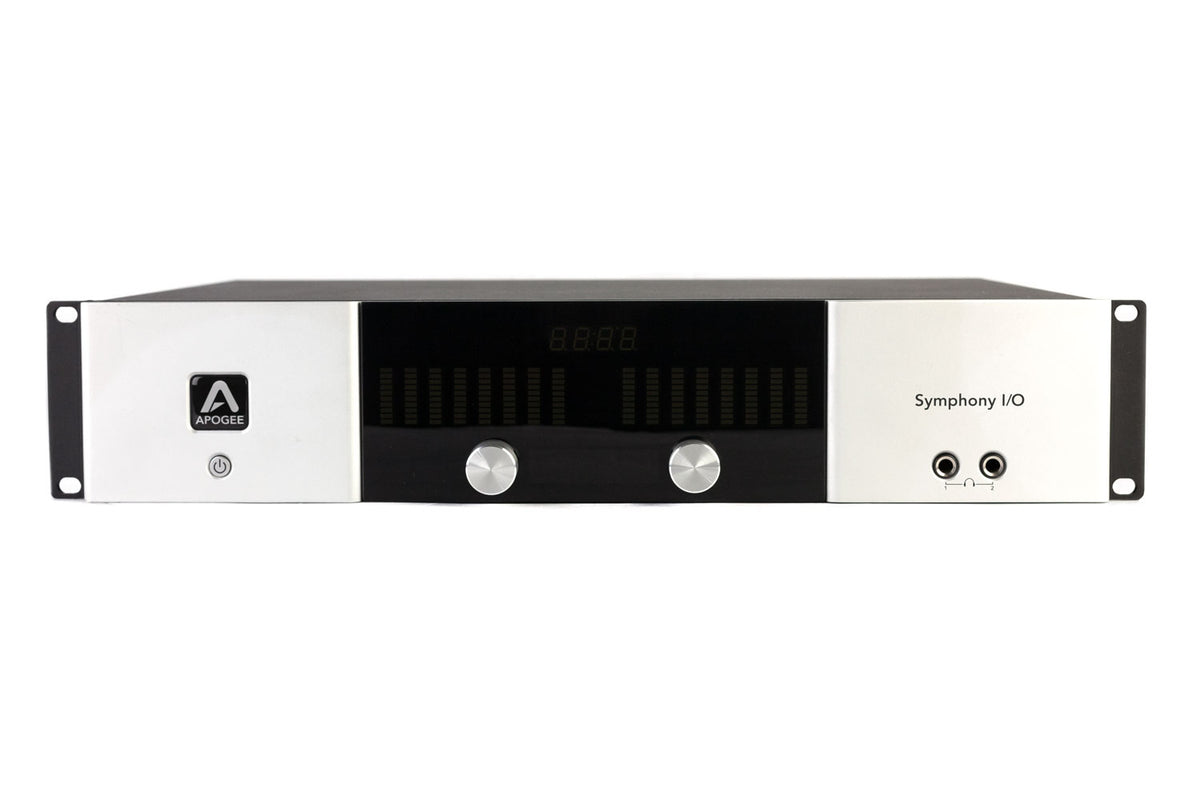

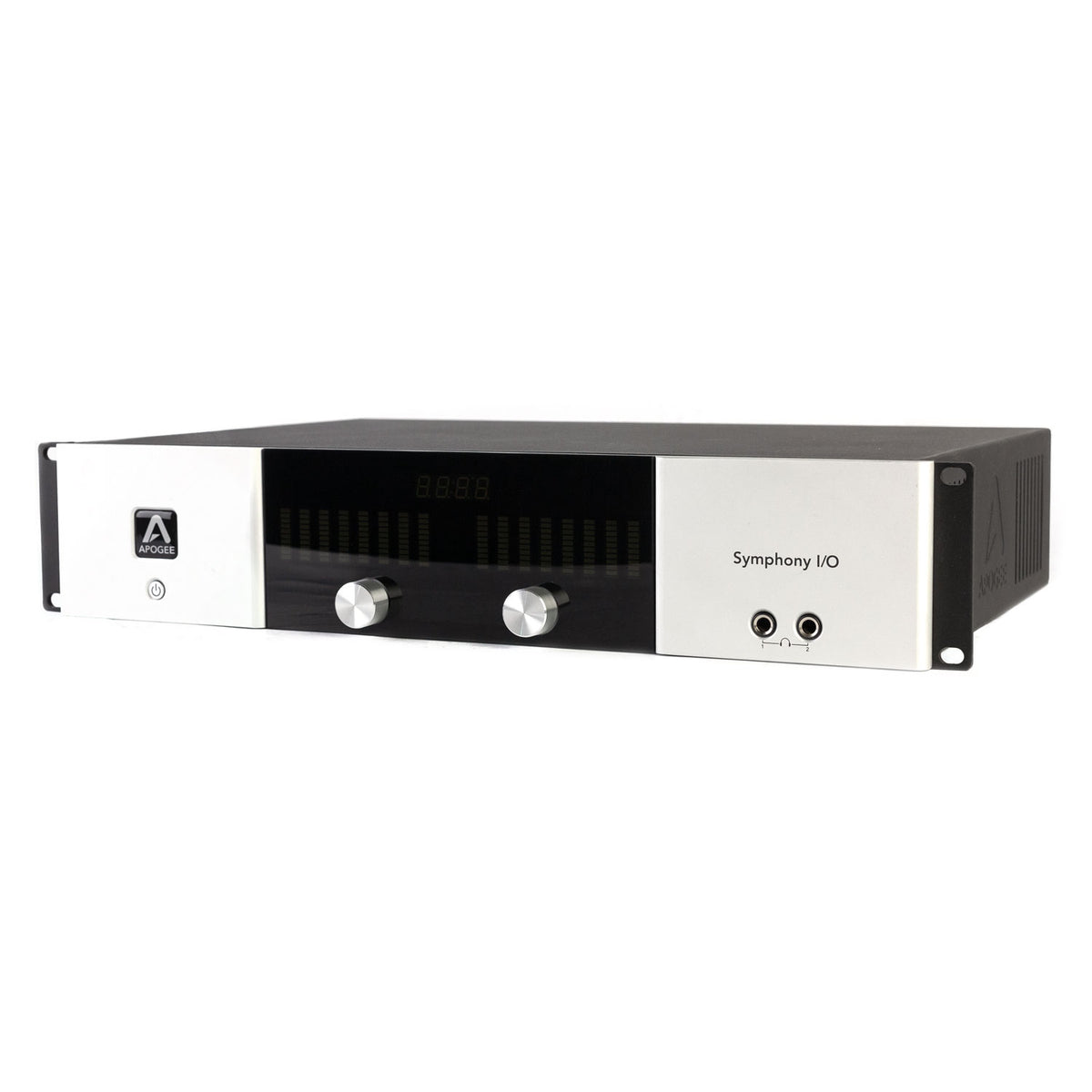

Apogee Symphony 8x8 w/ 8 Mic Preamps #A6M104134000163 (Used)

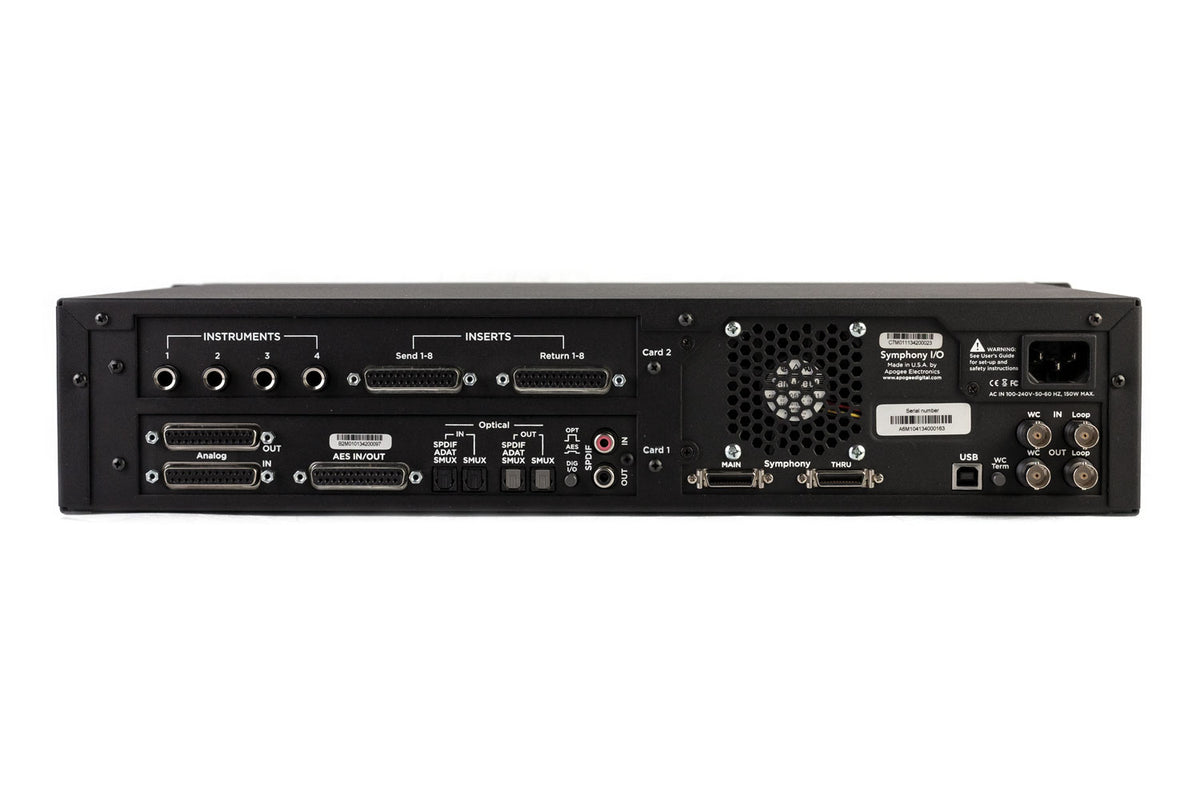

Symphony I/O chassis w/ 8x8 analog/AES/optical & 8 mic preamps

Product No Longer Available

Need help finding a different option? We can help.

We respond within one business day. All inquiries are confidential.

Experts At Your Service

Have a question? Our Audio Consultants and Technicians have years of real-world experience and are ready to help.

Call now
Inputs

Analog Inputs
  • 8 balanced inputs on 1 DSUB 25-pin connector
  • 8 built-in mic preamps
  • Digitally controlled, 85dB microphone preamps
  • 4 Hi-Z 1/4" instrument inputs capable of handling high level instruments
  • Selectable 48v phantom power, Soft Limit and phase invert
Inserts
  • 8 balanced software assignable analog insert points
  • Return 1-8 on 1 DSUB 25-pin connector

Digital Inputs
  • *AES-EBU IN: 8 inputs on 1 DSUB 25-pin connector
  • *Optical IN: Supports ADAT, SMUX & S/PDIF
  • *(Dig I/O hardware switch selects AES or Optical digital I/O format)
  • ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
  • SMUX: 8 channels 88.2-96 kHz on 2 Toslink connectors
  • S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
  • Coax IN: 2 channels of S/PDIF, up to 192 kHz on 1 RCA connector
Outputs

Analog Outputs
  • 8 balanced outputs on 1 DSUB 25-pin connector
Inserts
  • 8 balanced software assignable analog insert points
  • Send 1-8 on 1 DSUB 25-pin connector

Digital Outputs
  • *AES-EBU OUT: 8 outputs on 1 DSUB 25-pin connector
  • *Optical OUT: Supports ADAT, SMUX & S/PDIF
  • *(Dig I/O hardware switch selects AES or Optical digital I/O format)
  • ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
  • SMUX: 8 channels 88.2-96 kHz on 2 Toslink connectors
  • S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
  • Coax OUT: 2 channels of S/PDIF, up to 192 kHz on 1 RCA connector
