API 7800 Master Control Module #803.1030 (Used)

The API 7800 Rack Mounted Master Control Module is the final stage in the line of 7600 Input Modules linked together in a console configuration. The new API 7800 fits into one rack space unit. It includes summing amps for the echo sends, busses and stereo mix bus when linked up with the 7600 input module. The 7800 is available in either a vertical or horizontal configuration, depending on the custom needs of the user.

Complete with external L100 power supply, the 7800 strip is the basis for building a 4 channel, 8 channel or even 16 channel professional sounding API console when used with the 7600.

This allows a studio to design a custom "side-car" console that can be used as extra inputs or as a portable "floating" console that can be moved from control room to control room. It can also be the basis for an extremely high quality 4 or 8+ channel console for remote recording applications, such as classical recordings or broadcast live remotes.

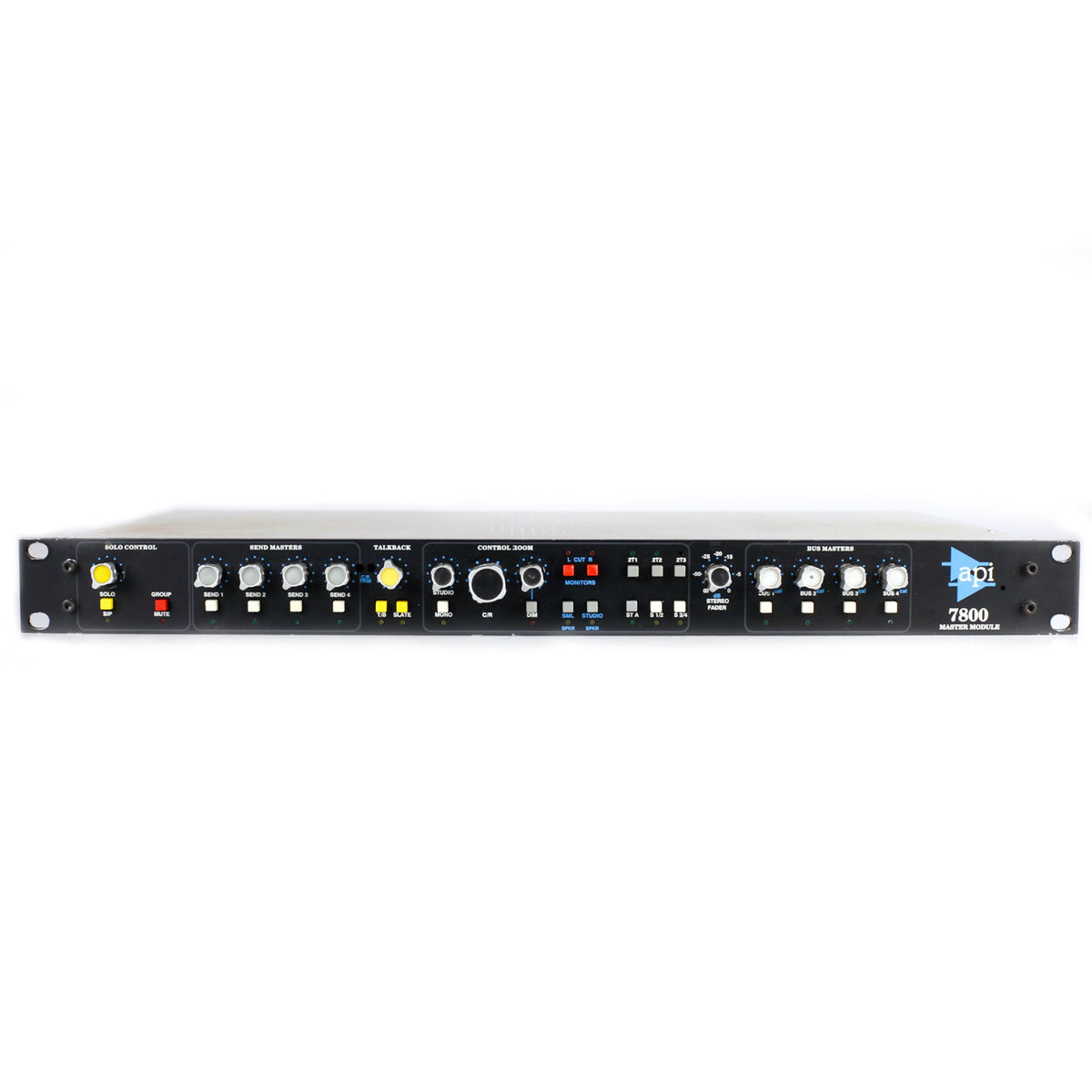

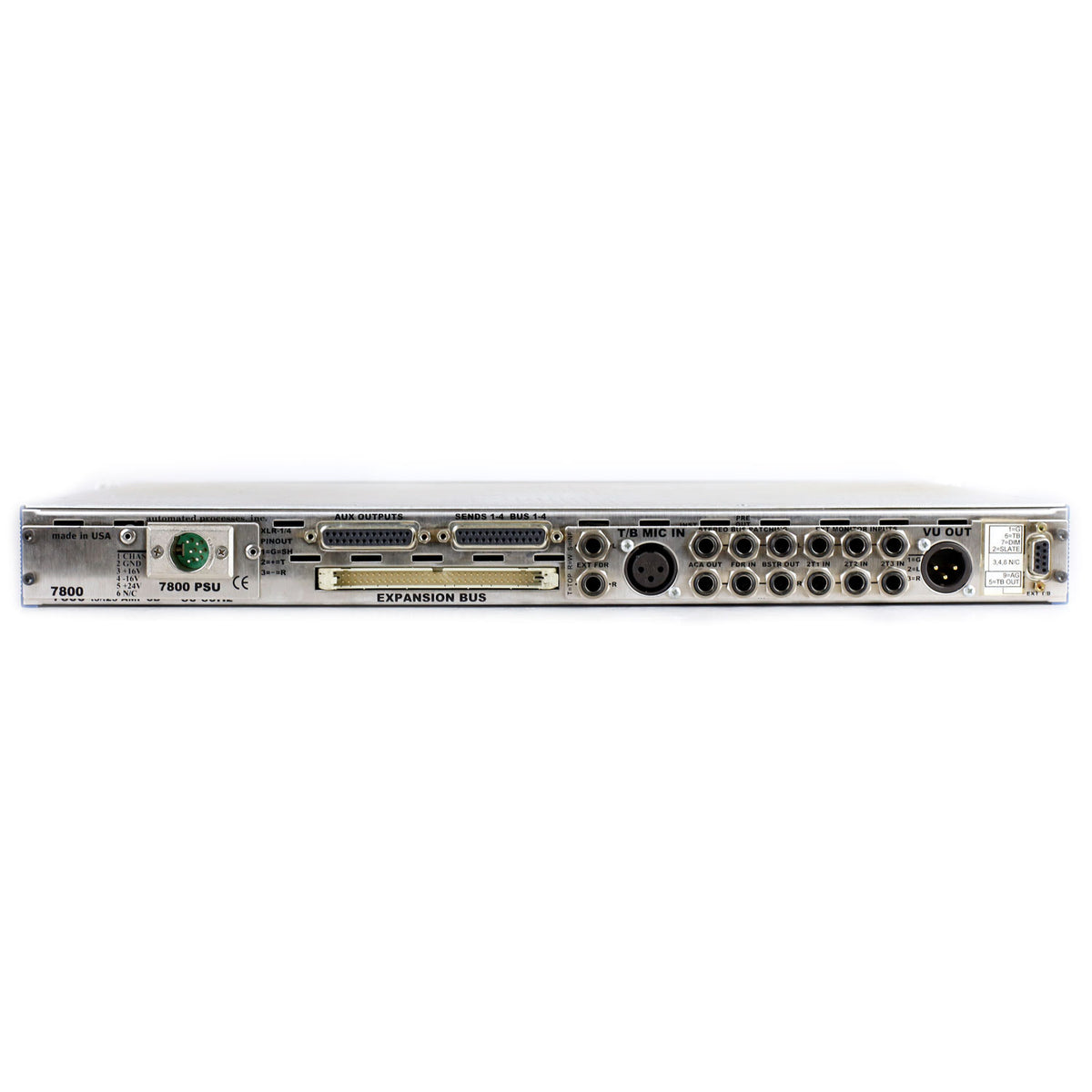

The 7800 includes the master controls for the solo system, including PFL, SIP and level control. There are six 2-track inputs, monitoring of the four sends, and monitoring of the stereo bus. There are XLR outputs for the stereo outputs as well as the speaker amp inputs. All other outputs are on a D-sub, with a DA-88 type pin-out. This is a professional master section that can be used in any application requiring a control room controller.

For engineers/artists that are using a Pro Tools type of product, the 7800M is perfect for use as a control room master without the summing amps and output controls for the sends or busses. It also provides eight 2-track inputs, speaker controls, dim and a stereo output.
