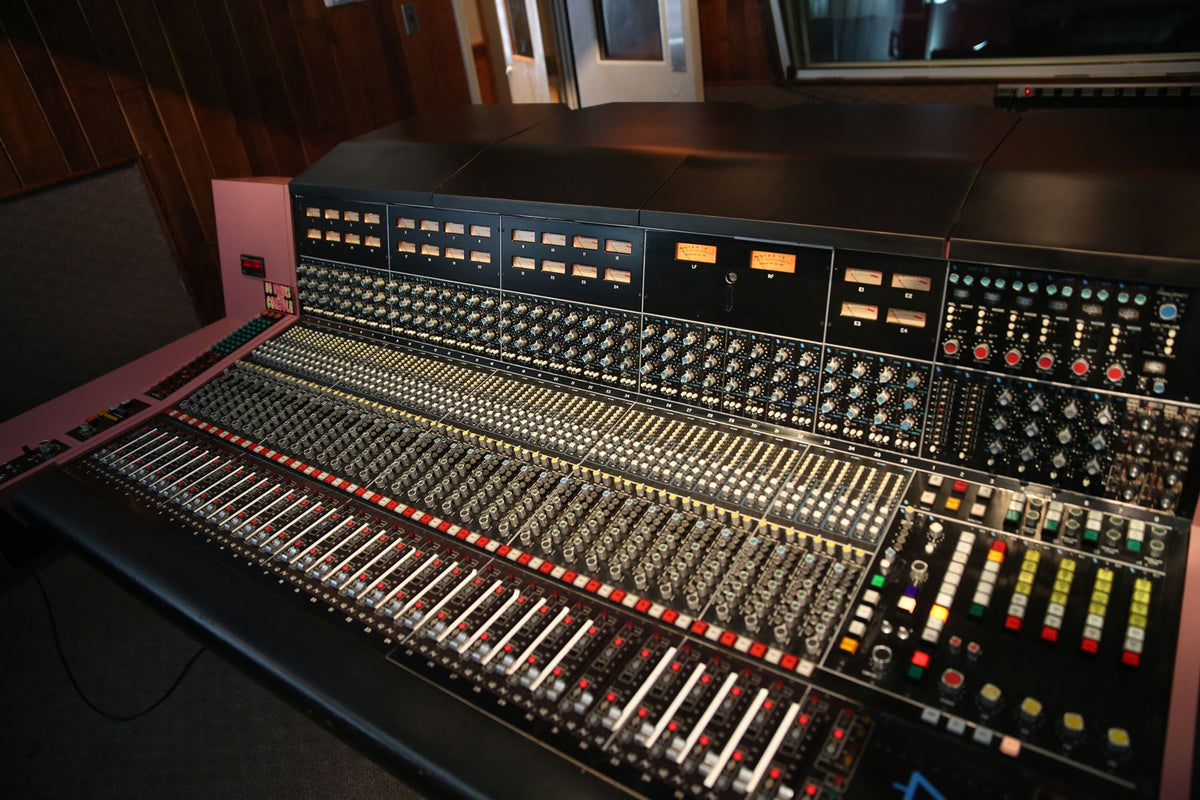

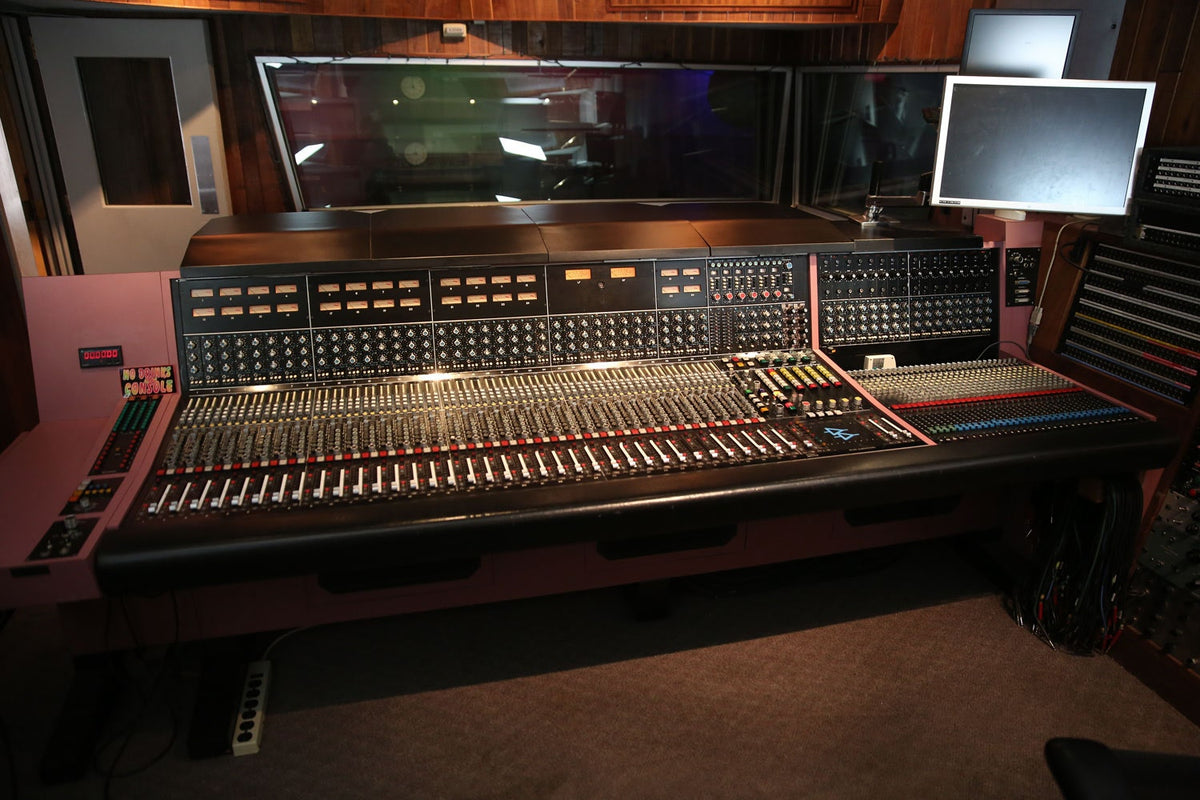

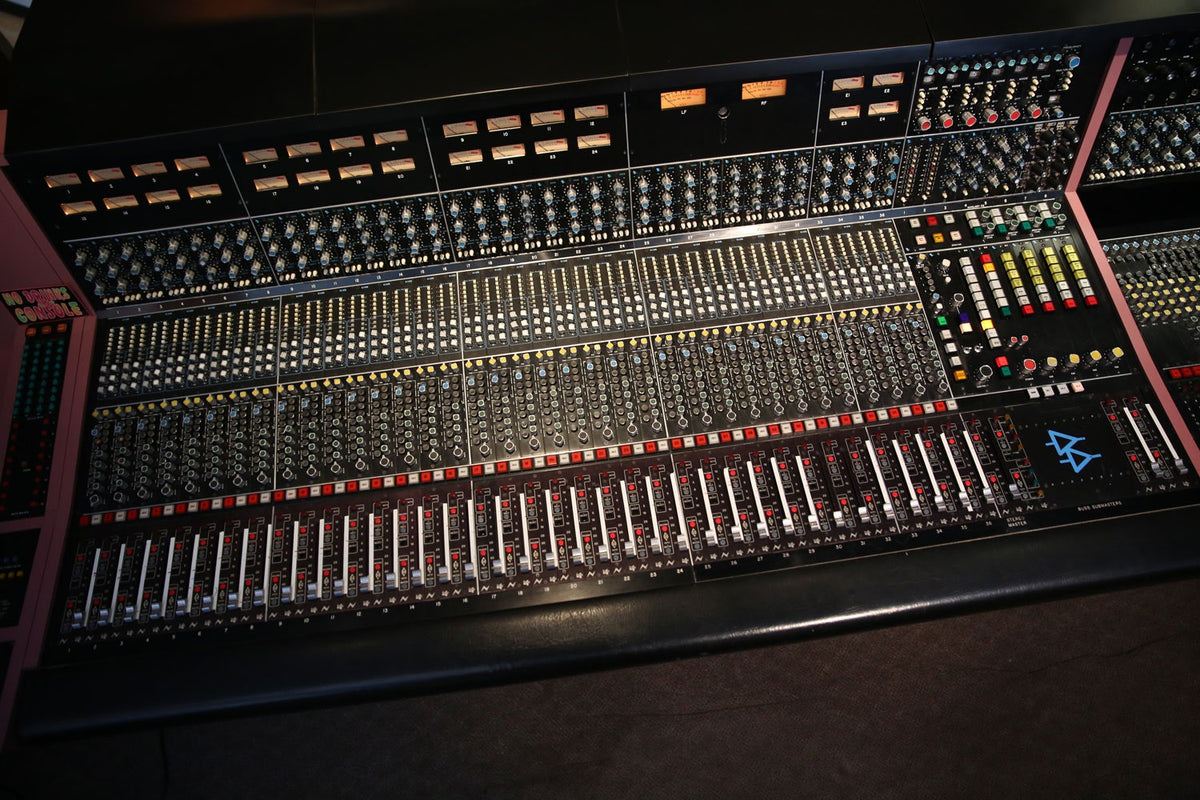

Own a piece of iconic Los Angeles recording history from Sound Factory's Studio A (sister studio to Sunset Sound). Their custom vintage AP was heavily modified and fully restored in 1987 at a cost of about $165,000 (in today's dollars). It took a crew one year to complete this work. Multitudes of amazing artists were recorded on this desk for 30 years from 1987 to 2017, ranging from Beck to Jimmy Cliff to Smashing Pumpkins. Recently went through and brought up to snuff, and in excellent working order. It's current owner is very committed to maintaining the desk to a high standard.
TECHNICAL DETAILS
| DIMENSIONS | 8 ft L x 37 'W x 42 ' |
| COSMETIC CONDITION RATING | 9 |
| LIST OF COSMETIC FLAWS | Not many significant flaws, a few small tears in bolster |
| WORKING ORDER RATING | 10 |
| LIST OF MAJOR WORKING FAULTS | None we know of, console has been regularly maintained |
| DIRECT OUTS | Yes |
| DIRECT OUTS TRANSFORMER BALANCED | No |
| LINES IN AT MIX | 65 |
| LAST SERVICED | Has had continuous on staff maintenance |
| SPARE PARTS | I/O module, buss module, monitor module and a few other minor spare parts |
FEATURES
| MODEL NUMBER AND QTY OF MIC PRE/EQS | 52 x 550A's, 2 x 560's, 4 x 554's, 2 x B&B EQF-1, 36 x 312's, 16 custom Sunset Sound orig Tutti mic pre's |
| MODEL NUMBER AND QUANTITY OF COMPRESSORS | 6 x 525's |
| AUX SENDS | Input x 4, echo x 2, stereo cue |
| EFFECT SENDS | 4 x cue, 4 x echo |
| BUSSES | 16 |
| PHANTOM POWER | Yes |

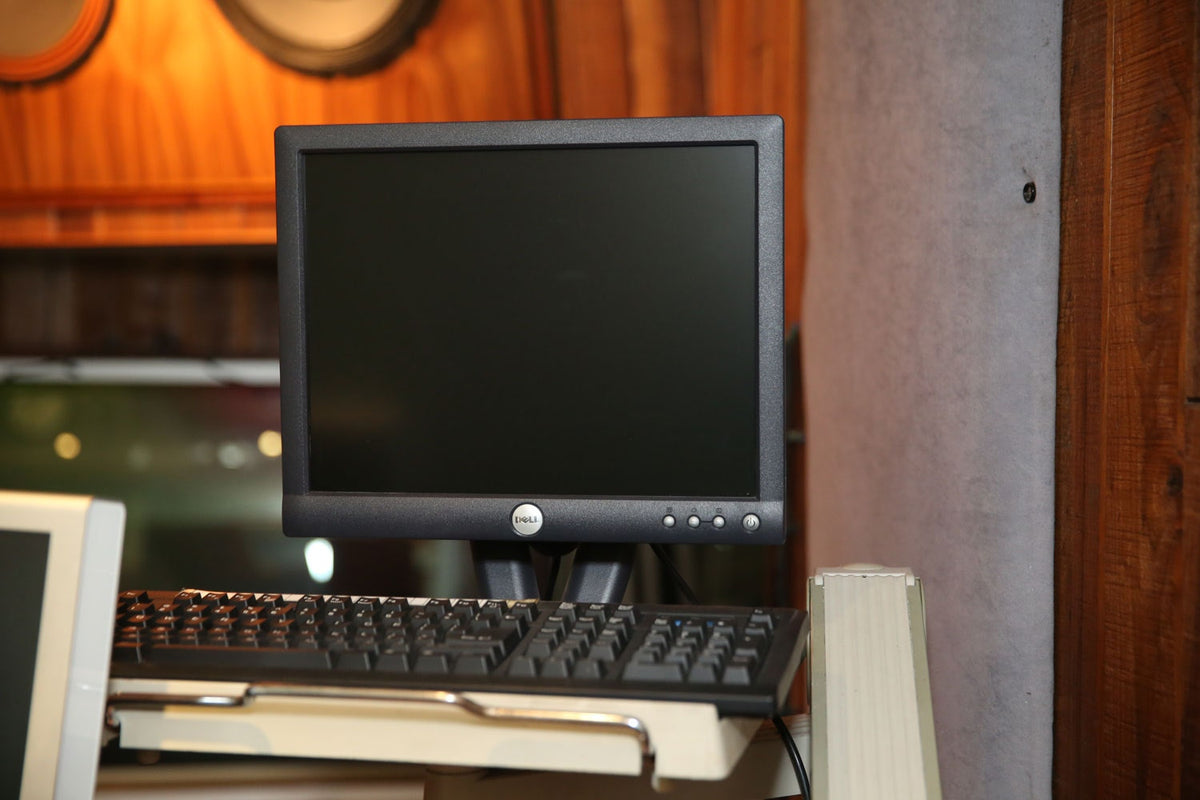

| AUTOMATION BRAND | Martinsound Flying Faders |
| WORKING AUTOMATION | Yes |
| SPEAKER SELECTORS | 4 |
ACCESSORIES

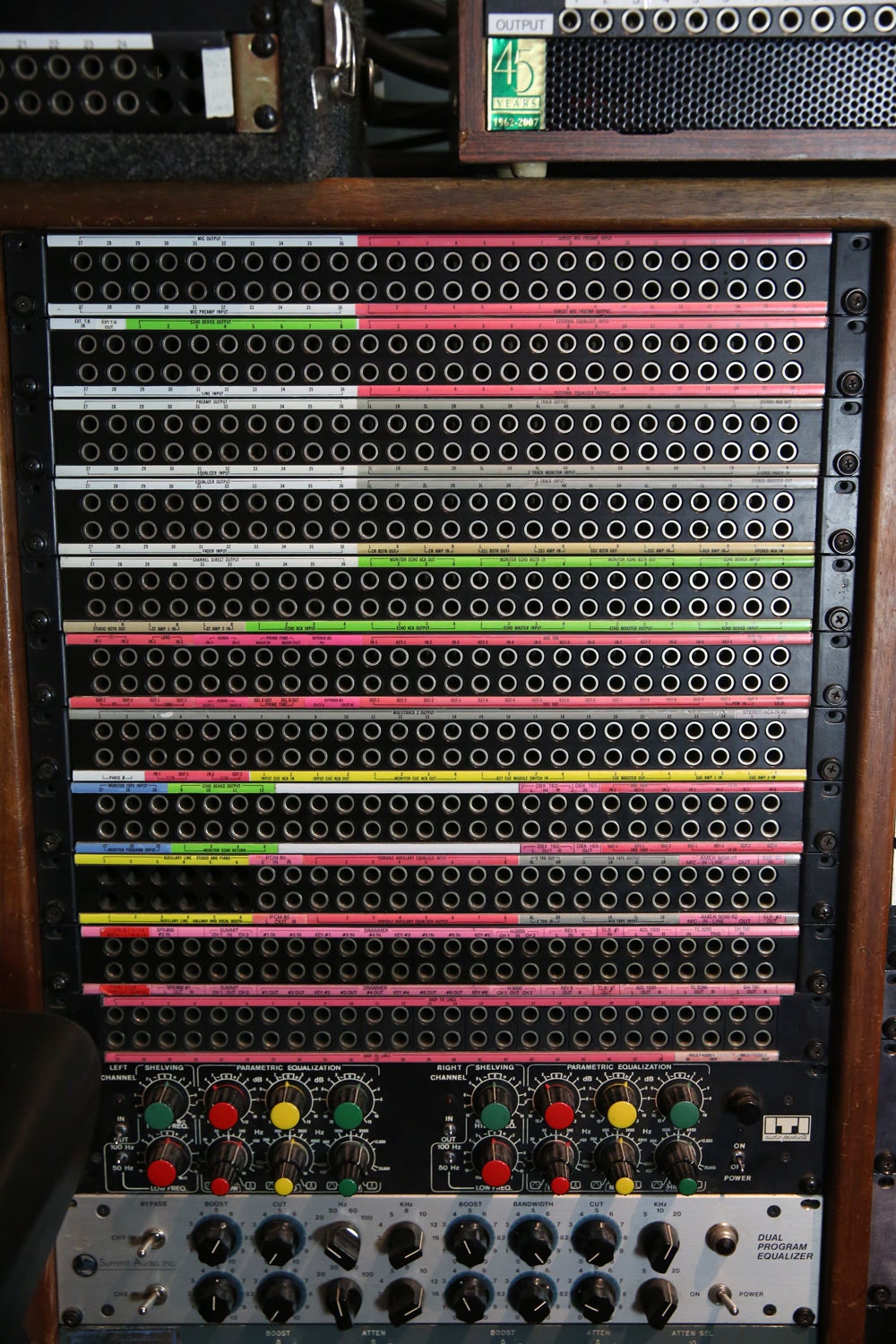

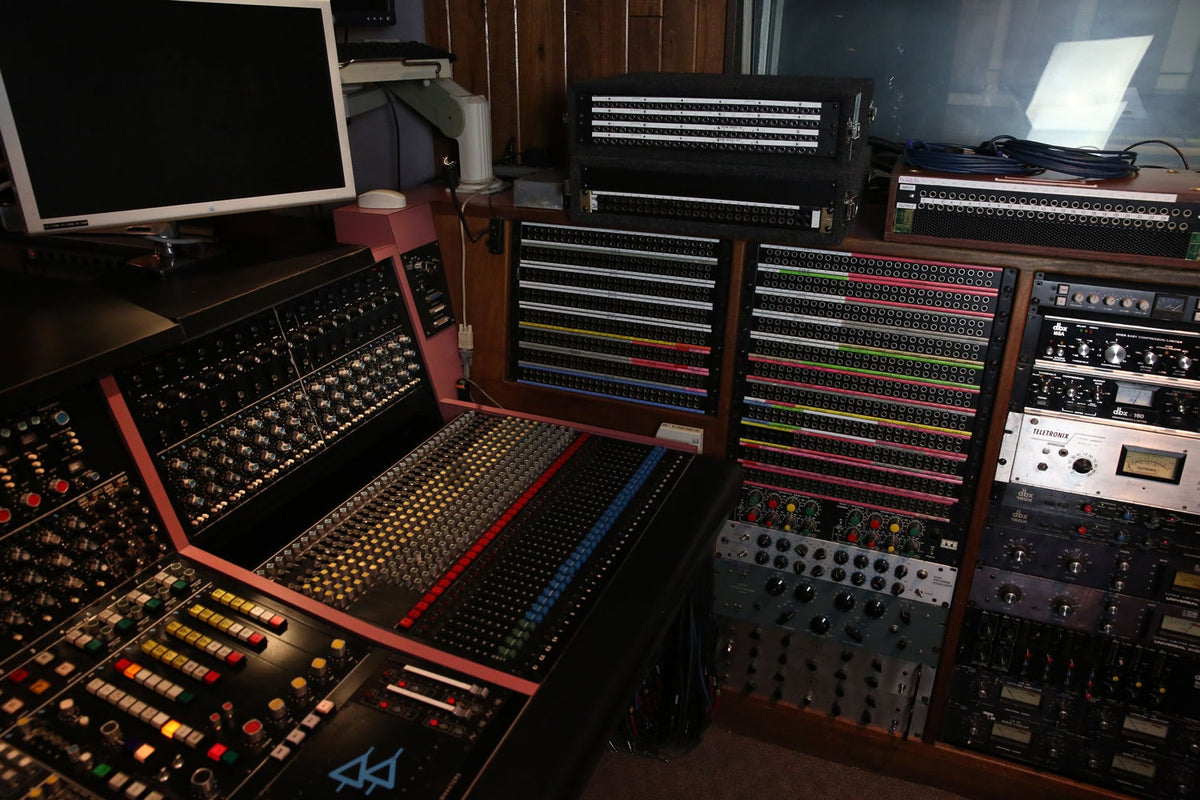

| PATCHBAY BRAND | TRS |
| PATCHBAY QTY | 17 |
| PATCHBAY LOCATION | Right |

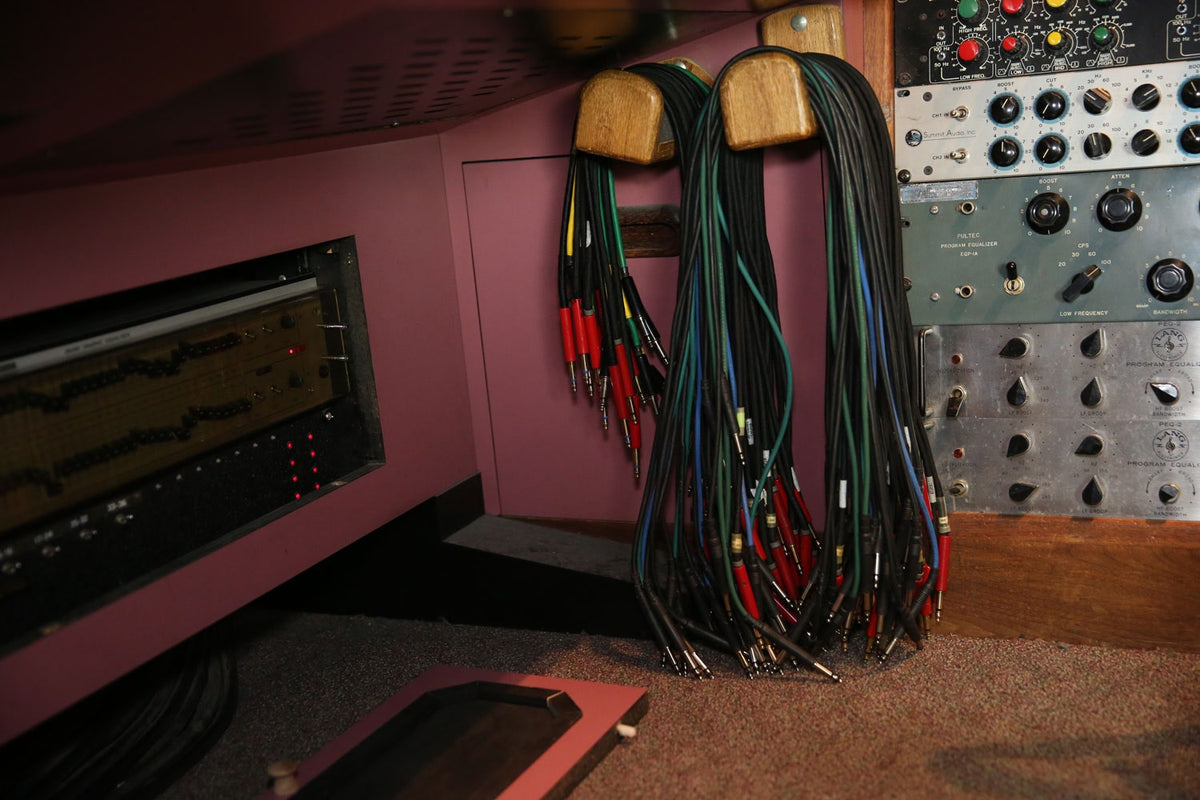

| BRAND AND LENGTH OF CABLING | Mogami |
| BRAND AND TYPE OF FURNITURE | Custom |
| STAND | Yes |
| PRODUCER'S DESK | Yes |
DOCUMENTATION
| ORIGINAL MANUAL | No |
| TECH REPORT | Yes |
| MODS DOCUMENTED | Yes |
ADDITIONAL INFO AND MODIFICATIONS:

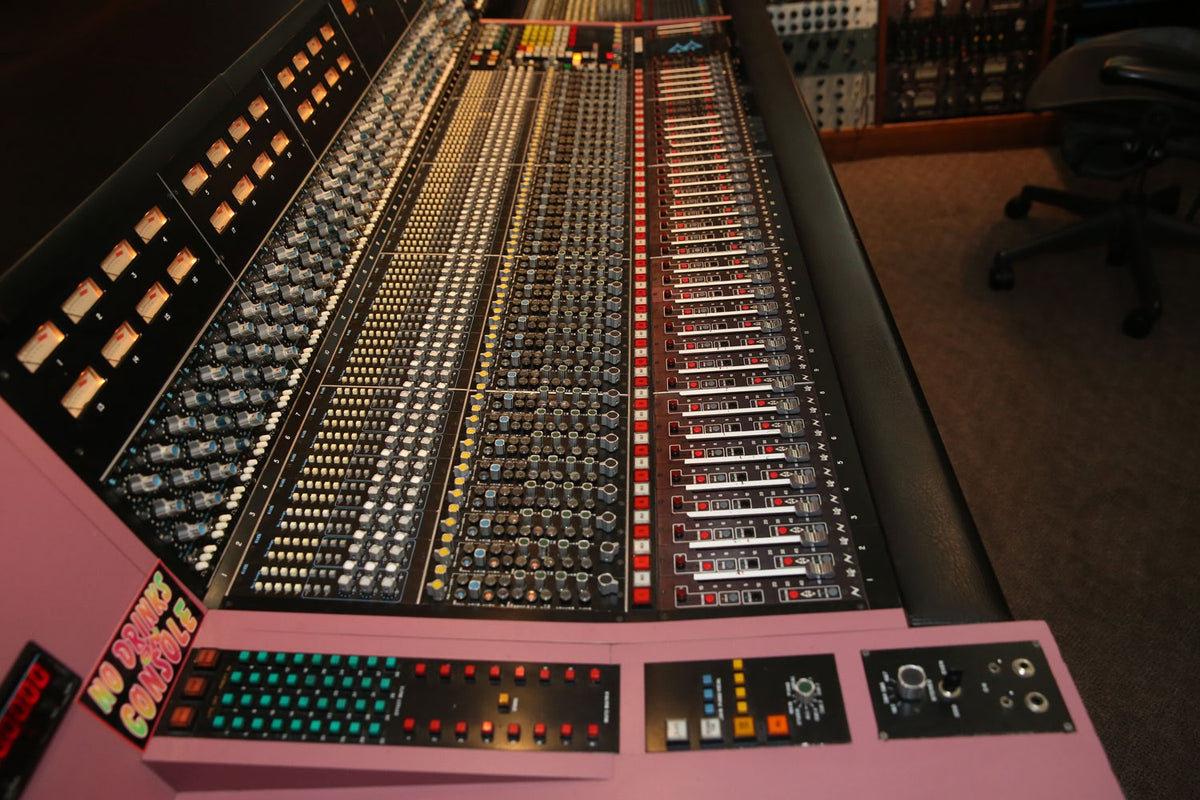

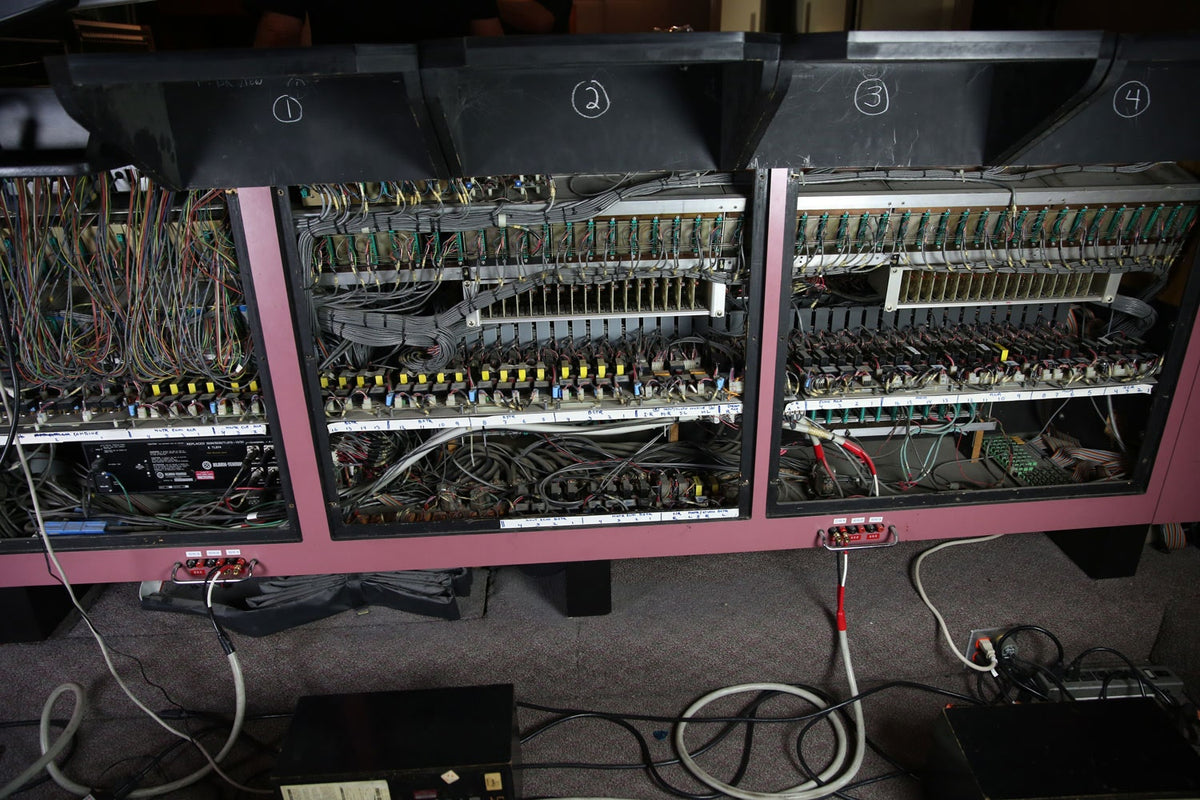

- API console - 36x16x29 Fully rebuilt console 'from ground up'
- 36 mic/line inputs
- 16 busses
- 29 monitors inputs
- Customized furniture housing with attached speaker stands

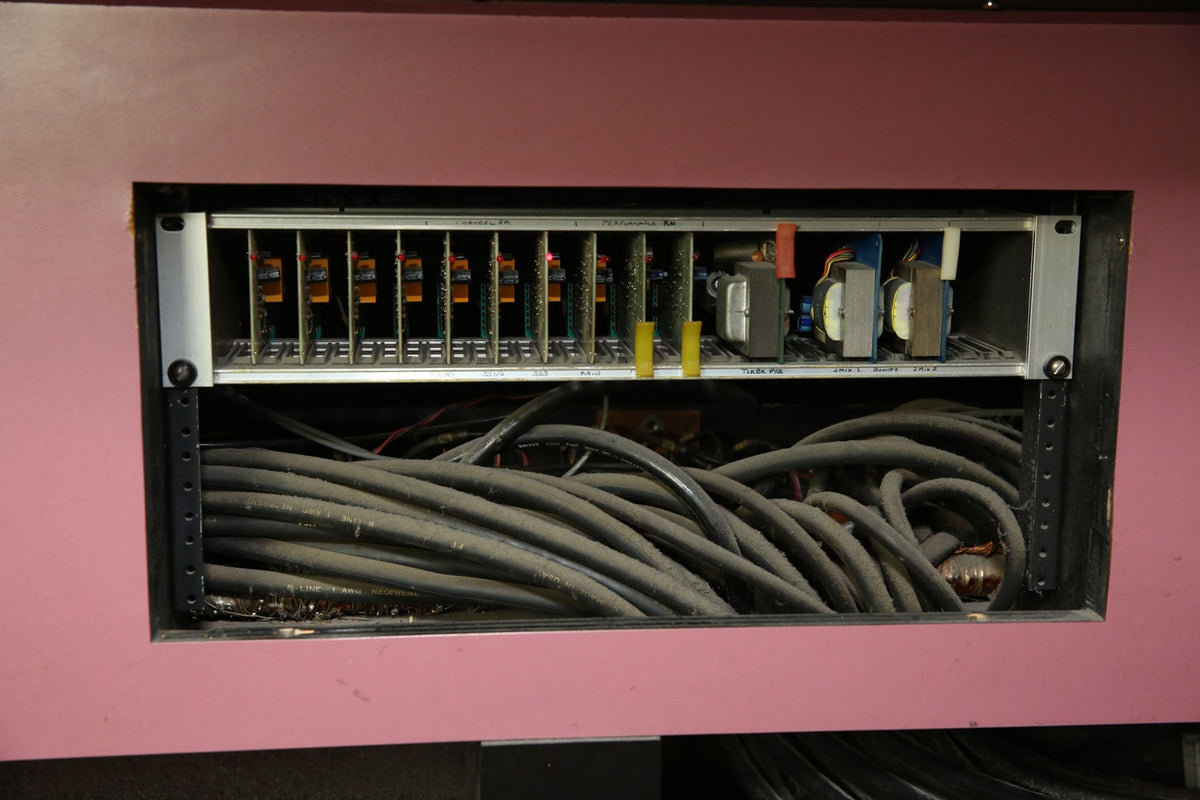

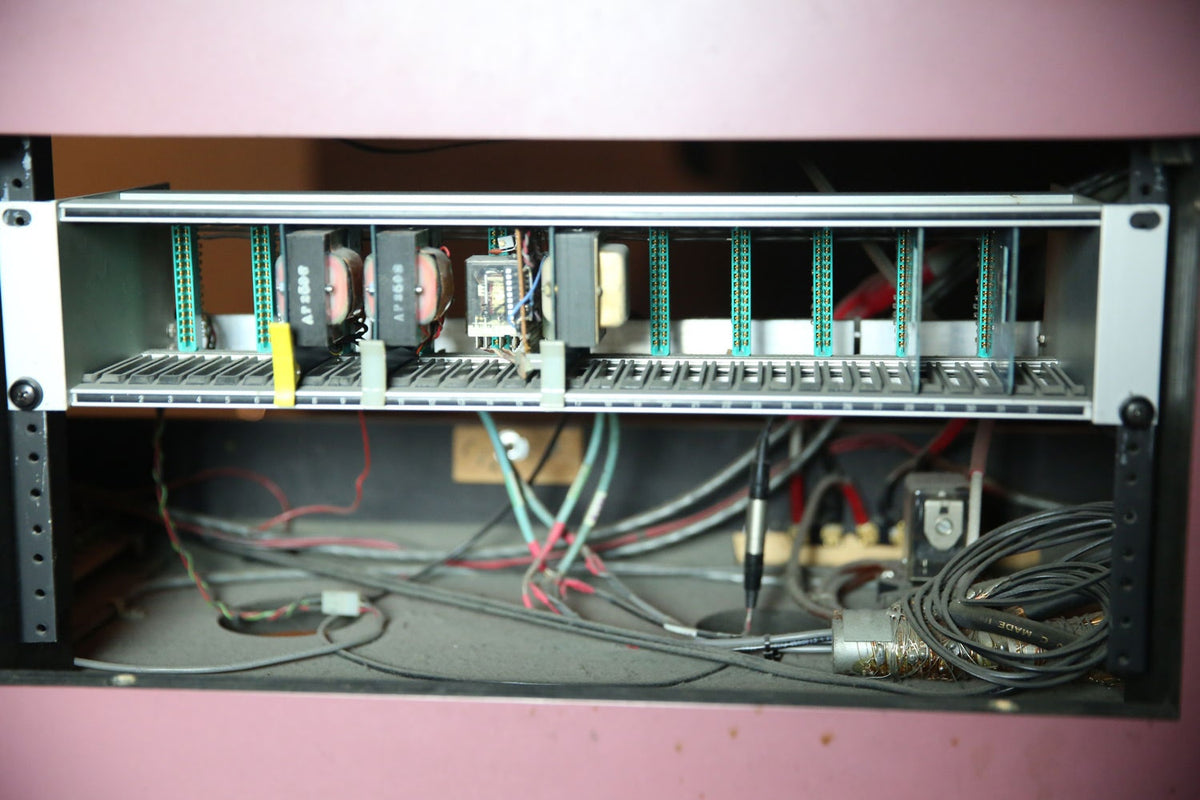

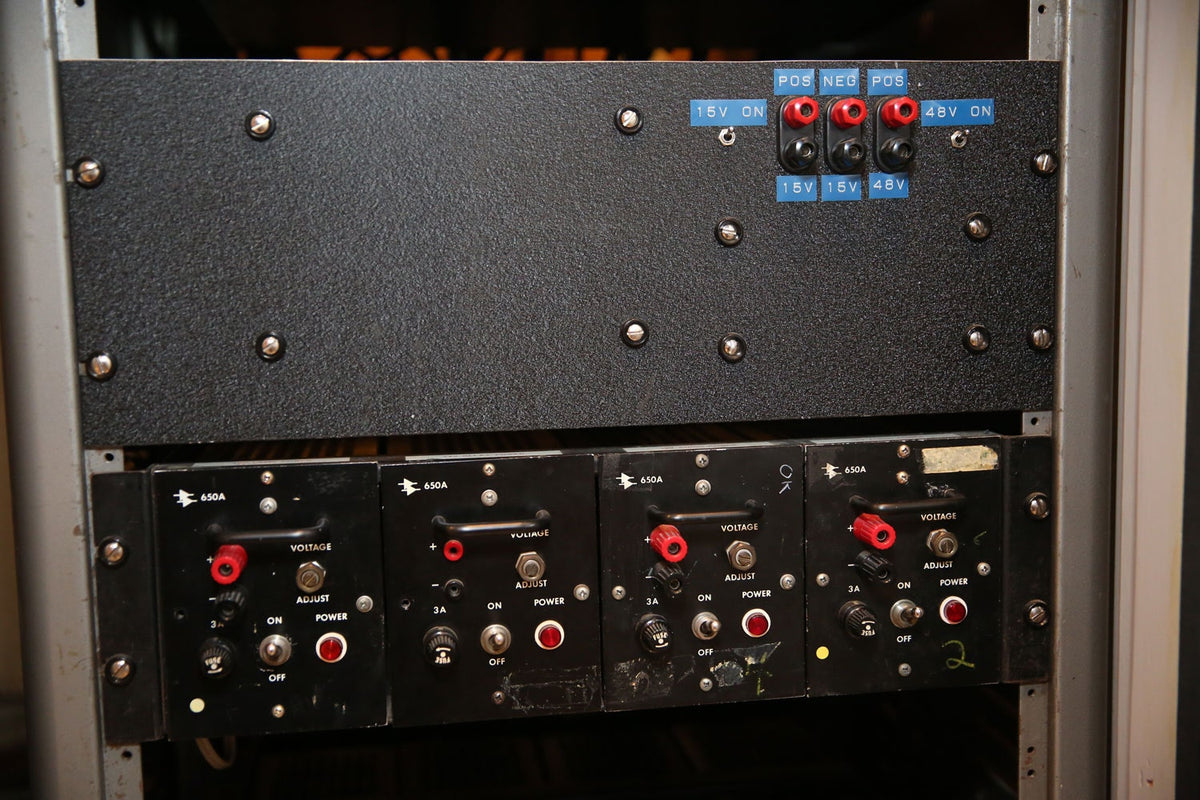

- Rebuilt and Recapped 650 Power Supplies

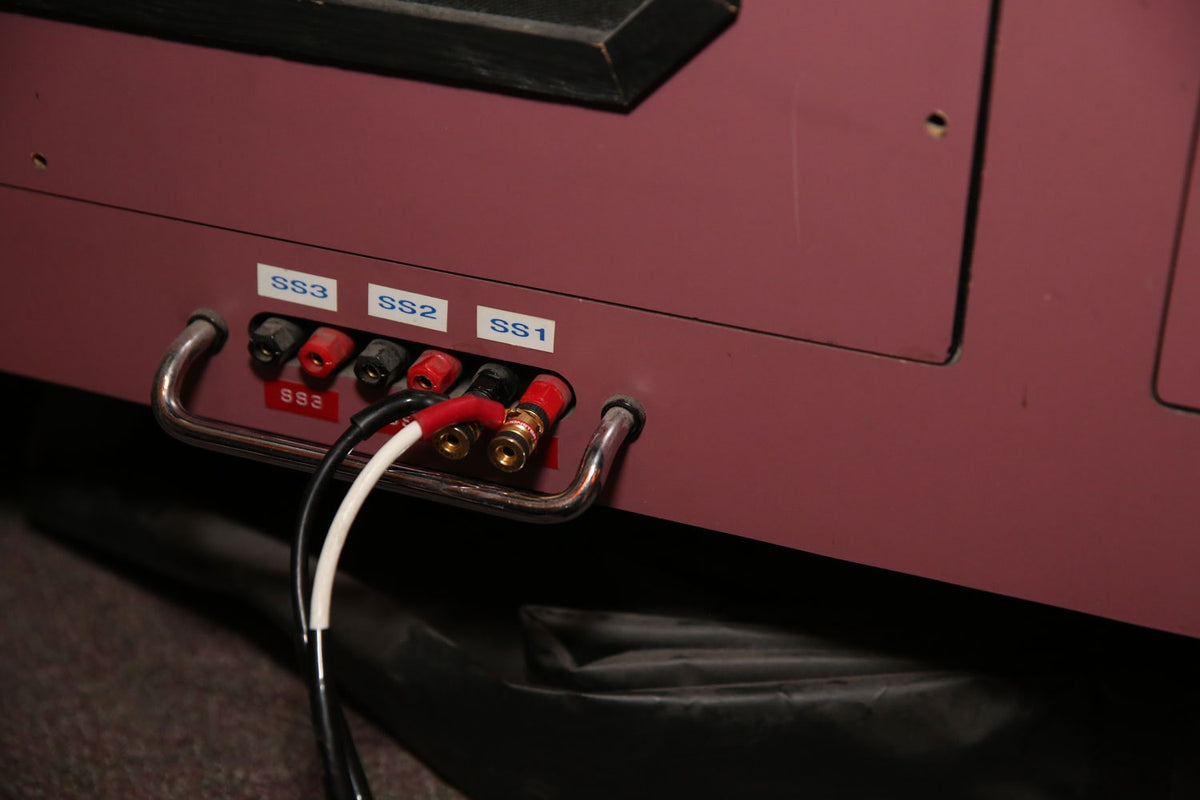

- (3) Small speakers monitor select modification -pushbutton switches w/lamp indicator
- Monitor to Mix switching function enabling up to 65 Inputs modification
- Program or Monitor to Solo Buss Switching on both lnput and Monitor section with combining function modification
- Echo Send Combining Function - combines (4) lnput Echo sends with Monitor Echo sends modification
- (36) Console'lnserts'with LED lamp switches and logic board relay circuitry modification

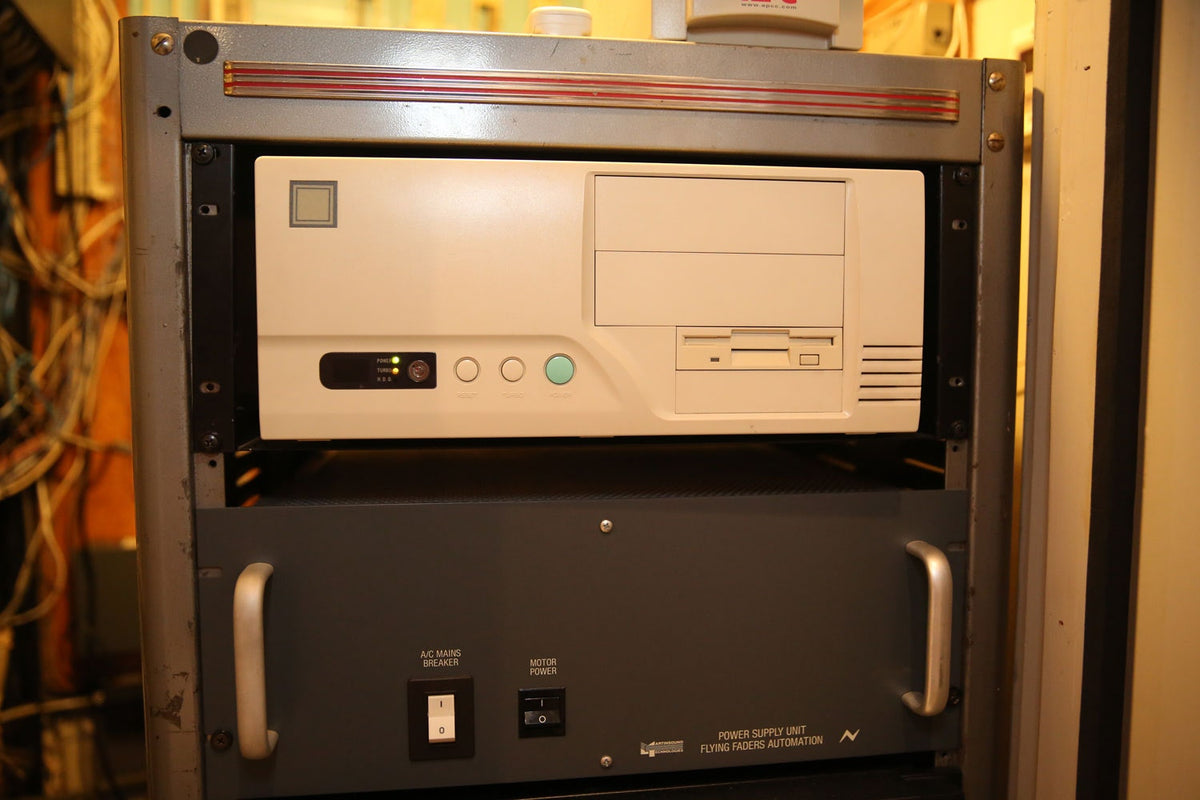

- (36) Flying Faders Version 3.01-, 29 Flying Fader Monitor Mute Events with Fiber Optic Upgrade
- Flying Fader Mute modification using LDR console mutes
- Control Room Monitor 825 Module modification - audio monitor switches re-routed to dedicated selectable sealed relays
- Auxiliary Center Section
- (6) API 525 Compressor-Limiter

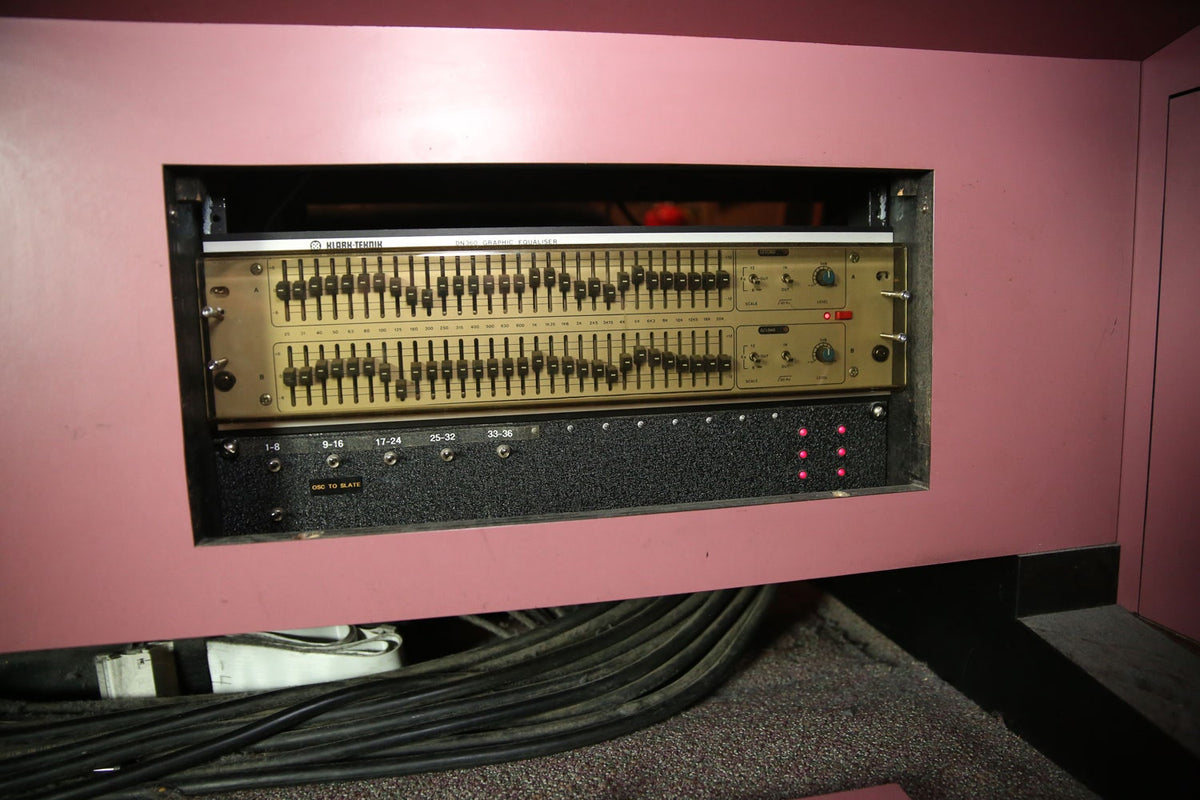

- (2) API 560 Graphic Equalizers
- (4) API 554 Equalizers
- (2) B&B EQF-1 Equalizers ALL API 5504 Equalizers with bandpass select switch modified to highpass @ TOHz

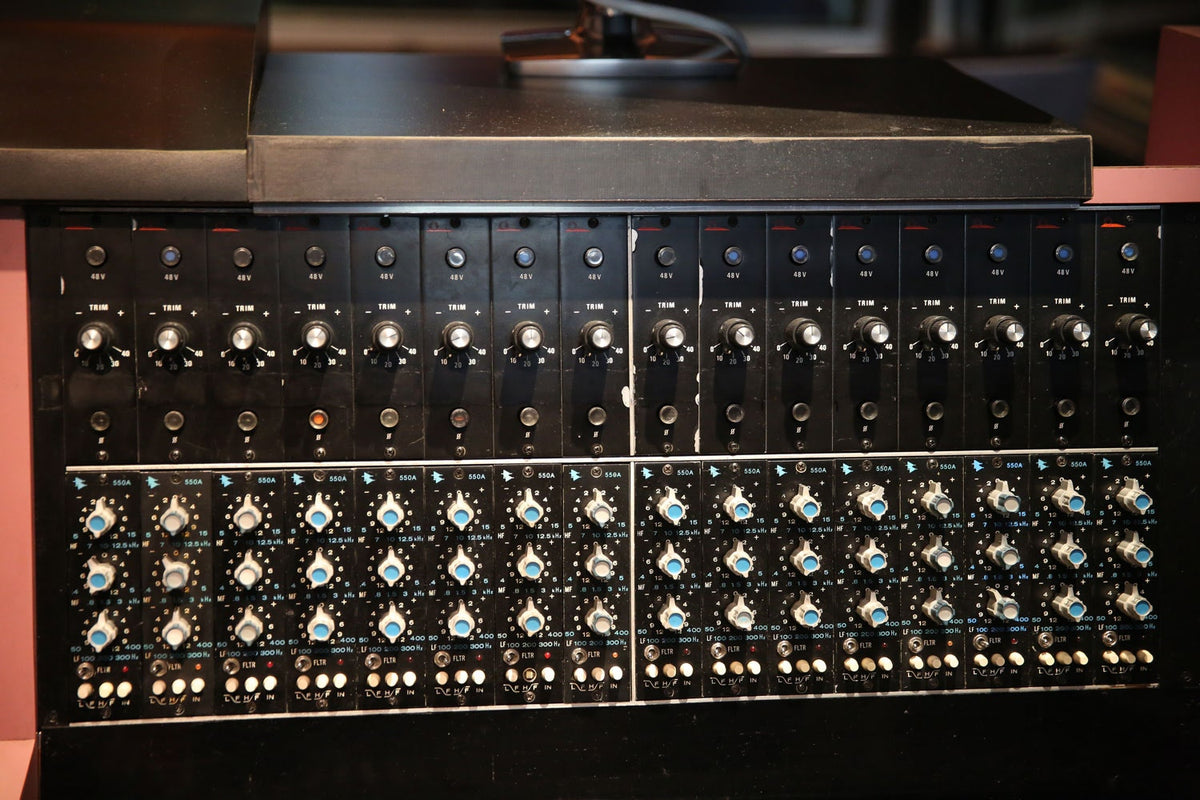

- (16) Custom Sunset Mic Preamps with 48 VDC Phantom and Phase Switches

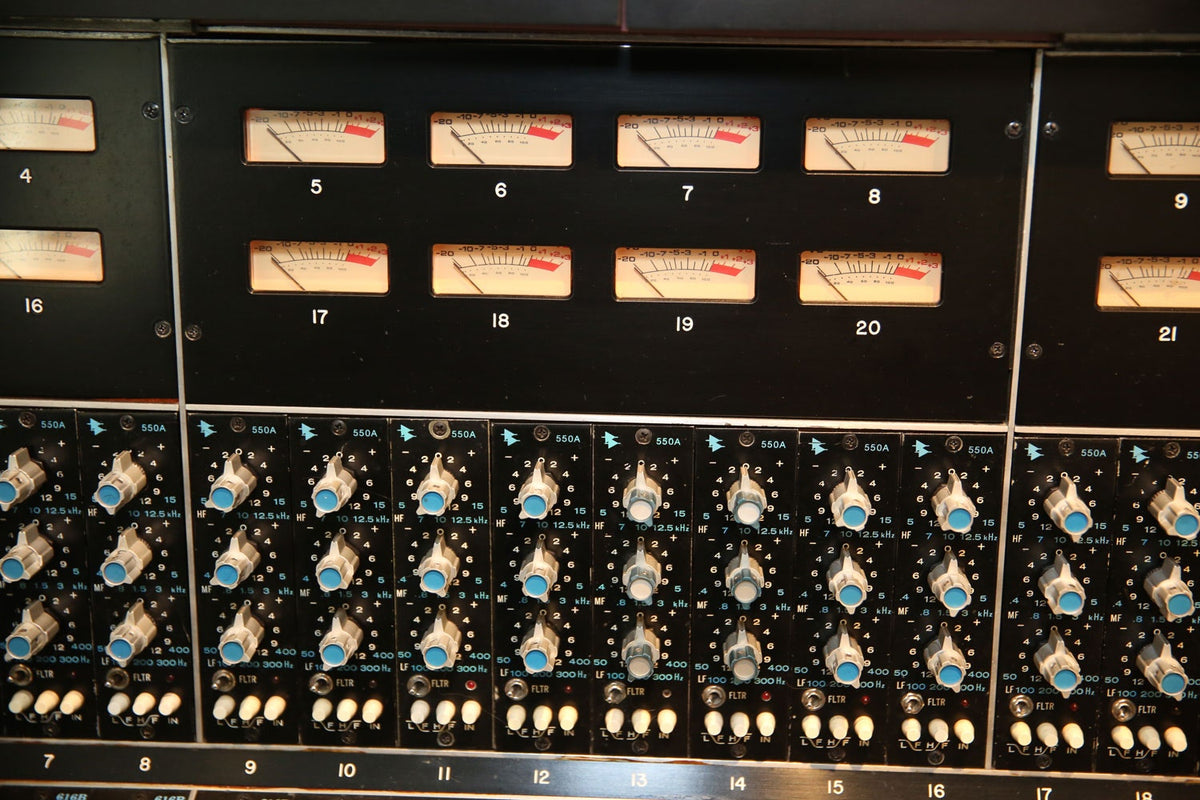

- (115 VDC Dedicated Power Supply) with (16) normalled API 550A Equalizers

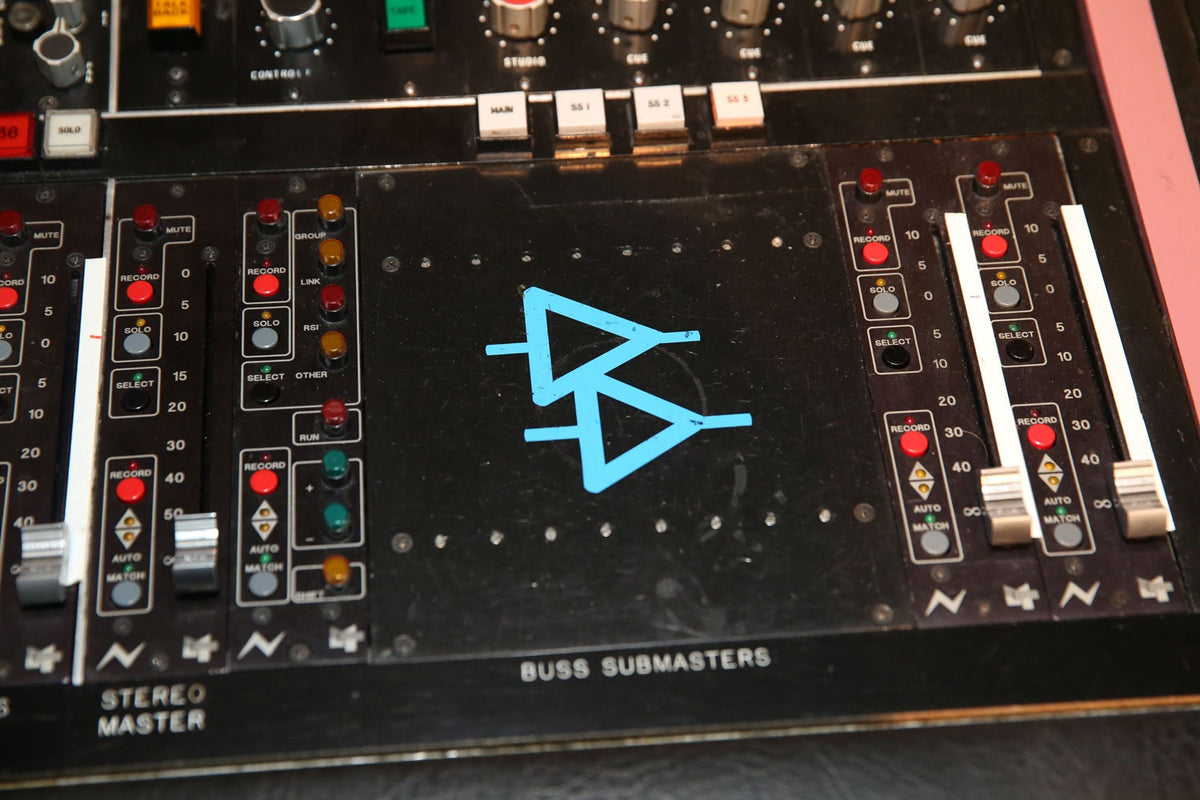

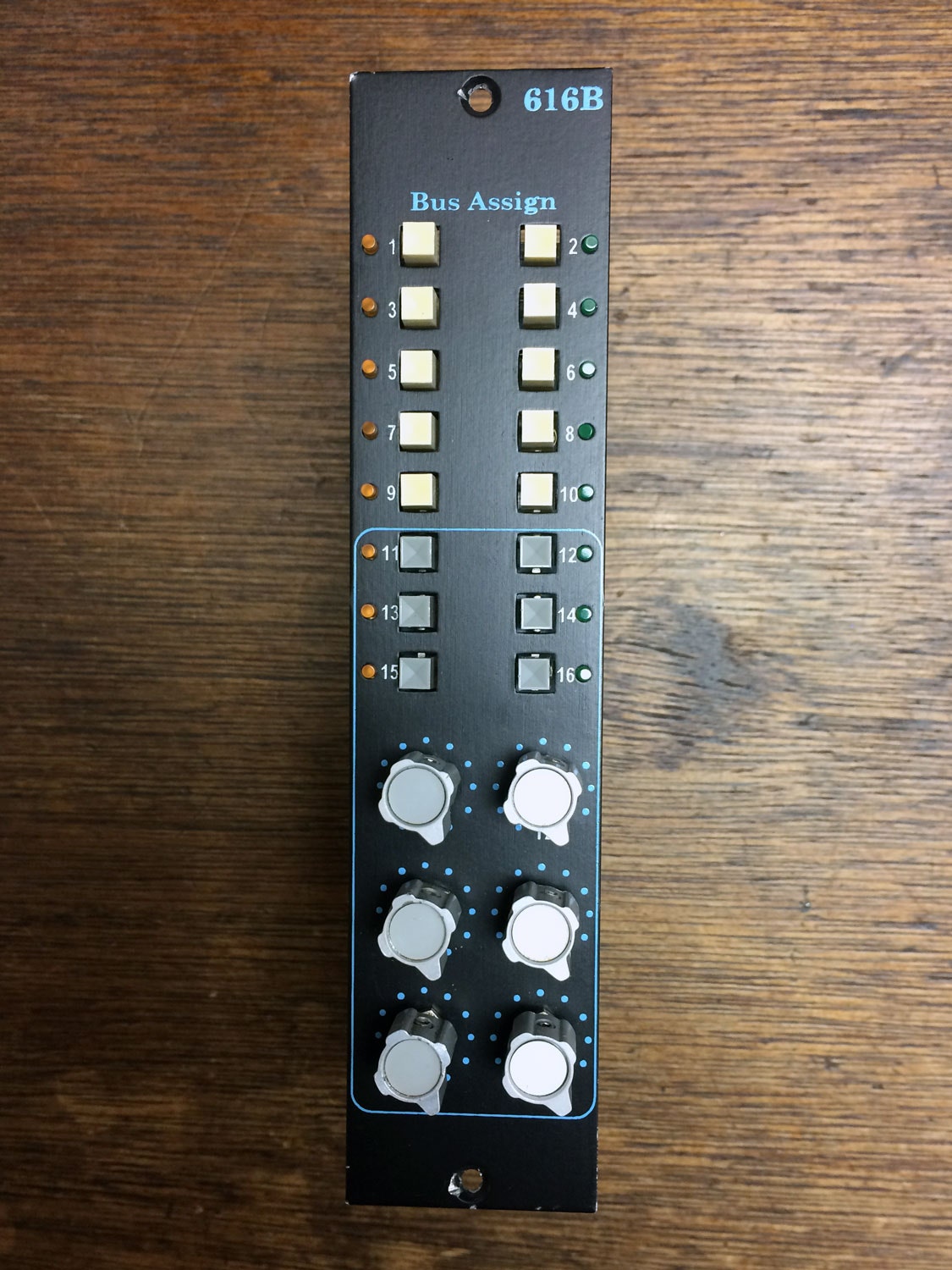

- Uniquely designed and manufactured 6168 (16 Channel) Buss Module w/miniature pushbutton switches, LED's, and 6 (Buss 11- 16) variable gain potentiometer balanced output

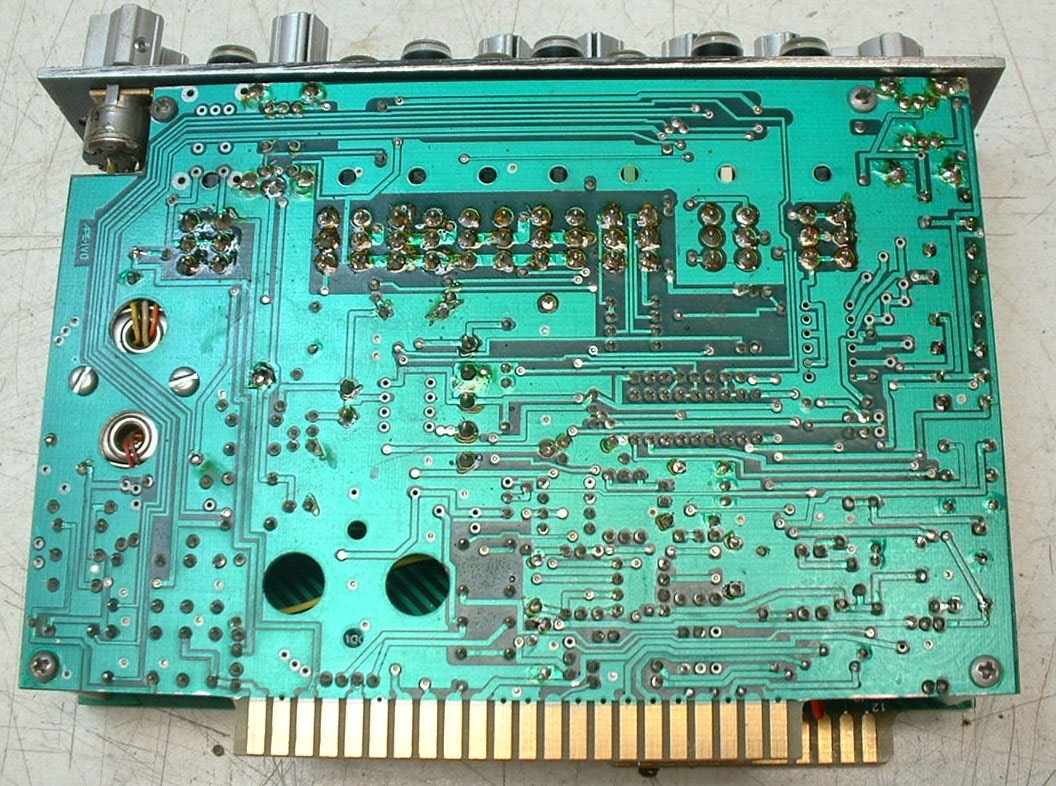

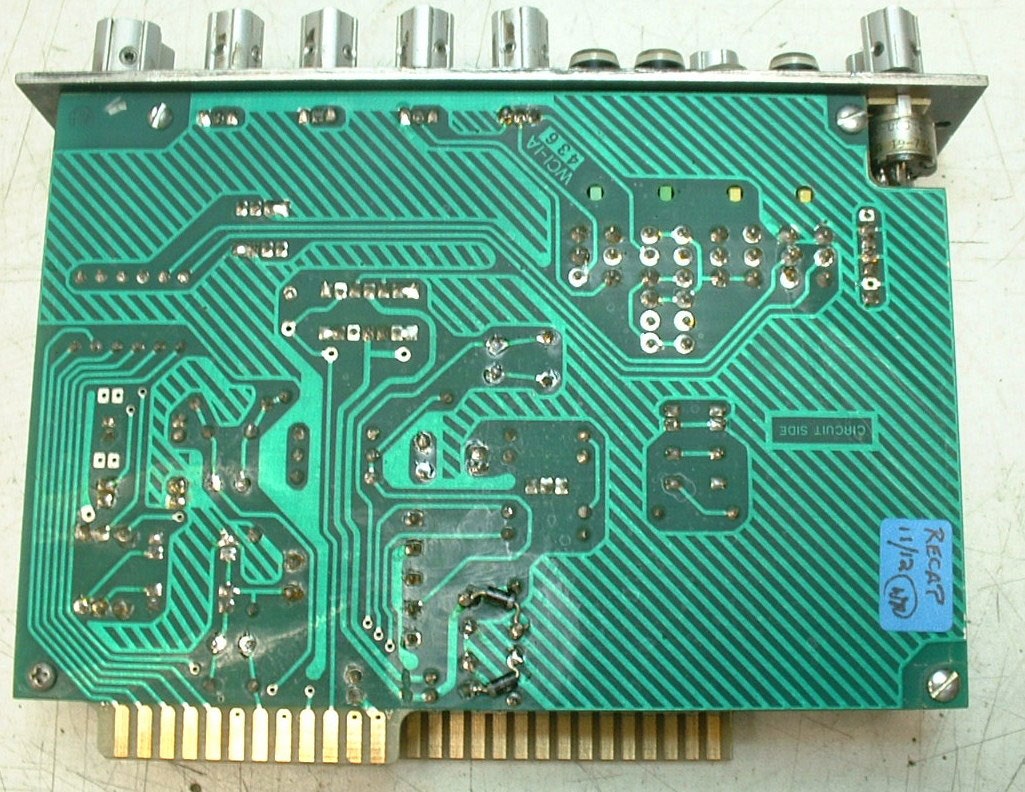

- Fully Modified 515 l/O Module with updated faceplate labels, redesigned and remanufactured PC boards maintaining original2520 amplifier integrity, including updated relays circuitry, Jensen JE-110K-C microphone input transformers, and replaced electrolytic capacitors. Direct transformer less balanced Line inputs
- LDR Muting circuitry with channel switch modification
- 48 VDC Phantom Power Switch
- Clarostat Push/Pull Variable Trim Potentiometer for both Mic & Line inputs with ganged -20 dB pad switch modification
- Clarostat Echo Send Potentiometers with Pre/Post global switch and Echo t-2 On/Off & Echo 3-4 On/Off
- Cue On/Off Switch, Clarostat variable gain potentiometer, and
- Pre/Post switch modification
- Follow (Channel Solo Safe) switch modification
- Channel Strip Solo switch modification
- Clarostat rotary Pan Potentiometer with 'Pan to Buss' switch modification
- Low Pass Filter switch @2OKHz modification

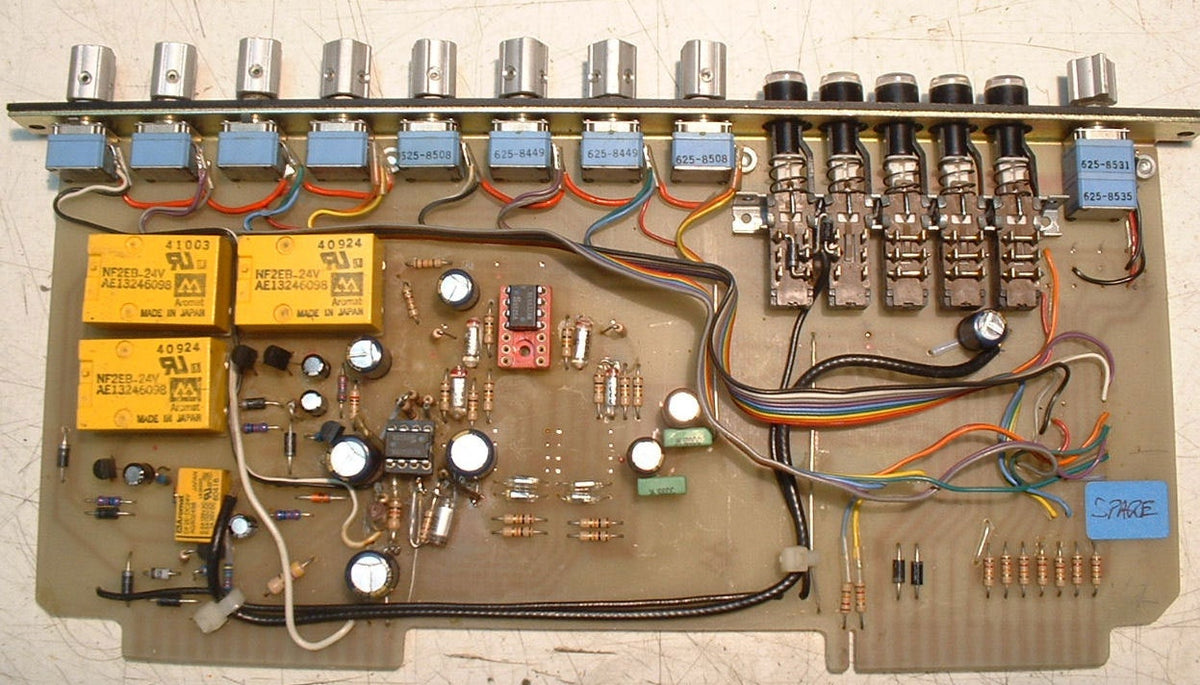

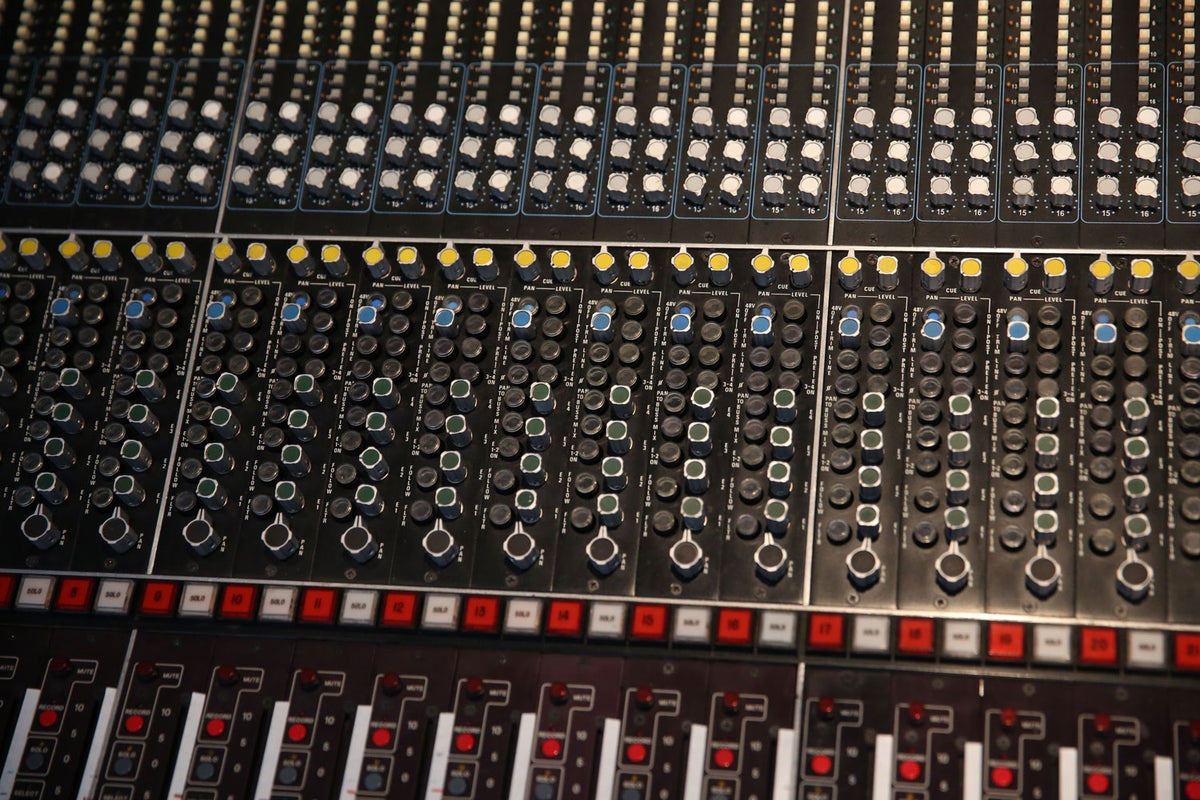

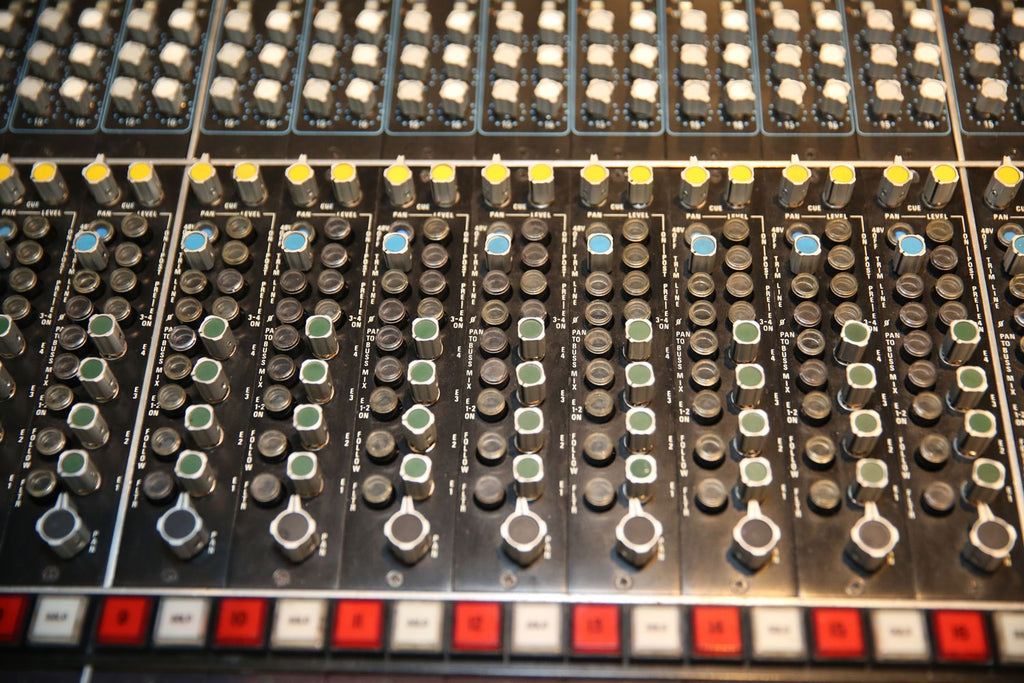

- Fully Modified Monitor Module with updated faceplate labels, Clarostat potentiometers on Echo, Cue, Pan sends, retrofitted Aromat relays on specially designed daughter boards
- Monitor Pan modification
- Cue Pre/Post switch modification
- Echo Post/Pre switch modification
- Solo Switch
- Follow (Channel Solo Safe) switch modification
- Echo Sends modification
- (4) Cue Sends modification
Console mounted Large LED timer with Start, Stop, and Reset switches
-

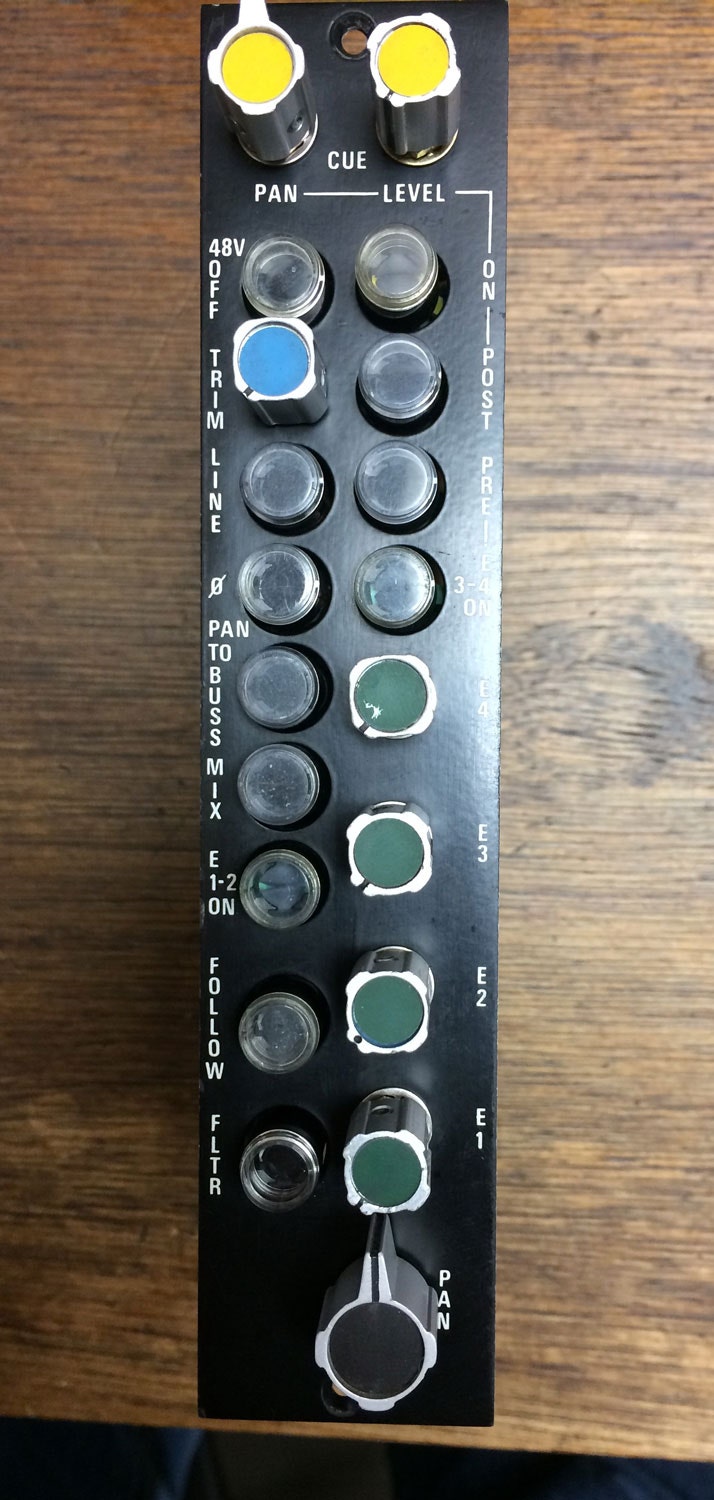

Factory API Console I/O Module
- 1 - Cue Pan Pot L/R (2 outputs)
- 2 - Cue Volume Pot
- 3 - 48VDC Phantom Power Switch
- 4 - Cue On/Off Switch
- 5 - Cue Pre/Post Switch
- 6 - Trim Rotary Vari Pot Mic/Line Gain(2 position - when pulled -20 pad)
- 7 - Line/Mic Select Switch
- 8 - Pre/Post Echo Global Select Switch (Echos 1-4)
- 9 - Phase Switch
- 10- Echo 1-2 On/Off Switch
- 11- Echo 3-4 On/Off Switch
- 12- Pan to Buss Switch
- 13- Mix Assign Switch
- 14- Follow Switch (Channel Safe Mode)
- 15- Filter Switch (low pass filter below 22KHz)
- 16- Echo Send Rotary Pot #1
- 17- Echo Send Rptary Pot #2
- 18- Echo Send Rotary Pot #3
- 19- Echo Send Rotary Pot #4
- 20- Pan Pot (Mix or Buss)
-

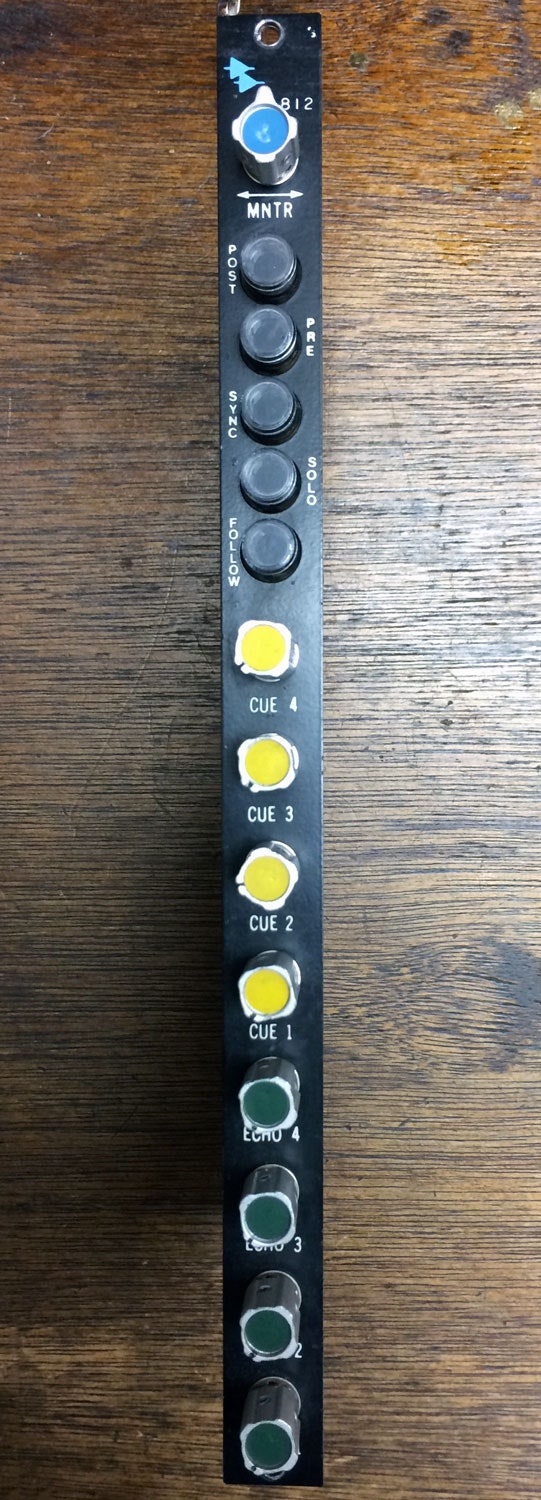

Factory API Console Monitor Module
- 1 - Pan Pot
- 2 - Post Cue Switch
- 3 - Pre Echo Switch
- 4 - Sync Switch (program/buss)
- 5 - Solo Switch
- 6 - Follow Switch (Channel Safe Mode)
- 7 - Cue #1 Send Pot
- 8 - Cue #2 Send Pot
- 9 - Cue #3 Send Pot
- 10- Cue #4 Send Pot
- 11- Echo #1 Send Pot
- 12- Echo #2 Send Pot
- 13- Echo #3 Send Pot
- 14- Echo #4 Send Pot
Specifications
| Analog or Digital | |
|---|---|
| Automation Included | Yes |
| Channels | |
| Direct Outputs | Yes |
| Number of Buses | |
| Patch Bay Included |
