Antelope Zen Tour with Edge Solo Modeling Microphone

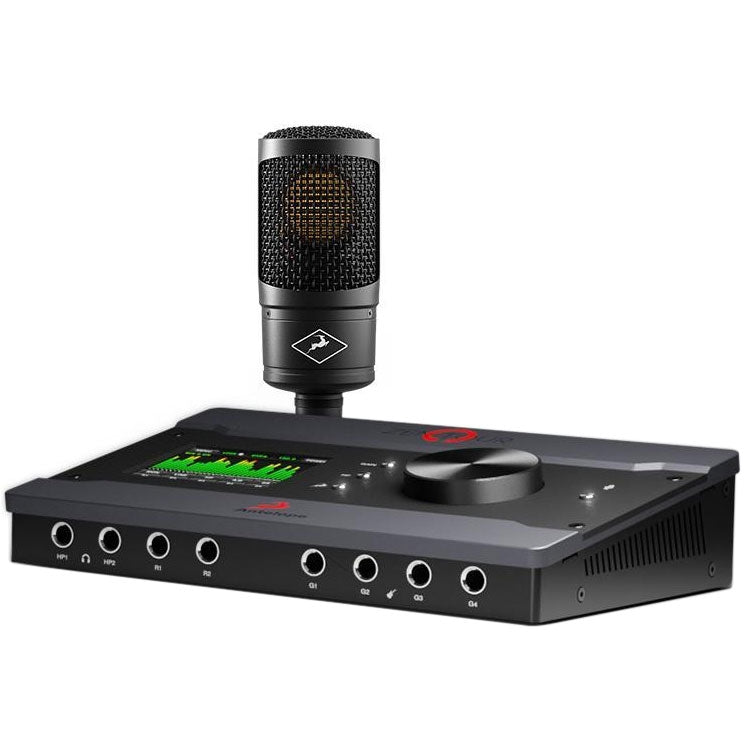

The Antelope Zen Tour + Edge Solo Bundle includes the Zen Tour Portable Interface with the Edge Solo Modeling Microphone, a single-capsule large-diaphragm condenser microphone capable of emulating some of the most iconic vintage microphones in the world!

Zen Tour

The Antelope Audio Zen Tour Portable Interface is a perfect fit for any studio professional or band who loves recording on the road. This compact, powerful interface is equipped with four switchable Mic/Line preamps, four additional line inputs, and can record up to 192 kHz/32-bit audio. Up to 16 additional channels of I/O can be added through the optical ADAT connection.

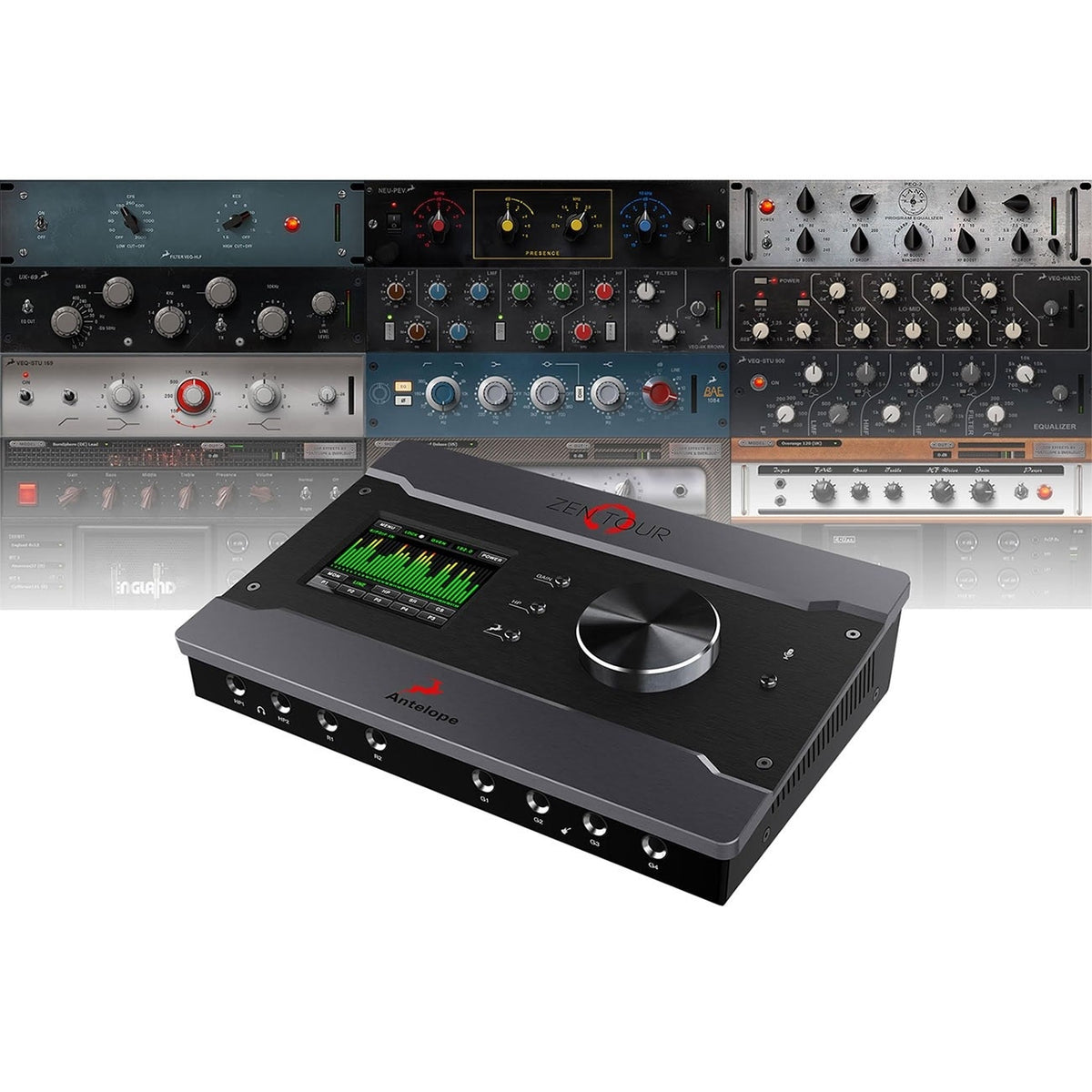

Custom FPGA technology allows Zen to perform with near zero-latency and is the same technology used in their leading interfaces. No need to add-on a bunch of third-party plug-ins, Zen Tour comes stocked with 50+ plug-in emulations of the industry's top gear.

With the Zen Tour interface, there is no need for a re-amp box. Two re-amp outputs are available on the front panel, making it very easy to vibe up your track by sending signal back through an amp or effects unit. Also on the front panel is easy access to four Hi-Z line inputs, two separate headphone outputs, and an internal talkback microphone.

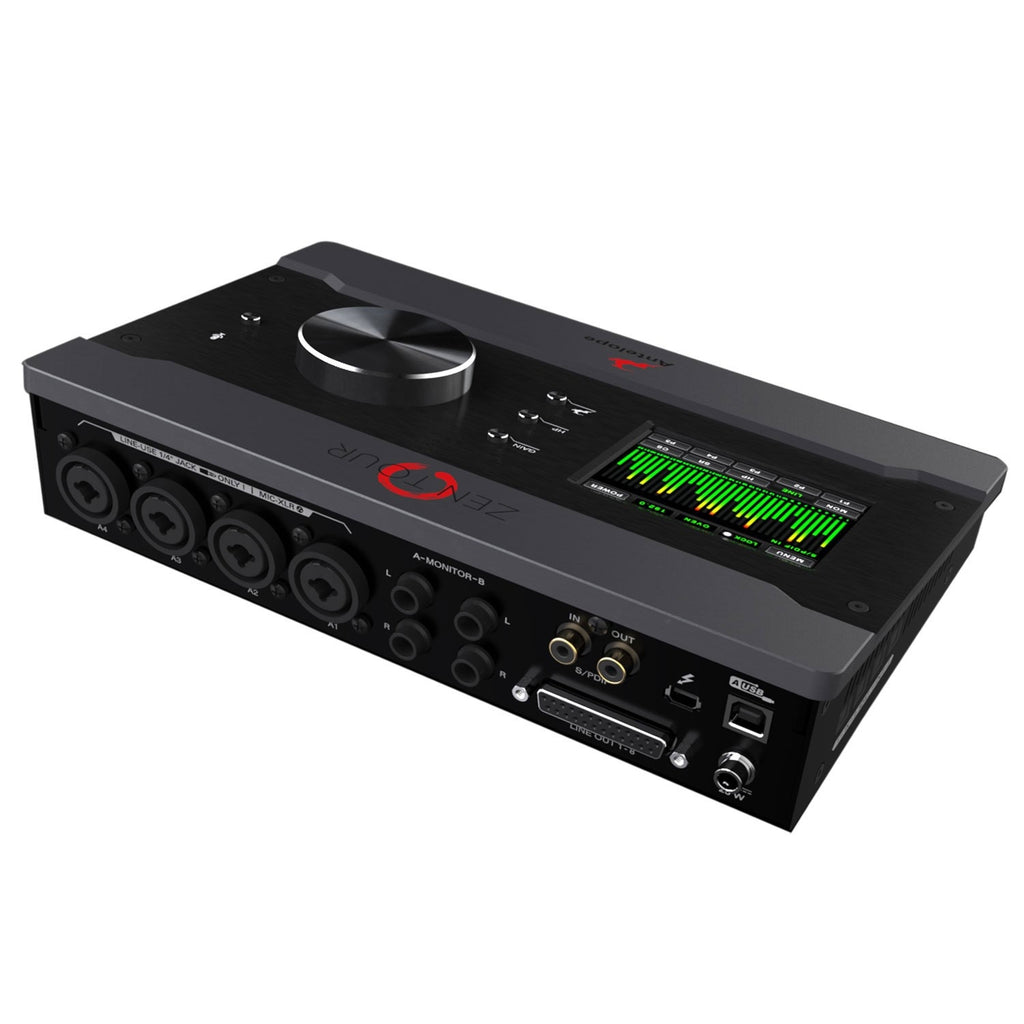

The rear panel has four Mic/Line inputs, two independent speaker outputs for multiple monitor selection, S/PDIF, eight channel line out through a DB25 connection, and USB and Thunderbolt connectivity.

SPECIFICATIONS:

• Analog Inputs: 4 x Mic / Line Instrument on XLR combos on the back; 4 x Hiz / Line on TRS on the front
• Digital Inputs: 2 x ADAT (up to 16CH); 1 x S/PDIF
• Analog Outputs: 8 x Lines on 1 x DB25 (8 channels);
• 2 x Stereo Monitor out on TRS (4 channels, only 1 active at a time); 2 x Stereo Headphone out on TRS (4 channels); 2 x ReAmp outs on TRS (2 channels)
• Digital Outputs: 2 x ADAT (up to 16CH); 1 x S/PDIF
• USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz 24 channels I/O
• Thunderbolt: 1 x Thunderbolt, 32 channels
• USB I/O; 1 x USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz, 24 channels I/O, Type B
• D/A Monitor Converter: Dynamic Range: 129 dB
• THD + N: -108 dB
• D/A Converter Dynamic Range: 120 dB; THD + N: -107dB
• A/D Converter Dynamic Range: 120 dB
• THD + N: -110 dB
• Sample Rates: 32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)
• Mic Pre: Gain: 0 – 65 dB; THD + N: -108 dB
• Clocking System: 4th Generation Acoustically Focused Clocking; 64-bit DDS; Oven Controlled Crystal Oscillator
• Clocking Stability: <+/-0.02 ppm, oven controlled at at 64.5ºC/ 148.1ºF
• Clock Aging: < 1 ppm per year
• Clock Calibration: <+/-0.001 ppm
• Power Supply: DC Universal Input 18V
• Power Consumption: 25 Watts Max

Edge Solo

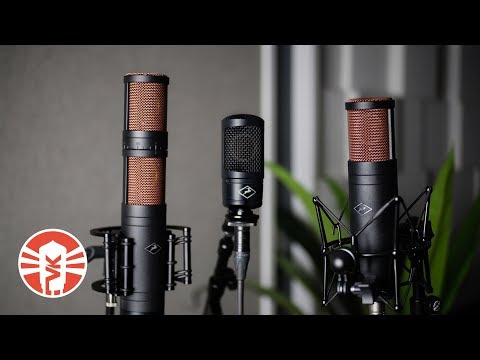

The Antelope Audio Edge Solo Modeling Microphone is a single-capsule large-diaphragm condenser microphone capable of emulating some of the most iconic vintage microphones in the world with unparalleled accuracy. This powerful modeling microphone features a fixed cardioid pickup pattern, making it incredibly easy to use—just point it at the sound source, choose one of the emulations and start tracking.

Outfitted with custom electronics designed by Antelope’s award-winning engineers, Edge Solo is capable of capturing sounds with pinpoint precision. This single-capsule condenser mic features a single 6-micron gold-sputtered membrane to provide superior transient response. The low-resonance body and low-reflection headbasket produce hyper-accurate recordings with a neutral frequency response from 20 Hz - 20 kHz. Edge Solo is perfect for capturing any sound source—with an impressive dynamic range of -116 dB THD+N. But nobody buys a pack of crayons for the beige one—the real charm of the Edge Solo lies in its ability to emulate more colorful mics.

MILLION DOLLAR MIC LOCKER

Edge Solo is specifically designed to be the perfect companion to Antelope Audio’s precision mic preamps and converters. When paired together with Antelope’s native mic emulation plug-ins, the possibilities are endless. Available in VST, AU and AAX formats for both macOS and Windows, Antelope’s native AFX plug-ins allow you to shoot out some of the world’s most renowned studio microphones in real-time. Choose from the hyper-accurate emulations modeled from an exquisitely preserved collection of classic microphones in one of the most respected facilities in Germany.

iLok 2 or 3 required. Not included in the pack.

MIC EMULATIONS:

• Berlin 47 FT
• Berlin 49T
• Berlin 57
• Berlin 87
• Berlin 67
• Berlin M103
• Vienna 12
• Vienna 414
• Tokyo 800T
• Berlin V563 cardioid capsule
• Illinois 57
• Illinois 7B
• Minnesota 20
• Vienna 112
• Berlin K86
• Berlin 47 TU
• Berlin M251
• Hamburg 441
