Antelope Audio Orion Studio rev. 2017

ALL YOU NEED IN JUST 1U

The Antelope Audio Orion Studio Rev. 2017 is a full recording studio that fits into one rack space. For 2017, Orion Studio got brand new AD converters, raising its dynamic range to an industry best 124 dB and features superior low latency performance.

It is equipped with 12 Class-A studio grade preamps, and one of the only interfaces can stand-alone record a full band right out of the box. Additional I/O can be added through its two ADAT connections, allowing up to 32 channels via Thunderbolt and 24 channels on the USB connection. Orion Studio Rev. 2017 can record up to 192 kHz/24-bit audio for the highest quality recording possible.

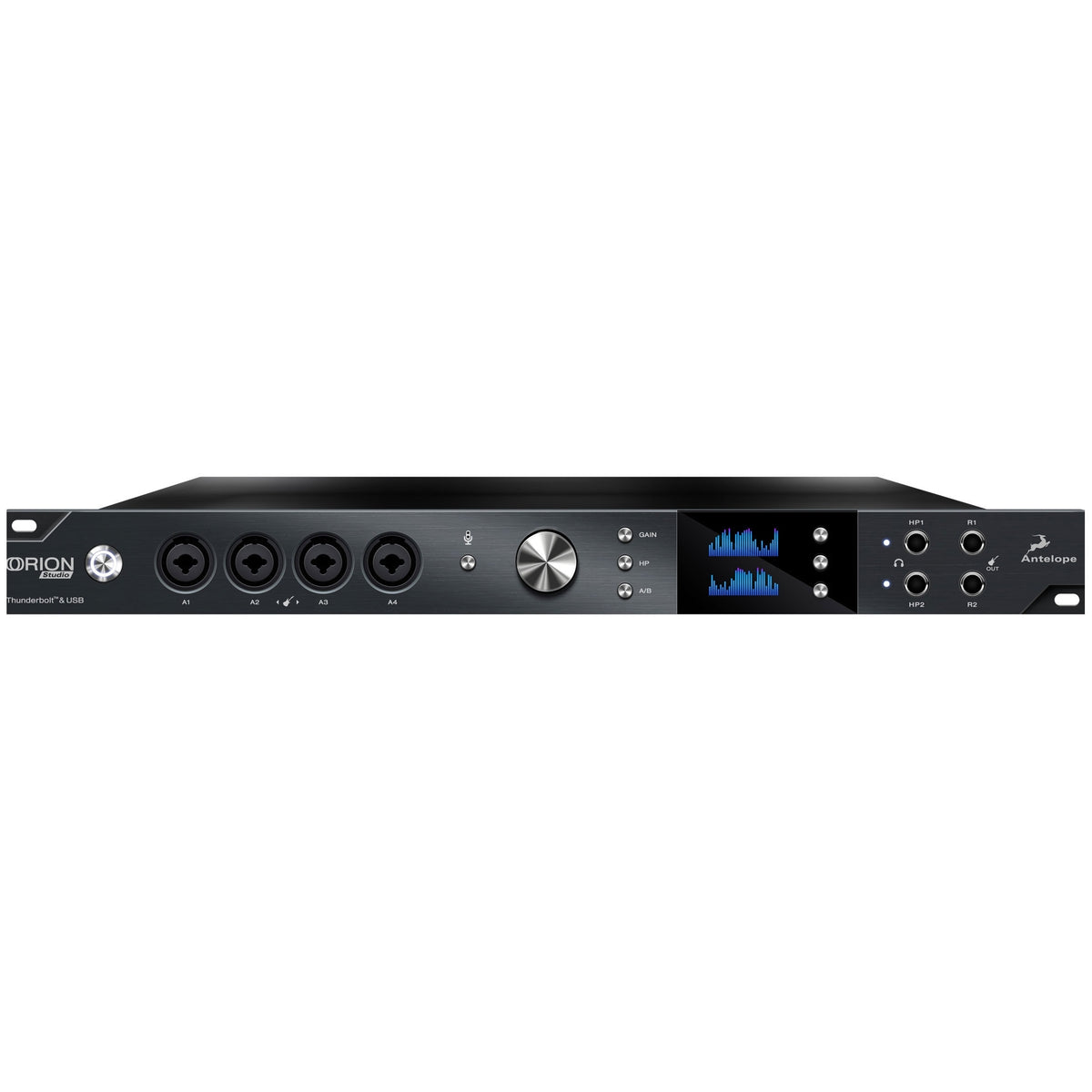

Front panel offers easy access to four microphone preamps, also with ¼” inputs. No need for a re-amp box with Orion Studio Rev. 2017, the front panel has two transformer re-amp outputs, making it easy to send signal back through a different amp for extra character. This is a great way to add more depth to a guitar track, bass, vocals, or drums.

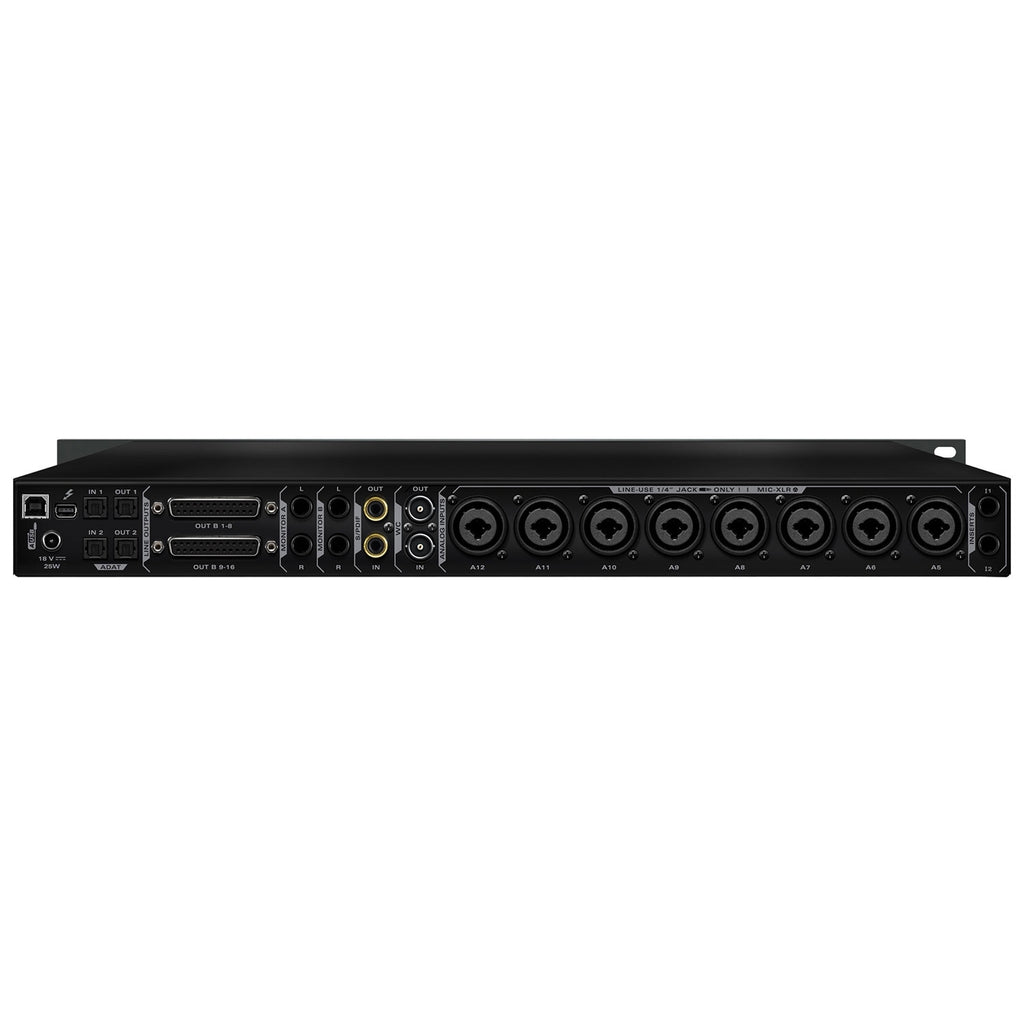

The rear panel is loaded with two, eight channel DB25 line out connections, making it very easy to install to a patchbay or directly to your console. Two optical connections for connecting external ADAT devices. Two separate master grade speaker outs independent from the audio channel line outs, speaker source is selectable by a button on the front panel. S/PDIF and word clock connections make seamless integration with other digital signals or external clocks. Lastly, there are two insert points for external dynamic processing.

Orion Studio Rev. 2017 is designed with FPGA technology, and is the key to having nearly zero latency, and the ability to monitor plug-ins while tracking. Also included, is over 50 Real-Time FX models of legendary EQs, compressors, guitar amps & cabs. Orion Studio Rev. 2017 is powered by the acclaimed 64-bit Acoustically Focused Clocking (AFC) jitter management technology, offering incomparable stability, sonic accuracy and audio detail.

Real-time FX

Orion Studio 2017 comes with an array of 70+ REAL-TIME FX included: Tape Machine, Preamps, EQs & Compressors, Mic Emulations:

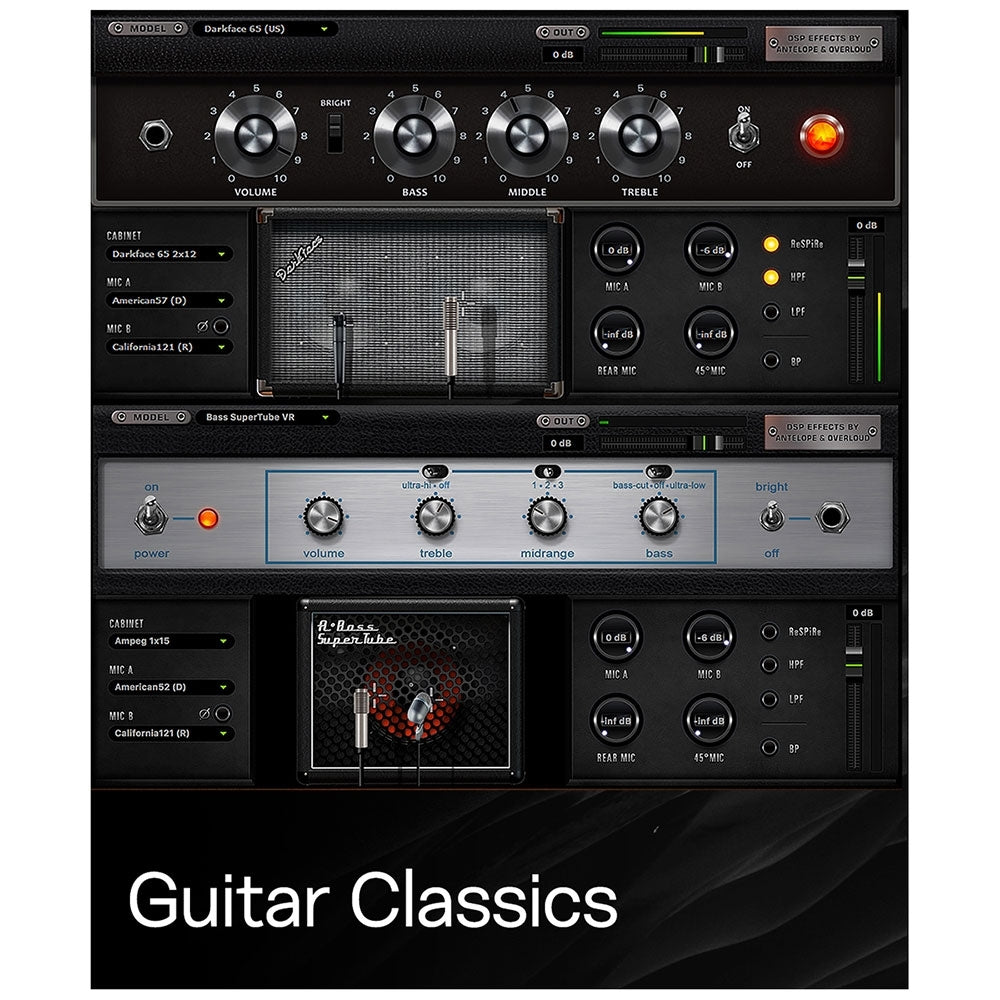

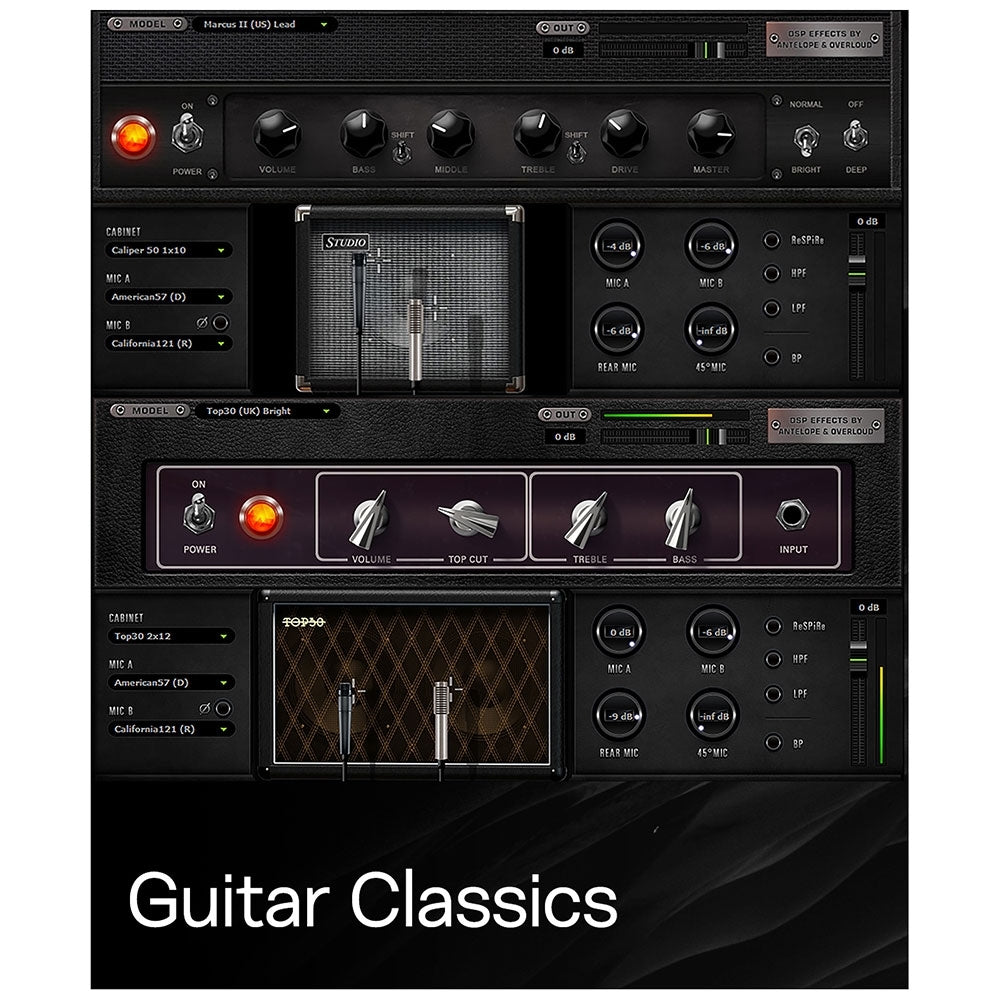

• GUITAR AMPS: Darkface 65 (US), Top30 (UK) Bright, Modern (US) CH3, Plexi 59 (UK), Rock 22.10 (UK), Rock75 (UK), MarcusII (US) Lead, Tweed Deluxe (US), Overange 120 (UK), BurnSphere (DE) Lead, Bass SuperTube VR
• GUITAR CABINETS: Darkface 65 2x12, Modern 4x12, Top 30 2x12, Clst 1x12, Bluelux 1x12, England 4x12, Green 2x12, Vintage 4x12, Green 4x12, Caliper 50 1x10, Bass Tube 1x15
• EQs: VMEQ-5, VEQ-1A, BAE-1073, VEQ-55A, VEQ-HLF, UK-69, LANG-PEQ2, NEU-PEV, NEU-W492, NEU-W495, VEQ-4K PINK, VEQ-4K ORANGE, VEQ-4K BLACK, VEQ-4K BROWN, BAE 1084, BAE 1023, VEQ-STU 089, VEQ-STU 169, VEQ-STU 900, VEQ-HA32C, VEQ-55B

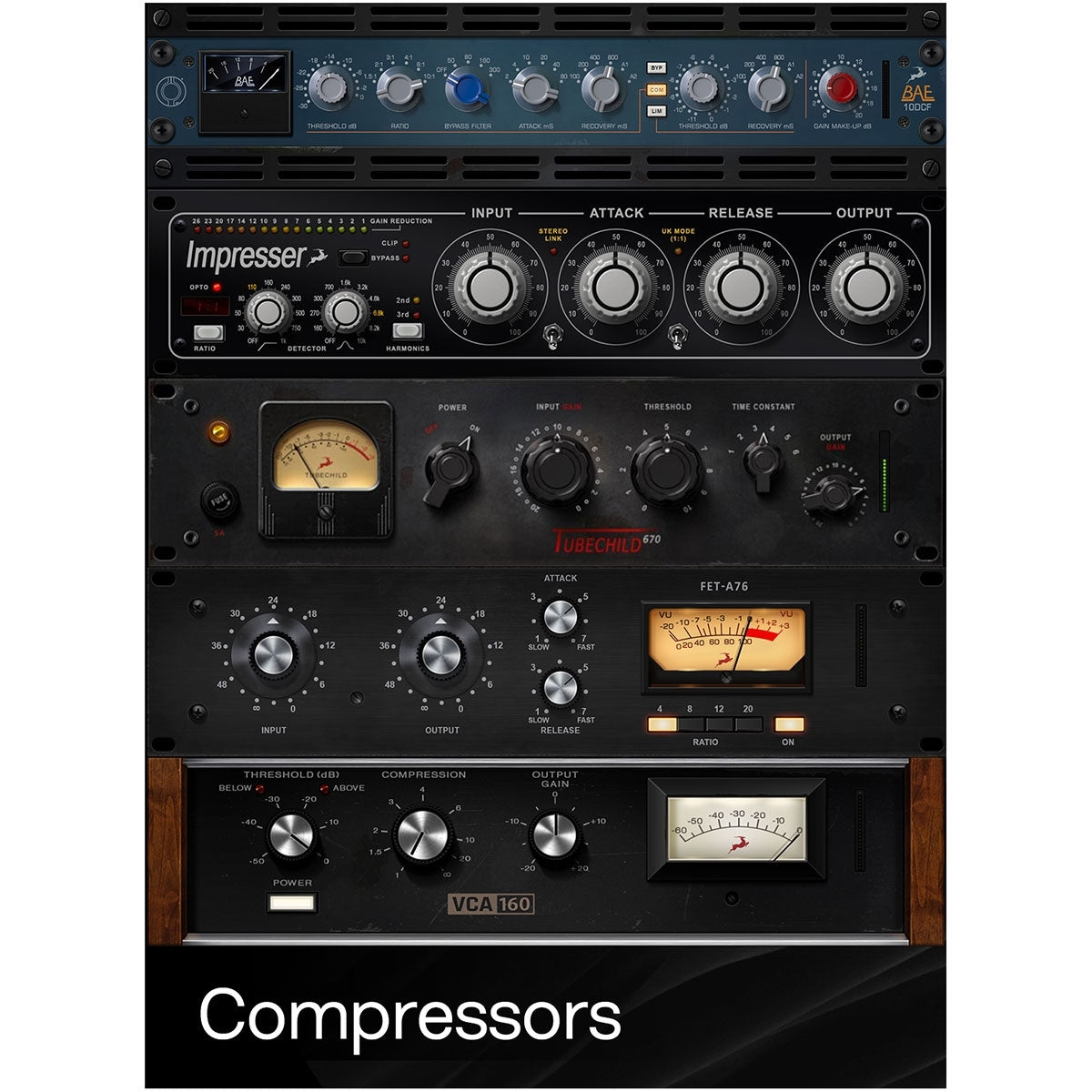

• COMPRESSORS: Antelope FeedForward Compressor, FET-A76, VCA160, x903, Tube176, Gyraf Gyratec X, Grove Hill Liverpool, Stay Levin, ALT-436C, SMT-100A, FET-78A, BA-6A, Tubechild 670, Impresser, BAE 10DCF
• REVERB: Auraverb
• MIC PREAMP EMULATIONS: Gyratec IX, VPA 76, BAE-1073MP, RD-47, BA-31
• OTHER EFFECTS: Reel to Reel, Master De-esser, PowerGate, PowerEx
• EDGE SOLO MIC EMULATIONS: Berlin 47 FT, Berlin 49T, Berlin 57, Berlin 87, Berlin 67, Berlin M103, Vienna 12, Vienna 414, Tokyo 800T, Berlin V563, Illinous 57, Illinois 7B, Minnesota 20, Vienna 112, Berlin K86, Berlin 47 TU, Berlin M251, Hamburg 441
• EDGE QUADRO MIC EMULATIONS: Berlin 47 FT, Berlin 49T, Berlin 57, Berlin 87, Berlin 67, Berlin M103, Vienna 12, Vienna 414, Tokyo 800T, Oxford 4038, Sacramento 121R
• EDGE DUO MIC EMULATIONS: Berlin 47 FT, Berlin 87, Berlin 67, Tokyo 800T, Oxford 4038, Berlin M103, Berlin 49T, Sacramento 121F, Berlin 57, Vienna 12, Vienna 414
• VERGE MIC EMULATIONS: Berlin 184, Perth 55, Freiburg 6, Aalborg 4006, Hamburg 40, Berlin K86, Berlin K53, Berlin K54, Illinois 57, Illinois 7B, Hamburg 211, Hamburg 441, Vienna D112
