Analogue Solutions EKG

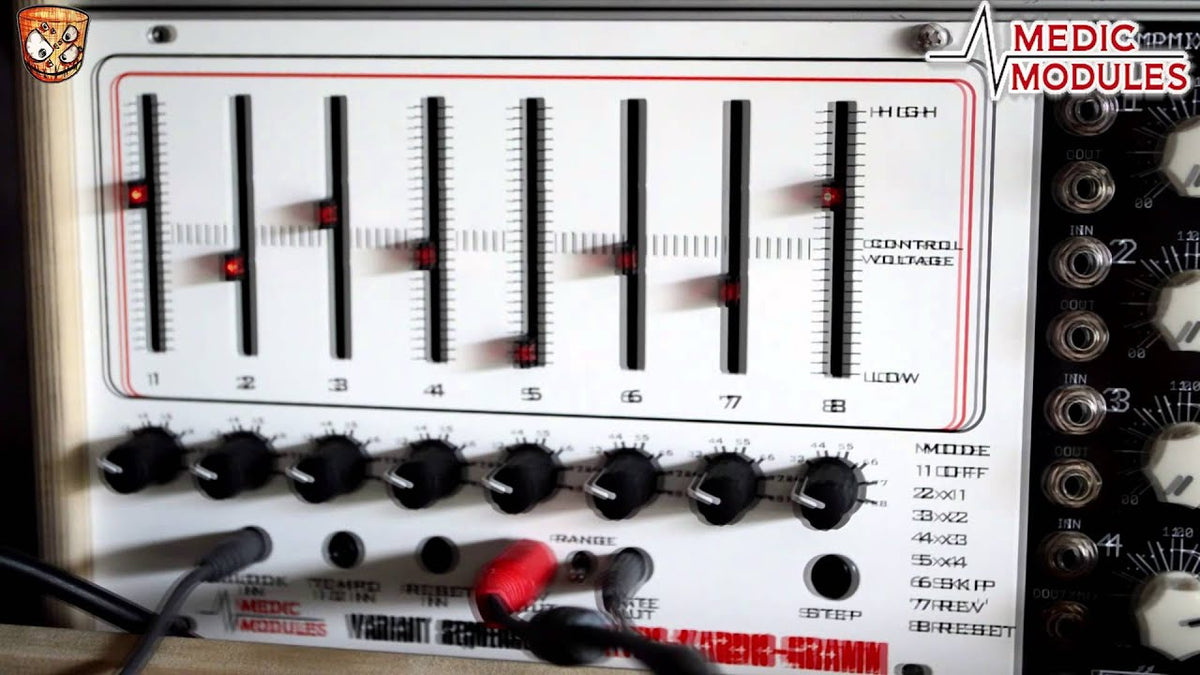

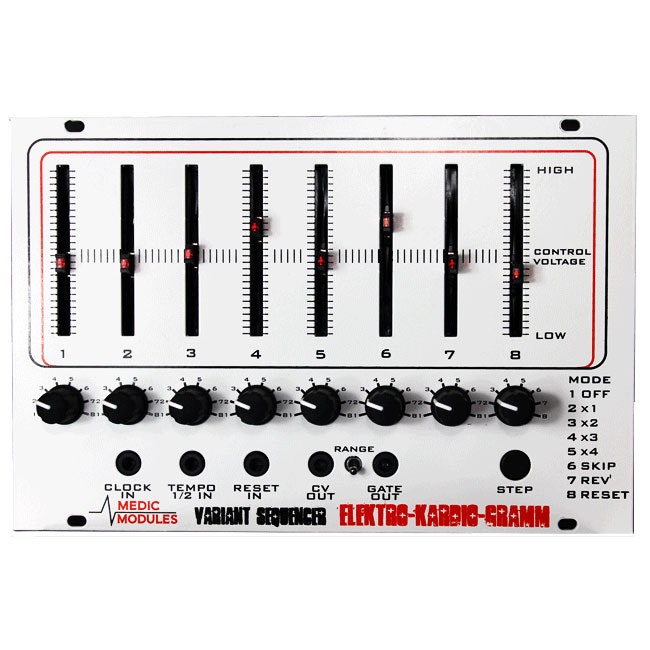

The Analogue Solutions EKG (Elektro Kardio Gramm) is a versatile 8-step analogue sequencer designed to fit the eurorack convention. Each step has a unique Function Control and can be turned off, skipped, repeated or set as a reset point.

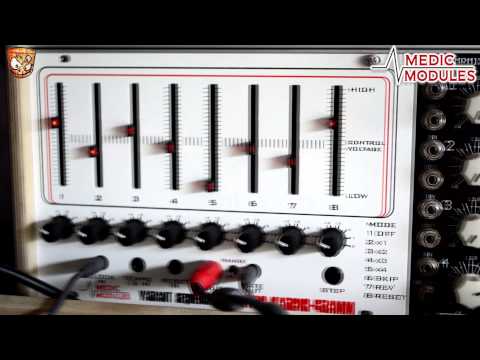

Controls:

• CLOCK IN: This is the clock input. Use a 5V clock signal, or a signal from an LFO
• TEMPO 1/2 IN: When this socket sees 5V, the sequencer will run at half speed.
• RESET IN: When this socket sees a 5V signal, the sequencer will reset to Step 1.
• CV OUT & RANGE: Connect the CV out to your modular synth’s VCO to control Pitch, or to Cut-Off on your Filter
• GATE OUT: Connect this to the EG Trigger input on your synth. Output is 5V.

Operational Modes:

• Mode 1: This is essentially a Rest - no Gate sent out - OFF
• Mode 2: The step is played once, with one Gate being x1 sent out
• Mode 3: The step is played twice, with two Gates being x2 sent out
• Mode 4: The step is played thrice, with three Gates being x3 sent out
• Mode 5: The step is played four times, with four Gates x4 being sent out
• Mode 6: The step is entirely missed and the sequencer SKIP instead jumps to the next step
• Mode 7: The sequencer plays backwards all the REV(erse) way to step one
• Mode 8: Sequencer resets to step One - this step is RESET not ‘played’ - use this to change sequence length
