The AKG P820 Tube high-performance multi-pattern tube microphone is an excellent tool for highlighting lead vocals, brass instruments, electric guitars and drums. With its dual one-inch diaphragm capsule and the advanced ECC83 dual-triode circuitry, the P820 Tube delivers real tube sound and raises the bar in its class of affordable tube microphones.
TECHNICAL SPECIFICATION
- Audio Frequency Bandwidth: 20 to 20000 Hz
- Sensitivity: 20 mV/Pa
- Equivalent Noise Level: 16 dB-A
- Signal to Noise: 78 dB-A
- Preattenuation Pad: -20 dB
- Bass Cut Filter: 80 - 12 dB/octave (selectable on remote control unit) Hz
- Electrical Impedance: <= 200 Ohms
- Recommended Load Impedance: >= 1000 Ohms

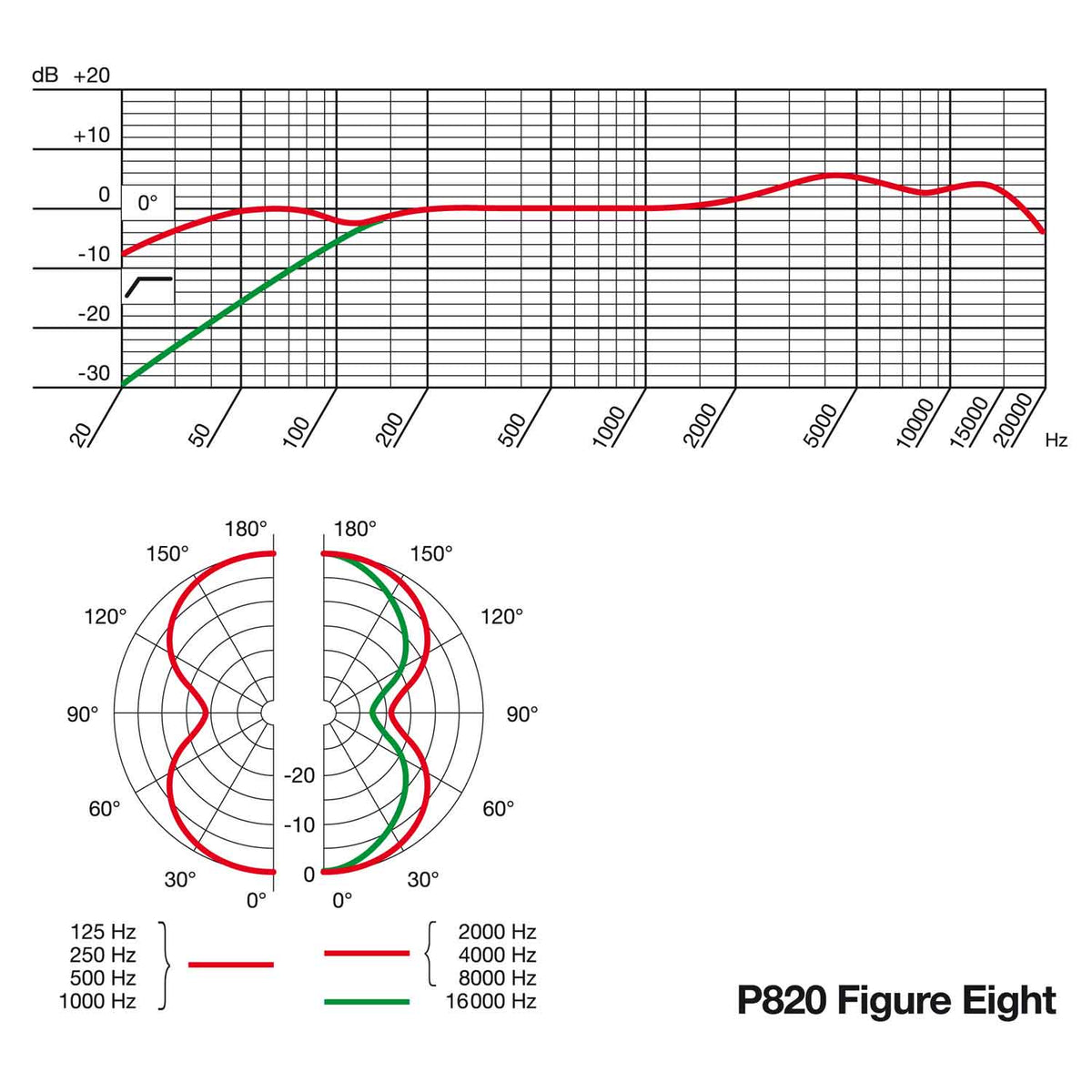

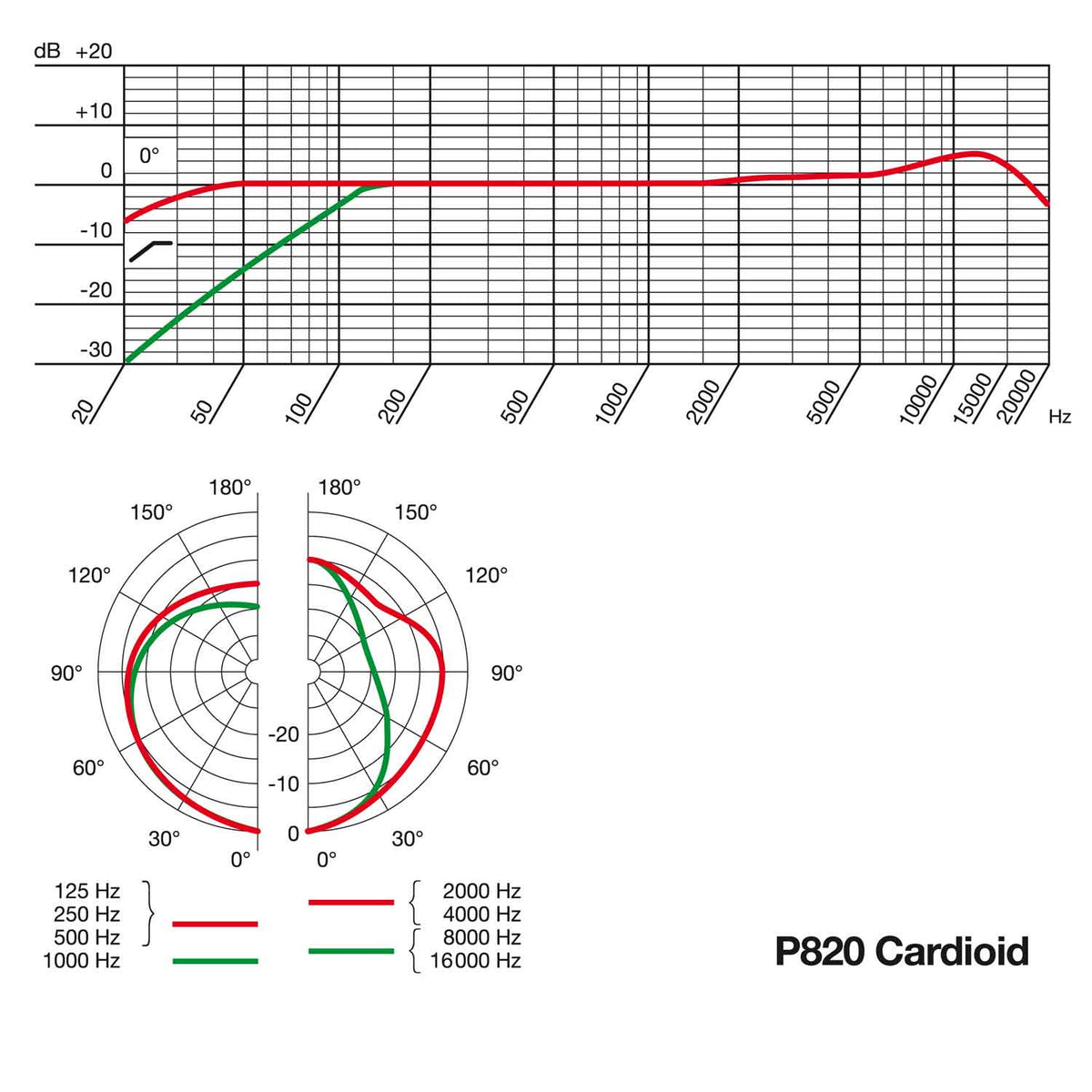

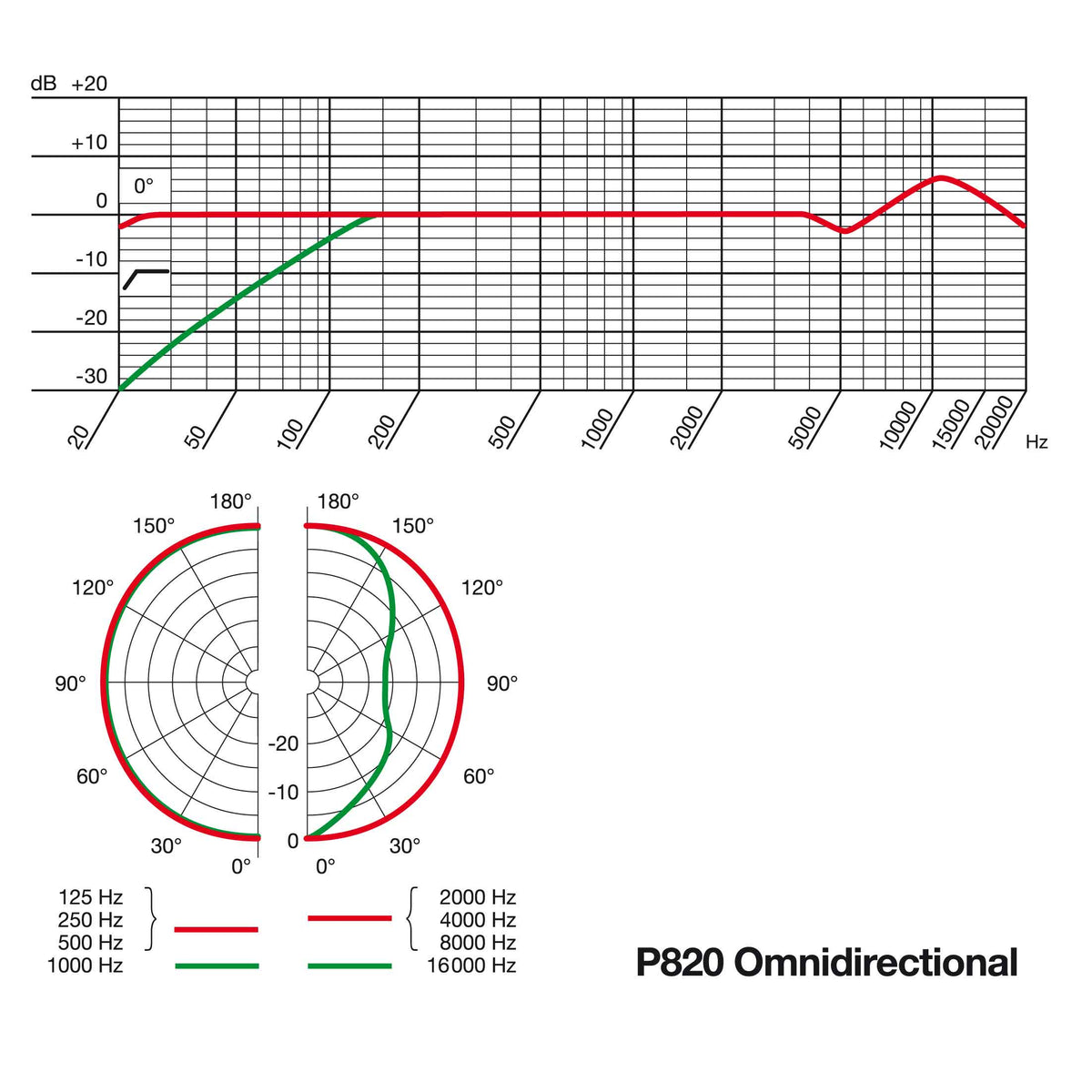

- Polar Patterns
- Cardioid
- Omnidirectional
- Figure of eight
- Dimensions / Weight
- Length: 212 mm
- Diameter: 54 mm
- Net Weight: 765 g

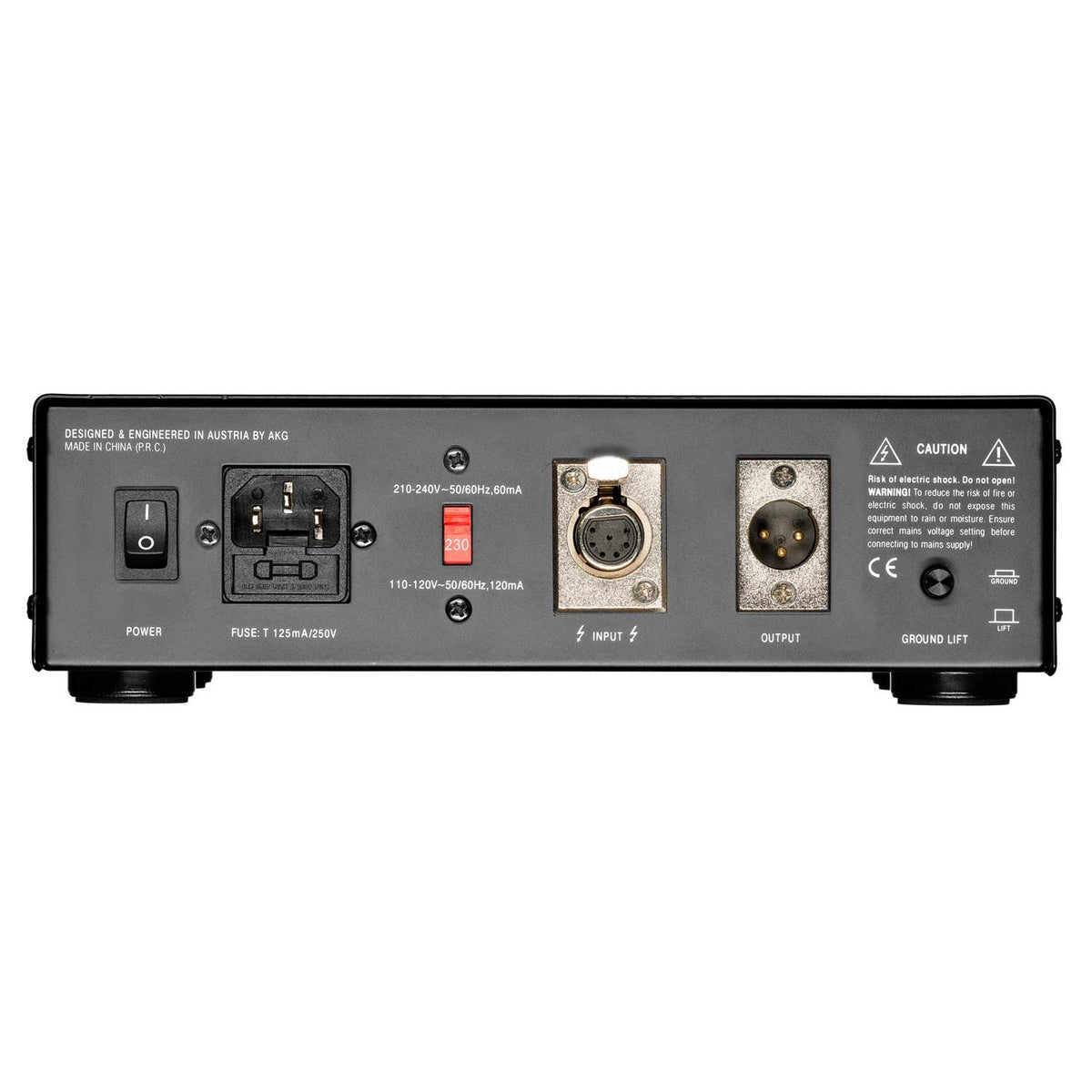

- Power Supply
- Primary Fuse 125 mA / 250 V slow-blow
- Powering 210-240 VAC or 110-120 VAC (selectable)
Specifications
| Diameter | |
|---|---|
| Filters | |
| Frequency Range | |
| Impedance | |
| Input Pad | |
| Length | |
| Number of Microphones | |
| Package Contents | |
| Phantom Required | No |
| Polar Pattern | Bi-Directional, Cardioid, Omni-Directional |
| Sensitivity | |
| Max. SPL | |
| Transducer Type | Condenser |
| Tube or Solid State |
