4ms Company Rotating Clock Divider - Rev 2

MFR# RCD

Rotating clock divider Eurorack module

Product No Longer Available

Need help finding a different option? We can help.

We respond within one business day. All inquiries are confidential.

Please note: This item requires a Eurorack/Modular Synth Case for operation. Shop Eurorack Cases.

Experts At Your Service

Have a question? Our Audio Consultants and Technicians have years of real-world experience and are ready to help.

Call now

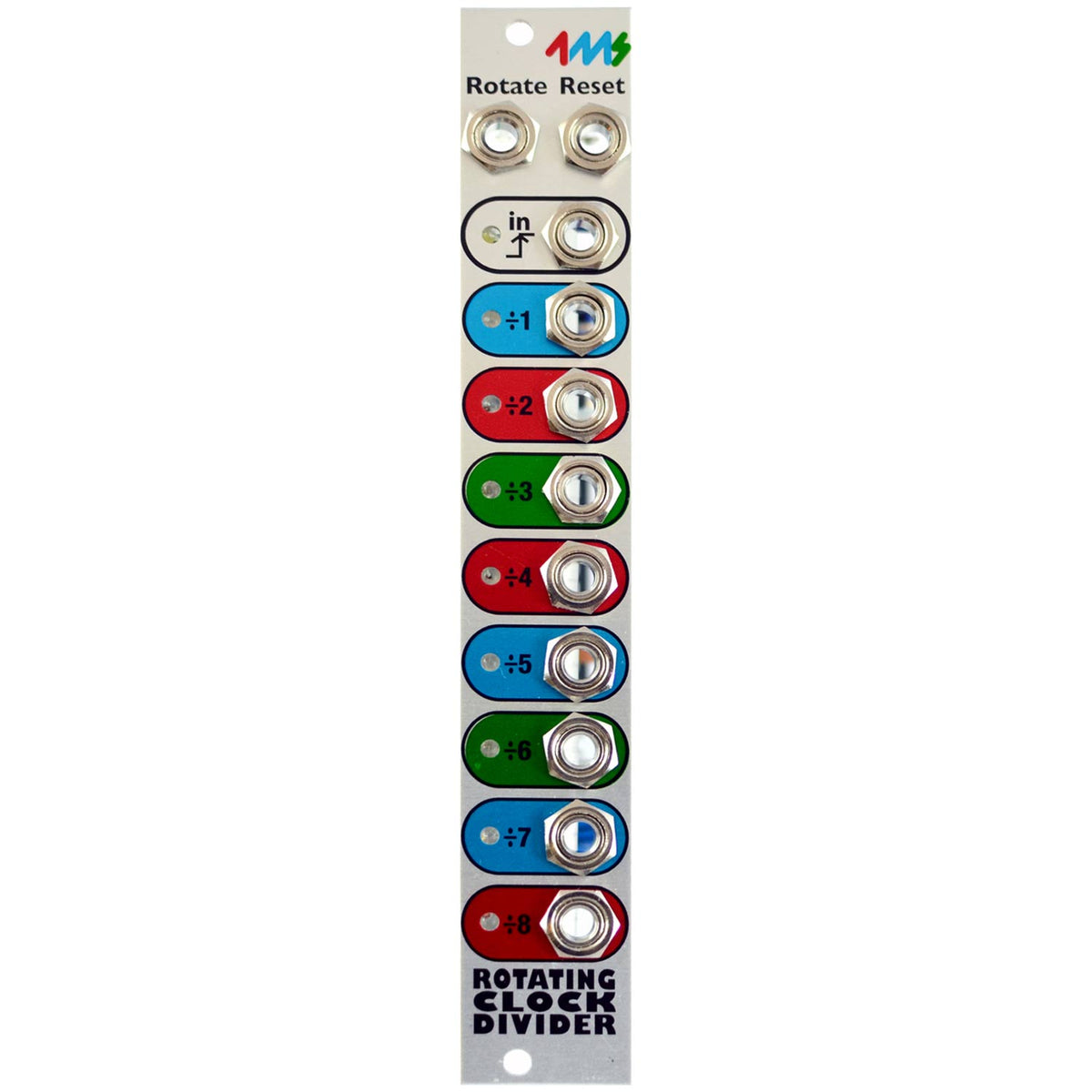

The 4ms Rotating Clock Divider (RCD) produces eight divided clock tempos from a single input clock. The divisions range from /1 to /64, including all odd and non-standard divisions such as /3 and /17 and /62. A Rotate CV input re-assigns the division number of each jack, allowing for creative mix-ups and experimentation. A Reset input jack helps to sync/start with an external clock.

Module size:

The RCD is 4HP and 35mm (1.39") deep

Power consumption:

  • 5VSEL Jumper set to INT:
  • 33mA maximum power draw from +12V rail
  • 0mA max on the +5V rail
  • 4mA maximum power draw on the -12V rail
  • 5VSEL Jumper set to EXT:
  • 19mA maximum power draw on the +12V rail
  • 14mA max on the +5V rail
  • 4mA maximum power draw on the -12V rail
