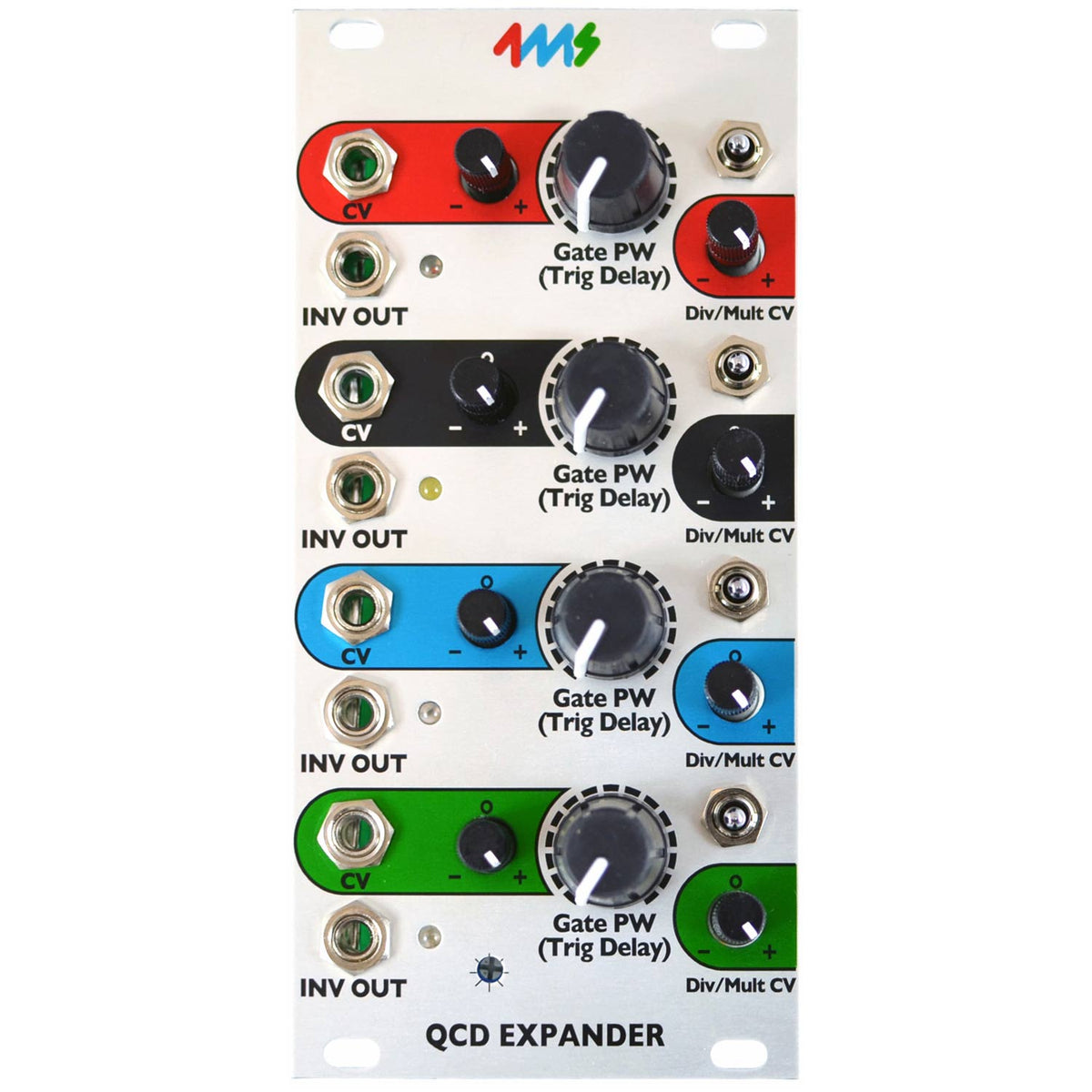

The 4MS QCD Expander is an expansion module for the Quad Clock Distributor (QCD). The QCD Expander adds a host of features, turning the QCD into a programmatic non-linear sequencer. Each channel gets a CV Trigger Delay (Pulse Width) jack and knob, an additional output jack with three selectable modes, and attenuverters for all CV input jacks. Self-patched evolving rhythms and swing/shuffle patterns are easily obtained, as well as complete control over standard rhythmic patterns.
Specs:
- Module size:

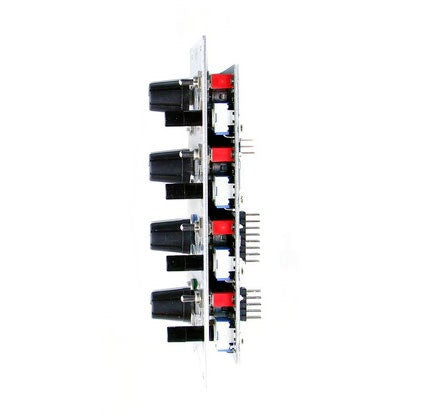

- The QCD Expander is 12HP and 0.98" (25mm) deep.
Four knobbed pots have a metal shaft and nut. Eight knobless pots are center-detent with white indicator line.
Power consumption:
- +12V rail: 44mA max
- +5V rail: not used
- -12V rail: 30mA max
Specifications
| Chassis | |
|---|---|
| Input Connectors | 3.5 mm TRS |
| Module Slot Count | |
| Module Type | |
| Output Connectors | 3.5 mm TRS |
| Synth Module Connectors |
